DIN 172

Guide Bushings

Steel / Stainless Steel, Drill Bushings, with Collar

Enquire Now

Description

Specification

Type

Type A: Bore one-sided rounded

Steel

Hardened (HRC 62 ±2)
Fit size d₁ / d₂ ground

Stainless steel AISI 440B NI

Hardened (HRC 55 +4)
Fit size d₁ / d₂ ground

Information

Guide bushings DIN 172 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications.

Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended.

For guide applications, combination with the guide pins GN 771.1 is recommended.

On request

Other bores d₁
Bore d₁ both-sided rounded (Type B)

Technical information

ISO-Fundamental Tolerances

DIN 172-NI

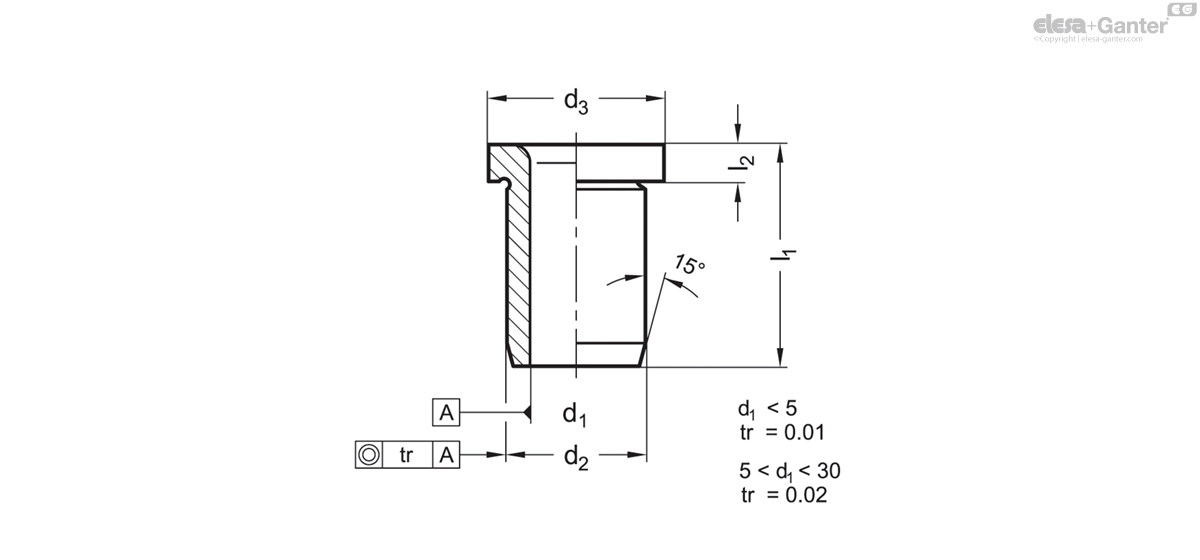

	d₁ F7	l₁	d₂ n6	d₃	l₂
Code							Actions
DIN 172-B4,1-8-A-NI	B 4.1	8	8	11	2.5	3
DIN 172-B4,1-12-A-NI	B 4.1	12	8	11	2.5	4
DIN 172-B4-8-A-NI	B 4	8	7	10	2.5	2
DIN 172-B4-12-A-NI	B 4	12	7	10	2.5	4
DIN 172-B5,1-10-A-NI	B 5.1	10	10	13	3	6
DIN 172-B5,1-16-A-NI	B 5.1	16	10	13	3	8
DIN 172-B5-8-A-NI	B 5	8	8	11	2.5	4
DIN 172-B5-12-A-NI	B 5	12	8	11	2.5	3
DIN 172-B6,1-10-A-NI	B 6.1	10	12	15	3	8
DIN 172-B6,1-16-A-NI	B 6.1	16	12	15	3	12
DIN 172-B6-10-A-NI	B 6	10	10	13	3	5
DIN 172-B6-16-A-NI	B 6	16	10	13	3	7
DIN 172-B8,1-12-A-NI	B 8.1	12	15	18	3	13
DIN 172-B8,1-20-A-NI	B 8.1	20	15	18	3	21
DIN 172-B8-10-A-NI	B 8	10	12	15	3	6
DIN 172-B8-16-A-NI	B 8	16	12	15	3	9
DIN 172-B10,1-12-A-NI	B 10.1	12	18	22	4	20
DIN 172-B10,1-20-A-NI	B 10.1	20	18	22	4	30
DIN 172-B10-12-A-NI	B 10	12	15	18	3	10
DIN 172-B10-20-A-NI	B 10	20	15	18	3	17
DIN 172-B12,1-16-A-NI	B 12.1	16	22	26	4	37
DIN 172-B12,1-28-A-NI	B 12.1	28	22	26	4	62
DIN 172-B12-12-A-NI	B 12	12	18	22	4	16
DIN 172-B12-20-A-NI	B 12	20	18	22	4	26
DIN 172-B14,1-16-A-NI	B 14.1	16	22	26	4	32
DIN 172-B14,1-28-A-NI	B 14.1	28	22	26	4	53
DIN 172-B14-16-A-NI	B 14	16	22	26	4	32
DIN 172-B14-28-A-NI	B 14	28	22	26	4	53
DIN 172-B15,1-16-A-NI	B 15.1	16	26	30	4	48
DIN 172-B15,1-28-A-NI	B 15.1	28	26	30	4	80
DIN 172-B15-16-A-NI	B 15	16	22	26	4	29
DIN 172-B15-28-A-NI	B 15	28	22	26	4	48
DIN 172-B16,1-16-A-NI	B 16.1	16	26	30	4	45
DIN 172-B16,1-28-A-NI	B 16.1	28	26	30	4	75
DIN 172-B16-16-A-NI	B 16	16	26	30	4	46
DIN 172-B16-28-A-NI	B 16	28	26	30	4	76
