DD50
Mechanical position indicators
direct drive, 3-digit counter, technopolymer
Description
Main specifications
Base and case
High-resistance polyamide based (PA) technopolymer.
Black base.
Case in the following colours:

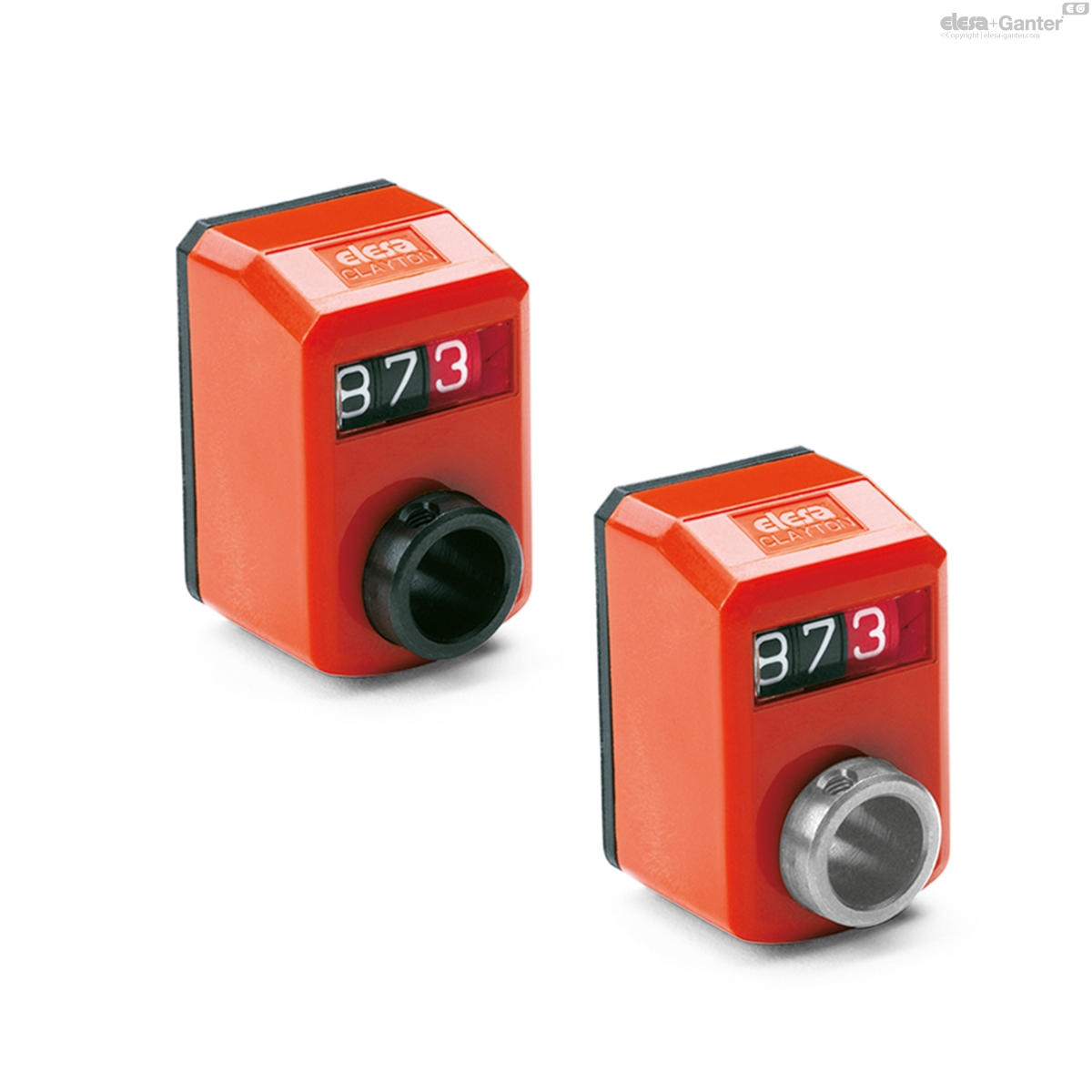

- C2: RAL 2004 orange, glossy finish.

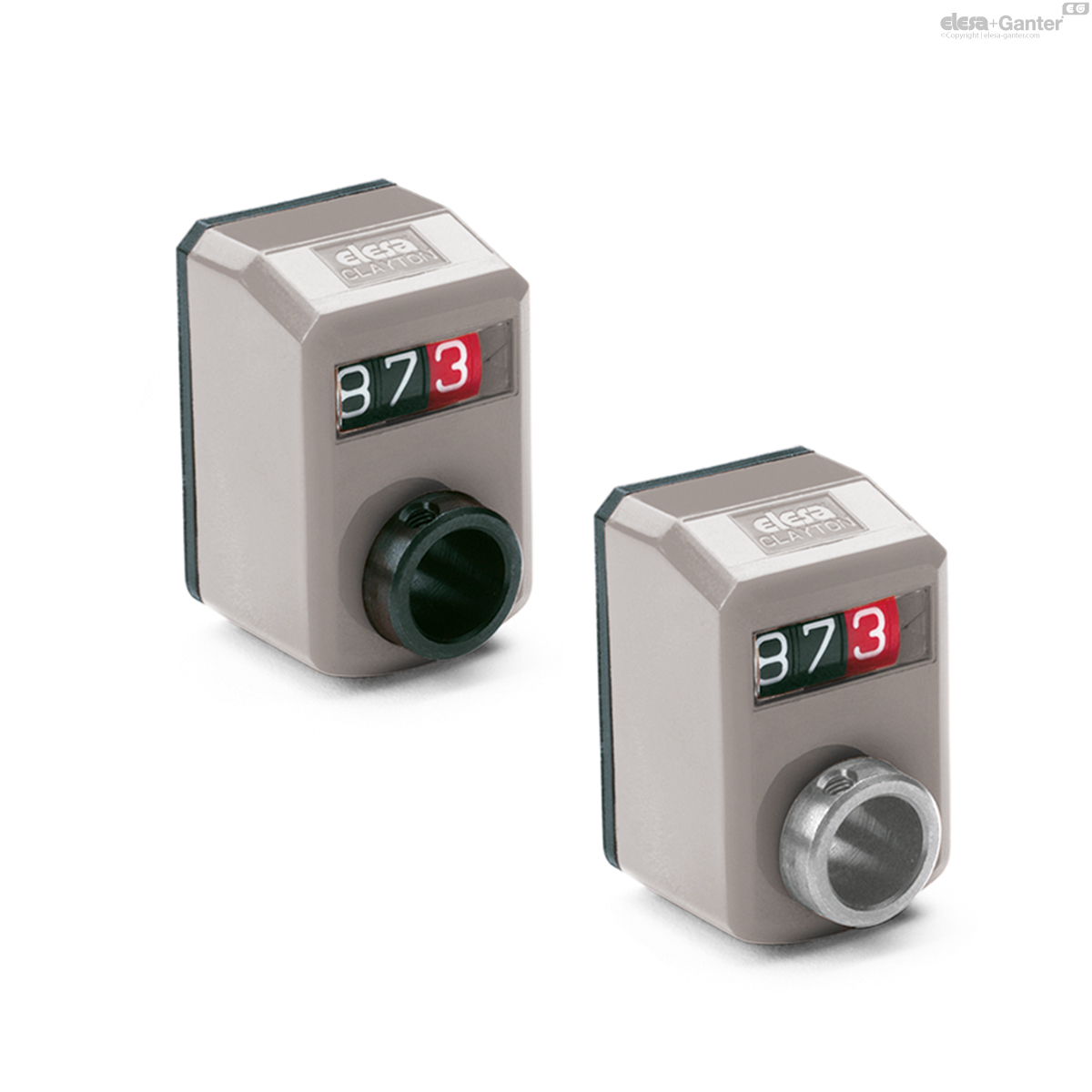

- C3: RAL 7035 grey, glossy finish.

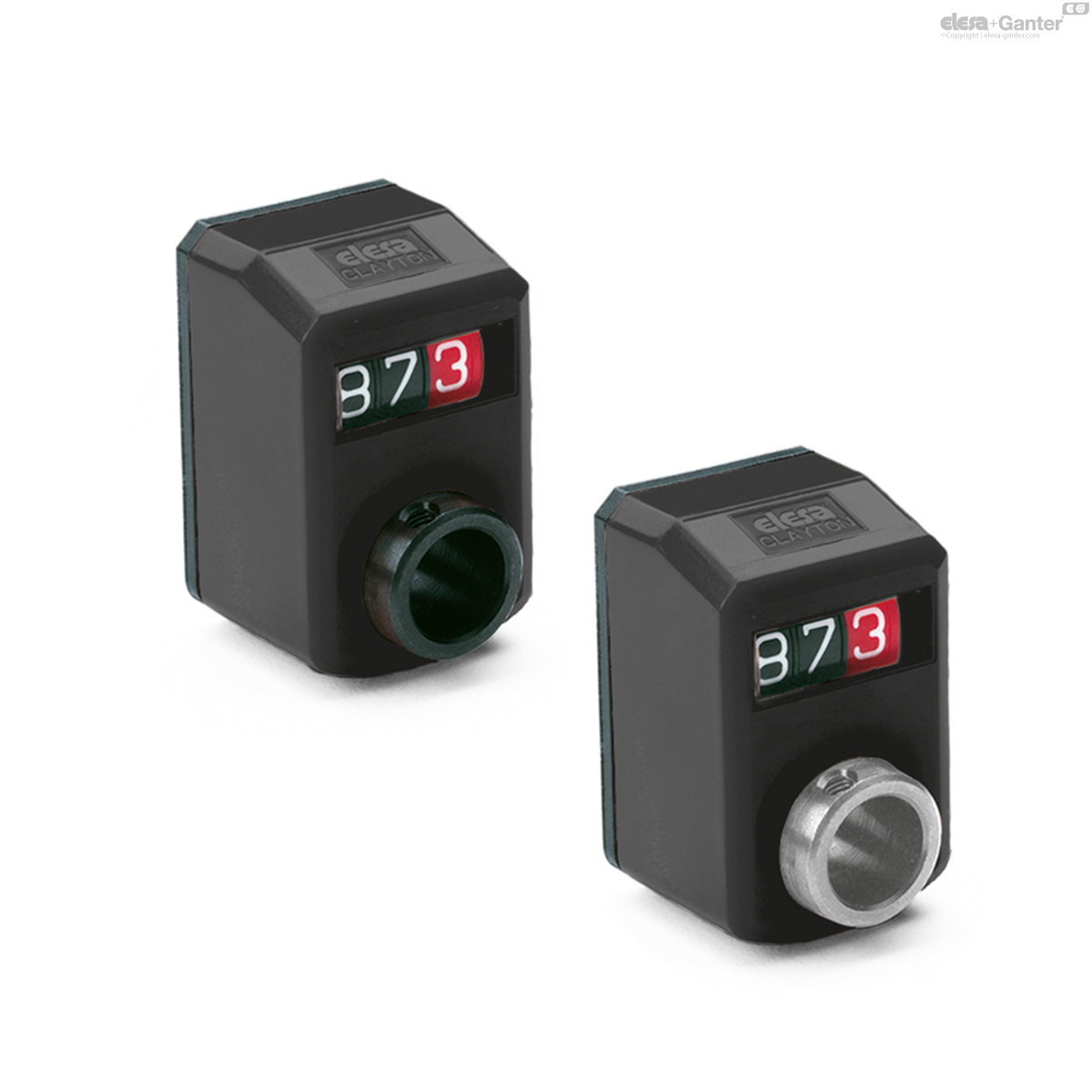

- C1: RAL 7021 grey-black, glossy finish.
The ultrasonically welding between the base and the case prevents separation and avoids dust penetration.
Window
Transparent polyamide based (PA-T) technopolymer, moulded over the case and with a perfect seal. Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).
Display
It indicates the displacement of the mechanism controlled by the spindle from the start position (0).
Three-digit roller counter. The digits of red rolls show the decimal values.

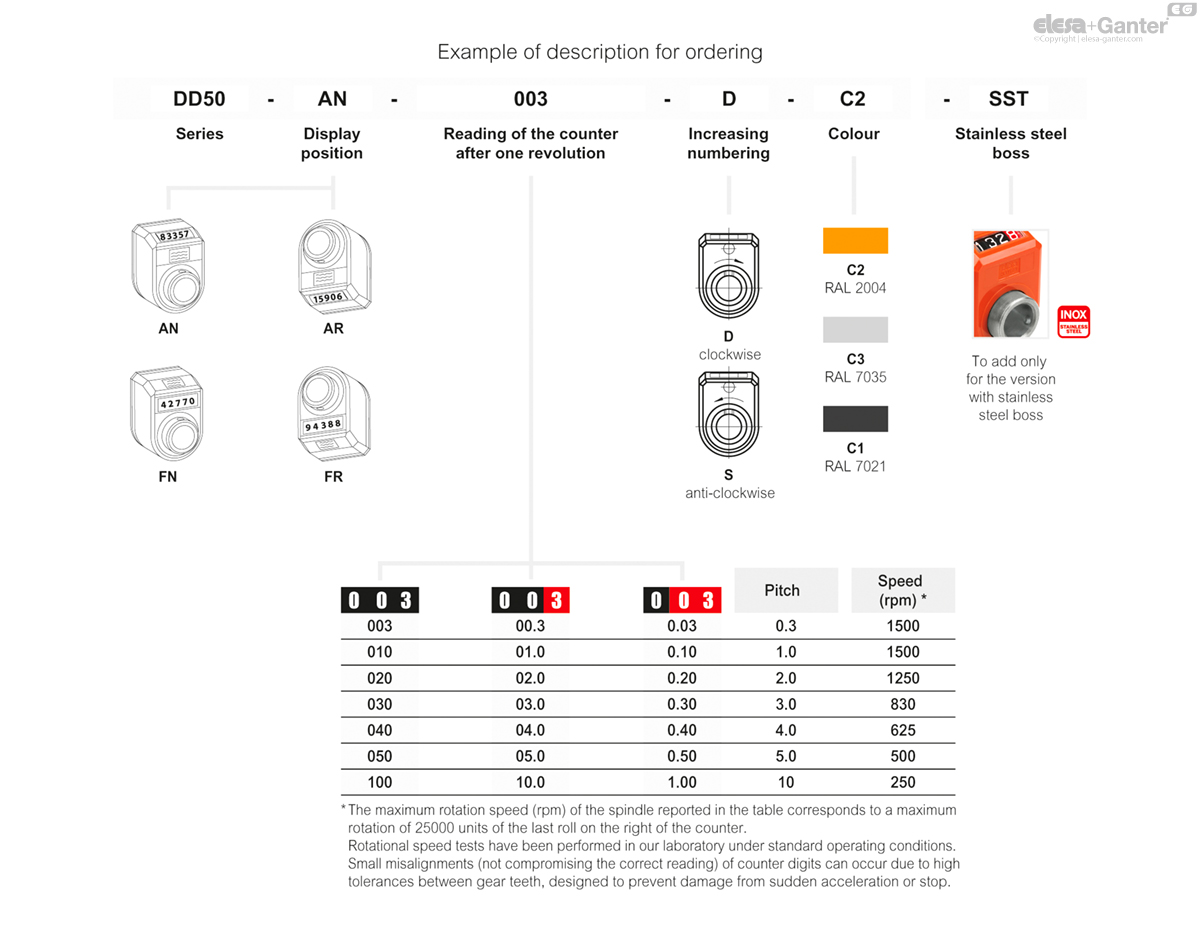

The display can be in different positions (see 'Example of description for ordering').
- AN: inclined display, counter in upper position.
- AR: inclined display, counter in lower position.
- FN: front display, counter in upper position.
- FR: front display, counter in lower position.
Internal gasket
O-ring front sealing in NBR synthetic rubber, between the case and the boss.
Rear gasket
Foam polyethylene, supplied.
Standard execution

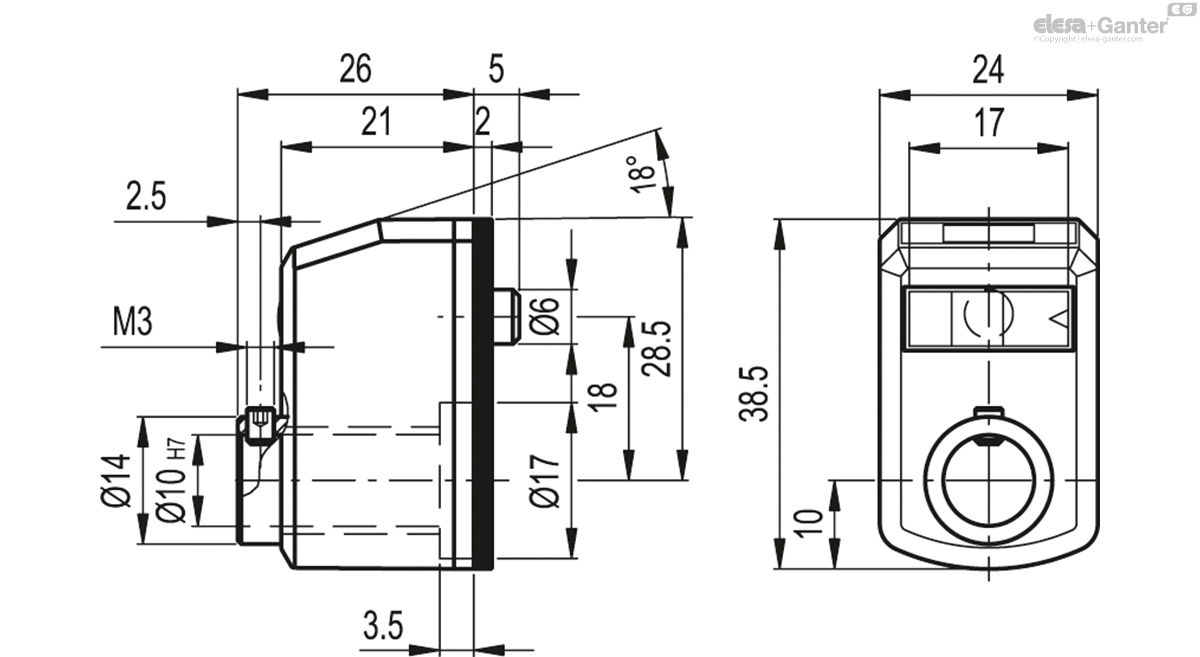

Bushing with Ø 10 mm H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end, included in the supply.
- DD50: black-oxide steel boss.
- DD50-SST: AISI 303 stainless steel boss.
Direction of rotation
- D: clockwise. Increasing values with clockwise rotation of the boss.
- S: anti-clockwise. Increasing values with anti-clockwise rotation of the boss.
Weight
22 grams.
General information
Ergonomy and design
Compact roller counter, ergonomically designed digits for rapid reading. The readability of the counter is increased by the magnifying window.
Features and applications
Direct drive digital position indicators can be assembled on passing throught spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications (see below 'Example of description for ordering').
Possible combinations
 Special executions on request
Special executions on request
- Special readings after one revolution.
- Case in different colours.
- Completely sealed digital position indicators with IP 67 protection class, see EN 60529 table obtained by means of a brass bushing with double seal ring inside the rear cavity of the base.
Assembly instructions
Assembly instructions
- Drill a Ø 6 mm by 10 mm hole in the body of the machine with a 18 mm centre distance from the spindle to fit the rear referring pin.
- Set the spindle to the start or referring position.
- Fit the indicator with the zeroed roller counter onto the spindle and make sure that the referring pin fit the hole.
- Clamp the bushing to the spindle by tightening the grub screw with hexagon socket and cup end, according to UNI 5929-85.
Accessories
Accessories on request (to be ordered separately)
- MDX-50: polyamide based (PA) technopolymer knob.
- RB50: black-oxide steel reduction sleeves.
- RB50-SST: AISI 304 stainless steel reduction sleeves.
- BSA-T50: shaft locking base in polyamide based (PA) SUPER-technopolymer, black colour, matte finish. BSA-T50 locking bases allow an easy and quick locking of the spindles after their positioning. They are equipped with a Ø 6.1 mm hole to fit the referring pin of the indicator. They can be assembled with the handle either on the right or on the left and can be fitted to the machine by means of two M3 cylindrical-head screws (not included in the supply).
| Color | Display | Reading after one revolution | Direction of rotation |  |
|||
|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||
| CE.80005 | DD50-AN-00.3-D-C3 | C3 - RAL 7035 | AN | 00.3 | D | 25 |
|
| CE.80005-1N | DD50-AN-0.03-D-C3 | C3 - RAL 7035 | AN | 0.03 | D | 25 |
|
| CE.80005-3N | DD50-AN-003-D-C3 | C3 - RAL 7035 | AN | 003 | D | 25 |
|
| CE.80006 | DD50-AN-00.3-S-C3 | C3 - RAL 7035 | AN | 00.3 | S | 25 |
|
| CE.80006-1N | DD50-AN-0.03-S-C3 | C3 - RAL 7035 | AN | 0.03 | S | 25 |
|
| CE.80006-3N | DD50-AN-003-S-C3 | C3 - RAL 7035 | AN | 003 | S | 25 |
|
| CE.80007 | DD50-AN-00.3-D-C2 | C2 - RAL 2004 | AN | 00.3 | D | 25 |
|
| CE.80007-1N | DD50-AN-0.03-D-C2 | C2 - RAL 2004 | AN | 0.03 | D | 25 |
|
| CE.80007-3N | DD50-AN-003-D-C2 | C2 - RAL 2004 | AN | 003 | D | 25 |
|
| CE.80007-C1 | DD50-AN-00.3-D-C1 | C1 - RAL 7021 | AN | 00.3 | D | 25 |
|
| CE.80007-C1-1N | DD50-AN-0.03-D-C1 | C1 - RAL 7021 | AN | 0.03 | D | 25 |
|
| CE.80007-C1-3N | DD50-AN-003-D-C1 | C1 - RAL 7021 | AN | 003 | D | 25 |
|
| CE.80008 | DD50-AN-00.3-S-C2 | C2 - RAL 2004 | AN | 00.3 | S | 25 |
|
| CE.80008-1N | DD50-AN-0.03-S-C2 | C2 - RAL 2004 | AN | 0.03 | S | 25 |
|
| CE.80008-3N | DD50-AN-003-S-C2 | C2 - RAL 2004 | AN | 003 | S | 25 |
|
| CE.80008-C1 | DD50-AN-00.3-S-C1 | C1 - RAL 7021 | AN | 00.3 | S | 25 |
|
| CE.80008-C1-1N | DD50-AN-0.03-S-C1 | C1 - RAL 7021 | AN | 0.03 | S | 25 |
|
| CE.80008-C1-3N | DD50-AN-003-S-C1 | C1 - RAL 7021 | AN | 003 | S | 25 |
|
| CE.80017 | DD50-AN-0.10-D-C3 | C3 - RAL 7035 | AN | 0.10 | D | 25 |
|
| CE.80018 | DD50-AN-0.10-S-C3 | C3 - RAL 7035 | AN | 0.10 | S | 25 |
|
| CE.80019 | DD50-AN-0.10-D-C2 | C2 - RAL 2004 | AN | 0.10 | D | 25 |
|
| CE.80019-C1 | DD50-AN-0.10-D-C1 | C1 - RAL 7021 | AN | 0.10 | D | 25 |
|
| CE.80020 | DD50-AN-0.10-S-C2 | C2 - RAL 2004 | AN | 0.10 | S | 25 |
|
| CE.80020-C1 | DD50-AN-0.10-S-C1 | C1 - RAL 7021 | AN | 0.10 | S | 25 |
|
| CE.80037 | DD50-AN-0.20-D-C3 | C3 - RAL 7035 | AN | 0.20 | D | 25 |
|
| CE.80038 | DD50-AN-0.20-S-C3 | C3 - RAL 7035 | AN | 0.20 | S | 25 |
|
| CE.80039 | DD50-AN-0.20-D-C2 | C2 - RAL 2004 | AN | 0.20 | D | 25 |
|
| CE.80039-C1 | DD50-AN-0.20-D-C1 | C1 - RAL 7021 | AN | 0.20 | D | 25 |
|
| CE.80040 | DD50-AN-0.20-S-C2 | C2 - RAL 2004 | AN | 0.20 | S | 25 |
|
| CE.80040-C1 | DD50-AN-0.20-S-C1 | C1 - RAL 7021 | AN | 0.20 | S | 25 |
|
| CE.80057 | DD50-AN-0.30-D-C3 | C3 - RAL 7035 | AN | 0.30 | D | 25 |
|
| CE.80058 | DD50-AN-0.30-S-C3 | C3 - RAL 7035 | AN | 0.30 | S | 25 |
|
| CE.80059 | DD50-AN-0.30-D-C2 | C2 - RAL 2004 | AN | 0.30 | D | 25 |
|
| CE.80059-C1 | DD50-AN-0.30-D-C1 | C1 - RAL 7021 | AN | 0.30 | D | 25 |
|
| CE.80060 | DD50-AN-0.30-S-C2 | C2 - RAL 2004 | AN | 0.30 | S | 25 |
|
| CE.80060-C1 | DD50-AN-0.30-S-C1 | C1 - RAL 7021 | AN | 0.30 | S | 25 |
|
| CE.80081 | DD50-AN-0.40-D-C3 | C3 - RAL 7035 | AN | 0.40 | D | 25 |
|
| CE.80082 | DD50-AN-0.40-S-C3 | C3 - RAL 7035 | AN | 0.40 | S | 25 |
|
| CE.80083 | DD50-AN-0.40-D-C2 | C2 - RAL 2004 | AN | 0.40 | D | 25 |
|
| CE.80083-C1 | DD50-AN-0.40-D-C1 | C1 - RAL 7021 | AN | 0.40 | D | 25 |
|
| CE.80084 | DD50-AN-0.40-S-C2 | C2 - RAL 2004 | AN | 0.40 | S | 25 |
|
| CE.80084-C1 | DD50-AN-0.40-S-C1 | C1 - RAL 7021 | AN | 0.40 | S | 25 |
|
| CE.80101 | DD50-AN-0.50-D-C3 | C3 - RAL 7035 | AN | 0.50 | D | 25 |
|
| CE.80102 | DD50-AN-0.50-S-C3 | C3 - RAL 7035 | AN | 0.50 | S | 25 |
|
| CE.80103 | DD50-AN-0.50-D-C2 | C2 - RAL 2004 | AN | 0.50 | D | 25 |
|
| CE.80103-C1 | DD50-AN-0.50-D-C1 | C1 - RAL 7021 | AN | 0.50 | D | 25 |
|
| CE.80104 | DD50-AN-0.50-S-C2 | C2 - RAL 2004 | AN | 0.50 | S | 25 |
|
| CE.80104-C1 | DD50-AN-0.50-S-C1 | C1 - RAL 7021 | AN | 0.50 | S | 25 |
|
| CE.80131 | DD50-AN-1.00-D-C3 | C3 - RAL 7035 | AN | 1.00 | D | 25 |
|
| CE.80132 | DD50-AN-1.00-S-C3 | C3 - RAL 7035 | AN | 1.00 | S | 25 |
|
| CE.80133 | DD50-AN-1.00-D-C2 | C2 - RAL 2004 | AN | 1.00 | D | 25 |
|
| CE.80133-C1 | DD50-AN-1.00-D-C1 | C1 - RAL 7021 | AN | 1.00 | D | 25 |
|
| CE.80134 | DD50-AN-1.00-S-C2 | C2 - RAL 2004 | AN | 1.00 | S | 25 |
|
| CE.80134-C1 | DD50-AN-1.00-S-C1 | C1 - RAL 7021 | AN | 1.00 | S | 25 |
|
| CE.80151 | DD50-AN-01.0-D-C3 | C3 - RAL 7035 | AN | 01.0 | D | 25 |
|
| CE.80151-3N | DD50-AN-010-D-C3 | C3 - RAL 7035 | AN | 010 | D | 25 |
|
| CE.80152 | DD50-AN-01.0-S-C3 | C3 - RAL 7035 | AN | 01.0 | S | 25 |
|
| CE.80152-3N | DD50-AN-010-S-C3 | C3 - RAL 7035 | AN | 010 | S | 25 |
|
| CE.80153 | DD50-AN-01.0-D-C2 | C2 - RAL 2004 | AN | 01.0 | D | 25 |
|
| CE.80153-3N | DD50-AN-010-D-C2 | C2 - RAL 2004 | AN | 010 | D | 25 |
|
| CE.80153-C1 | DD50-AN-01.0-D-C1 | C1 - RAL 7021 | AN | 01.0 | D | 25 |
|
| CE.80153-C1-3N | DD50-AN-010-D-C1 | C1 - RAL 7021 | AN | 010 | D | 25 |
|
| CE.80154 | DD50-AN-01.0-S-C2 | C2 - RAL 2004 | AN | 01.0 | S | 25 |
|
| CE.80154-3N | DD50-AN-010-S-C2 | C2 - RAL 2004 | AN | 010 | S | 25 |
|
| CE.80154-C1 | DD50-AN-01.0-S-C1 | C1 - RAL 7021 | AN | 01.0 | S | 25 |
|
| CE.80154-C1-3N | DD50-AN-010-S-C1 | C1 - RAL 7021 | AN | 010 | S | 25 |
|
| CE.80181 | DD50-AN-02.0-D-C3 | C3 - RAL 7035 | AN | 02.0 | D | 25 |
|
| CE.80181-3N | DD50-AN-020-D-C3 | C3 - RAL 7035 | AN | 020 | D | 25 |
|
| CE.80182 | DD50-AN-02.0-S-C3 | C3 - RAL 7035 | AN | 02.0 | S | 25 |
|
| CE.80182-3N | DD50-AN-020-S-C3 | C3 - RAL 7035 | AN | 020 | S | 25 |
|
| CE.80183 | DD50-AN-02.0-D-C2 | C2 - RAL 2004 | AN | 02.0 | D | 25 |
|
| CE.80183-3N | DD50-AN-020-D-C2 | C2 - RAL 2004 | AN | 020 | D | 25 |
|
| CE.80183-C1 | DD50-AN-02.0-D-C1 | C1 - RAL 7021 | AN | 02.0 | D | 25 |
|
| CE.80183-C1-3N | DD50-AN-020-D-C1 | C1 - RAL 7021 | AN | 020 | D | 25 |
|
| CE.80184 | DD50-AN-02.0-S-C2 | C2 - RAL 2004 | AN | 02.0 | S | 25 |
|
| CE.80184-3N | DD50-AN-020-S-C2 | C2 - RAL 2004 | AN | 020 | S | 25 |
|
| CE.80184-C1 | DD50-AN-02.0-S-C1 | C1 - RAL 7021 | AN | 02.0 | S | 25 |
|
| CE.80184-C1-3N | DD50-AN-020-S-C1 | C1 - RAL 7021 | AN | 020 | S | 25 |
|
| CE.80207 | DD50-AN-03.0-D-C3 | C3 - RAL 7035 | AN | 03.0 | D | 25 |
|
| CE.80207-3N | DD50-AN-030-D-C3 | C3 - RAL 7035 | AN | 030 | D | 25 |
|
| CE.80208 | DD50-AN-03.0-S-C3 | C3 - RAL 7035 | AN | 03.0 | S | 25 |
|
| CE.80208-3N | DD50-AN-030-S-C3 | C3 - RAL 7035 | AN | 030 | S | 25 |
|
| CE.80209 | DD50-AN-03.0-D-C2 | C2 - RAL 2004 | AN | 03.0 | D | 25 |
|
| CE.80209-3N | DD50-AN-030-D-C2 | C2 - RAL 2004 | AN | 030 | D | 25 |
|
| CE.80209-C1 | DD50-AN-03.0-D-C1 | C1 - RAL 7021 | AN | 03.0 | D | 25 |
|
| CE.80209-C1-3N | DD50-AN-030-D-C1 | C1 - RAL 7021 | AN | 030 | D | 25 |
|
| CE.80210 | DD50-AN-03.0-S-C2 | C2 - RAL 2004 | AN | 03.0 | S | 25 |
|
| CE.80210-3N | DD50-AN-030-S-C2 | C2 - RAL 2004 | AN | 030 | S | 25 |
|
| CE.80210-C1 | DD50-AN-03.0-S-C1 | C1 - RAL 7021 | AN | 03.0 | S | 25 |
|
| CE.80210-C1-3N | DD50-AN-030-S-C1 | C1 - RAL 7021 | AN | 030 | S | 25 |
|
| CE.80231 | DD50-AN-04.0-D-C3 | C3 - RAL 7035 | AN | 04.0 | D | 25 |
|
| CE.80231-3N | DD50-AN-040-D-C3 | C3 - RAL 7035 | AN | 040 | D | 25 |
|
| CE.80232 | DD50-AN-04.0-S-C3 | C3 - RAL 7035 | AN | 04.0 | S | 25 |
|
| CE.80232-3N | DD50-AN-040-S-C3 | C3 - RAL 7035 | AN | 040 | S | 25 |
|
| CE.80233 | DD50-AN-04.0-D-C2 | C2 - RAL 2004 | AN | 04.0 | D | 25 |
|
| CE.80233-3N | DD50-AN-040-D-C2 | C2 - RAL 2004 | AN | 040 | D | 25 |
|
| CE.80233-C1 | DD50-AN-04.0-D-C1 | C1 - RAL 7021 | AN | 04.0 | D | 25 |
|
| CE.80233-C1-3N | DD50-AN-040-D-C1 | C1 - RAL 7021 | AN | 040 | D | 25 |
|
| CE.80234 | DD50-AN-04.0-S-C2 | C2 - RAL 2004 | AN | 04.0 | S | 25 |
|
| CE.80234-3N | DD50-AN-040-S-C2 | C2 - RAL 2004 | AN | 040 | S | 25 |
|
| CE.80234-C1 | DD50-AN-04.0-S-C1 | C1 - RAL 7021 | AN | 04.0 | S | 25 |
|
| CE.80234-C1-3N | DD50-AN-040-S-C1 | C1 - RAL 7021 | AN | 040 | S | 25 |
|
| CE.80251 | DD50-AN-05.0-D-C3 | C3 - RAL 7035 | AN | 05.0 | D | 25 |
|
| CE.80251-3N | DD50-AN-050-D-C3 | C3 - RAL 7035 | AN | 050 | D | 25 |
|
| CE.80252 | DD50-AN-05.0-S-C3 | C3 - RAL 7035 | AN | 05.0 | S | 25 |
|
| CE.80252-3N | DD50-AN-050-S-C3 | C3 - RAL 7035 | AN | 050 | S | 25 |
|
| CE.80253 | DD50-AN-05.0-D-C2 | C2 - RAL 2004 | AN | 05.0 | D | 25 |
|
| CE.80253-3N | DD50-AN-050-D-C2 | C2 - RAL 2004 | AN | 050 | D | 25 |
|
| CE.80253-C1 | DD50-AN-05.0-D-C1 | C1 - RAL 7021 | AN | 05.0 | D | 25 |
|
| CE.80253-C1-3N | DD50-AN-050-D-C1 | C1 - RAL 7021 | AN | 050 | D | 25 |
|
| CE.80254 | DD50-AN-05.0-S-C2 | C2 - RAL 2004 | AN | 05.0 | S | 25 |
|
| CE.80254-3N | DD50-AN-050-S-C2 | C2 - RAL 2004 | AN | 050 | S | 25 |
|
| CE.80254-C1 | DD50-AN-05.0-S-C1 | C1 - RAL 7021 | AN | 05.0 | S | 25 |
|
| CE.80254-C1-3N | DD50-AN-050-S-C1 | C1 - RAL 7021 | AN | 050 | S | 25 |
|
| CE.80291 | DD50-AN-10.0-D-C3 | C3 - RAL 7035 | AN | 10.0 | D | 25 |
|
| CE.80291-3N | DD50-AN-100-D-C3 | C3 - RAL 7035 | AN | 100 | D | 25 |
|
| CE.80292 | DD50-AN-10.0-S-C3 | C3 - RAL 7035 | AN | 10.0 | S | 25 |
|
| CE.80292-3N | DD50-AN-100-S-C3 | C3 - RAL 7035 | AN | 100 | S | 25 |
|
| CE.80293 | DD50-AN-10.0-D-C2 | C2 - RAL 2004 | AN | 10.0 | D | 25 |
|
| CE.80293-3N | DD50-AN-100-D-C2 | C2 - RAL 2004 | AN | 100 | D | 25 |
|
| CE.80293-C1 | DD50-AN-10.0-D-C1 | C1 - RAL 7021 | AN | 10.0 | D | 25 |
|
| CE.80293-C1-3N | DD50-AN-100-D-C1 | C1 - RAL 7021 | AN | 100 | D | 25 |
|
| CE.80294 | DD50-AN-10.0-S-C2 | C2 - RAL 2004 | AN | 10.0 | S | 25 |
|
| CE.80294-3N | DD50-AN-100-S-C2 | C2 - RAL 2004 | AN | 100 | S | 25 |
|
| CE.80294-C1 | DD50-AN-10.0-S-C1 | C1 - RAL 7021 | AN | 10.0 | S | 25 |
|
| CE.80294-C1-3N | DD50-AN-100-S-C1 | C1 - RAL 7021 | AN | 100 | S | 25 |
|
| CE.80505 | DD50-AR-00.3-D-C3 | C3 - RAL 7035 | AR | 00.3 | D | 25 |
|
| CE.80505-1N | DD50-AR-0.03-D-C3 | C3 - RAL 7035 | AR | 0.03 | D | 25 |
|
| CE.80505-3N | DD50-AR-003-D-C3 | C3 - RAL 7035 | AR | 003 | D | 25 |
|
| CE.80506 | DD50-AR-00.3-S-C3 | C3 - RAL 7035 | AR | 00.3 | S | 25 |
|
| CE.80506-1N | DD50-AR-0.03-S-C3 | C3 - RAL 7035 | AR | 0.03 | S | 25 |
|
| CE.80506-3N | DD50-AR-003-S-C3 | C3 - RAL 7035 | AR | 003 | S | 25 |
|
| CE.80507 | DD50-AR-00.3-D-C2 | C2 - RAL 2004 | AR | 00.3 | D | 25 |
|
| CE.80507-1N | DD50-AR-0.03-D-C2 | C2 - RAL 2004 | AR | 0.03 | D | 25 |
|
| CE.80507-3N | DD50-AR-003-D-C2 | C2 - RAL 2004 | AR | 003 | D | 25 |
|
| CE.80507-C1 | DD50-AR-00.3-D-C1 | C1 - RAL 7021 | AR | 00.3 | D | 25 |
|
| CE.80507-C1-1N | DD50-AR-0.03-D-C1 | C1 - RAL 7021 | AR | 0.03 | D | 25 |
|
| CE.80507-C1-3N | DD50-AR-003-D-C1 | C1 - RAL 7021 | AR | 003 | D | 25 |
|
| CE.80508 | DD50-AR-00.3-S-C2 | C2 - RAL 2004 | AR | 00.3 | S | 25 |
|
| CE.80508-1N | DD50-AR-0.03-S-C2 | C2 - RAL 2004 | AR | 0.03 | S | 25 |
|
| CE.80508-3N | DD50-AR-003-S-C2 | C2 - RAL 2004 | AR | 003 | S | 25 |
|
| CE.80508-C1 | DD50-AR-00.3-S-C1 | C1 - RAL 7021 | AR | 00.3 | S | 25 |
|
| CE.80508-C1-1N | DD50-AR-0.03-S-C1 | C1 - RAL 7021 | AR | 0.03 | S | 25 |
|
| CE.80508-C1-3N | DD50-AR-003-S-C1 | C1 - RAL 7021 | AR | 003 | S | 25 |
|
| CE.80517 | DD50-AR-0.10-D-C3 | C3 - RAL 7035 | AR | 0.10 | D | 25 |
|
| CE.80518 | DD50-AR-0.10-S-C3 | C3 - RAL 7035 | AR | 0.10 | S | 25 |
|
| CE.80519 | DD50-AR-0.10-D-C2 | C2 - RAL 2004 | AR | 0.10 | D | 25 |
|
| CE.80519-C1 | DD50-AR-0.10-D-C1 | C1 - RAL 7021 | AR | 0.10 | D | 25 |
|
| CE.80520 | DD50-AR-0.10-S-C2 | C2 - RAL 2004 | AR | 0.10 | S | 25 |
|
| CE.80520-C1 | DD50-AR-0.10-S-C1 | C1 - RAL 7021 | AR | 0.10 | S | 25 |
|
| CE.80537 | DD50-AR-0.20-D-C3 | C3 - RAL 7035 | AR | 0.20 | D | 25 |
|
| CE.80538 | DD50-AR-0.20-S-C3 | C3 - RAL 7035 | AR | 0.20 | S | 25 |
|
| CE.80539 | DD50-AR-0.20-D-C2 | C2 - RAL 2004 | AR | 0.20 | D | 25 |
|
| CE.80539-C1 | DD50-AR-0.20-D-C1 | C1 - RAL 7021 | AR | 0.20 | D | 25 |
|
| CE.80540 | DD50-AR-0.20-S-C2 | C2 - RAL 2004 | AR | 0.20 | S | 25 |
|
| CE.80540-C1 | DD50-AR-0.20-S-C1 | C1 - RAL 7021 | AR | 0.20 | S | 25 |
|
| CE.80557 | DD50-AR-0.30-D-C3 | C3 - RAL 7035 | AR | 0.30 | D | 25 |
|
| CE.80558 | DD50-AR-0.30-S-C3 | C3 - RAL 7035 | AR | 0.30 | S | 25 |
|
| CE.80559 | DD50-AR-0.30-D-C2 | C2 - RAL 2004 | AR | 0.30 | D | 25 |
|
| CE.80559-C1 | DD50-AR-0.30-D-C1 | C1 - RAL 7021 | AR | 0.30 | D | 25 |
|
| CE.80560 | DD50-AR-0.30-S-C2 | C2 - RAL 2004 | AR | 0.30 | S | 25 |
|
| CE.80560-C1 | DD50-AR-0.30-S-C1 | C1 - RAL 7021 | AR | 0.30 | S | 25 |
|
| CE.80581 | DD50-AR-0.40-D-C3 | C3 - RAL 7035 | AR | 0.40 | D | 25 |
|
| CE.80582 | DD50-AR-0.40-S-C3 | C3 - RAL 7035 | AR | 0.40 | S | 25 |
|
| CE.80583 | DD50-AR-0.40-D-C2 | C2 - RAL 2004 | AR | 0.40 | D | 25 |
|
| CE.80583-C1 | DD50-AR-0.40-D-C1 | C1 - RAL 7021 | AR | 0.40 | D | 25 |
|
| CE.80584 | DD50-AR-0.40-S-C2 | C2 - RAL 2004 | AR | 0.40 | S | 25 |
|
| CE.80584-C1 | DD50-AR-0.40-S-C1 | C1 - RAL 7021 | AR | 0.40 | S | 25 |
|
| CE.80601 | DD50-AR-0.50-D-C3 | C3 - RAL 7035 | AR | 0.50 | D | 25 |
|
| CE.80602 | DD50-AR-0.50-S-C3 | C3 - RAL 7035 | AR | 0.50 | S | 25 |
|
| CE.80603 | DD50-AR-0.50-D-C2 | C2 - RAL 2004 | AR | 0.50 | D | 25 |
|
| CE.80603-C1 | DD50-AR-0.50-D-C1 | C1 - RAL 7021 | AR | 0.50 | D | 25 |
|
| CE.80604 | DD50-AR-0.50-S-C2 | C2 - RAL 2004 | AR | 0.50 | S | 25 |
|
| CE.80604-C1 | DD50-AR-0.50-S-C1 | C1 - RAL 7021 | AR | 0.50 | S | 25 |
|
| CE.80631 | DD50-AR-1.00-D-C3 | C3 - RAL 7035 | AR | 1.00 | D | 25 |
|
| CE.80632 | DD50-AR-1.00-S-C3 | C3 - RAL 7035 | AR | 1.00 | S | 25 |
|
| CE.80633 | DD50-AR-1.00-D-C2 | C2 - RAL 2004 | AR | 1.00 | D | 25 |
|
| CE.80633-C1 | DD50-AR-1.00-D-C1 | C1 - RAL 7021 | AR | 1.00 | D | 25 |
|
| CE.80634 | DD50-AR-1.00-S-C2 | C2 - RAL 2004 | AR | 1.00 | S | 25 |
|
| CE.80634-C1 | DD50-AR-1.00-S-C1 | C1 - RAL 7021 | AR | 1.00 | S | 25 |
|
| CE.80651 | DD50-AR-01.0-D-C3 | C3 - RAL 7035 | AR | 01.0 | D | 25 |
|
| CE.80651-3N | DD50-AR-010-D-C3 | C3 - RAL 7035 | AR | 010 | D | 25 |
|
| CE.80652 | DD50-AR-01.0-S-C3 | C3 - RAL 7035 | AR | 01.0 | S | 25 |
|
| CE.80652-3N | DD50-AR-010-S-C3 | C3 - RAL 7035 | AR | 010 | S | 25 |
|
| CE.80653 | DD50-AR-01.0-D-C2 | C2 - RAL 2004 | AR | 01.0 | D | 25 |
|
| CE.80653-3N | DD50-AR-010-D-C2 | C2 - RAL 2004 | AR | 010 | D | 25 |
|
| CE.80653-C1 | DD50-AR-01.0-D-C1 | C1 - RAL 7021 | AR | 01.0 | D | 25 |
|
| CE.80653-C1-3N | DD50-AR-010-D-C1 | C1 - RAL 7021 | AR | 010 | D | 25 |
|
| CE.80654 | DD50-AR-01.0-S-C2 | C2 - RAL 2004 | AR | 01.0 | S | 25 |
|
| CE.80654-3N | DD50-AR-010-S-C2 | C2 - RAL 2004 | AR | 010 | S | 25 |
|
| CE.80654-C1 | DD50-AR-01.0-S-C1 | C1 - RAL 7021 | AR | 01.0 | S | 25 |
|
| CE.80654-C1-3N | DD50-AR-010-S-C1 | C1 - RAL 7021 | AR | 010 | S | 25 |
|
| CE.80681 | DD50-AR-02.0-D-C3 | C3 - RAL 7035 | AR | 02.0 | D | 25 |
|
| CE.80681-3N | DD50-AR-020-D-C3 | C3 - RAL 7035 | AR | 020 | D | 25 |
|
| CE.80682 | DD50-AR-02.0-S-C3 | C3 - RAL 7035 | AR | 02.0 | S | 25 |
|
| CE.80682-3N | DD50-AR-020-S-C3 | C3 - RAL 7035 | AR | 020 | S | 25 |
|
| CE.80683 | DD50-AR-02.0-D-C2 | C2 - RAL 2004 | AR | 02.0 | D | 25 |
|
| CE.80683-3N | DD50-AR-020-D-C2 | C2 - RAL 2004 | AR | 020 | D | 25 |
|
| CE.80683-C1 | DD50-AR-02.0-D-C1 | C1 - RAL 7021 | AR | 02.0 | D | 25 |
|
| CE.80683-C1-3N | DD50-AR-020-D-C1 | C1 - RAL 7021 | AR | 020 | D | 25 |
|
| CE.80684 | DD50-AR-02.0-S-C2 | C2 - RAL 2004 | AR | 02.0 | S | 25 |
|
| CE.80684-3N | DD50-AR-020-S-C2 | C2 - RAL 2004 | AR | 020 | S | 25 |
|
| CE.80684-C1 | DD50-AR-02.0-S-C1 | C1 - RAL 7021 | AR | 02.0 | S | 25 |
|
| CE.80684-C1-3N | DD50-AR-020-S-C1 | C1 - RAL 7021 | AR | 020 | S | 25 |
|
| CE.80707 | DD50-AR-03.0-D-C3 | C3 - RAL 7035 | AR | 03.0 | D | 25 |
|
| CE.80707-3N | DD50-AR-030-D-C3 | C3 - RAL 7035 | AR | 030 | D | 25 |
|
| CE.80708 | DD50-AR-03.0-S-C3 | C3 - RAL 7035 | AR | 03.0 | S | 25 |
|
| CE.80708-3N | DD50-AR-030-S-C3 | C3 - RAL 7035 | AR | 030 | S | 25 |
|
| CE.80709 | DD50-AR-03.0-D-C2 | C2 - RAL 2004 | AR | 03.0 | D | 25 |
|
| CE.80709-3N | DD50-AR-030-D-C2 | C2 - RAL 2004 | AR | 030 | D | 25 |
|
| CE.80709-C1 | DD50-AR-03.0-D-C1 | C1 - RAL 7021 | AR | 03.0 | D | 25 |
|
| CE.80709-C1-3N | DD50-AR-030-D-C1 | C1 - RAL 7021 | AR | 030 | D | 25 |
|
| CE.80710 | DD50-AR-03.0-S-C2 | C2 - RAL 2004 | AR | 03.0 | S | 25 |
|
| CE.80710-3N | DD50-AR-030-S-C2 | C2 - RAL 2004 | AR | 030 | S | 25 |
|
| CE.80710-C1 | DD50-AR-03.0-S-C1 | C1 - RAL 7021 | AR | 03.0 | S | 25 |
|
| CE.80710-C1-3N | DD50-AR-030-S-C1 | C1 - RAL 7021 | AR | 030 | S | 25 |
|
| CE.80731 | DD50-AR-04.0-D-C3 | C3 - RAL 7035 | AR | 04.0 | D | 25 |
|
| CE.80731-3N | DD50-AR-040-D-C3 | C3 - RAL 7035 | AR | 040 | D | 25 |
|
| CE.80732 | DD50-AR-04.0-S-C3 | C3 - RAL 7035 | AR | 04.0 | S | 25 |
|
| CE.80732-3N | DD50-AR-040-S-C3 | C3 - RAL 7035 | AR | 040 | S | 25 |
|
| CE.80733 | DD50-AR-04.0-D-C2 | C2 - RAL 2004 | AR | 04.0 | D | 25 |
|
| CE.80733-3N | DD50-AR-040-D-C2 | C2 - RAL 2004 | AR | 040 | D | 25 |
|
| CE.80733-C1 | DD50-AR-04.0-D-C1 | C1 - RAL 7021 | AR | 04.0 | D | 25 |
|
| CE.80733-C1-3N | DD50-AR-040-D-C1 | C1 - RAL 7021 | AR | 040 | D | 25 |
|
| CE.80734 | DD50-AR-04.0-S-C2 | C2 - RAL 2004 | AR | 04.0 | S | 25 |
|
| CE.80734-3N | DD50-AR-040-S-C2 | C2 - RAL 2004 | AR | 040 | S | 25 |
|
| CE.80734-C1 | DD50-AR-04.0-S-C1 | C1 - RAL 7021 | AR | 04.0 | S | 25 |
|
| CE.80734-C1-3N | DD50-AR-040-S-C1 | C1 - RAL 7021 | AR | 040 | S | 25 |
|
| CE.80751 | DD50-AR-05.0-D-C3 | C3 - RAL 7035 | AR | 05.0 | D | 25 |
|
| CE.80751-3N | DD50-AR-050-D-C3 | C3 - RAL 7035 | AR | 050 | D | 25 |
|
| CE.80752 | DD50-AR-05.0-S-C3 | C3 - RAL 7035 | AR | 05.0 | S | 25 |
|
| CE.80752-3N | DD50-AR-050-S-C3 | C3 - RAL 7035 | AR | 050 | S | 25 |
|
| CE.80753 | DD50-AR-05.0-D-C2 | C2 - RAL 2004 | AR | 05.0 | D | 25 |
|
| CE.80753-3N | DD50-AR-050-D-C2 | C2 - RAL 2004 | AR | 050 | D | 25 |
|
| CE.80753-C1 | DD50-AR-05.0-D-C1 | C1 - RAL 7021 | AR | 05.0 | D | 25 |
|
| CE.80753-C1-3N | DD50-AR-050-D-C1 | C1 - RAL 7021 | AR | 050 | D | 25 |
|
| CE.80754 | DD50-AR-05.0-S-C2 | C2 - RAL 2004 | AR | 05.0 | S | 25 |
|
| CE.80754-3N | DD50-AR-050-S-C2 | C2 - RAL 2004 | AR | 050 | S | 25 |
|
| CE.80754-C1 | DD50-AR-05.0-S-C1 | C1 - RAL 7021 | AR | 05.0 | S | 25 |
|
| CE.80754-C1-3N | DD50-AR-050-S-C1 | C1 - RAL 7021 | AR | 050 | S | 25 |
|
| CE.80791 | DD50-AR-10.0-D-C3 | C3 - RAL 7035 | AR | 10.0 | D | 25 |
|
| CE.80791-3N | DD50-AR-100-D-C3 | C3 - RAL 7035 | AR | 100 | D | 25 |
|
| CE.80792 | DD50-AR-10.0-S-C3 | C3 - RAL 7035 | AR | 10.0 | S | 25 |
|
| CE.80792-3N | DD50-AR-100-S-C3 | C3 - RAL 7035 | AR | 100 | S | 25 |
|
| CE.80793 | DD50-AR-10.0-D-C2 | C2 - RAL 2004 | AR | 10.0 | D | 25 |
|
| CE.80793-3N | DD50-AR-100-D-C2 | C2 - RAL 2004 | AR | 100 | D | 25 |
|
| CE.80793-C1 | DD50-AR-10.0-D-C1 | C1 - RAL 7021 | AR | 10.0 | D | 25 |
|
| CE.80793-C1-3N | DD50-AR-100-D-C1 | C1 - RAL 7021 | AR | 100 | D | 25 |
|
| CE.80794 | DD50-AR-10.0-S-C2 | C2 - RAL 2004 | AR | 10.0 | S | 25 |
|
| CE.80794-3N | DD50-AR-100-S-C2 | C2 - RAL 2004 | AR | 100 | S | 25 |
|
| CE.80794-C1 | DD50-AR-10.0-S-C1 | C1 - RAL 7021 | AR | 10.0 | S | 25 |
|
| CE.80794-C1-3N | DD50-AR-100-S-C1 | C1 - RAL 7021 | AR | 100 | S | 25 |
|
| CE.81005 | DD50-FN-00.3-D-C3 | C3 - RAL 7035 | FN | 00.3 | D | 25 |
|
| CE.81005-1N | DD50-FN-0.03-D-C3 | C3 - RAL 7035 | FN | 0.03 | D | 25 |
|
| CE.81005-3N | DD50-FN-003-D-C3 | C3 - RAL 7035 | FN | 003 | D | 25 |
|
| CE.81006 | DD50-FN-00.3-S-C3 | C3 - RAL 7035 | FN | 00.3 | S | 25 |
|
| CE.81006-1N | DD50-FN-0.03-S-C3 | C3 - RAL 7035 | FN | 0.03 | S | 25 |
|
| CE.81006-3N | DD50-FN-003-S-C3 | C3 - RAL 7035 | FN | 003 | S | 25 |
|
| CE.81007 | DD50-FN-00.3-D-C2 | C2 - RAL 2004 | FN | 00.3 | D | 25 |
|
| CE.81007-1N | DD50-FN-0.03-D-C2 | C2 - RAL 2004 | FN | 0.03 | D | 25 |
|
| CE.81007-3N | DD50-FN-003-D-C2 | C2 - RAL 2004 | FN | 003 | D | 25 |
|
| CE.81007-C1 | DD50-FN-00.3-D-C1 | C1 - RAL 7021 | FN | 00.3 | D | 25 |
|
| CE.81007-C1-1N | DD50-FN-0.03-D-C1 | C1 - RAL 7021 | FN | 0.03 | D | 25 |
|
| CE.81007-C1-3N | DD50-FN-003-D-C1 | C1 - RAL 7021 | FN | 003 | D | 25 |
|
| CE.81008 | DD50-FN-00.3-S-C2 | C2 - RAL 2004 | FN | 00.3 | S | 25 |
|
| CE.81008-1N | DD50-FN-0.03-S-C2 | C2 - RAL 2004 | FN | 0.03 | S | 25 |
|
| CE.81008-3N | DD50-FN-003-S-C2 | C2 - RAL 2004 | FN | 003 | S | 25 |
|
| CE.81008-C1 | DD50-FN-00.3-S-C1 | C1 - RAL 7021 | FN | 00.3 | S | 25 |
|
| CE.81008-C1-1N | DD50-FN-0.03-S-C1 | C1 - RAL 7021 | FN | 0.03 | S | 25 |
|
| CE.81008-C1-3N | DD50-FN-003-S-C1 | C1 - RAL 7021 | FN | 003 | S | 25 |
|
| CE.81017 | DD50-FN-0.10-D-C3 | C3 - RAL 7035 | FN | 0.10 | D | 25 |
|
| CE.81018 | DD50-FN-0.10-S-C3 | C3 - RAL 7035 | FN | 0.10 | S | 25 |
|
| CE.81019 | DD50-FN-0.10-D-C2 | C2 - RAL 2004 | FN | 0.10 | D | 25 |
|
| CE.81019-C1 | DD50-FN-0.10-D-C1 | C1 - RAL 7021 | FN | 0.10 | D | 25 |
|
| CE.81020 | DD50-FN-0.10-S-C2 | C2 - RAL 2004 | FN | 0.10 | S | 25 |
|
| CE.81020-C1 | DD50-FN-0.10-S-C1 | C1 - RAL 7021 | FN | 0.10 | S | 25 |
|
| CE.81037 | DD50-FN-0.20-D-C3 | C3 - RAL 7035 | FN | 0.20 | D | 25 |
|
| CE.81038 | DD50-FN-0.20-S-C3 | C3 - RAL 7035 | FN | 0.20 | S | 25 |
|
| CE.81039 | DD50-FN-0.20-D-C2 | C2 - RAL 2004 | FN | 0.20 | D | 25 |
|
| CE.81039-C1 | DD50-FN-0.20-D-C1 | C1 - RAL 7021 | FN | 0.20 | D | 25 |
|
| CE.81040 | DD50-FN-0.20-S-C2 | C2 - RAL 2004 | FN | 0.20 | S | 25 |
|
| CE.81040-C1 | DD50-FN-0.20-S-C1 | C1 - RAL 7021 | FN | 0.20 | S | 25 |
|
| CE.81057 | DD50-FN-0.30-D-C3 | C3 - RAL 7035 | FN | 0.30 | D | 25 |
|
| CE.81058 | DD50-FN-0.30-S-C3 | C3 - RAL 7035 | FN | 0.30 | S | 25 |
|
| CE.81059 | DD50-FN-0.30-D-C2 | C2 - RAL 2004 | FN | 0.30 | D | 25 |
|
| CE.81059-C1 | DD50-FN-0.30-D-C1 | C1 - RAL 7021 | FN | 0.30 | D | 25 |
|
| CE.81060 | DD50-FN-0.30-S-C2 | C2 - RAL 2004 | FN | 0.30 | S | 25 |
|
| CE.81060-C1 | DD50-FN-0.30-S-C1 | C1 - RAL 7021 | FN | 0.30 | S | 25 |
|
| CE.81081 | DD50-FN-0.40-D-C3 | C3 - RAL 7035 | FN | 0.40 | D | 25 |
|
| CE.81082 | DD50-FN-0.40-S-C3 | C3 - RAL 7035 | FN | 0.40 | S | 25 |
|
| CE.81083 | DD50-FN-0.40-D-C2 | C2 - RAL 2004 | FN | 0.40 | D | 25 |
|
| CE.81083-C1 | DD50-FN-0.40-D-C1 | C1 - RAL 7021 | FN | 0.40 | D | 25 |
|
| CE.81084 | DD50-FN-0.40-S-C2 | C2 - RAL 2004 | FN | 0.40 | S | 25 |
|
| CE.81084-C1 | DD50-FN-0.40-S-C1 | C1 - RAL 7021 | FN | 0.40 | S | 25 |
|
| CE.81101 | DD50-FN-0.50-D-C3 | C3 - RAL 7035 | FN | 0.50 | D | 25 |
|
| CE.81102 | DD50-FN-0.50-S-C3 | C3 - RAL 7035 | FN | 0.50 | S | 25 |
|
| CE.81102-C1 | DD50-FN-0.50-S-C1 | C1 - RAL 7021 | FN | 0.50 | S | 25 |
|
| CE.81103 | DD50-FN-0.50-D-C2 | C2 - RAL 2004 | FN | 0.50 | D | 25 |
|
| CE.81103-C1 | DD50-FN-0.50-D-C1 | C1 - RAL 7021 | FN | 0.50 | D | 25 |
|
| CE.81104 | DD50-FN-0.50-S-C2 | C2 - RAL 2004 | FN | 0.50 | S | 25 |
|
| CE.81131 | DD50-FN-1.00-D-C3 | C3 - RAL 7035 | FN | 1.00 | D | 25 |
|
| CE.81132 | DD50-FN-1.00-S-C3 | C3 - RAL 7035 | FN | 1.00 | S | 25 |
|
| CE.81133 | DD50-FN-1.00-D-C2 | C2 - RAL 2004 | FN | 1.00 | D | 25 |
|
| CE.81133-C1 | DD50-FN-1.00-D-C1 | C1 - RAL 7021 | FN | 1.00 | D | 25 |
|
| CE.81134 | DD50-FN-1.00-S-C2 | C2 - RAL 2004 | FN | 1.00 | S | 25 |
|
| CE.81134-C1 | DD50-FN-1.00-S-C1 | C1 - RAL 7021 | FN | 1.00 | S | 25 |
|
| CE.81151 | DD50-FN-01.0-D-C3 | C3 - RAL 7035 | FN | 01.0 | D | 25 |
|
| CE.81151-3N | DD50-FN-010-D-C3 | C3 - RAL 7035 | FN | 010 | D | 25 |
|
| CE.81152 | DD50-FN-01.0-S-C3 | C3 - RAL 7035 | FN | 01.0 | S | 25 |
|
| CE.81152-3N | DD50-FN-010-S-C3 | C3 - RAL 7035 | FN | 010 | S | 25 |
|
| CE.81153 | DD50-FN-01.0-D-C2 | C2 - RAL 2004 | FN | 01.0 | D | 25 |
|
| CE.81153-3N | DD50-FN-010-D-C2 | C2 - RAL 2004 | FN | 010 | D | 25 |
|
| CE.81153-C1 | DD50-FN-01.0-D-C1 | C1 - RAL 7021 | FN | 01.0 | D | 25 |
|
| CE.81153-C1-3N | DD50-FN-010-D-C1 | C1 - RAL 7021 | FN | 010 | D | 25 |
|
| CE.81154 | DD50-FN-01.0-S-C2 | C2 - RAL 2004 | FN | 01.0 | S | 25 |
|
| CE.81154-3N | DD50-FN-010-S-C2 | C2 - RAL 2004 | FN | 010 | S | 25 |
|
| CE.81154-C1 | DD50-FN-01.0-S-C1 | C1 - RAL 7021 | FN | 01.0 | S | 25 |
|
| CE.81154-C1-3N | DD50-FN-010-S-C1 | C1 - RAL 7021 | FN | 010 | S | 25 |
|
| CE.81181 | DD50-FN-02.0-D-C3 | C3 - RAL 7035 | FN | 02.0 | D | 25 |
|
| CE.81181-3N | DD50-FN-020-D-C3 | C3 - RAL 7035 | FN | 020 | D | 25 |
|
| CE.81182 | DD50-FN-02.0-S-C3 | C3 - RAL 7035 | FN | 02.0 | S | 25 |
|
| CE.81182-3N | DD50-FN-020-S-C3 | C3 - RAL 7035 | FN | 020 | S | 25 |
|
| CE.81183 | DD50-FN-02.0-D-C2 | C2 - RAL 2004 | FN | 02.0 | D | 25 |
|
| CE.81183-3N | DD50-FN-020-D-C2 | C2 - RAL 2004 | FN | 020 | D | 25 |
|
| CE.81183-C1 | DD50-FN-02.0-D-C1 | C1 - RAL 7021 | FN | 02.0 | D | 25 |
|
| CE.81183-C1-3N | DD50-FN-020-D-C1 | C1 - RAL 7021 | FN | 020 | D | 25 |
|
| CE.81184 | DD50-FN-02.0-S-C2 | C2 - RAL 2004 | FN | 02.0 | S | 25 |
|
| CE.81184-3N | DD50-FN-020-S-C2 | C2 - RAL 2004 | FN | 020 | S | 25 |
|
| CE.81184-C1 | DD50-FN-02.0-S-C1 | C1 - RAL 7021 | FN | 02.0 | S | 25 |
|
| CE.81184-C1-3N | DD50-FN-020-S-C1 | C1 - RAL 7021 | FN | 020 | S | 25 |
|
| CE.81207 | DD50-FN-03.0-D-C3 | C3 - RAL 7035 | FN | 03.0 | D | 25 |
|
| CE.81207-3N | DD50-FN-030-D-C3 | C3 - RAL 7035 | FN | 030 | D | 25 |
|
| CE.81208 | DD50-FN-03.0-S-C3 | C3 - RAL 7035 | FN | 03.0 | S | 25 |
|
| CE.81208-3N | DD50-FN-030-S-C3 | C3 - RAL 7035 | FN | 030 | S | 25 |
|
| CE.81209 | DD50-FN-03.0-D-C2 | C2 - RAL 2004 | FN | 03.0 | D | 25 |
|
| CE.81209-3N | DD50-FN-030-D-C2 | C2 - RAL 2004 | FN | 030 | D | 25 |
|
| CE.81209-C1 | DD50-FN-03.0-D-C1 | C1 - RAL 7021 | FN | 03.0 | D | 25 |
|
| CE.81209-C1-3N | DD50-FN-030-D-C1 | C1 - RAL 7021 | FN | 030 | D | 25 |
|
| CE.81210 | DD50-FN-03.0-S-C2 | C2 - RAL 2004 | FN | 03.0 | S | 25 |
|
| CE.81210-3N | DD50-FN-030-S-C2 | C2 - RAL 2004 | FN | 030 | S | 25 |
|
| CE.81210-C1 | DD50-FN-03.0-S-C1 | C1 - RAL 7021 | FN | 03.0 | S | 25 |
|
| CE.81210-C1-3N | DD50-FN-030-S-C1 | C1 - RAL 7021 | FN | 030 | S | 25 |
|
| CE.81231 | DD50-FN-04.0-D-C3 | C3 - RAL 7035 | FN | 04.0 | D | 25 |
|
| CE.81231-3N | DD50-FN-040-D-C3 | C3 - RAL 7035 | FN | 040 | D | 25 |
|
| CE.81232 | DD50-FN-04.0-S-C3 | C3 - RAL 7035 | FN | 04.0 | S | 25 |
|
| CE.81232-3N | DD50-FN-040-S-C3 | C3 - RAL 7035 | FN | 040 | S | 25 |
|
| CE.81233 | DD50-FN-04.0-D-C2 | C2 - RAL 2004 | FN | 04.0 | D | 25 |
|
| CE.81233-3N | DD50-FN-040-D-C2 | C2 - RAL 2004 | FN | 040 | D | 25 |
|
| CE.81233-C1 | DD50-FN-04.0-D-C1 | C1 - RAL 7021 | FN | 04.0 | D | 25 |
|
| CE.81233-C1-3N | DD50-FN-040-D-C1 | C1 - RAL 7021 | FN | 040 | D | 25 |
|
| CE.81234 | DD50-FN-04.0-S-C2 | C2 - RAL 2004 | FN | 04.0 | S | 25 |
|
| CE.81234-3N | DD50-FN-040-S-C2 | C2 - RAL 2004 | FN | 040 | S | 25 |
|
| CE.81234-C1 | DD50-FN-04.0-S-C1 | C1 - RAL 7021 | FN | 04.0 | S | 25 |
|
| CE.81234-C1-3N | DD50-FN-040-S-C1 | C1 - RAL 7021 | FN | 040 | S | 25 |
|
| CE.81251 | DD50-FN-05.0-D-C3 | C3 - RAL 7035 | FN | 05.0 | D | 25 |
|
| CE.81251-3N | DD50-FN-050-D-C3 | C3 - RAL 7035 | FN | 050 | D | 25 |
|
| CE.81252 | DD50-FN-05.0-S-C3 | C3 - RAL 7035 | FN | 05.0 | S | 25 |
|
| CE.81252-3N | DD50-FN-050-S-C3 | C3 - RAL 7035 | FN | 050 | S | 25 |
|
| CE.81253 | DD50-FN-05.0-D-C2 | C2 - RAL 2004 | FN | 05.0 | D | 25 |
|
| CE.81253-3N | DD50-FN-050-D-C2 | C2 - RAL 2004 | FN | 050 | D | 25 |
|
| CE.81253-C1 | DD50-FN-05.0-D-C1 | C1 - RAL 7021 | FN | 05.0 | D | 25 |
|
| CE.81253-C1-3N | DD50-FN-050-D-C1 | C1 - RAL 7021 | FN | 050 | D | 25 |
|
| CE.81254 | DD50-FN-05.0-S-C2 | C2 - RAL 2004 | FN | 05.0 | S | 25 |
|
| CE.81254-3N | DD50-FN-050-S-C2 | C2 - RAL 2004 | FN | 050 | S | 25 |
|
| CE.81254-C1 | DD50-FN-05.0-S-C1 | C1 - RAL 7021 | FN | 05.0 | S | 25 |
|
| CE.81254-C1-3N | DD50-FN-050-S-C1 | C1 - RAL 7021 | FN | 050 | S | 25 |
|
| CE.81291 | DD50-FN-10.0-D-C3 | C3 - RAL 7035 | FN | 10.0 | D | 25 |
|
| CE.81291-3N | DD50-FN-100-D-C3 | C3 - RAL 7035 | FN | 100 | D | 25 |
|
| CE.81292 | DD50-FN-10.0-S-C3 | C3 - RAL 7035 | FN | 10.0 | S | 25 |
|
| CE.81292-3N | DD50-FN-100-S-C3 | C3 - RAL 7035 | FN | 100 | S | 25 |
|
| CE.81293 | DD50-FN-10.0-D-C2 | C2 - RAL 2004 | FN | 10.0 | D | 25 |
|
| CE.81293-3N | DD50-FN-100-D-C2 | C2 - RAL 2004 | FN | 100 | D | 25 |
|
| CE.81293-C1 | DD50-FN-10.0-D-C1 | C1 - RAL 7021 | FN | 10.0 | D | 25 |
|
| CE.81293-C1-3N | DD50-FN-100-D-C1 | C1 - RAL 7021 | FN | 100 | D | 25 |
|
| CE.81294 | DD50-FN-10.0-S-C2 | C2 - RAL 2004 | FN | 10.0 | S | 25 |
|
| CE.81294-3N | DD50-FN-100-S-C2 | C2 - RAL 2004 | FN | 100 | S | 25 |
|
| CE.81294-C1 | DD50-FN-10.0-S-C1 | C1 - RAL 7021 | FN | 10.0 | S | 25 |
|
| CE.81294-C1-3N | DD50-FN-100-S-C1 | C1 - RAL 7021 | FN | 100 | S | 25 |
|
| CE.81505 | DD50-FR-00.3-D-C3 | C3 - RAL 7035 | FR | 00.3 | D | 25 |
|
| CE.81505-1N | DD50-FR-0.03-D-C3 | C3 - RAL 7035 | FR | 0.03 | D | 25 |
|
| CE.81505-3N | DD50-FR-003-D-C3 | C3 - RAL 7035 | FR | 003 | D | 25 |
|
| CE.81506 | DD50-FR-00.3-S-C3 | C3 - RAL 7035 | FR | 00.3 | S | 25 |
|
| CE.81506-1N | DD50-FR-0.03-S-C3 | C3 - RAL 7035 | FR | 0.03 | S | 25 |
|
| CE.81506-3N | DD50-FR-003-S-C3 | C3 - RAL 7035 | FR | 003 | S | 25 |
|
| CE.81507 | DD50-FR-00.3-D-C2 | C2 - RAL 2004 | FR | 00.3 | D | 25 |
|
| CE.81507-1N | DD50-FR-0.03-D-C2 | C2 - RAL 2004 | FR | 0.03 | D | 25 |
|
| CE.81507-3N | DD50-FR-003-D-C2 | C2 - RAL 2004 | FR | 003 | D | 25 |
|
| CE.81507-C1 | DD50-FR-00.3-D-C1 | C1 - RAL 7021 | FR | 00.3 | D | 25 |
|
| CE.81507-C1-1N | DD50-FR-0.03-D-C1 | C1 - RAL 7021 | FR | 0.03 | D | 25 |
|
| CE.81507-C1-3N | DD50-FR-003-D-C1 | C1 - RAL 7021 | FR | 003 | D | 25 |
|
| CE.81508 | DD50-FR-00.3-S-C2 | C2 - RAL 2004 | FR | 00.3 | S | 25 |
|
| CE.81508-1N | DD50-FR-0.03-S-C2 | C2 - RAL 2004 | FR | 0.03 | S | 25 |
|
| CE.81508-3N | DD50-FR-003-S-C2 | C2 - RAL 2004 | FR | 003 | S | 25 |
|
| CE.81508-C1 | DD50-FR-00.3-S-C1 | C1 - RAL 7021 | FR | 00.3 | S | 25 |
|
| CE.81508-C1-1N | DD50-FR-0.03-S-C1 | C1 - RAL 7021 | FR | 0.03 | S | 25 |
|
| CE.81508-C1-3N | DD50-FR-003-S-C1 | C1 - RAL 7021 | FR | 003 | S | 25 |
|
| CE.81517 | DD50-FR-0.10-D-C3 | C3 - RAL 7035 | FR | 0.10 | D | 25 |
|
| CE.81518 | DD50-FR-0.10-S-C3 | C3 - RAL 7035 | FR | 0.10 | S | 25 |
|
| CE.81519 | DD50-FR-0.10-D-C2 | C2 - RAL 2004 | FR | 0.10 | D | 25 |
|
| CE.81519-C1 | DD50-FR-0.10-D-C1 | C1 - RAL 7021 | FR | 0.10 | D | 25 |
|
| CE.81520 | DD50-FR-0.10-S-C2 | C2 - RAL 2004 | FR | 0.10 | S | 25 |
|
| CE.81520-C1 | DD50-FR-0.10-S-C1 | C1 - RAL 7021 | FR | 0.10 | S | 25 |
|
| CE.81537 | DD50-FR-0.20-D-C3 | C3 - RAL 7035 | FR | 0.20 | D | 25 |
|
| CE.81538 | DD50-FR-0.20-S-C3 | C3 - RAL 7035 | FR | 0.20 | S | 25 |
|
| CE.81539 | DD50-FR-0.20-D-C2 | C2 - RAL 2004 | FR | 0.20 | D | 25 |
|
| CE.81539-C1 | DD50-FR-0.20-D-C1 | C1 - RAL 7021 | FR | 0.20 | D | 25 |
|
| CE.81540 | DD50-FR-0.20-S-C2 | C2 - RAL 2004 | FR | 0.20 | S | 25 |
|
| CE.81540-C1 | DD50-FR-0.20-S-C1 | C1 - RAL 7021 | FR | 0.20 | S | 25 |
|
| CE.81557 | DD50-FR-0.30-D-C3 | C3 - RAL 7035 | FR | 0.30 | D | 25 |
|
| CE.81558 | DD50-FR-0.30-S-C3 | C3 - RAL 7035 | FR | 0.30 | S | 25 |
|
| CE.81559 | DD50-FR-0.30-D-C2 | C2 - RAL 2004 | FR | 0.30 | D | 25 |
|
| CE.81559-C1 | DD50-FR-0.30-D-C1 | C1 - RAL 7021 | FR | 0.30 | D | 25 |
|
| CE.81560 | DD50-FR-0.30-S-C2 | C2 - RAL 2004 | FR | 0.30 | S | 25 |
|
| CE.81560-C1 | DD50-FR-0.30-S-C1 | C1 - RAL 7021 | FR | 0.30 | S | 25 |
|
| CE.81581 | DD50-FR-0.40-D-C3 | C3 - RAL 7035 | FR | 0.40 | D | 25 |
|
| CE.81582 | DD50-FR-0.40-S-C3 | C3 - RAL 7035 | FR | 0.40 | S | 25 |
|
| CE.81583 | DD50-FR-0.40-D-C2 | C2 - RAL 2004 | FR | 0.40 | D | 25 |
|
| CE.81583-C1 | DD50-FR-0.40-D-C1 | C1 - RAL 7021 | FR | 0.40 | D | 25 |
|
| CE.81584 | DD50-FR-0.40-S-C2 | C2 - RAL 2004 | FR | 0.40 | S | 25 |
|
| CE.81584-C1 | DD50-FR-0.40-S-C1 | C1 - RAL 7021 | FR | 0.40 | S | 25 |
|
| CE.81601 | DD50-FR-0.50-D-C3 | C3 - RAL 7035 | FR | 0.50 | D | 25 |
|
| CE.81602 | DD50-FR-0.50-S-C3 | C3 - RAL 7035 | FR | 0.50 | S | 25 |
|
| CE.81603 | DD50-FR-0.50-D-C2 | C2 - RAL 2004 | FR | 0.50 | D | 25 |
|
| CE.81603-C1 | DD50-FR-0.50-D-C1 | C1 - RAL 7021 | FR | 0.50 | D | 25 |
|
| CE.81604 | DD50-FR-0.50-S-C2 | C2 - RAL 2004 | FR | 0.50 | S | 25 |
|
| CE.81604-C1 | DD50-FR-0.50-S-C1 | C1 - RAL 7021 | FR | 0.50 | S | 25 |
|
| CE.81631 | DD50-FR-1.00-D-C3 | C3 - RAL 7035 | FR | 1.00 | D | 25 |
|
| CE.81632 | DD50-FR-1.00-S-C3 | C3 - RAL 7035 | FR | 1.00 | S | 25 |
|
| CE.81633 | DD50-FR-1.00-D-C2 | C2 - RAL 2004 | FR | 1.00 | D | 25 |
|
| CE.81633-C1 | DD50-FR-1.00-D-C1 | C1 - RAL 7021 | FR | 1.00 | D | 25 |
|
| CE.81634 | DD50-FR-1.00-S-C2 | C2 - RAL 2004 | FR | 1.00 | S | 25 |
|
| CE.81634-C1 | DD50-FR-1.00-S-C1 | C1 - RAL 7021 | FR | 1.00 | S | 25 |
|
| CE.81651 | DD50-FR-01.0-D-C3 | C3 - RAL 7035 | FR | 01.0 | D | 25 |
|
| CE.81651-3N | DD50-FR-010-D-C3 | C3 - RAL 7035 | FR | 010 | D | 25 |
|
| CE.81652 | DD50-FR-01.0-S-C3 | C3 - RAL 7035 | FR | 01.0 | S | 25 |
|
| CE.81652-3N | DD50-FR-010-S-C3 | C3 - RAL 7035 | FR | 010 | S | 25 |
|
| CE.81653 | DD50-FR-01.0-D-C2 | C2 - RAL 2004 | FR | 01.0 | D | 25 |
|
| CE.81653-3N | DD50-FR-010-D-C2 | C2 - RAL 2004 | FR | 010 | D | 25 |
|
| CE.81653-C1 | DD50-FR-01.0-D-C1 | C1 - RAL 7021 | FR | 01.0 | D | 25 |
|
| CE.81653-C1-3N | DD50-FR-010-D-C1 | C1 - RAL 7021 | FR | 010 | D | 25 |
|
| CE.81654 | DD50-FR-01.0-S-C2 | C2 - RAL 2004 | FR | 01.0 | S | 25 |
|
| CE.81654-3N | DD50-FR-010-S-C2 | C2 - RAL 2004 | FR | 010 | S | 25 |
|
| CE.81654-C1 | DD50-FR-01.0-S-C1 | C1 - RAL 7021 | FR | 01.0 | S | 25 |
|
| CE.81654-C1-3N | DD50-FR-010-S-C1 | C1 - RAL 7021 | FR | 010 | S | 25 |
|
| CE.81681 | DD50-FR-02.0-D-C3 | C3 - RAL 7035 | FR | 02.0 | D | 25 |
|
| CE.81681-3N | DD50-FR-020-D-C3 | C3 - RAL 7035 | FR | 020 | D | 25 |
|
| CE.81682 | DD50-FR-02.0-S-C3 | C3 - RAL 7035 | FR | 02.0 | S | 25 |
|
| CE.81682-3N | DD50-FR-020-S-C3 | C3 - RAL 7035 | FR | 020 | S | 25 |
|
| CE.81683 | DD50-FR-02.0-D-C2 | C2 - RAL 2004 | FR | 02.0 | D | 25 |
|
| CE.81683-3N | DD50-FR-020-D-C2 | C2 - RAL 2004 | FR | 020 | D | 25 |
|
| CE.81683-C1 | DD50-FR-02.0-D-C1 | C1 - RAL 7021 | FR | 02.0 | D | 25 |
|
| CE.81683-C1-3N | DD50-FR-020-D-C1 | C1 - RAL 7021 | FR | 020 | D | 25 |
|
| CE.81684 | DD50-FR-02.0-S-C2 | C2 - RAL 2004 | FR | 02.0 | S | 25 |
|
| CE.81684-3N | DD50-FR-020-S-C2 | C2 - RAL 2004 | FR | 020 | S | 25 |
|
| CE.81684-C1 | DD50-FR-02.0-S-C1 | C1 - RAL 7021 | FR | 02.0 | S | 25 |
|
| CE.81684-C1-3N | DD50-FR-020-S-C1 | C1 - RAL 7021 | FR | 020 | S | 25 |
|
| CE.81707 | DD50-FR-03.0-D-C3 | C3 - RAL 7035 | FR | 03.0 | D | 25 |
|
| CE.81707-3N | DD50-FR-030-D-C3 | C3 - RAL 7035 | FR | 030 | D | 25 |
|
| CE.81708 | DD50-FR-03.0-S-C3 | C3 - RAL 7035 | FR | 03.0 | S | 25 |
|
| CE.81708-3N | DD50-FR-030-S-C3 | C3 - RAL 7035 | FR | 030 | S | 25 |
|
| CE.81709 | DD50-FR-03.0-D-C2 | C2 - RAL 2004 | FR | 03.0 | D | 25 |
|
| CE.81709-3N | DD50-FR-030-D-C2 | C2 - RAL 2004 | FR | 030 | D | 25 |
|
| CE.81709-C1 | DD50-FR-03.0-D-C1 | C1 - RAL 7021 | FR | 03.0 | D | 25 |
|
| CE.81709-C1-3N | DD50-FR-030-D-C1 | C1 - RAL 7021 | FR | 030 | D | 25 |
|
| CE.81710 | DD50-FR-03.0-S-C2 | C2 - RAL 2004 | FR | 03.0 | S | 25 |
|
| CE.81710-3N | DD50-FR-030-S-C2 | C2 - RAL 2004 | FR | 030 | S | 25 |
|
| CE.81710-C1 | DD50-FR-03.0-S-C1 | C1 - RAL 7021 | FR | 03.0 | S | 25 |
|
| CE.81710-C1-3N | DD50-FR-030-S-C1 | C1 - RAL 7021 | FR | 030 | S | 25 |
|
| CE.81731 | DD50-FR-04.0-D-C3 | C3 - RAL 7035 | FR | 04.0 | D | 25 |
|
| CE.81731-3N | DD50-FR-040-D-C3 | C3 - RAL 7035 | FR | 040 | D | 25 |
|
| CE.81732 | DD50-FR-04.0-S-C3 | C3 - RAL 7035 | FR | 04.0 | S | 25 |
|
| CE.81732-3N | DD50-FR-040-S-C3 | C3 - RAL 7035 | FR | 040 | S | 25 |
|
| CE.81733 | DD50-FR-04.0-D-C2 | C2 - RAL 2004 | FR | 04.0 | D | 25 |
|
| CE.81733-3N | DD50-FR-040-D-C2 | C2 - RAL 2004 | FR | 040 | D | 25 |
|
| CE.81733-C1 | DD50-FR-04.0-D-C1 | C1 - RAL 7021 | FR | 04.0 | D | 25 |
|
| CE.81733-C1-3N | DD50-FR-040-D-C1 | C1 - RAL 7021 | FR | 040 | D | 25 |
|
| CE.81734 | DD50-FR-04.0-S-C2 | C2 - RAL 2004 | FR | 04.0 | S | 25 |
|
| CE.81734-3N | DD50-FR-040-S-C2 | C2 - RAL 2004 | FR | 040 | S | 25 |
|
| CE.81734-C1 | DD50-FR-04.0-S-C1 | C1 - RAL 7021 | FR | 04.0 | S | 25 |
|
| CE.81734-C1-3N | DD50-FR-040-S-C1 | C1 - RAL 7021 | FR | 040 | S | 25 |
|
| CE.81751 | DD50-FR-05.0-D-C3 | C3 - RAL 7035 | FR | 05.0 | D | 25 |
|
| CE.81751-3N | DD50-FR-050-D-C3 | C3 - RAL 7035 | FR | 050 | D | 25 |
|
| CE.81752 | DD50-FR-05.0-S-C3 | C3 - RAL 7035 | FR | 05.0 | S | 25 |
|
| CE.81752-3N | DD50-FR-050-S-C3 | C3 - RAL 7035 | FR | 050 | S | 25 |
|
| CE.81753 | DD50-FR-05.0-D-C2 | C2 - RAL 2004 | FR | 05.0 | D | 25 |
|
| CE.81753-3N | DD50-FR-050-D-C2 | C2 - RAL 2004 | FR | 050 | D | 25 |
|
| CE.81753-C1 | DD50-FR-05.0-D-C1 | C1 - RAL 7021 | FR | 05.0 | D | 25 |
|
| CE.81753-C1-3N | DD50-FR-050-D-C1 | C1 - RAL 7021 | FR | 050 | D | 25 |
|
| CE.81754 | DD50-FR-05.0-S-C2 | C2 - RAL 2004 | FR | 05.0 | S | 25 |
|
| CE.81754-3N | DD50-FR-050-S-C2 | C2 - RAL 2004 | FR | 050 | S | 25 |
|
| CE.81754-C1 | DD50-FR-05.0-S-C1 | C1 - RAL 7021 | FR | 05.0 | S | 25 |
|
| CE.81754-C1-3N | DD50-FR-050-S-C1 | C1 - RAL 7021 | FR | 050 | S | 25 |
|
| CE.81791 | DD50-FR-10.0-D-C3 | C3 - RAL 7035 | FR | 10.0 | D | 25 |
|
| CE.81791-3N | DD50-FR-100-D-C3 | C3 - RAL 7035 | FR | 100 | D | 25 |
|
| CE.81792 | DD50-FR-10.0-S-C3 | C3 - RAL 7035 | FR | 10.0 | S | 25 |
|
| CE.81792-3N | DD50-FR-100-S-C3 | C3 - RAL 7035 | FR | 100 | S | 25 |
|
| CE.81793 | DD50-FR-10.0-D-C2 | C2 - RAL 2004 | FR | 10.0 | D | 25 |
|
| CE.81793-3N | DD50-FR-100-D-C2 | C2 - RAL 2004 | FR | 100 | D | 25 |
|
| CE.81793-C1 | DD50-FR-10.0-D-C1 | C1 - RAL 7021 | FR | 10.0 | D | 25 |
|
| CE.81793-C1-3N | DD50-FR-100-D-C1 | C1 - RAL 7021 | FR | 100 | D | 25 |
|
| CE.81794 | DD50-FR-10.0-S-C2 | C2 - RAL 2004 | FR | 10.0 | S | 25 |
|
| CE.81794-3N | DD50-FR-100-S-C2 | C2 - RAL 2004 | FR | 100 | S | 25 |
|
| CE.81794-C1 | DD50-FR-10.0-S-C1 | C1 - RAL 7021 | FR | 10.0 | S | 25 |
|
| CE.81794-C1-3N | DD50-FR-100-S-C1 | C1 - RAL 7021 | FR | 100 | S | 25 |
|
| CE.90005 | DD50-AN-00.3-D-C3 F.10-SST | C3 - RAL 7035 | AN | 00.3 | D | 25 |
|
| CE.90005-1N | DD50-AN-0.03-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.03 | D | 25 |
|
| CE.90005-3N | DD50-AN-003-D-C3 F.10-SST | C3 - RAL 7035 | AN | 003 | D | 25 |
|
| CE.90006 | DD50-AN-00.3-S-C3 F.10-SST | C3 - RAL 7035 | AN | 00.3 | S | 25 |
|
| CE.90006-1N | DD50-AN-0.03-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.03 | S | 25 |
|
| CE.90006-3N | DD50-AN-003-S-C3 F.10-SST | C3 - RAL 7035 | AN | 003 | S | 25 |
|
| CE.90007 | DD50-AN-00.3-D-C2 F.10-SST | C2 - RAL 2004 | AN | 00.3 | D | 25 |
|
| CE.90007-1N | DD50-AN-0.03-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.03 | D | 25 |
|
| CE.90007-3N | DD50-AN-003-D-C2 F.10-SST | C2 - RAL 2004 | AN | 003 | D | 25 |
|
| CE.90007-C1 | DD50-AN-00.3-D-C1 F.10-SST | C1 - RAL 7021 | AN | 00.3 | D | 25 |
|
| CE.90007-C1-1N | DD50-AN-0.03-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.03 | D | 25 |
|
| CE.90007-C1-3N | DD50-AN-003-D-C1 F.10-SST | C1 - RAL 7021 | AN | 003 | D | 25 |
|
| CE.90008 | DD50-AN-00.3-S-C2 F.10-SST | C2 - RAL 2004 | AN | 00.3 | S | 25 |
|
| CE.90008-1N | DD50-AN-0.03-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.03 | S | 25 |
|
| CE.90008-3N | DD50-AN-003-S-C2 F.10-SST | C2 - RAL 2004 | AN | 003 | S | 25 |
|
| CE.90008-C1 | DD50-AN-00.3-S-C1 F.10-SST | C1 - RAL 7021 | AN | 00.3 | S | 25 |
|
| CE.90008-C1-1N | DD50-AN-0.03-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.03 | S | 25 |
|
| CE.90008-C1-3N | DD50-AN-003-S-C1 F.10-SST | C1 - RAL 7021 | AN | 003 | S | 25 |
|
| CE.90017 | DD50-AN-0.10-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.10 | D | 25 |
|
| CE.90018 | DD50-AN-0.10-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.10 | S | 25 |
|
| CE.90019 | DD50-AN-0.10-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.10 | D | 25 |
|
| CE.90019-C1 | DD50-AN-0.10-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.10 | D | 25 |
|
| CE.90020 | DD50-AN-0.10-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.10 | S | 25 |
|
| CE.90020-C1 | DD50-AN-0.10-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.10 | S | 25 |
|
| CE.90037 | DD50-AN-0.20-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.20 | D | 25 |
|
| CE.90038 | DD50-AN-0.20-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.20 | S | 25 |
|
| CE.90039 | DD50-AN-0.20-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.20 | D | 25 |
|
| CE.90039-C1 | DD50-AN-0.20-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.20 | D | 25 |
|
| CE.90040 | DD50-AN-0.20-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.20 | S | 25 |
|
| CE.90040-C1 | DD50-AN-0.20-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.20 | S | 25 |
|
| CE.90057 | DD50-AN-0.30-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.30 | D | 25 |
|
| CE.90058 | DD50-AN-0.30-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.30 | S | 25 |
|
| CE.90059 | DD50-AN-0.30-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.30 | D | 25 |
|
| CE.90059-C1 | DD50-AN-0.30-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.30 | D | 25 |
|
| CE.90060 | DD50-AN-0.30-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.30 | S | 25 |
|
| CE.90060-C1 | DD50-AN-0.30-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.30 | S | 25 |
|
| CE.90081 | DD50-AN-0.40-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.40 | D | 25 |
|
| CE.90082 | DD50-AN-0.40-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.40 | S | 25 |
|
| CE.90083 | DD50-AN-0.40-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.40 | D | 25 |
|
| CE.90083-C1 | DD50-AN-0.40-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.40 | D | 25 |
|
| CE.90084 | DD50-AN-0.40-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.40 | S | 25 |
|
| CE.90084-C1 | DD50-AN-0.40-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.40 | S | 25 |
|
| CE.90101 | DD50-AN-0.50-D-C3 F.10-SST | C3 - RAL 7035 | AN | 0.50 | D | 25 |
|
| CE.90102 | DD50-AN-0.50-S-C3 F.10-SST | C3 - RAL 7035 | AN | 0.50 | S | 25 |
|
| CE.90103 | DD50-AN-0.50-D-C2 F.10-SST | C2 - RAL 2004 | AN | 0.50 | D | 25 |
|
| CE.90103-C1 | DD50-AN-0.50-D-C1 F.10-SST | C1 - RAL 7021 | AN | 0.50 | D | 25 |
|
| CE.90104 | DD50-AN-0.50-S-C2 F.10-SST | C2 - RAL 2004 | AN | 0.50 | S | 25 |
|
| CE.90104-C1 | DD50-AN-0.50-S-C1 F.10-SST | C1 - RAL 7021 | AN | 0.50 | S | 25 |
|
| CE.90131 | DD50-AN-1.00-D-C3 F.10-SST | C3 - RAL 7035 | AN | 1.00 | D | 25 |
|
| CE.90132 | DD50-AN-1.00-S-C3 F.10-SST | C3 - RAL 7035 | AN | 1.00 | S | 25 |
|
| CE.90133 | DD50-AN-1.00-D-C2 F.10-SST | C2 - RAL 2004 | AN | 1.00 | D | 25 |
|
| CE.90133-C1 | DD50-AN-1.00-D-C1 F.10-SST | C1 - RAL 7021 | AN | 1.00 | D | 25 |
|
| CE.90134 | DD50-AN-1.00-S-C2 F.10-SST | C2 - RAL 2004 | AN | 1.00 | S | 25 |
|
| CE.90134-C1 | DD50-AN-1.00-S-C1 F.10-SST | C1 - RAL 7021 | AN | 1.00 | S | 25 |
|
| CE.90151 | DD50-AN-01.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 01.0 | D | 25 |
|
| CE.90151-3N | DD50-AN-010-D-C3 F.10-SST | C3 - RAL 7035 | AN | 010 | D | 25 |
|
| CE.90152 | DD50-AN-01.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 01.0 | S | 25 |
|
| CE.90152-3N | DD50-AN-010-S-C3 F.10-SST | C3 - RAL 7035 | AN | 010 | S | 25 |
|
| CE.90153 | DD50-AN-01.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 01.0 | D | 25 |
|
| CE.90153-3N | DD50-AN-010-D-C2 F.10-SST | C2 - RAL 2004 | AN | 010 | D | 25 |
|
| CE.90153-C1 | DD50-AN-01.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 01.0 | D | 25 |
|
| CE.90153-C1-3N | DD50-AN-010-D-C1 F.10-SST | C1 - RAL 7021 | AN | 010 | D | 25 |
|
| CE.90154 | DD50-AN-01.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 01.0 | S | 25 |
|
| CE.90154-3N | DD50-AN-010-S-C2 F.10-SST | C2 - RAL 2004 | AN | 010 | S | 25 |
|
| CE.90154-C1 | DD50-AN-01.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 01.0 | S | 25 |
|
| CE.90154-C1-3N | DD50-AN-010-S-C1 F.10-SST | C1 - RAL 7021 | AN | 010 | S | 25 |
|
| CE.90181 | DD50-AN-02.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 02.0 | D | 25 |
|
| CE.90181-3N | DD50-AN-020-D-C3 F.10-SST | C3 - RAL 7035 | AN | 020 | D | 25 |
|
| CE.90182 | DD50-AN-02.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 02.0 | S | 25 |
|
| CE.90182-3N | DD50-AN-020-S-C3 F.10-SST | C3 - RAL 7035 | AN | 020 | S | 25 |
|
| CE.90183 | DD50-AN-02.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 02.0 | D | 25 |
|
| CE.90183-3N | DD50-AN-020-D-C2 F.10-SST | C2 - RAL 2004 | AN | 020 | D | 25 |
|
| CE.90183-C1 | DD50-AN-02.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 02.0 | D | 25 |
|
| CE.90183-C1-3N | DD50-AN-020-D-C1 F.10-SST | C1 - RAL 7021 | AN | 020 | D | 25 |
|
| CE.90184 | DD50-AN-02.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 02.0 | S | 25 |
|
| CE.90184-3N | DD50-AN-020-S-C2 F.10-SST | C2 - RAL 2004 | AN | 020 | S | 25 |
|
| CE.90184-C1 | DD50-AN-02.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 02.0 | S | 25 |
|
| CE.90184-C1-3N | DD50-AN-020-S-C1 F.10-SST | C1 - RAL 7021 | AN | 020 | S | 25 |
|
| CE.90207 | DD50-AN-03.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 03.0 | D | 25 |
|
| CE.90207-3N | DD50-AN-030-D-C3 F.10-SST | C3 - RAL 7035 | AN | 030 | D | 25 |
|
| CE.90208 | DD50-AN-03.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 03.0 | S | 25 |
|
| CE.90208-3N | DD50-AN-030-S-C3 F.10-SST | C3 - RAL 7035 | AN | 030 | S | 25 |
|
| CE.90209 | DD50-AN-03.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 03.0 | D | 25 |
|
| CE.90209-3N | DD50-AN-030-D-C2 F.10-SST | C2 - RAL 2004 | AN | 030 | D | 25 |
|
| CE.90209-C1 | DD50-AN-03.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 03.0 | D | 25 |
|
| CE.90209-C1-3N | DD50-AN-030-D-C1 F.10-SST | C1 - RAL 7021 | AN | 030 | D | 25 |
|
| CE.90210 | DD50-AN-03.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 03.0 | S | 25 |
|
| CE.90210-3N | DD50-AN-030-S-C2 F.10-SST | C2 - RAL 2004 | AN | 030 | S | 25 |
|
| CE.90210-C1 | DD50-AN-03.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 03.0 | S | 25 |
|
| CE.90210-C1-3N | DD50-AN-030-S-C1 F.10-SST | C1 - RAL 7021 | AN | 030 | S | 25 |
|
| CE.90231 | DD50-AN-04.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 04.0 | D | 25 |
|
| CE.90231-3N | DD50-AN-040-D-C3 F.10-SST | C3 - RAL 7035 | AN | 040 | D | 25 |
|
| CE.90232 | DD50-AN-04.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 04.0 | S | 25 |
|
| CE.90232-3N | DD50-AN-040-S-C3 F.10-SST | C3 - RAL 7035 | AN | 040 | S | 25 |
|
| CE.90233 | DD50-AN-04.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 04.0 | D | 25 |
|
| CE.90233-3N | DD50-AN-040-D-C2 F.10-SST | C2 - RAL 2004 | AN | 040 | D | 25 |
|
| CE.90233-C1 | DD50-AN-04.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 04.0 | D | 25 |
|
| CE.90233-C1-3N | DD50-AN-040-D-C1 F.10-SST | C1 - RAL 7021 | AN | 040 | D | 25 |
|
| CE.90234 | DD50-AN-04.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 04.0 | S | 25 |
|
| CE.90234-3N | DD50-AN-040-S-C2 F.10-SST | C2 - RAL 2004 | AN | 040 | S | 25 |
|
| CE.90234-C1 | DD50-AN-04.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 04.0 | S | 25 |
|
| CE.90234-C1-3N | DD50-AN-040-S-C1 F.10-SST | C1 - RAL 7021 | AN | 040 | S | 25 |
|
| CE.90251 | DD50-AN-05.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 05.0 | D | 25 |
|
| CE.90251-3N | DD50-AN-050-D-C3 F.10-SST | C3 - RAL 7035 | AN | 050 | D | 25 |
|
| CE.90252 | DD50-AN-05.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 05.0 | S | 25 |
|
| CE.90252-3N | DD50-AN-050-S-C3 F.10-SST | C3 - RAL 7035 | AN | 050 | S | 25 |
|
| CE.90253 | DD50-AN-05.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 05.0 | D | 25 |
|
| CE.90253-3N | DD50-AN-050-D-C2 F.10-SST | C2 - RAL 2004 | AN | 050 | D | 25 |
|
| CE.90253-C1 | DD50-AN-05.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 05.0 | D | 25 |
|
| CE.90253-C1-3N | DD50-AN-050-D-C1 F.10-SST | C1 - RAL 7021 | AN | 050 | D | 25 |
|
| CE.90254 | DD50-AN-05.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 05.0 | S | 25 |
|
| CE.90254-3N | DD50-AN-050-S-C2 F.10-SST | C2 - RAL 2004 | AN | 050 | S | 25 |
|
| CE.90254-C1 | DD50-AN-05.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 05.0 | S | 25 |
|
| CE.90254-C1-3N | DD50-AN-050-S-C1 F.10-SST | C1 - RAL 7021 | AN | 050 | S | 25 |
|
| CE.90291 | DD50-AN-10.0-D-C3 F.10-SST | C3 - RAL 7035 | AN | 10.0 | D | 25 |
|
| CE.90291-3N | DD50-AN-100-D-C3 F.10-SST | C3 - RAL 7035 | AN | 100 | D | 25 |
|
| CE.90292 | DD50-AN-10.0-S-C3 F.10-SST | C3 - RAL 7035 | AN | 10.0 | S | 25 |
|
| CE.90292-3N | DD50-AN-100-S-C3 F.10-SST | C3 - RAL 7035 | AN | 100 | S | 25 |
|
| CE.90293 | DD50-AN-10.0-D-C2 F.10-SST | C2 - RAL 2004 | AN | 10.0 | D | 25 |
|
| CE.90293-3N | DD50-AN-100-D-C2 F.10-SST | C2 - RAL 2004 | AN | 100 | D | 25 |
|
| CE.90293-C1 | DD50-AN-10.0-D-C1 F.10-SST | C1 - RAL 7021 | AN | 10.0 | D | 25 |
|
| CE.90293-C1-3N | DD50-AN-100-D-C1 F.10-SST | C1 - RAL 7021 | AN | 100 | D | 25 |
|
| CE.90294 | DD50-AN-10.0-S-C2 F.10-SST | C2 - RAL 2004 | AN | 10.0 | S | 25 |
|
| CE.90294-3N | DD50-AN-100-S-C2 F.10-SST | C2 - RAL 2004 | AN | 100 | S | 25 |
|
| CE.90294-C1 | DD50-AN-10.0-S-C1 F.10-SST | C1 - RAL 7021 | AN | 10.0 | S | 25 |
|
| CE.90294-C1-3N | DD50-AN-100-S-C1 F.10-SST | C1 - RAL 7021 | AN | 100 | S | 25 |
|
| CE.90505 | DD50-AR-00.3-D-C3 F.10-SST | C3 - RAL 7035 | AR | 00.3 | D | 25 |
|
| CE.90505-1N | DD50-AR-0.03-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.03 | D | 25 |
|
| CE.90505-3N | DD50-AR-003-D-C3 F.10-SST | C3 - RAL 7035 | AR | 003 | D | 25 |
|
| CE.90506 | DD50-AR-00.3-S-C3 F.10-SST | C3 - RAL 7035 | AR | 00.3 | S | 25 |
|
| CE.90506-1N | DD50-AR-0.03-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.03 | S | 25 |
|
| CE.90506-3N | DD50-AR-003-S-C3 F.10-SST | C3 - RAL 7035 | AR | 003 | S | 25 |
|
| CE.90507 | DD50-AR-00.3-D-C2 F.10-SST | C2 - RAL 2004 | AR | 00.3 | D | 25 |
|
| CE.90507-1N | DD50-AR-0.03-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.03 | D | 25 |
|
| CE.90507-3N | DD50-AR-003-D-C2 F.10-SST | C2 - RAL 2004 | AR | 003 | D | 25 |
|
| CE.90507-C1 | DD50-AR-00.3-D-C1 F.10-SST | C1 - RAL 7021 | AR | 00.3 | D | 25 |
|
| CE.90507-C1-1N | DD50-AR-0.03-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.03 | D | 25 |
|
| CE.90507-C1-3N | DD50-AR-003-D-C1 F.10-SST | C1 - RAL 7021 | AR | 003 | D | 25 |
|
| CE.90508 | DD50-AR-00.3-S-C2 F.10-SST | C2 - RAL 2004 | AR | 00.3 | S | 25 |
|
| CE.90508-1N | DD50-AR-0.03-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.03 | S | 25 |
|
| CE.90508-3N | DD50-AR-003-S-C2 F.10-SST | C2 - RAL 2004 | AR | 003 | S | 25 |
|
| CE.90508-C1 | DD50-AR-00.3-S-C1 F.10-SST | C1 - RAL 7021 | AR | 00.3 | S | 25 |
|
| CE.90508-C1-1N | DD50-AR-0.03-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.03 | S | 25 |
|
| CE.90508-C1-3N | DD50-AR-003-S-C1 F.10-SST | C1 - RAL 7021 | AR | 003 | S | 25 |
|
| CE.90517 | DD50-AR-0.10-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.10 | D | 25 |
|
| CE.90518 | DD50-AR-0.10-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.10 | S | 25 |
|
| CE.90519 | DD50-AR-0.10-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.10 | D | 25 |
|
| CE.90519-C1 | DD50-AR-0.10-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.10 | D | 25 |
|
| CE.90520 | DD50-AR-0.10-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.10 | S | 25 |
|
| CE.90520-C1 | DD50-AR-0.10-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.10 | S | 25 |
|
| CE.90537 | DD50-AR-0.20-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.20 | D | 25 |
|
| CE.90538 | DD50-AR-0.20-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.20 | S | 25 |
|
| CE.90539 | DD50-AR-0.20-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.20 | D | 25 |
|
| CE.90539-C1 | DD50-AR-0.20-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.20 | D | 25 |
|
| CE.90540 | DD50-AR-0.20-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.20 | S | 25 |
|
| CE.90540-C1 | DD50-AR-0.20-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.20 | S | 25 |
|
| CE.90557 | DD50-AR-0.30-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.30 | D | 25 |
|
| CE.90558 | DD50-AR-0.30-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.30 | S | 25 |
|
| CE.90559 | DD50-AR-0.30-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.30 | D | 25 |
|
| CE.90559-C1 | DD50-AR-0.30-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.30 | D | 25 |
|
| CE.90560 | DD50-AR-0.30-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.30 | S | 25 |
|
| CE.90560-C1 | DD50-AR-0.30-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.30 | S | 25 |
|
| CE.90581 | DD50-AR-0.40-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.40 | D | 25 |
|
| CE.90582 | DD50-AR-0.40-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.40 | S | 25 |
|
| CE.90583 | DD50-AR-0.40-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.40 | D | 25 |
|
| CE.90583-C1 | DD50-AR-0.40-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.40 | D | 25 |
|
| CE.90584 | DD50-AR-0.40-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.40 | S | 25 |
|
| CE.90584-C1 | DD50-AR-0.40-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.40 | S | 25 |
|
| CE.90601 | DD50-AR-0.50-D-C3 F.10-SST | C3 - RAL 7035 | AR | 0.50 | D | 25 |
|
| CE.90602 | DD50-AR-0.50-S-C3 F.10-SST | C3 - RAL 7035 | AR | 0.50 | S | 25 |
|
| CE.90603 | DD50-AR-0.50-D-C2 F.10-SST | C2 - RAL 2004 | AR | 0.50 | D | 25 |
|
| CE.90603-C1 | DD50-AR-0.50-D-C1 F.10-SST | C1 - RAL 7021 | AR | 0.50 | D | 25 |
|
| CE.90604 | DD50-AR-0.50-S-C2 F.10-SST | C2 - RAL 2004 | AR | 0.50 | S | 25 |
|
| CE.90604-C1 | DD50-AR-0.50-S-C1 F.10-SST | C1 - RAL 7021 | AR | 0.50 | S | 25 |
|
| CE.90631 | DD50-AR-1.00-D-C3 F.10-SST | C3 - RAL 7035 | AR | 1.00 | D | 25 |
|
| CE.90632 | DD50-AR-1.00-S-C3 F.10-SST | C3 - RAL 7035 | AR | 1.00 | S | 25 |
|
| CE.90633 | DD50-AR-1.00-D-C2 F.10-SST | C2 - RAL 2004 | AR | 1.00 | D | 25 |
|
| CE.90633-C1 | DD50-AR-1.00-D-C1 F.10-SST | C1 - RAL 7021 | AR | 1.00 | D | 25 |
|
| CE.90634 | DD50-AR-1.00-S-C2 F.10-SST | C2 - RAL 2004 | AR | 1.00 | S | 25 |
|
| CE.90634-C1 | DD50-AR-1.00-S-C1 F.10-SST | C1 - RAL 7021 | AR | 1.00 | S | 25 |
|
| CE.90651 | DD50-AR-01.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 01.0 | D | 25 |
|
| CE.90651-3N | DD50-AR-010-D-C3 F.10-SST | C3 - RAL 7035 | AR | 010 | D | 25 |
|
| CE.90652 | DD50-AR-01.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 01.0 | S | 25 |
|
| CE.90652-3N | DD50-AR-010-S-C3 F.10-SST | C3 - RAL 7035 | AR | 010 | S | 25 |
|
| CE.90653 | DD50-AR-01.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 01.0 | D | 25 |
|
| CE.90653-3N | DD50-AR-010-D-C2 F.10-SST | C2 - RAL 2004 | AR | 010 | D | 25 |
|
| CE.90653-C1 | DD50-AR-01.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 01.0 | D | 25 |
|
| CE.90653-C1-3N | DD50-AR-010-D-C1 F.10-SST | C1 - RAL 7021 | AR | 010 | D | 25 |
|
| CE.90654 | DD50-AR-01.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 01.0 | S | 25 |
|
| CE.90654-3N | DD50-AR-010-S-C2 F.10-SST | C2 - RAL 2004 | AR | 010 | S | 25 |
|
| CE.90654-C1 | DD50-AR-01.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 01.0 | S | 25 |
|
| CE.90654-C1-3N | DD50-AR-010-S-C1 F.10-SST | C1 - RAL 7021 | AR | 010 | S | 25 |
|
| CE.90681 | DD50-AR-02.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 02.0 | D | 25 |
|
| CE.90681-3N | DD50-AR-020-D-C3 F.10-SST | C3 - RAL 7035 | AR | 020 | D | 25 |
|
| CE.90682 | DD50-AR-02.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 02.0 | S | 25 |
|
| CE.90682-3N | DD50-AR-020-S-C3 F.10-SST | C3 - RAL 7035 | AR | 020 | S | 25 |
|
| CE.90683 | DD50-AR-02.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 02.0 | D | 25 |
|
| CE.90683-3N | DD50-AR-020-D-C2 F.10-SST | C2 - RAL 2004 | AR | 020 | D | 25 |
|
| CE.90683-C1 | DD50-AR-02.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 02.0 | D | 25 |
|
| CE.90683-C1-3N | DD50-AR-020-D-C1 F.10-SST | C1 - RAL 7021 | AR | 020 | D | 25 |
|
| CE.90684 | DD50-AR-02.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 02.0 | S | 25 |
|
| CE.90684-3N | DD50-AR-020-S-C2 F.10-SST | C2 - RAL 2004 | AR | 020 | S | 25 |
|
| CE.90684-C1 | DD50-AR-02.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 02.0 | S | 25 |
|
| CE.90684-C1-3N | DD50-AR-020-S-C1 F.10-SST | C1 - RAL 7021 | AR | 020 | S | 25 |
|
| CE.90707 | DD50-AR-03.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 03.0 | D | 25 |
|
| CE.90707-3N | DD50-AR-030-D-C3 F.10-SST | C3 - RAL 7035 | AR | 030 | D | 25 |
|
| CE.90708 | DD50-AR-03.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 03.0 | S | 25 |
|
| CE.90708-3N | DD50-AR-030-S-C3 F.10-SST | C3 - RAL 7035 | AR | 030 | S | 25 |
|
| CE.90709 | DD50-AR-03.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 03.0 | D | 25 |
|
| CE.90709-3N | DD50-AR-030-D-C2 F.10-SST | C2 - RAL 2004 | AR | 030 | D | 25 |
|
| CE.90709-C1 | DD50-AR-03.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 03.0 | D | 25 |
|
| CE.90709-C1-3N | DD50-AR-030-D-C1 F.10-SST | C1 - RAL 7021 | AR | 030 | D | 25 |
|
| CE.90710 | DD50-AR-03.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 03.0 | S | 25 |
|
| CE.90710-3N | DD50-AR-030-S-C2 F.10-SST | C2 - RAL 2004 | AR | 030 | S | 25 |
|
| CE.90710-C1 | DD50-AR-03.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 03.0 | S | 25 |
|
| CE.90710-C1-3N | DD50-AR-030-S-C1 F.10-SST | C1 - RAL 7021 | AR | 030 | S | 25 |
|
| CE.90731 | DD50-AR-04.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 04.0 | D | 25 |
|
| CE.90731-3N | DD50-AR-040-D-C3 F.10-SST | C3 - RAL 7035 | AR | 040 | D | 25 |
|
| CE.90732 | DD50-AR-04.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 04.0 | S | 25 |
|
| CE.90732-3N | DD50-AR-040-S-C3 F.10-SST | C3 - RAL 7035 | AR | 040 | S | 25 |
|
| CE.90733 | DD50-AR-04.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 04.0 | D | 25 |
|
| CE.90733-3N | DD50-AR-040-D-C2 F.10-SST | C2 - RAL 2004 | AR | 040 | D | 25 |
|
| CE.90733-C1 | DD50-AR-04.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 04.0 | D | 25 |
|
| CE.90733-C1-3N | DD50-AR-040-D-C1 F.10-SST | C1 - RAL 7021 | AR | 040 | D | 25 |
|
| CE.90734 | DD50-AR-04.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 04.0 | S | 25 |
|
| CE.90734-3N | DD50-AR-040-S-C2 F.10-SST | C2 - RAL 2004 | AR | 040 | S | 25 |
|
| CE.90734-C1 | DD50-AR-04.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 04.0 | S | 25 |
|
| CE.90734-C1-3N | DD50-AR-040-S-C1 F.10-SST | C1 - RAL 7021 | AR | 040 | S | 25 |
|
| CE.90751 | DD50-AR-05.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 05.0 | D | 25 |
|
| CE.90751-3N | DD50-AR-050-D-C3 F.10-SST | C3 - RAL 7035 | AR | 050 | D | 25 |
|
| CE.90752 | DD50-AR-05.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 05.0 | S | 25 |
|
| CE.90752-3N | DD50-AR-050-S-C3 F.10-SST | C3 - RAL 7035 | AR | 050 | S | 25 |
|
| CE.90753 | DD50-AR-05.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 05.0 | D | 25 |
|
| CE.90753-3N | DD50-AR-050-D-C2 F.10-SST | C2 - RAL 2004 | AR | 050 | D | 25 |
|
| CE.90753-C1 | DD50-AR-05.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 05.0 | D | 25 |
|
| CE.90753-C1-3N | DD50-AR-050-D-C1 F.10-SST | C1 - RAL 7021 | AR | 050 | D | 25 |
|
| CE.90754 | DD50-AR-05.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 05.0 | S | 25 |
|
| CE.90754-3N | DD50-AR-050-S-C2 F.10-SST | C2 - RAL 2004 | AR | 050 | S | 25 |
|
| CE.90754-C1 | DD50-AR-05.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 05.0 | S | 25 |
|
| CE.90754-C1-3N | DD50-AR-050-S-C1 F.10-SST | C1 - RAL 7021 | AR | 050 | S | 25 |
|
| CE.90791 | DD50-AR-10.0-D-C3 F.10-SST | C3 - RAL 7035 | AR | 10.0 | D | 25 |
|
| CE.90791-3N | DD50-AR-100-D-C3 F.10-SST | C3 - RAL 7035 | AR | 100 | D | 25 |
|
| CE.90792 | DD50-AR-10.0-S-C3 F.10-SST | C3 - RAL 7035 | AR | 10.0 | S | 25 |
|
| CE.90792-3N | DD50-AR-100-S-C3 F.10-SST | C3 - RAL 7035 | AR | 100 | S | 25 |
|
| CE.90793 | DD50-AR-10.0-D-C2 F.10-SST | C2 - RAL 2004 | AR | 10.0 | D | 25 |
|
| CE.90793-3N | DD50-AR-100-D-C2 F.10-SST | C2 - RAL 2004 | AR | 100 | D | 25 |
|
| CE.90793-C1 | DD50-AR-10.0-D-C1 F.10-SST | C1 - RAL 7021 | AR | 10.0 | D | 25 |
|
| CE.90793-C1-3N | DD50-AR-100-D-C1 F.10-SST | C1 - RAL 7021 | AR | 100 | D | 25 |
|
| CE.90794 | DD50-AR-10.0-S-C2 F.10-SST | C2 - RAL 2004 | AR | 10.0 | S | 25 |
|
| CE.90794-3N | DD50-AR-100-S-C2 F.10-SST | C2 - RAL 2004 | AR | 100 | S | 25 |
|
| CE.90794-C1 | DD50-AR-10.0-S-C1 F.10-SST | C1 - RAL 7021 | AR | 10.0 | S | 25 |
|
| CE.90794-C1-3N | DD50-AR-100-S-C1 F.10-SST | C1 - RAL 7021 | AR | 100 | S | 25 |
|
| CE.91005 | DD50-FN-00.3-D-C3 F.10-SST | C3 - RAL 7035 | FN | 00.3 | D | 25 |
|
| CE.91005-1N | DD50-FN-0.03-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.03 | D | 25 |
|
| CE.91005-3N | DD50-FN-003-D-C3 F.10-SST | C3 - RAL 7035 | FN | 003 | D | 25 |
|
| CE.91006 | DD50-FN-00.3-S-C3 F.10-SST | C3 - RAL 7035 | FN | 00.3 | S | 25 |
|
| CE.91006-1N | DD50-FN-0.03-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.03 | S | 25 |
|
| CE.91006-3N | DD50-FN-003-S-C3 F.10-SST | C3 - RAL 7035 | FN | 003 | S | 25 |
|
| CE.91007 | DD50-FN-00.3-D-C2 F.10-SST | C2 - RAL 2004 | FN | 00.3 | D | 25 |
|
| CE.91007-1N | DD50-FN-0.03-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.03 | D | 25 |
|
| CE.91007-3N | DD50-FN-003-D-C2 F.10-SST | C2 - RAL 2004 | FN | 003 | D | 25 |
|
| CE.91007-C1 | DD50-FN-00.3-D-C1 F.10-SST | C1 - RAL 7021 | FN | 00.3 | D | 25 |
|
| CE.91007-C1-1N | DD50-FN-0.03-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.03 | D | 25 |
|
| CE.91007-C1-3N | DD50-FN-003-D-C1 F.10-SST | C1 - RAL 7021 | FN | 003 | D | 25 |
|
| CE.91008 | DD50-FN-00.3-S-C2 F.10-SST | C2 - RAL 2004 | FN | 00.3 | S | 25 |
|
| CE.91008-1N | DD50-FN-0.03-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.03 | S | 25 |
|
| CE.91008-3N | DD50-FN-003-S-C2 F.10-SST | C2 - RAL 2004 | FN | 003 | S | 25 |
|
| CE.91008-C1 | DD50-FN-00.3-S-C1 F.10-SST | C1 - RAL 7021 | FN | 00.3 | S | 25 |
|
| CE.91008-C1-1N | DD50-FN-0.03-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.03 | S | 25 |
|
| CE.91008-C1-3N | DD50-FN-003-S-C1 F.10-SST | C1 - RAL 7021 | FN | 003 | S | 25 |
|
| CE.91017 | DD50-FN-0.10-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.10 | D | 25 |
|
| CE.91018 | DD50-FN-0.10-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.10 | S | 25 |
|
| CE.91019 | DD50-FN-0.10-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.10 | D | 25 |
|
| CE.91019-C1 | DD50-FN-0.10-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.10 | D | 25 |
|
| CE.91020 | DD50-FN-0.10-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.10 | S | 25 |
|
| CE.91020-C1 | DD50-FN-0.10-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.10 | S | 25 |
|
| CE.91037 | DD50-FN-0.20-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.20 | D | 25 |
|
| CE.91038 | DD50-FN-0.20-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.20 | S | 25 |
|
| CE.91039 | DD50-FN-0.20-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.20 | D | 25 |
|
| CE.91039-C1 | DD50-FN-0.20-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.20 | D | 25 |
|
| CE.91040 | DD50-FN-0.20-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.20 | S | 25 |
|
| CE.91040-C1 | DD50-FN-0.20-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.20 | S | 25 |
|
| CE.91057 | DD50-FN-0.30-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.30 | D | 25 |
|
| CE.91058 | DD50-FN-0.30-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.30 | S | 25 |
|
| CE.91059 | DD50-FN-0.30-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.30 | D | 25 |
|
| CE.91059-C1 | DD50-FN-0.30-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.30 | D | 25 |
|
| CE.91060 | DD50-FN-0.30-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.30 | S | 25 |
|
| CE.91060-C1 | DD50-FN-0.30-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.30 | S | 25 |
|
| CE.91081 | DD50-FN-0.40-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.40 | D | 25 |
|
| CE.91082 | DD50-FN-0.40-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.40 | S | 25 |
|
| CE.91083 | DD50-FN-0.40-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.40 | D | 25 |
|
| CE.91083-C1 | DD50-FN-0.40-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.40 | D | 25 |
|
| CE.91084 | DD50-FN-0.40-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.40 | S | 25 |
|
| CE.91084-C1 | DD50-FN-0.40-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.40 | S | 25 |
|
| CE.91101 | DD50-FN-0.50-D-C3 F.10-SST | C3 - RAL 7035 | FN | 0.50 | D | 25 |
|
| CE.91102 | DD50-FN-0.50-S-C3 F.10-SST | C3 - RAL 7035 | FN | 0.50 | S | 25 |
|
| CE.91103 | DD50-FN-0.50-D-C2 F.10-SST | C2 - RAL 2004 | FN | 0.50 | D | 25 |
|
| CE.91103-C1 | DD50-FN-0.50-D-C1 F.10-SST | C1 - RAL 7021 | FN | 0.50 | D | 25 |
|
| CE.91104 | DD50-FN-0.50-S-C2 F.10-SST | C2 - RAL 2004 | FN | 0.50 | S | 25 |
|
| CE.91104-C1 | DD50-FN-0.50-S-C1 F.10-SST | C1 - RAL 7021 | FN | 0.50 | S | 25 |
|
| CE.91131 | DD50-FN-1.00-D-C3 F.10-SST | C3 - RAL 7035 | FN | 1.00 | D | 25 |
|
| CE.91132 | DD50-FN-1.00-S-C3 F.10-SST | C3 - RAL 7035 | FN | 1.00 | S | 25 |
|
| CE.91133 | DD50-FN-1.00-D-C2 F.10-SST | C2 - RAL 2004 | FN | 1.00 | D | 25 |
|
| CE.91133-C1 | DD50-FN-1.00-D-C1 F.10-SST | C1 - RAL 7021 | FN | 1.00 | D | 25 |
|
| CE.91134 | DD50-FN-1.00-S-C2 F.10-SST | C2 - RAL 2004 | FN | 1.00 | S | 25 |
|
| CE.91134-C1 | DD50-FN-1.00-S-C1 F.10-SST | C1 - RAL 7021 | FN | 1.00 | S | 25 |
|
| CE.91153 | DD50-FN-01.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 01.0 | D | 25 |
|
| CE.91153-3N | DD50-FN-010-D-C3 F.10-SST | C3 - RAL 7035 | FN | 010 | D | 25 |
|
| CE.91154 | DD50-FN-01.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 01.0 | S | 25 |
|
| CE.91154-3N | DD50-FN-010-S-C3 F.10-SST | C3 - RAL 7035 | FN | 010 | S | 25 |
|
| CE.91155 | DD50-FN-01.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 01.0 | D | 25 |
|
| CE.91155-3N | DD50-FN-010-D-C2 F.10-SST | C2 - RAL 2004 | FN | 010 | D | 25 |
|
| CE.91155-C1 | DD50-FN-01.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 01.0 | D | 25 |
|
| CE.91155-C1-3N | DD50-FN-010-D-C1 F.10-SST | C1 - RAL 7021 | FN | 010 | D | 25 |
|
| CE.91156 | DD50-FN-01.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 01.0 | S | 25 |
|
| CE.91156-3N | DD50-FN-010-S-C2 F.10-SST | C2 - RAL 2004 | FN | 010 | S | 25 |
|
| CE.91156-C1 | DD50-FN-01.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 01.0 | S | 25 |
|
| CE.91156-C1-3N | DD50-FN-010-S-C1 F.10-SST | C1 - RAL 7021 | FN | 010 | S | 25 |
|
| CE.91181 | DD50-FN-02.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 02.0 | D | 25 |
|
| CE.91181-3N | DD50-FN-020-D-C3 F.10-SST | C3 - RAL 7035 | FN | 020 | D | 25 |
|
| CE.91182 | DD50-FN-02.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 02.0 | S | 25 |
|
| CE.91182-3N | DD50-FN-020-S-C3 F.10-SST | C3 - RAL 7035 | FN | 020 | S | 25 |
|
| CE.91183 | DD50-FN-02.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 02.0 | D | 25 |
|
| CE.91183-3N | DD50-FN-020-D-C2 F.10-SST | C2 - RAL 2004 | FN | 020 | D | 25 |
|
| CE.91183-C1 | DD50-FN-02.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 02.0 | D | 25 |
|
| CE.91183-C1-3N | DD50-FN-020-D-C1 F.10-SST | C1 - RAL 7021 | FN | 020 | D | 25 |
|
| CE.91184 | DD50-FN-02.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 02.0 | S | 25 |
|
| CE.91184-3N | DD50-FN-020-S-C2 F.10-SST | C2 - RAL 2004 | FN | 020 | S | 25 |
|
| CE.91184-C1 | DD50-FN-02.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 02.0 | S | 25 |
|
| CE.91184-C1-3N | DD50-FN-020-S-C1 F.10-SST | C1 - RAL 7021 | FN | 020 | S | 25 |
|
| CE.91207 | DD50-FN-03.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 03.0 | D | 25 |
|
| CE.91207-3N | DD50-FN-030-D-C3 F.10-SST | C3 - RAL 7035 | FN | 030 | D | 25 |
|
| CE.91208 | DD50-FN-03.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 03.0 | S | 25 |
|
| CE.91208-3N | DD50-FN-030-S-C3 F.10-SST | C3 - RAL 7035 | FN | 030 | S | 25 |
|
| CE.91209 | DD50-FN-03.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 03.0 | D | 25 |
|
| CE.91209-3N | DD50-FN-030-D-C2 F.10-SST | C2 - RAL 2004 | FN | 030 | D | 25 |
|
| CE.91209-C1 | DD50-FN-03.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 03.0 | D | 25 |
|
| CE.91209-C1-3N | DD50-FN-030-D-C1 F.10-SST | C1 - RAL 7021 | FN | 030 | D | 25 |
|
| CE.91210 | DD50-FN-03.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 03.0 | S | 25 |
|
| CE.91210-3N | DD50-FN-030-S-C2 F.10-SST | C2 - RAL 2004 | FN | 030 | S | 25 |
|
| CE.91210-C1 | DD50-FN-03.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 03.0 | S | 25 |
|
| CE.91210-C1-3N | DD50-FN-030-S-C1 F.10-SST | C1 - RAL 7021 | FN | 030 | S | 25 |
|
| CE.91233 | DD50-FN-04.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 04.0 | D | 25 |
|
| CE.91233-3N | DD50-FN-040-D-C3 F.10-SST | C3 - RAL 7035 | FN | 040 | D | 25 |
|
| CE.91234 | DD50-FN-04.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 04.0 | S | 25 |
|
| CE.91234-3N | DD50-FN-040-S-C3 F.10-SST | C3 - RAL 7035 | FN | 040 | S | 25 |
|
| CE.91235 | DD50-FN-04.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 04.0 | D | 25 |
|
| CE.91235-3N | DD50-FN-040-D-C2 F.10-SST | C2 - RAL 2004 | FN | 040 | D | 25 |
|
| CE.91235-C1 | DD50-FN-04.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 04.0 | D | 25 |
|
| CE.91235-C1-3N | DD50-FN-040-D-C1 F.10-SST | C1 - RAL 7021 | FN | 040 | D | 25 |
|
| CE.91236 | DD50-FN-04.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 04.0 | S | 25 |
|
| CE.91236-3N | DD50-FN-040-S-C2 F.10-SST | C2 - RAL 2004 | FN | 040 | S | 25 |
|
| CE.91236-C1 | DD50-FN-04.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 04.0 | S | 25 |
|
| CE.91236-C1-3N | DD50-FN-040-S-C1 F.10-SST | C1 - RAL 7021 | FN | 040 | S | 25 |
|
| CE.91251 | DD50-FN-05.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 05.0 | D | 25 |
|
| CE.91251-3N | DD50-FN-050-D-C3 F.10-SST | C3 - RAL 7035 | FN | 050 | D | 25 |
|
| CE.91252 | DD50-FN-05.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 05.0 | S | 25 |
|
| CE.91252-3N | DD50-FN-050-S-C3 F.10-SST | C3 - RAL 7035 | FN | 050 | S | 25 |
|
| CE.91253 | DD50-FN-05.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 05.0 | D | 25 |
|
| CE.91253-3N | DD50-FN-050-D-C2 F.10-SST | C2 - RAL 2004 | FN | 050 | D | 25 |
|
| CE.91253-C1 | DD50-FN-05.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 05.0 | D | 25 |
|
| CE.91253-C1-3N | DD50-FN-050-D-C1 F.10-SST | C1 - RAL 7021 | FN | 050 | D | 25 |
|
| CE.91254 | DD50-FN-05.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 05.0 | S | 25 |
|
| CE.91254-3N | DD50-FN-050-S-C2 F.10-SST | C2 - RAL 2004 | FN | 050 | S | 25 |
|
| CE.91254-C1 | DD50-FN-05.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 05.0 | S | 25 |
|
| CE.91254-C1-3N | DD50-FN-050-S-C1 F.10-SST | C1 - RAL 7021 | FN | 050 | S | 25 |
|
| CE.91291 | DD50-FN-10.0-D-C3 F.10-SST | C3 - RAL 7035 | FN | 10.0 | D | 25 |
|
| CE.91291-3N | DD50-FN-100-D-C3 F.10-SST | C3 - RAL 7035 | FN | 100 | D | 25 |
|
| CE.91292 | DD50-FN-10.0-S-C3 F.10-SST | C3 - RAL 7035 | FN | 10.0 | S | 25 |
|
| CE.91292-3N | DD50-FN-100-S-C3 F.10-SST | C3 - RAL 7035 | FN | 100 | S | 25 |
|
| CE.91293 | DD50-FN-10.0-D-C2 F.10-SST | C2 - RAL 2004 | FN | 10.0 | D | 25 |
|
| CE.91293-3N | DD50-FN-100-D-C2 F.10-SST | C2 - RAL 2004 | FN | 100 | D | 25 |
|
| CE.91293-C1 | DD50-FN-10.0-D-C1 F.10-SST | C1 - RAL 7021 | FN | 10.0 | D | 25 |
|
| CE.91293-C1-3N | DD50-FN-100-D-C1 F.10-SST | C1 - RAL 7021 | FN | 100 | D | 25 |
|
| CE.91294 | DD50-FN-10.0-S-C2 F.10-SST | C2 - RAL 2004 | FN | 10.0 | S | 25 |
|
| CE.91294-3N | DD50-FN-100-S-C2 F.10-SST | C2 - RAL 2004 | FN | 100 | S | 25 |
|
| CE.91294-C1 | DD50-FN-10.0-S-C1 F.10-SST | C1 - RAL 7021 | FN | 10.0 | S | 25 |
|
| CE.91294-C1-3N | DD50-FN-100-S-C1 F.10-SST | C1 - RAL 7021 | FN | 100 | S | 25 |
|
| CE.91505 | DD50-FR-00.3-D-C3 F.10-SST | C3 - RAL 7035 | FR | 00.3 | D | 25 |
|
| CE.91505-1N | DD50-FR-0.03-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.03 | D | 25 |
|
| CE.91505-3N | DD50-FR-003-D-C3 F.10-SST | C3 - RAL 7035 | FR | 003 | D | 25 |
|
| CE.91506 | DD50-FR-00.3-S-C3 F.10-SST | C3 - RAL 7035 | FR | 00.3 | S | 25 |
|
| CE.91506-1N | DD50-FR-0.03-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.03 | S | 25 |
|
| CE.91506-3N | DD50-FR-003-S-C3 F.10-SST | C3 - RAL 7035 | FR | 003 | S | 25 |
|
| CE.91507 | DD50-FR-00.3-D-C2 F.10-SST | C2 - RAL 2004 | FR | 00.3 | D | 25 |
|
| CE.91507-1N | DD50-FR-0.03-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.03 | D | 25 |
|
| CE.91507-3N | DD50-FR-003-D-C2 F.10-SST | C2 - RAL 2004 | FR | 003 | D | 25 |
|
| CE.91507-C1 | DD50-FR-00.3-D-C1 F.10-SST | C1 - RAL 7021 | FR | 00.3 | D | 25 |
|
| CE.91507-C1-1N | DD50-FR-0.03-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.03 | D | 25 |
|
| CE.91507-C1-3N | DD50-FR-003-D-C1 F.10-SST | C1 - RAL 7021 | FR | 003 | D | 25 |
|
| CE.91508 | DD50-FR-00.3-S-C2 F.10-SST | C2 - RAL 2004 | FR | 00.3 | S | 25 |
|
| CE.91508-1N | DD50-FR-0.03-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.03 | S | 25 |
|
| CE.91508-3N | DD50-FR-003-S-C2 F.10-SST | C2 - RAL 2004 | FR | 003 | S | 25 |
|
| CE.91508-C1 | DD50-FR-00.3-S-C1 F.10-SST | C1 - RAL 7021 | FR | 00.3 | S | 25 |
|
| CE.91508-C1-1N | DD50-FR-0.03-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.03 | S | 25 |
|
| CE.91508-C1-3N | DD50-FR-003-S-C1 F.10-SST | C1 - RAL 7021 | FR | 003 | S | 25 |
|
| CE.91517 | DD50-FR-0.10-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.10 | D | 25 |
|
| CE.91518 | DD50-FR-0.10-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.10 | S | 25 |
|
| CE.91519 | DD50-FR-0.10-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.10 | D | 25 |
|
| CE.91519-C1 | DD50-FR-0.10-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.10 | D | 25 |
|
| CE.91520 | DD50-FR-0.10-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.10 | S | 25 |
|
| CE.91520-C1 | DD50-FR-0.10-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.10 | S | 25 |
|
| CE.91537 | DD50-FR-0.20-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.20 | D | 25 |
|
| CE.91538 | DD50-FR-0.20-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.20 | S | 25 |
|
| CE.91539 | DD50-FR-0.20-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.20 | D | 25 |
|
| CE.91539-C1 | DD50-FR-0.20-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.20 | D | 25 |
|
| CE.91540 | DD50-FR-0.20-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.20 | S | 25 |
|
| CE.91540-C1 | DD50-FR-0.20-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.20 | S | 25 |
|
| CE.91557 | DD50-FR-0.30-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.30 | D | 25 |
|
| CE.91558 | DD50-FR-0.30-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.30 | S | 25 |
|
| CE.91559 | DD50-FR-0.30-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.30 | D | 25 |
|
| CE.91559-C1 | DD50-FR-0.30-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.30 | D | 25 |
|
| CE.91560 | DD50-FR-0.30-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.30 | S | 25 |
|
| CE.91560-C1 | DD50-FR-0.30-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.30 | S | 25 |
|
| CE.91581 | DD50-FR-0.40-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.40 | D | 25 |
|
| CE.91582 | DD50-FR-0.40-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.40 | S | 25 |
|
| CE.91583 | DD50-FR-0.40-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.40 | D | 25 |
|
| CE.91583-C1 | DD50-FR-0.40-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.40 | D | 25 |
|
| CE.91584 | DD50-FR-0.40-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.40 | S | 25 |
|
| CE.91584-C1 | DD50-FR-0.40-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.40 | S | 25 |
|
| CE.91601 | DD50-FR-0.50-D-C3 F.10-SST | C3 - RAL 7035 | FR | 0.50 | D | 25 |
|
| CE.91602 | DD50-FR-0.50-S-C3 F.10-SST | C3 - RAL 7035 | FR | 0.50 | S | 25 |
|
| CE.91603 | DD50-FR-0.50-D-C2 F.10-SST | C2 - RAL 2004 | FR | 0.50 | D | 25 |
|
| CE.91603-C1 | DD50-FR-0.50-D-C1 F.10-SST | C1 - RAL 7021 | FR | 0.50 | D | 25 |
|
| CE.91604 | DD50-FR-0.50-S-C2 F.10-SST | C2 - RAL 2004 | FR | 0.50 | S | 25 |
|
| CE.91604-C1 | DD50-FR-0.50-S-C1 F.10-SST | C1 - RAL 7021 | FR | 0.50 | S | 25 |
|
| CE.91631 | DD50-FR-1.00-D-C3 F.10-SST | C3 - RAL 7035 | FR | 1.00 | D | 25 |
|
| CE.91632 | DD50-FR-1.00-S-C3 F.10-SST | C3 - RAL 7035 | FR | 1.00 | S | 25 |
|
| CE.91633 | DD50-FR-1.00-D-C2 F.10-SST | C2 - RAL 2004 | FR | 1.00 | D | 25 |
|
| CE.91633-C1 | DD50-FR-1.00-D-C1 F.10-SST | C1 - RAL 7021 | FR | 1.00 | D | 25 |
|
| CE.91634 | DD50-FR-1.00-S-C2 F.10-SST | C2 - RAL 2004 | FR | 1.00 | S | 25 |
|
| CE.91634-C1 | DD50-FR-1.00-S-C1 F.10-SST | C1 - RAL 7021 | FR | 1.00 | S | 25 |
|
| CE.91651 | DD50-FR-01.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 01.0 | D | 25 |
|
| CE.91651-3N | DD50-FR-010-D-C3 F.10-SST | C3 - RAL 7035 | FR | 010 | D | 25 |
|
| CE.91652 | DD50-FR-01.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 01.0 | S | 25 |
|
| CE.91652-3N | DD50-FR-010-S-C3 F.10-SST | C3 - RAL 7035 | FR | 010 | S | 25 |
|
| CE.91653 | DD50-FR-01.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 01.0 | D | 25 |
|
| CE.91653-3N | DD50-FR-010-D-C2 F.10-SST | C2 - RAL 2004 | FR | 010 | D | 25 |
|
| CE.91653-C1 | DD50-FR-01.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 01.0 | D | 25 |
|
| CE.91653-C1-3N | DD50-FR-010-D-C1 F.10-SST | C1 - RAL 7021 | FR | 010 | D | 25 |
|
| CE.91654 | DD50-FR-01.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 01.0 | S | 25 |
|
| CE.91654-3N | DD50-FR-010-S-C2 F.10-SST | C2 - RAL 2004 | FR | 010 | S | 25 |
|
| CE.91654-C1 | DD50-FR-01.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 01.0 | S | 25 |
|
| CE.91654-C1-3N | DD50-FR-010-S-C1 F.10-SST | C1 - RAL 7021 | FR | 010 | S | 25 |
|
| CE.91681 | DD50-FR-02.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 02.0 | D | 25 |
|
| CE.91681-3N | DD50-FR-020-D-C3 F.10-SST | C3 - RAL 7035 | FR | 020 | D | 25 |
|
| CE.91682 | DD50-FR-02.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 02.0 | S | 25 |
|
| CE.91682-3N | DD50-FR-020-S-C3 F.10-SST | C3 - RAL 7035 | FR | 020 | S | 25 |
|
| CE.91683 | DD50-FR-02.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 02.0 | D | 25 |
|
| CE.91683-3N | DD50-FR-020-D-C2 F.10-SST | C2 - RAL 2004 | FR | 020 | D | 25 |
|
| CE.91683-C1 | DD50-FR-02.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 02.0 | D | 25 |
|
| CE.91683-C1-3N | DD50-FR-020-D-C1 F.10-SST | C1 - RAL 7021 | FR | 020 | D | 25 |
|
| CE.91684 | DD50-FR-02.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 02.0 | S | 25 |
|
| CE.91684-3N | DD50-FR-020-S-C2 F.10-SST | C2 - RAL 2004 | FR | 020 | S | 25 |
|
| CE.91684-C1 | DD50-FR-02.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 02.0 | S | 25 |
|
| CE.91684-C1-3N | DD50-FR-020-S-C1 F.10-SST | C1 - RAL 7021 | FR | 020 | S | 25 |
|
| CE.91707 | DD50-FR-03.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 03.0 | D | 25 |
|
| CE.91707-3N | DD50-FR-030-D-C3 F.10-SST | C3 - RAL 7035 | FR | 030 | D | 25 |
|
| CE.91708 | DD50-FR-03.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 03.0 | S | 25 |
|
| CE.91708-3N | DD50-FR-030-S-C3 F.10-SST | C3 - RAL 7035 | FR | 030 | S | 25 |
|
| CE.91709 | DD50-FR-03.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 03.0 | D | 25 |
|
| CE.91709-3N | DD50-FR-030-D-C2 F.10-SST | C2 - RAL 2004 | FR | 030 | D | 25 |
|
| CE.91709-C1 | DD50-FR-03.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 03.0 | D | 25 |
|
| CE.91709-C1-3N | DD50-FR-030-D-C1 F.10-SST | C1 - RAL 7021 | FR | 030 | D | 25 |
|
| CE.91710 | DD50-FR-03.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 03.0 | S | 25 |
|
| CE.91710-3N | DD50-FR-030-S-C2 F.10-SST | C2 - RAL 2004 | FR | 030 | S | 25 |
|
| CE.91710-C1 | DD50-FR-03.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 03.0 | S | 25 |
|
| CE.91710-C1-3N | DD50-FR-030-S-C1 F.10-SST | C1 - RAL 7021 | FR | 030 | S | 25 |
|
| CE.91731 | DD50-FR-04.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 04.0 | D | 25 |
|
| CE.91731-3N | DD50-FR-040-D-C3 F.10-SST | C3 - RAL 7035 | FR | 040 | D | 25 |
|
| CE.91732 | DD50-FR-04.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 04.0 | S | 25 |
|
| CE.91732-3N | DD50-FR-040-S-C3 F.10-SST | C3 - RAL 7035 | FR | 040 | S | 25 |
|
| CE.91733 | DD50-FR-04.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 04.0 | D | 25 |
|
| CE.91733-3N | DD50-FR-040-D-C2 F.10-SST | C2 - RAL 2004 | FR | 040 | D | 25 |
|
| CE.91733-C1 | DD50-FR-04.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 04.0 | D | 25 |
|
| CE.91733-C1-3N | DD50-FR-040-D-C1 F.10-SST | C1 - RAL 7021 | FR | 040 | D | 25 |
|
| CE.91734 | DD50-FR-04.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 04.0 | S | 25 |
|
| CE.91734-3N | DD50-FR-040-S-C2 F.10-SST | C2 - RAL 2004 | FR | 040 | S | 25 |
|
| CE.91734-C1 | DD50-FR-04.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 04.0 | S | 25 |
|
| CE.91734-C1-3N | DD50-FR-040-S-C1 F.10-SST | C1 - RAL 7021 | FR | 040 | S | 25 |
|
| CE.91751 | DD50-FR-05.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 05.0 | D | 25 |
|
| CE.91751-3N | DD50-FR-050-D-C3 F.10-SST | C3 - RAL 7035 | FR | 050 | D | 25 |
|
| CE.91752 | DD50-FR-05.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 05.0 | S | 25 |
|
| CE.91752-3N | DD50-FR-050-S-C3 F.10-SST | C3 - RAL 7035 | FR | 050 | S | 25 |
|
| CE.91753 | DD50-FR-05.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 05.0 | D | 25 |
|
| CE.91753-3N | DD50-FR-050-D-C2 F.10-SST | C2 - RAL 2004 | FR | 050 | D | 25 |
|
| CE.91753-C1 | DD50-FR-05.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 05.0 | D | 25 |
|
| CE.91753-C1-3N | DD50-FR-050-D-C1 F.10-SST | C1 - RAL 7021 | FR | 050 | D | 25 |
|
| CE.91754 | DD50-FR-05.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 05.0 | S | 25 |
|
| CE.91754-3N | DD50-FR-050-S-C2 F.10-SST | C2 - RAL 2004 | FR | 050 | S | 25 |
|
| CE.91754-C1 | DD50-FR-05.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 05.0 | S | 25 |
|
| CE.91754-C1-3N | DD50-FR-050-S-C1 F.10-SST | C1 - RAL 7021 | FR | 050 | S | 25 |
|
| CE.91791 | DD50-FR-10.0-D-C3 F.10-SST | C3 - RAL 7035 | FR | 10.0 | D | 25 |
|
| CE.91791-3N | DD50-FR-100-D-C3 F.10-SST | C3 - RAL 7035 | FR | 100 | D | 25 |
|
| CE.91792 | DD50-FR-10.0-S-C3 F.10-SST | C3 - RAL 7035 | FR | 10.0 | S | 25 |
|
| CE.91792-3N | DD50-FR-100-S-C3 F.10-SST | C3 - RAL 7035 | FR | 100 | S | 25 |
|
| CE.91793 | DD50-FR-10.0-D-C2 F.10-SST | C2 - RAL 2004 | FR | 10.0 | D | 25 |
|
| CE.91793-3N | DD50-FR-100-D-C2 F.10-SST | C2 - RAL 2004 | FR | 100 | D | 25 |
|
| CE.91793-C1 | DD50-FR-10.0-D-C1 F.10-SST | C1 - RAL 7021 | FR | 10.0 | D | 25 |
|
| CE.91793-C1-3N | DD50-FR-100-D-C1 F.10-SST | C1 - RAL 7021 | FR | 100 | D | 25 |
|
| CE.91794 | DD50-FR-10.0-S-C2 F.10-SST | C2 - RAL 2004 | FR | 10.0 | S | 25 |
|
| CE.91794-3N | DD50-FR-100-S-C2 F.10-SST | C2 - RAL 2004 | FR | 100 | S | 25 |
|
| CE.91794-C1 | DD50-FR-10.0-S-C1 F.10-SST | C1 - RAL 7021 | FR | 10.0 | S | 25 |
|
| CE.91794-C1-3N | DD50-FR-100-S-C1 F.10-SST | C1 - RAL 7021 | FR | 100 | S | 25 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
BSA-T50Bases for spindle lockingfor DD50 position indicators, SUPER-technopolymerView Product -
RB50Hole reduction sleeve for DD50Steel or stainless steelView Product
-
DD52RMechanical position indicatorsdirect drive, 5-digit counter, technopolymerView Product
-
DD51-EElectronic position indicatorsdirect drive, 5-digit display, technopolymerView Product
-
DD52R-EElectronic position indicatorsdirect drive, 6-digit display, technopolymerView Product
-
GN 957Control knobsfor position indicatorsView Product
-
DD51Mechanical position indicatorsdirect drive, 4-digit counter, technopolymerView Product
-
MDX-50Knob for position indicatorsFor DD50 indicators, technopolymerView Product
