CWN.
Wing knobs
Technopolymer
CWN-B
Wing knobs
Brass boss, threaded blind hole
CWN-FP
Wing knobs
Brass boss, threaded pass-through hole
CWN-p
Wing knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- CWN-B: brass boss, threaded blind hole.
- CWN-FP: brass boss, threaded pass-through hole.
- CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
General information
Ergonomy and design
The slightly convex marks on the wings offer a point where the fingers can be positioned.

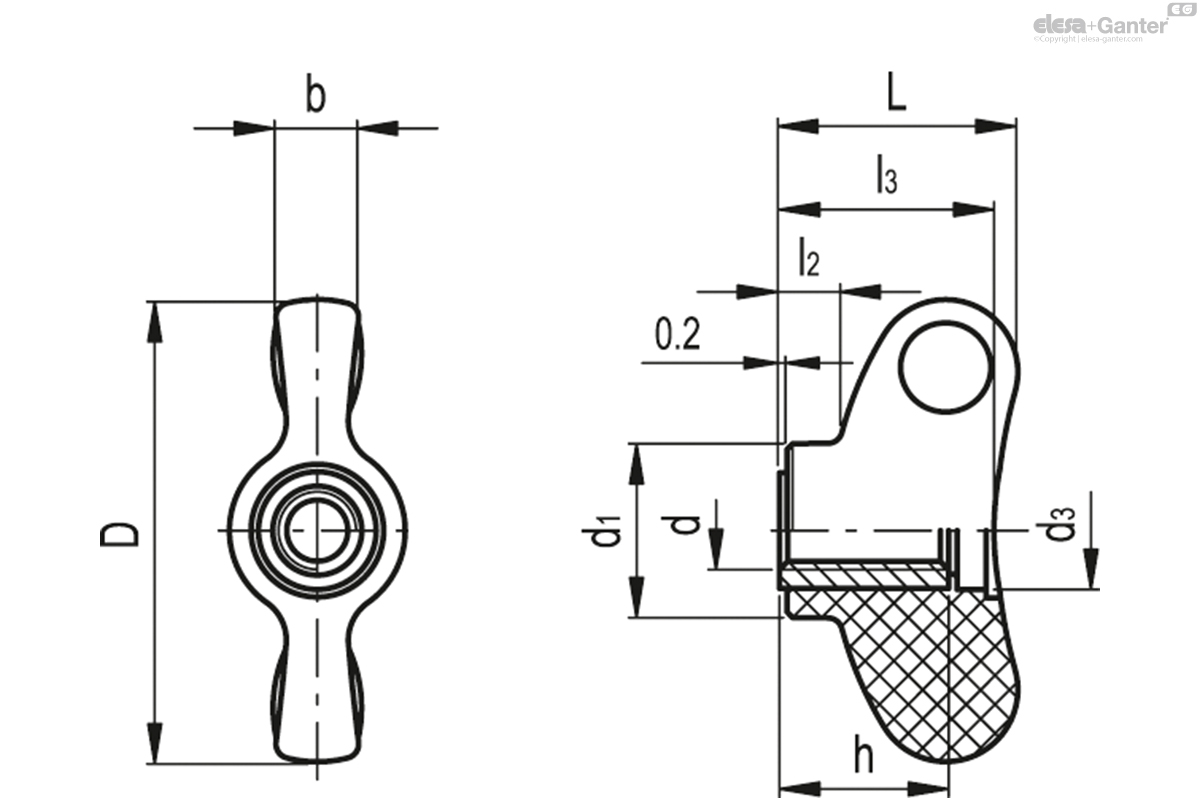

CWN-FP
| D | d6H | L | d1 | d3 | l2 | l3 | b | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 8605 | CWN.32 FP-M5 | 32 | M5 | 16.5 | 12 | 8 | 3.5 | 14.5 | 6 | 12 | 6 |
|
| 8606 | CWN.32 FP-M6 | 32 | M6 | 16.5 | 12 | 8 | 3.5 | 14.5 | 6 | 12 | 6 |
|
| 8656 | CWN.40 FP-M8 | 40 | M8 | 21 | 13.5 | 9.5 | 5 | 19 | 6.5 | 16 | 9 |
|
