CWN.
Wing knobs
Technopolymer

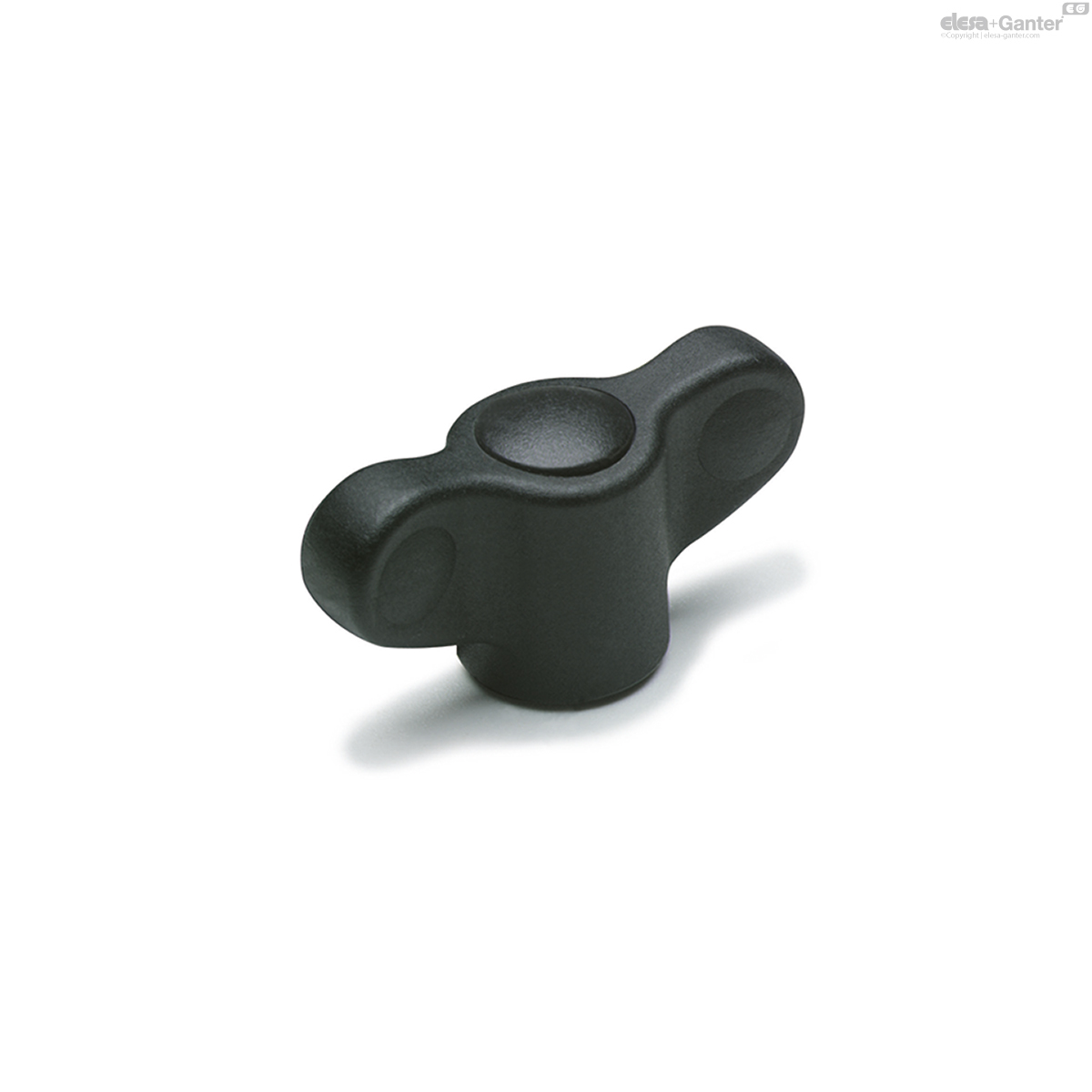

CWN-B
Wing knobs
Brass boss, threaded blind hole

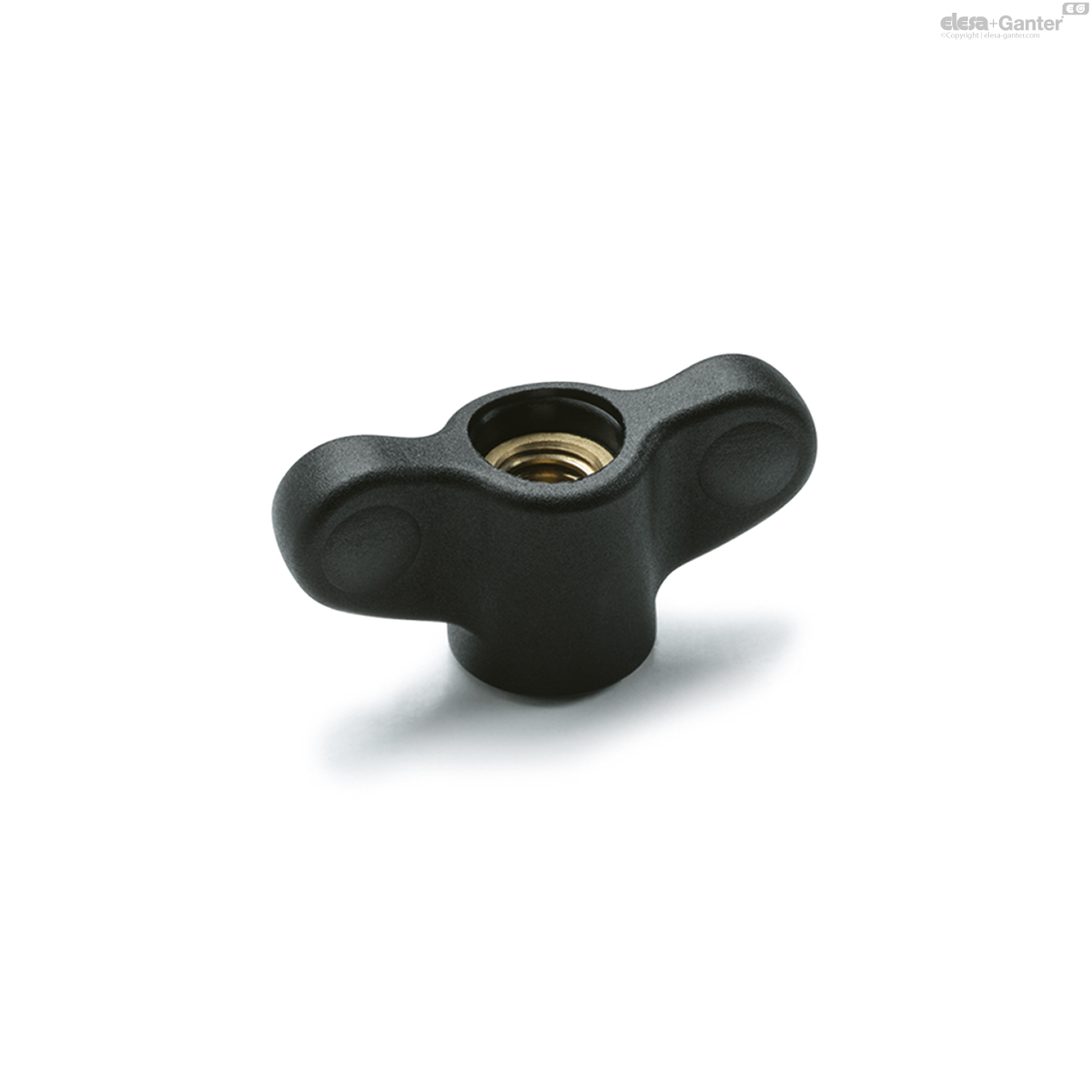

CWN-FP
Wing knobs
Brass boss, threaded pass-through hole

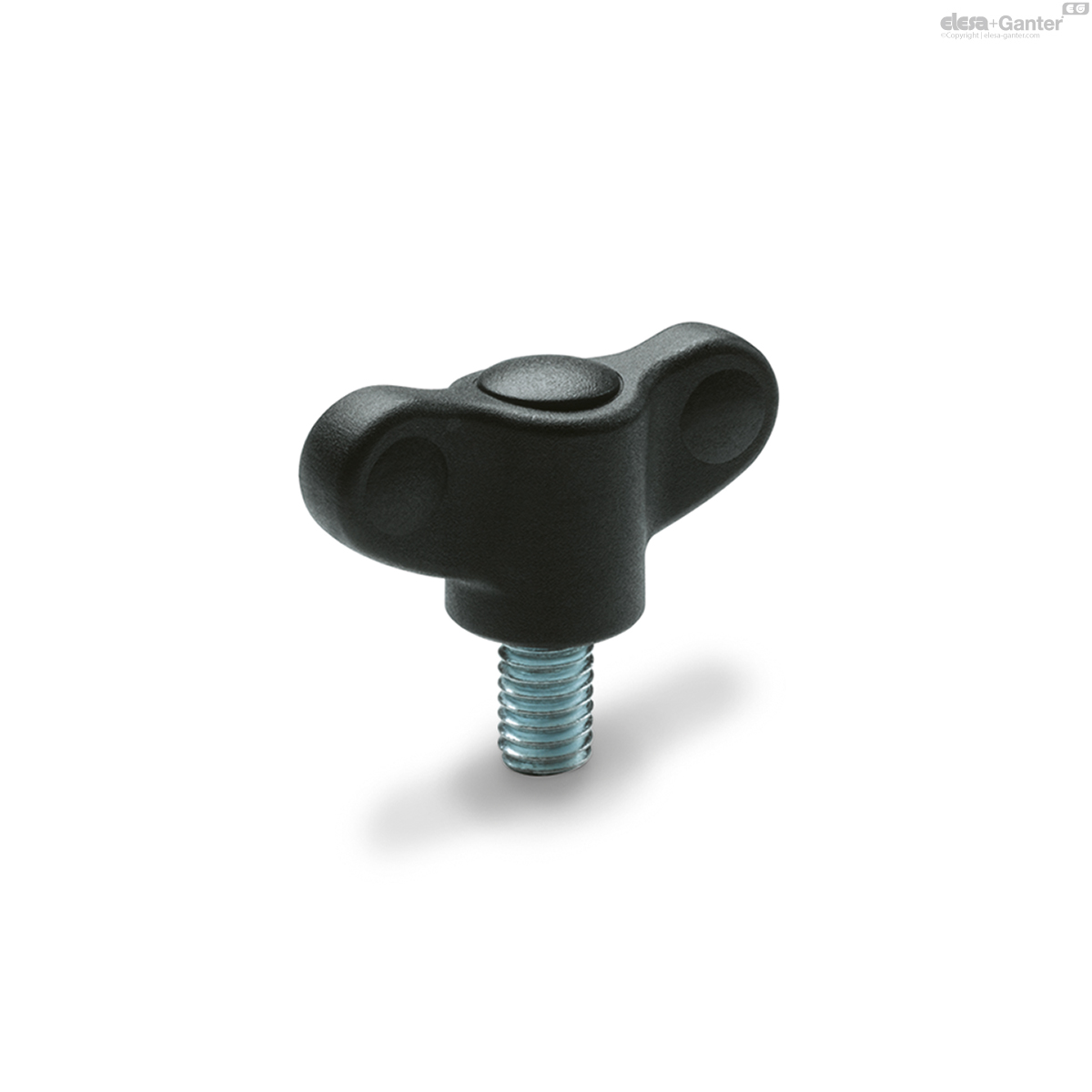

CWN-p
Wing knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- CWN-B: brass boss, threaded blind hole.
- CWN-FP: brass boss, threaded pass-through hole.
- CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
General information
Ergonomy and design
The slightly convex marks on the wings offer a point where the fingers can be positioned.

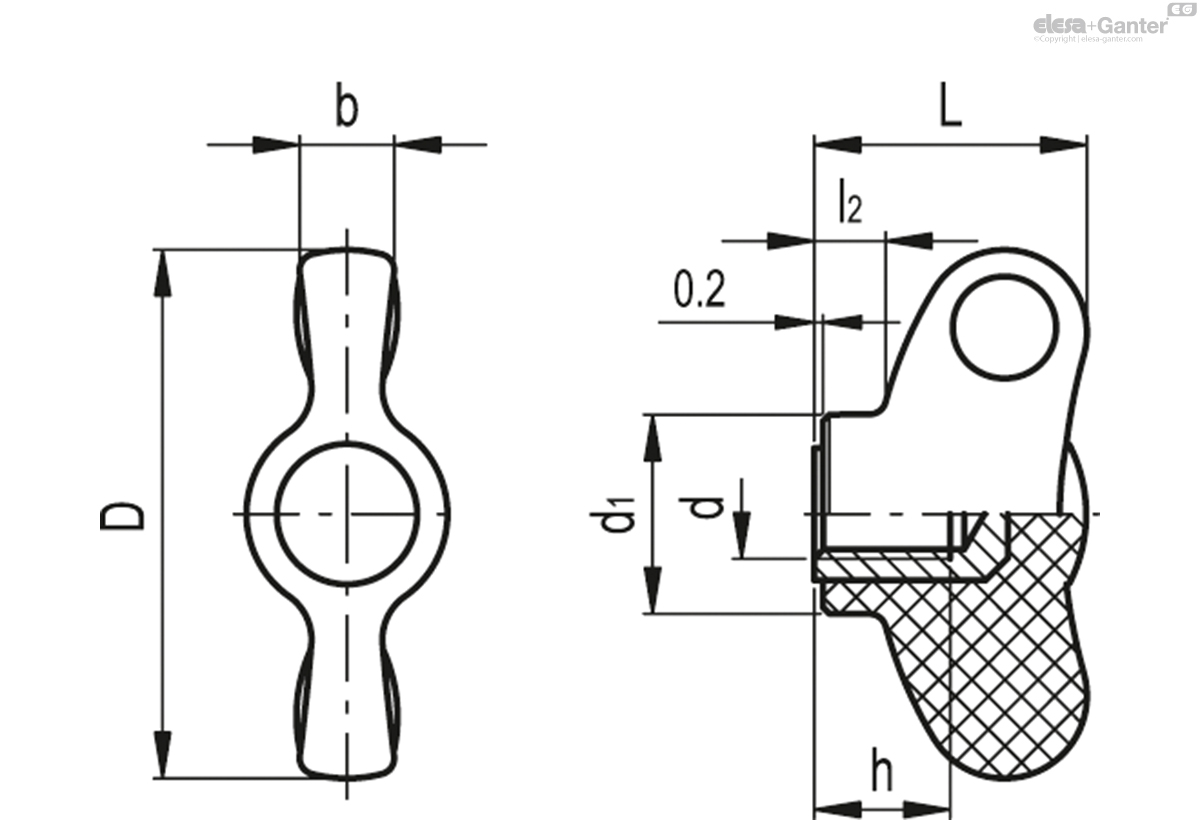

CWN-B
| D | d6H | L | d1 | l2 | b | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 8600 | CWN.32 B-M4 | 32 | M4 | 16.5 | 12 | 3.5 | 6 | 6 | 6 |
|
| 8601 | CWN.32 B-M5 | 32 | M5 | 16.5 | 12 | 3.5 | 6 | 6 | 6 |
|
| 8602 | CWN.32 B-M6 | 32 | M6 | 16.5 | 12 | 3.5 | 6 | 8 | 6 |
|
| 8651 | CWN.40 B-M6 | 40 | M6 | 21 | 13.5 | 4.5 | 6.5 | 12 | 13 |
|
| 8652 | CWN.40 B-M8 | 40 | M8 | 21 | 13.5 | 4.5 | 6.5 | 13 | 10 |
|
