CV-T

Retaining cables

Polyethylene and stainless steel

Enquire Now

CV-T

Retaining cables

Without rings and without plates

With one ring and one plate

Without rings and with one plate.

Description

Main specifications

Cable

High-modulus polyethylene (HMWPE), black.

Standard executions

AISI 304 stainless steel fixing plate.

NERINOX treated stainless steel ring with two coils.

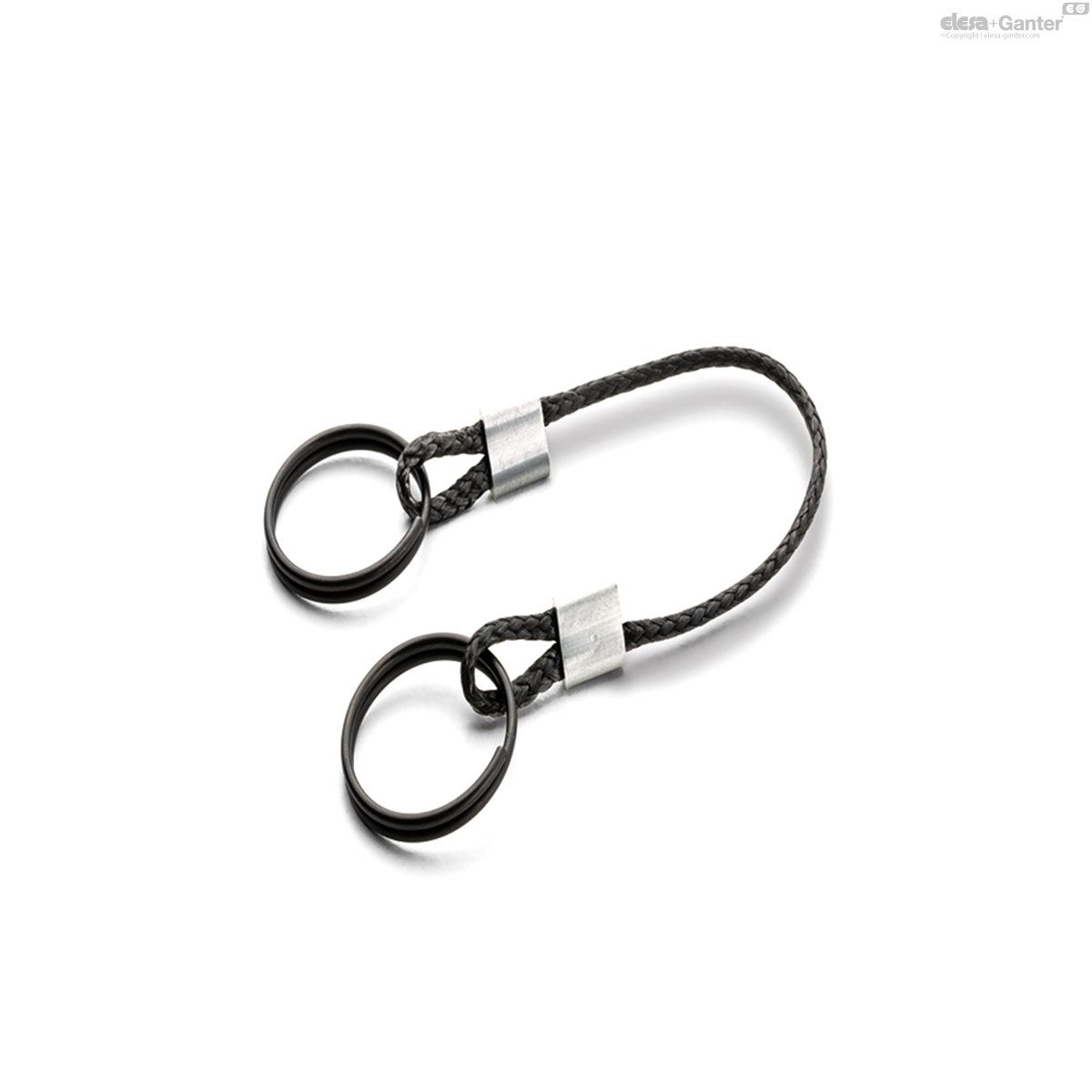

CV-T-2A: cable with two clamping rings.

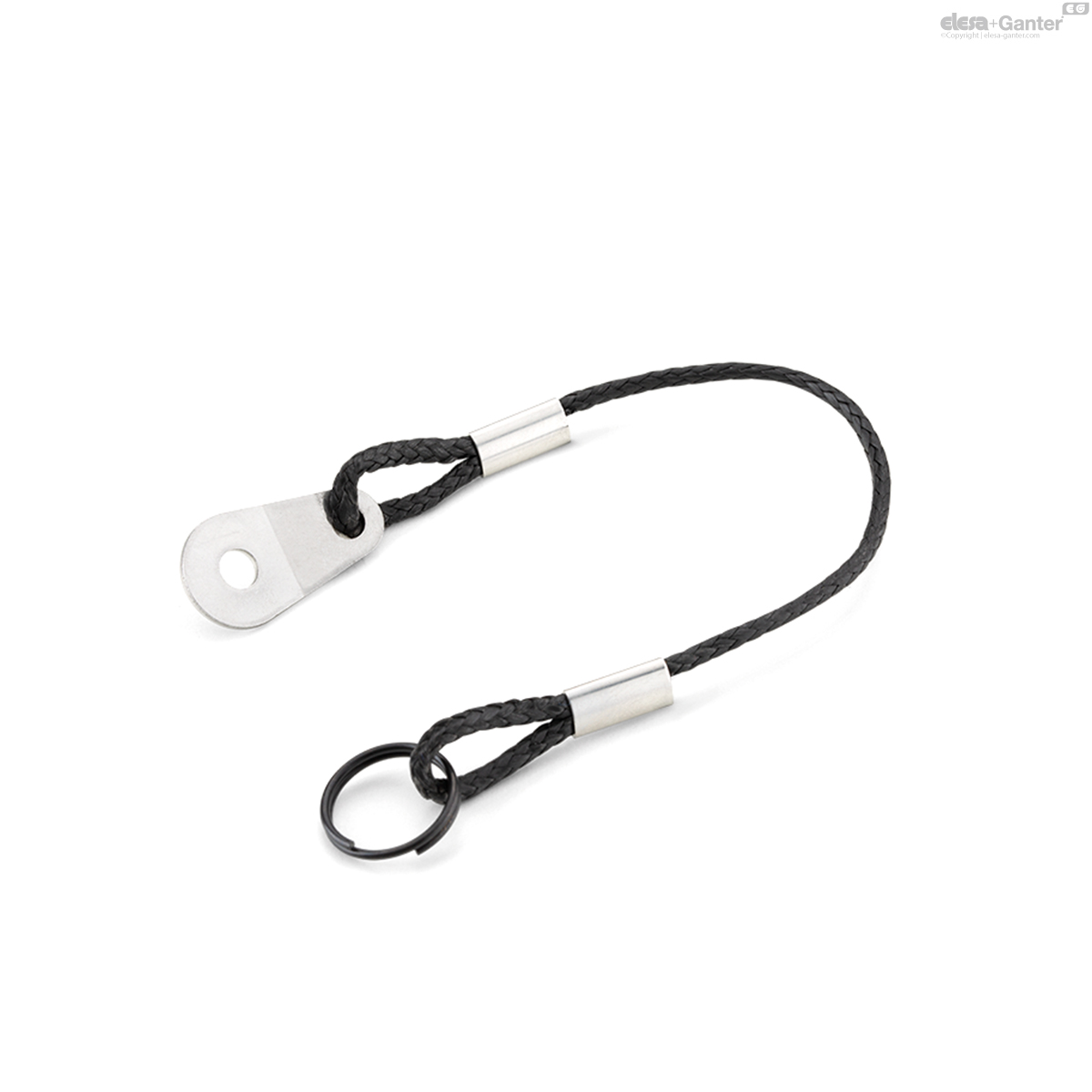

CV-T-A-P: cable with one ring and one clamping plate.

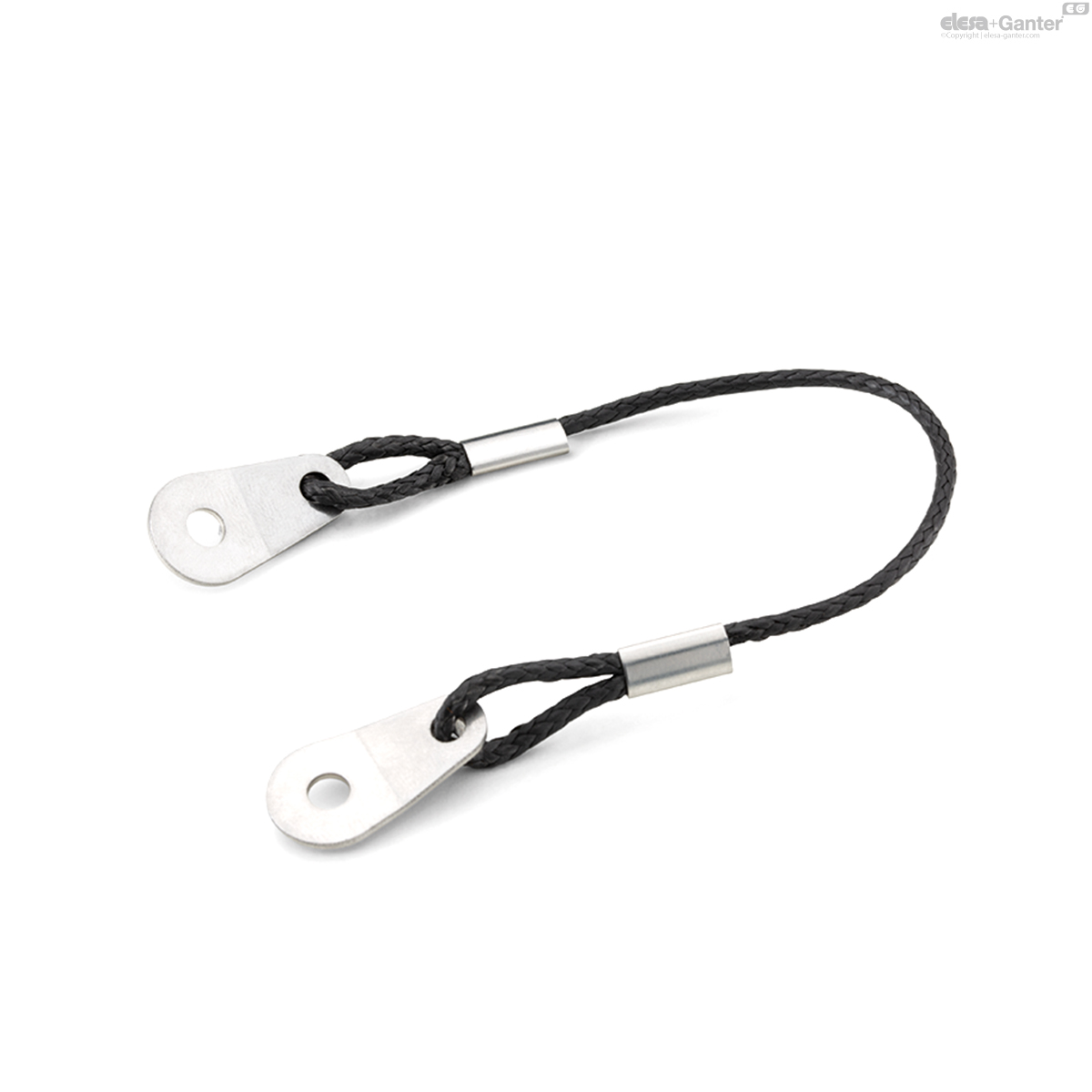

CV-T-2P: cable with two clamping plates.

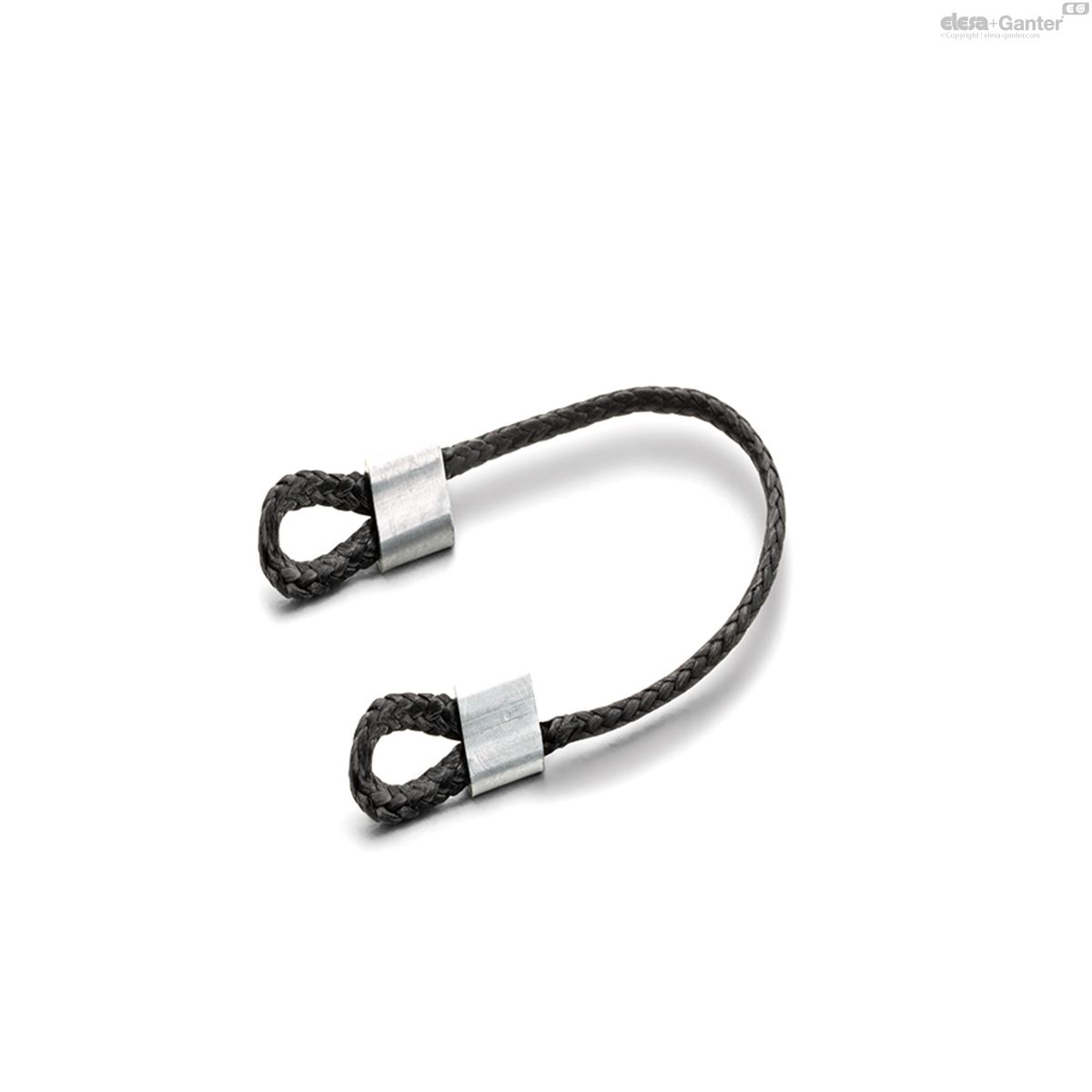

CV-T: cable without rings and without plates.

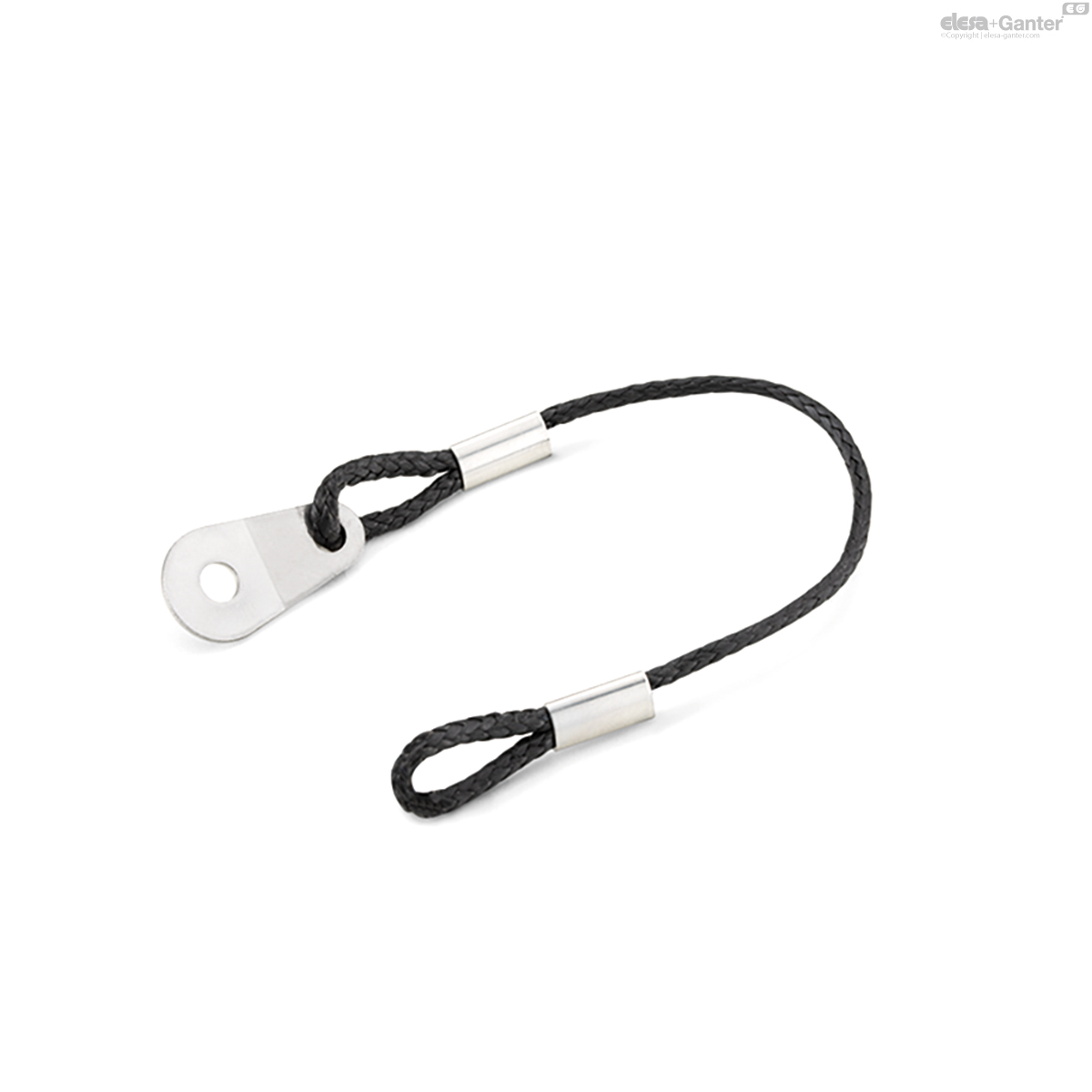

CV-T-P: cable without rings and with one plates.

General information

Features and applications

CV-T cables are light yet remarkably tough.

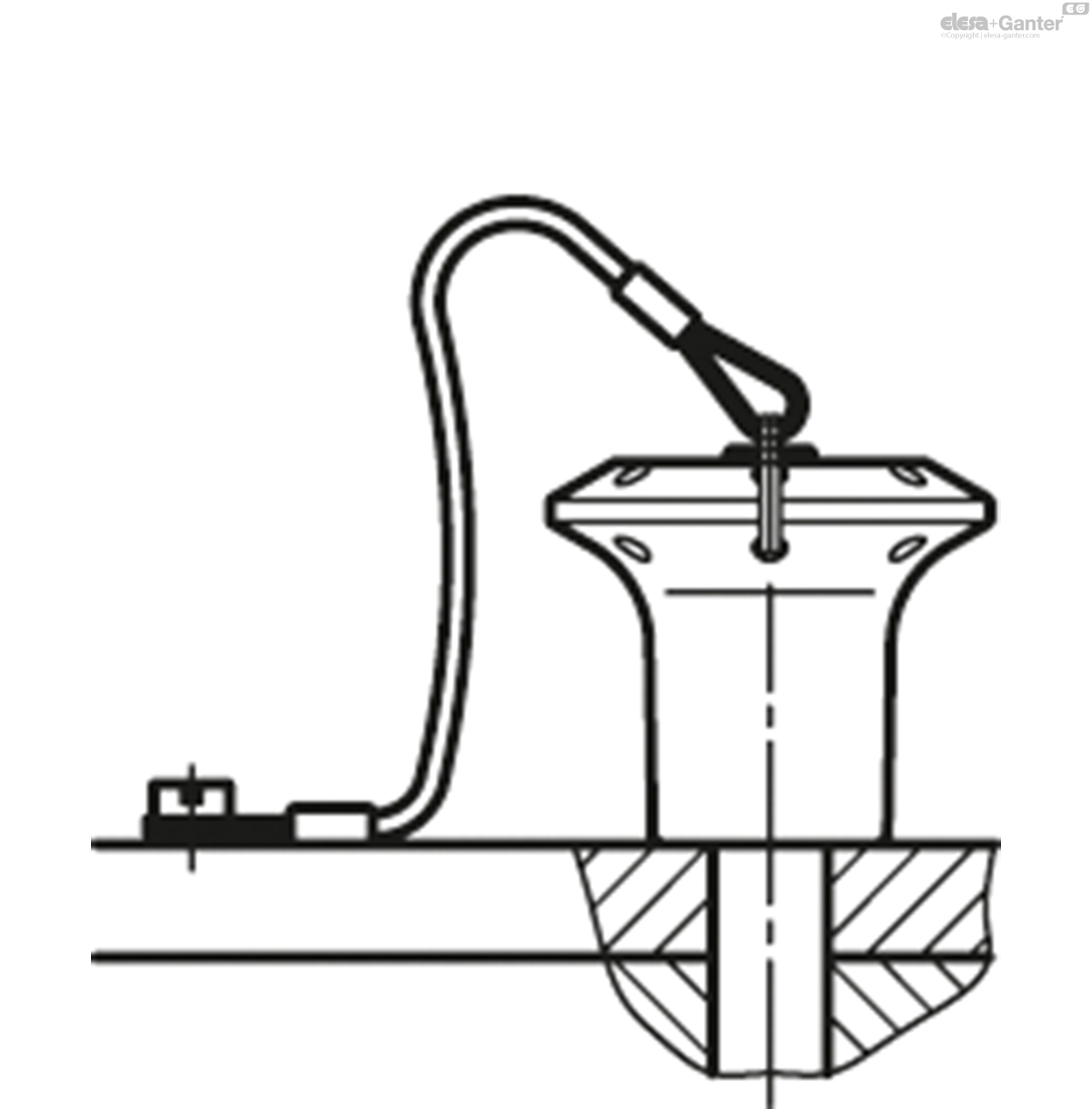

They are mainly used in combination with the different types of self-locking pins or in cases where you want to make small components or tools unmissable so that they are always available and at hand.

In particular, they can be used in place of the CT-S ball chain, when a particular tear resistance is required.

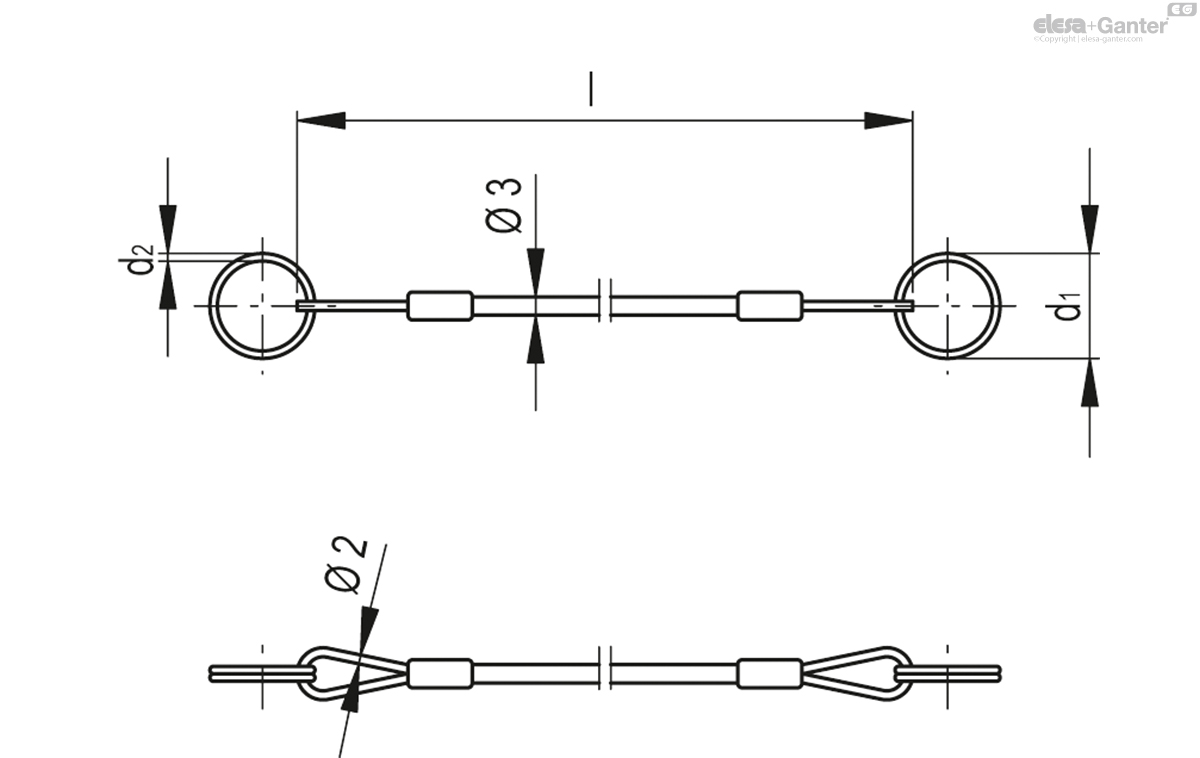

CV-T-2A

		d₁	d₂	l	Max. static load [N]
Code	Description						Actions
76201	CV-T-2A-18-150	18	1.3	150	160	7
76202	CV-T-2A-24-150	24	1.5	150	160	9
76203	CV-T-2A-30-150	30	1.8	150	180	11
76206	CV-T-2A-18-200	18	1.3	200	160	7
76207	CV-T-2A-24-200	24	1.5	200	160	9
76208	CV-T-2A-30-200	30	1.8	200	180	11
76211	CV-T-2A-18-320	18	1.3	320	160	8
76212	CV-T-2A-24-320	24	1.5	320	160	9
76213	CV-T-2A-30-320	30	1.8	320	180	12
76216	CV-T-2A-18-500	18	1.3	500	160	8
76217	CV-T-2A-24-500	24	1.5	500	160	10
76218	CV-T-2A-30-500	30	1.8	500	180	13
