Curve 879-880-881-240XE-260 M RS PRO
Curve
Description
Description
Magnetic corner tracks are the most effective and reliable system for the table top conveyor design.
The magnets provide the correct magnetic field to hold the chain on the corner track and this provides a flat carrying surface for the chain; thus, improving product stability and properly supporting the product.
Basic features
| Series: | 240XE-260 M |
|---|---|
| Type: | Magnetic |
| Box: | - |
| Unit of measure: | Ea |
Curve 879-880-881-240XE-260 M RS PRO

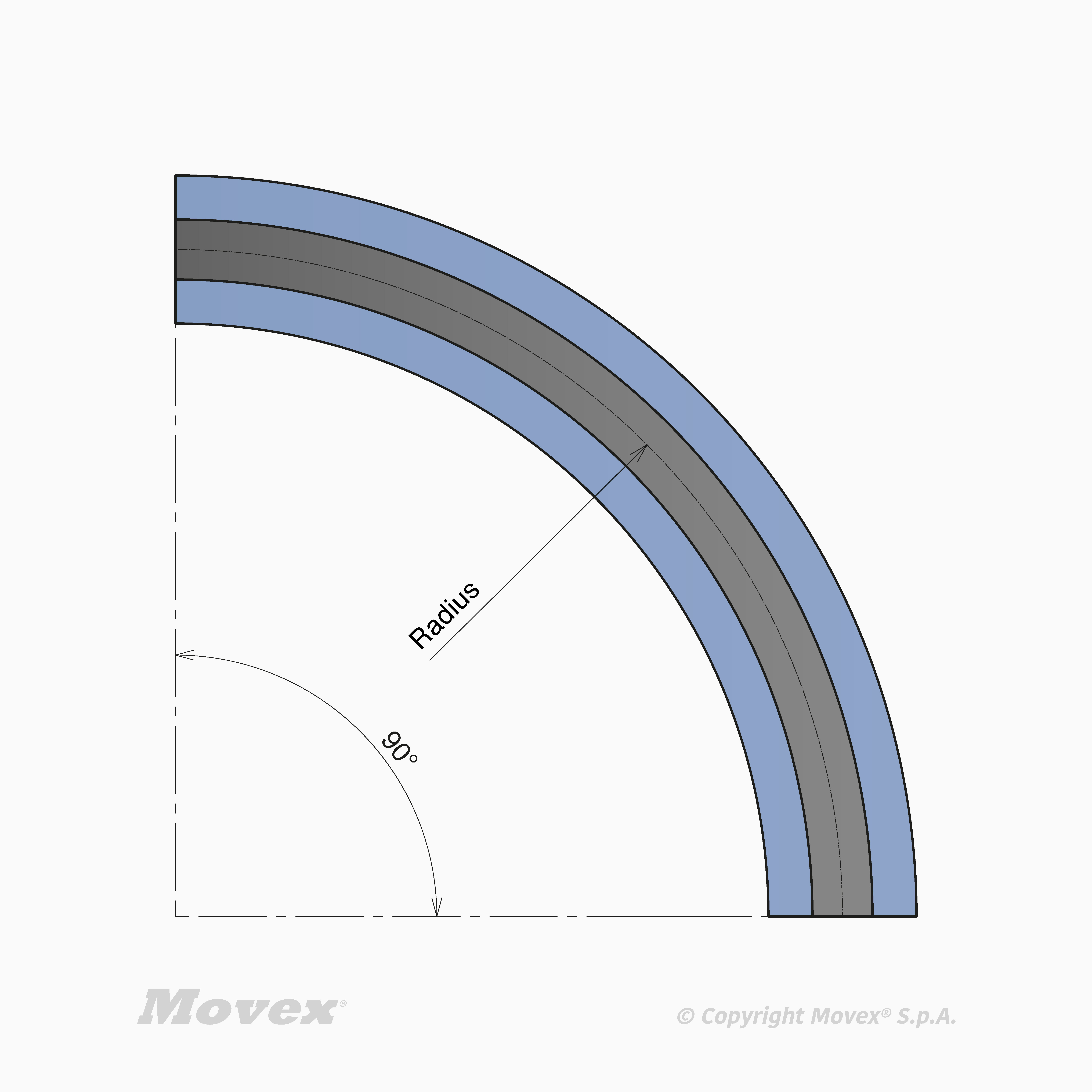

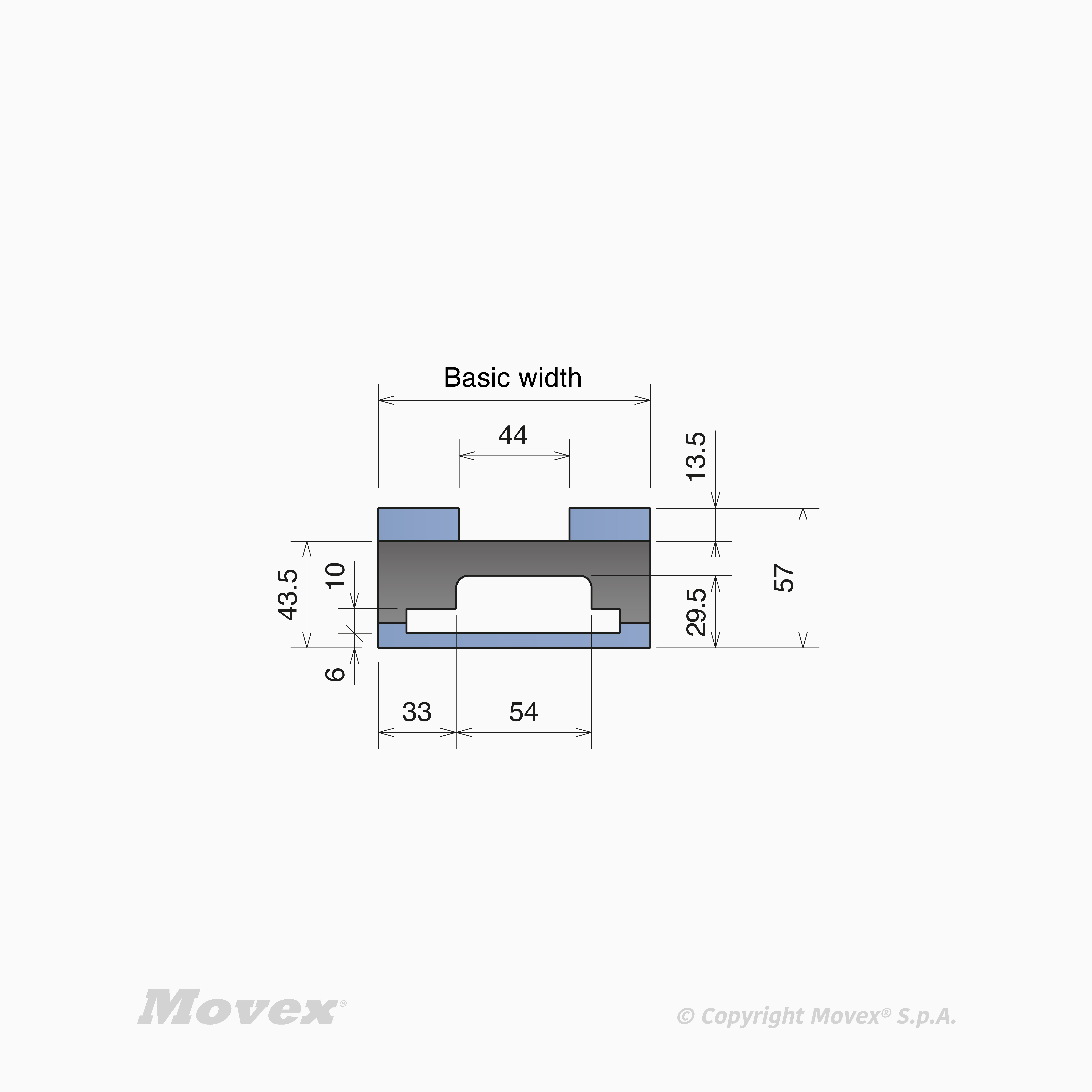

| Chain/Belt Width | Radius | Total Height | Angle | Unit of measure | Tracks | Basic width | Total width | Infeed / Outfeed | Material UP | Material LW | UP Height | LW Height | Shoe | Temperature range dry | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||
| P71211610RSPRO | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 57 mm | 90° | Ea | 1 | 111 mm | 111 mm | 0 | BluLub | UHMW-PE Black + BluLub | 13.5 mm | 43.5 mm | Included Custom curves available, please see the special form On request available with different radius. | -40÷50 °C |
|
