Curve 878-879-880-880BO-881-8811-240XE-260-261 TAB
Curve
Description
Description
TAB type corner tracks are a more economical solution compared to magnetic curves.
In those applications where cleaning and product support are less important, they can perfectly be used.
Basic features
| Series: | 878-879-880-880BO-881-888-8811-240XE-260-261 |
|---|---|
| Type: | Tab |
| Box: | - |
Curve 878-879-880-880BO-881-8811-240XE-260-261 TAB

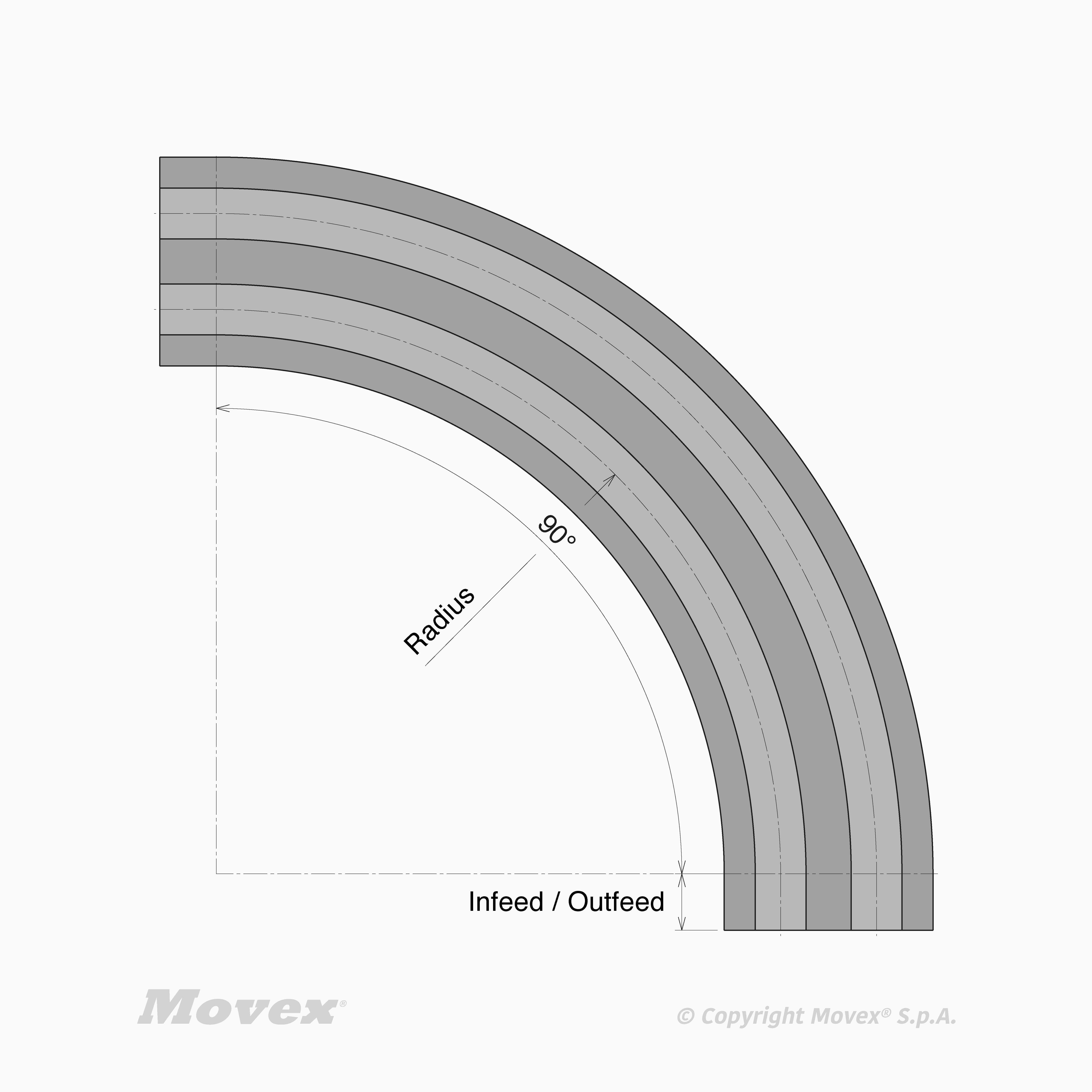

| Chain/Belt Width | Radius | Total Height | Angle | Version | Unit of measure | Tracks | Basic width | Pitch |
Total width | Infeed / Outfeed | Material UP | Material LW | UP Height | LW Height | Shoe | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||
| P72021612 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021612B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021612BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021612C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021612CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021622 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | - |
|
| P72021622B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021622BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021622C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021622CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021632 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | - |
|
| P72021632B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021632BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021632C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021632CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021642 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | - |
|
| P72021642B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021642BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021642C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021642CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021652 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021652B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021652BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021652C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021652CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021662 | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021662B | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021662BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021662C | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72021662CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023612 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023612B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023612BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023612C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023612CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023622 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023622B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023622BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023622C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023622CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023632 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023632B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023632BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023632C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023632CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023642 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023642B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023642BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023642C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023642CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023652 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023652B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023652BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023652C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023652CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023662 | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023662B | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023662BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023662C | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72023662CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027612 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027612B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027612BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027612C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027612CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027622 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027622B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027622BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027622C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027622CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027632 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027632B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027632BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027632C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027632CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027642 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027642B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027642BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027642C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027642CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027652 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027652B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027652BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027652C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027652CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027662 | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027662B | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027662BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027662C | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72027662CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029612 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029612B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029612BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029612C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029612CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029622 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029622B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029622BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029622C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029622CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 100 mm | 85 mm | 185 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029632 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029632B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029632BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029632C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029632CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 100 mm | 85 mm | 270 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029642 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029642B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029642BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029642C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029642CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 100 mm | 85 mm | 355 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029652 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029652B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029652BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029652C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029652CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 100 mm | 85 mm | 440 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029662 | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029662B | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029662BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029662C | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72029662CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 100 mm | 85 mm | 525 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121612 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121612B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121612BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121612C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121612CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121622 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121622B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121622BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121622C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121622CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121632 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121632B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121632BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121632C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121632CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121642 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121642B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121642BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121642C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121642CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121652 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121652B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121652BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121652C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121652CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121662 | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121662B | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121662BB | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121662C | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72121662CC | K 450 (114,30 mm) | 500 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123612 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123612B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123612BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123612C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123612CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123622 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123622B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123622BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123622C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123622CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123632 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123632B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123632BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123632C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123632CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123642 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123642B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123642BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123642C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123642CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123652 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123652B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123652BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123652C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123652CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123662 | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123662B | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123662BB | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123662C | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72123662CC | K 450 (114,30 mm) | 610 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127612 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127612B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127612BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127612C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127612CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127622 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127622B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127622BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127622C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127622CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127632 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127632B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127632BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127632C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127632CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127642 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127642B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127642BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127642C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127642CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127652 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127652B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127652BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127652C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127652CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127662 | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127662B | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127662BB | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127662C | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72127662CC | K 450 (114,30 mm) | 800 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129612 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129612B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129612BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129612C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129612CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129622 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129622B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129622BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129622C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129622CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 130 mm | 120 mm | 250 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129632 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129632B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129632BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129632C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129632CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 130 mm | 120 mm | 370 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129642 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129642B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129642BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129642C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129642CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 130 mm | 120 mm | 490 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129652 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129652B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129652BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129652C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129652CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 5 | 130 mm | 120 mm | 610 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129662 | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129662B | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129662BB | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129662C | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72129662CC | K 450 (114,30 mm) | 1000 mm | 50 mm | 90° | - | Ea | 6 | 130 mm | 120 mm | 730 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221612 | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221612B | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221612BB | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221612C | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221612CC | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221622 | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221622B | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221622BB | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221622C | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221622CC | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221632 | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221632B | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221632BB | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221632C | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221632CC | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221642 | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221642B | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221642BB | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221642C | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72221642CC | K 750 (190,50 mm) | 500 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223612 | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223612B | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223612BB | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223612C | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223612CC | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223622 | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223622B | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223622BB | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223622C | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223622CC | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223632 | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223632B | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223632BB | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223632C | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223632CC | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223642 | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223642B | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223642BB | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223642C | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72223642CC | K 750 (190,50 mm) | 610 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227612 | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227612B | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227612BB | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227612C | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227612CC | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227622 | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227622B | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227622BB | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227622C | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227622CC | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227632 | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227632B | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227632BB | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227632C | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227632CC | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227642 | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227642B | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227642BB | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227642C | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72227642CC | K 750 (190,50 mm) | 800 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229612 | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229612B | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229612BB | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229612C | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229612CC | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 1 | 200 mm | - mm | 200 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229622 | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229622B | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229622BB | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229622C | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229622CC | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 2 | 200 mm | 195 mm | 395 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229632 | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229632B | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229632BB | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229632C | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229632CC | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 3 | 200 mm | 195 mm | 590 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229642 | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229642B | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229642BB | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229642C | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P72229642CC | K 750 (190,50 mm) | 1000 mm | 50 mm | 90° | - | Ea | 4 | 200 mm | 195 mm | 785 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74420612 | K 325 (82,55 mm) - K 330 (83,82 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74420612B | K 325 (82,55 mm) - K 330 (83,82 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74420612BB | K 325 (82,55 mm) - K 330 (83,82 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 100 mm | - mm | 100 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74420612C | K 325 (82,55 mm) - K 330 (83,82 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74420612CC | K 325 (82,55 mm) - K 330 (83,82 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 100 mm | - mm | 100 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74520612 | K 450 (114,30 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Black | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74520612B | K 450 (114,30 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74520612BB | K 450 (114,30 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 130 mm | - mm | 130 mm | 50 | BluLub | BluLub | 25 mm | 25 mm | Not included | -40÷50 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74520612C | K 450 (114,30 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Black | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
| P74520612CC | K 450 (114,30 mm) | 200 mm | 50 mm | 90° | Only for 878 TAB-880 TAB BO | Ea | 1 | 130 mm | - mm | 130 mm | 50 | UHMW-PE Abrasive | UHMW-PE Abrasive | 25 mm | 25 mm | Not included | -40÷80 °C | NEW standard RS design AVAILABLE ALSO 15°, 30°, 45°, 60°, 75° Custom curves available, please see the special form |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Straight track 878-879-880-880BO-881-888-8811-240XE-260-261 TABStraight trackView Product -
881 TAB Flat TopSteel chainsView Product
-
261 TAB Flat TopChain-beltsView Product
-
240XE TAB Flat TopChain-beltsView Product
-
ETC 878-879-880-880BO-881-8811-240XE-260-261 TABEasy Transfer CurveView Product
-

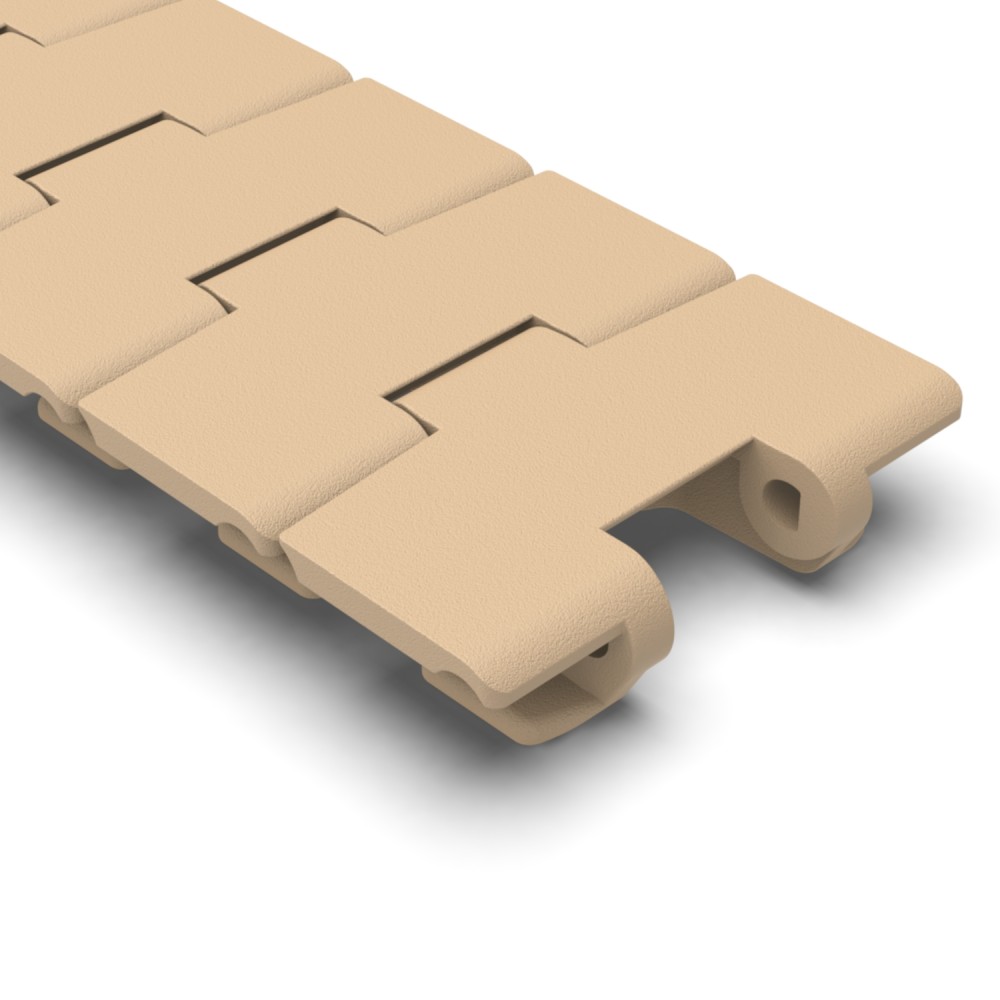

878 TAB Flat TopPlastic chainsView Product
-
879 TAB Flat TopPlastic chainsView Product
-
880 TAB Flat TopPlastic chainsView Product
