Curve 1843 TAB

Curve

Enquire Now

Description

TAB type corner tracks are a more economical solution compared to magnetic curves. In those applications where cleaning and product support are less important, they can perfectly be used.

Basic features

Series:	1843 TAB
Type:	Tab
Box:	-

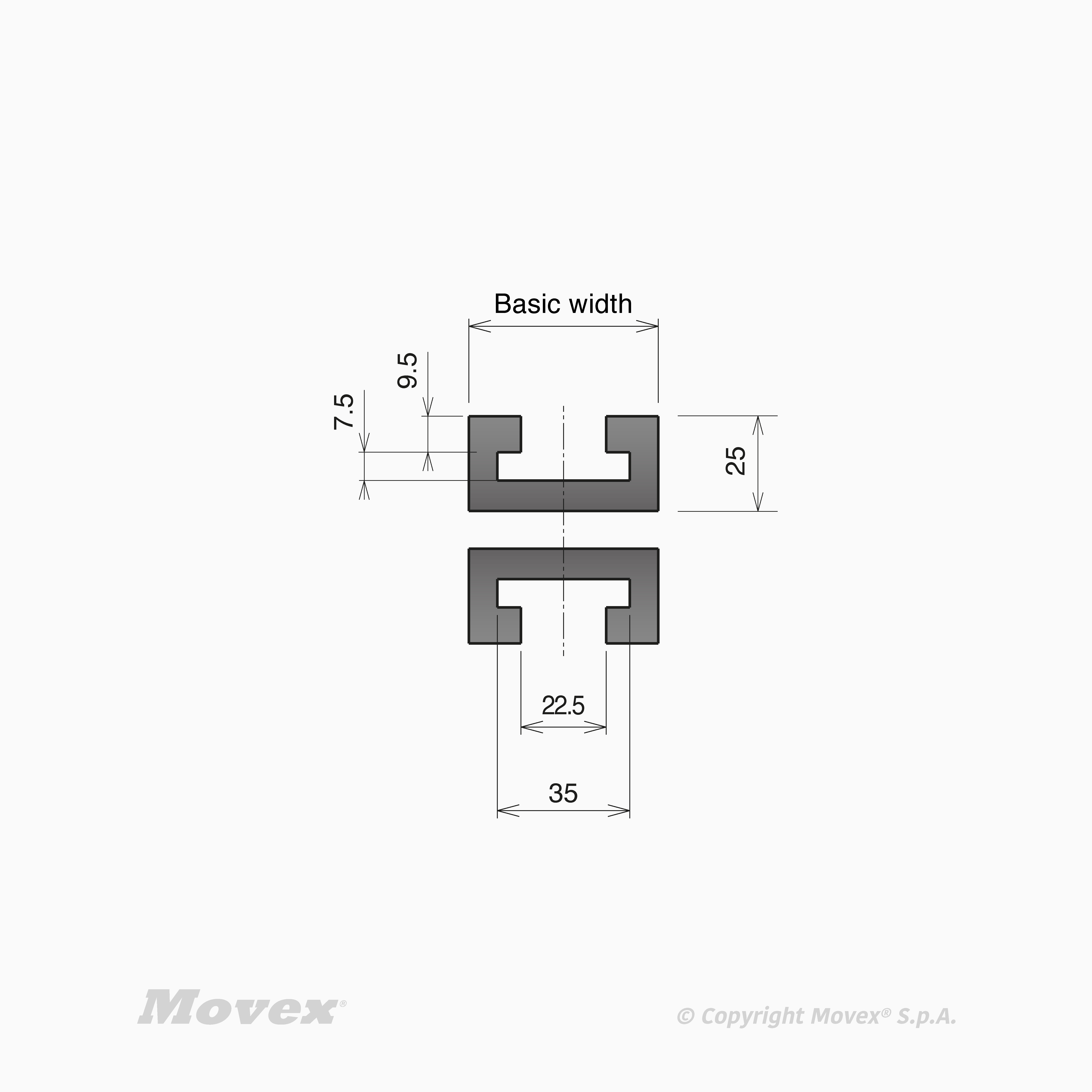

Curve 1843 TAB

	Chain/Belt Width	Radius	Total Height	Angle	Unit of measure	Tracks	Basic width	Total width	Infeed / Outfeed	Material UP	Material LW	UP Height	LW Height	Shoe	Temperature range dry	Supplementary informations
Code																	Actions
P74020612	K 125 (31,75 mm)	300 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Black	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	NEW standard RS design Custom curves available, please see the special form
P74020612B	K 125 (31,75 mm)	300 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	BluLub	UHMW-PE Black	25 mm	25 mm	Not included	-40÷50 °C	-
P74020612BB	K 125 (31,75 mm)	300 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	BluLub	BluLub	25 mm	25 mm	Not included	-40÷50 °C	-
P74020612C	K 125 (31,75 mm)	300 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Abrasive	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74020612CC	K 125 (31,75 mm)	300 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	25 mm	25 mm	Not included	-40÷80 °C	-
P74021612	K 125 (31,75 mm)	500 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Black	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74021612B	K 125 (31,75 mm)	500 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	BluLub	UHMW-PE Black	25 mm	25 mm	Not included	-40÷50 °C	-
P74021612BB	K 125 (31,75 mm)	500 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	BluLub	BluLub	25 mm	25 mm	Not included	-40÷50 °C	-
P74021612C	K 125 (31,75 mm)	500 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Abrasive	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74021612CC	K 125 (31,75 mm)	500 mm	50 mm	90°	Ea	1	50 mm	50 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	25 mm	25 mm	Not included	-40÷80 °C	-
P74120612	K 200 (50,80 mm)	300 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Black	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74120612B	K 200 (50,80 mm)	300 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	BluLub	UHMW-PE Black	25 mm	25 mm	Not included	-40÷50 °C	-
P74120612BB	K 200 (50,80 mm)	300 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	BluLub	BluLub	25 mm	25 mm	Not included	-40÷50 °C	-
P74120612C	K 200 (50,80 mm)	300 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Abrasive	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74120612CC	K 200 (50,80 mm)	300 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	25 mm	25 mm	Not included	-40÷80 °C	-
P74121612	K 200 (50,80 mm)	500 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Black	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	-
P74121612B	K 200 (50,80 mm)	500 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	BluLub	UHMW-PE Black	25 mm	25 mm	Not included	-40÷50 °C	-
P74121612BB	K 200 (50,80 mm)	500 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	BluLub	BluLub	25 mm	25 mm	Not included	-40÷50 °C	NEW standard RS design Custom curves available, please see the special form
P74121612C	K 200 (50,80 mm)	500 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Abrasive	UHMW-PE Black	25 mm	25 mm	Not included	-40÷80 °C	NEW standard RS design Custom curves available, please see the special form
P74121612CC	K 200 (50,80 mm)	500 mm	50 mm	90°	Ea	1	70 mm	70 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	25 mm	25 mm	Not included	-40÷80 °C	NEW standard RS design Custom curves available, please see the special form
