CT-S

Ball chains

Technopolymer and stainless steel

Enquire Now

Description

Main specifications

Chain

Ball cable and coupling heads in acetal resin based (POM) technopolymer, black colour.

Standard executions

NERINOX treated stainless steel ring with two coils.

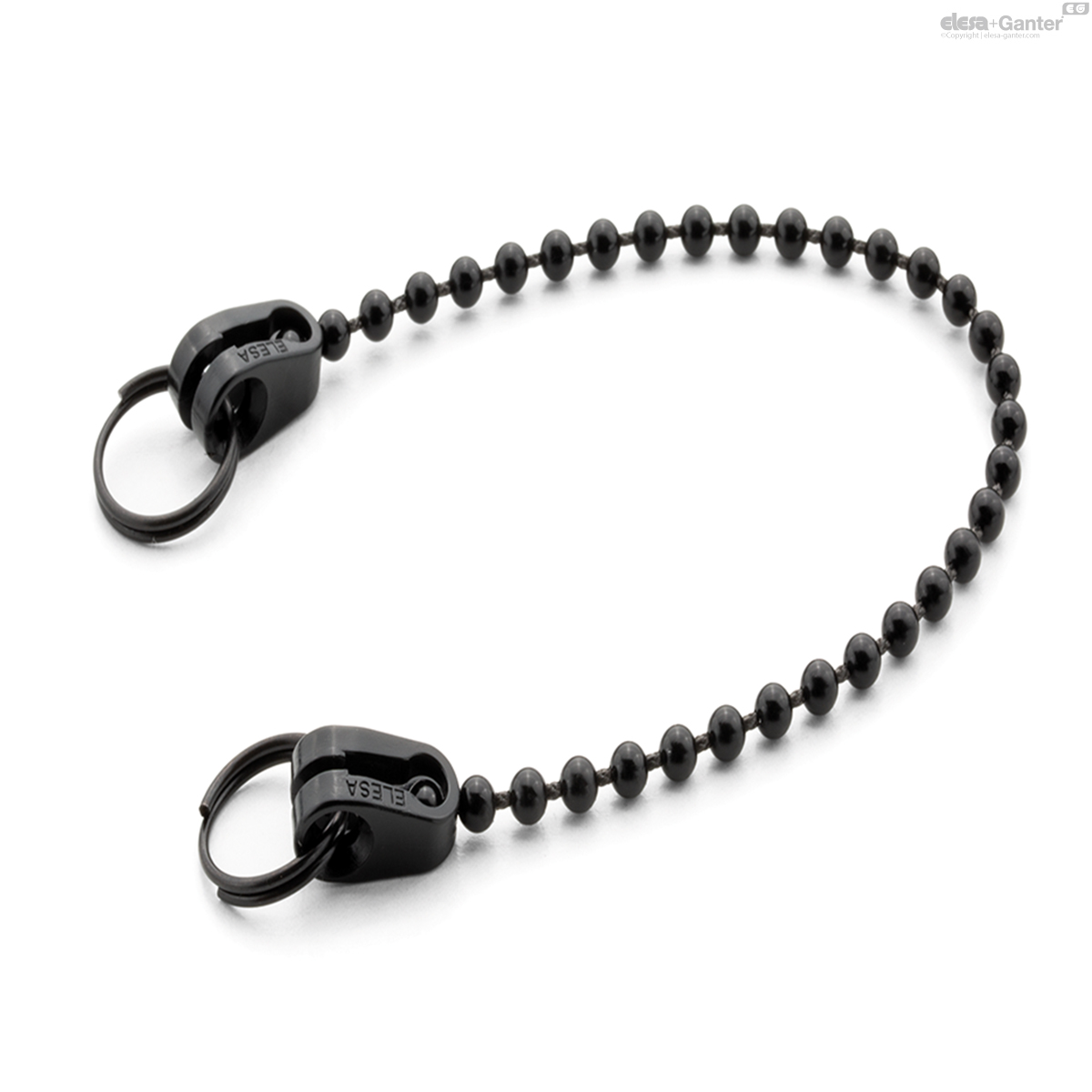

CT-S-2A: cable with two clamping rings.

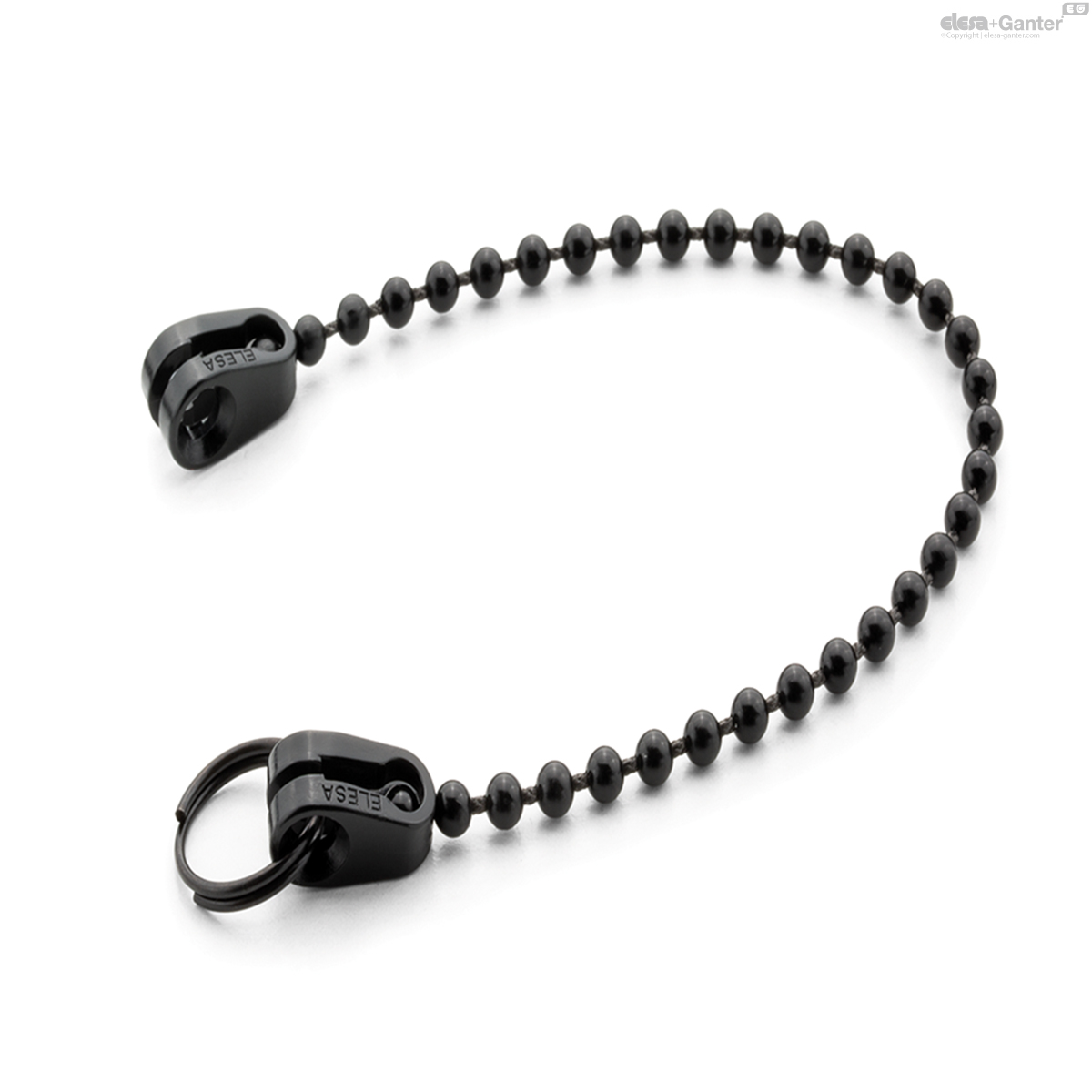

CT-S-A: cable with one ring.

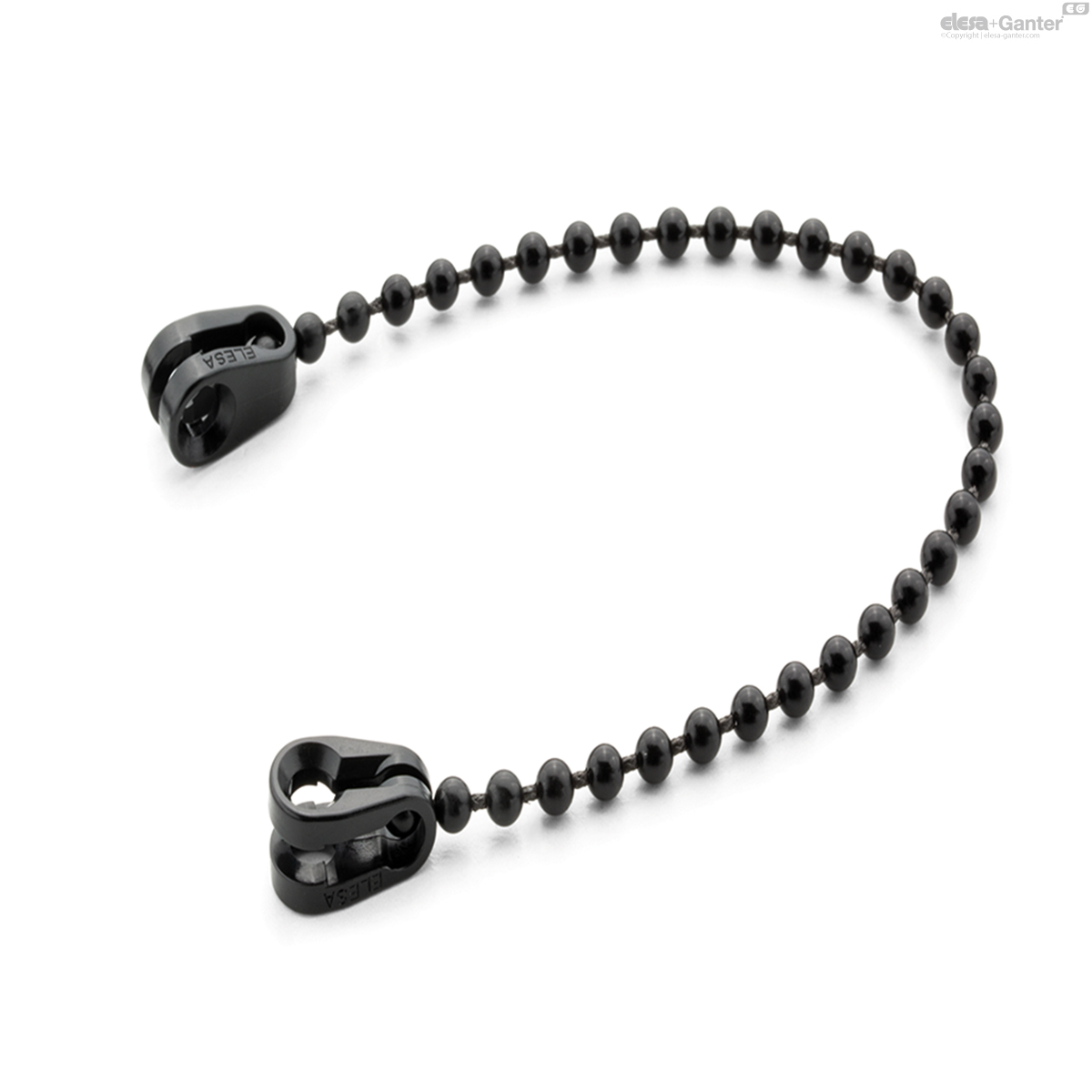

CT-S: cable without rings.

General information

Features and applications

CT-S chains are characterised by great flexibility with regard to the various types of cables in both metal and polyethylene.

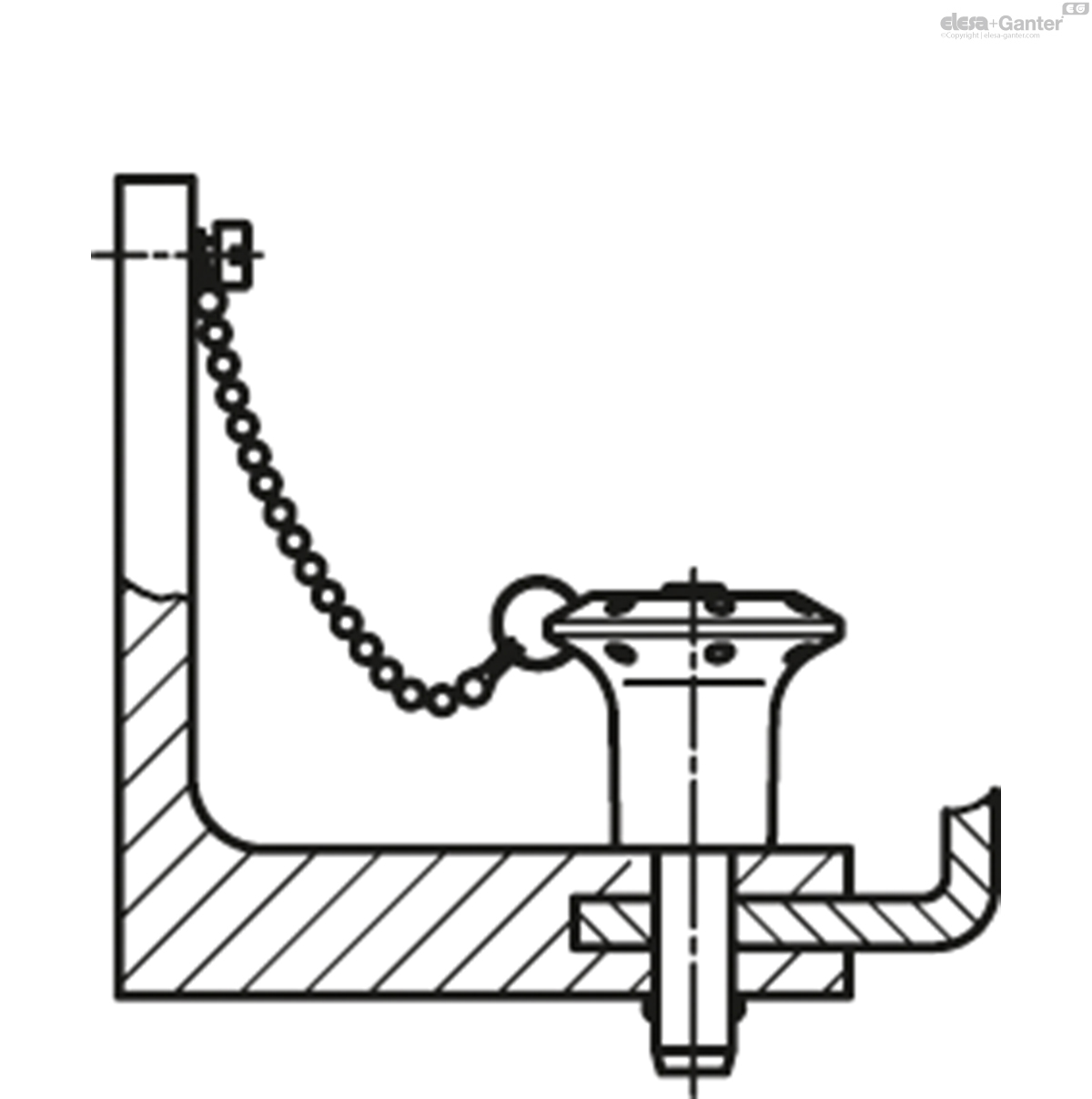

They are mainly used in combination with the different types of self-locking pins or in cases where you want to make small components or tools unmissable so that they are always available and at hand.

The CV-T product is recommended for chains with a higher applicable static load.

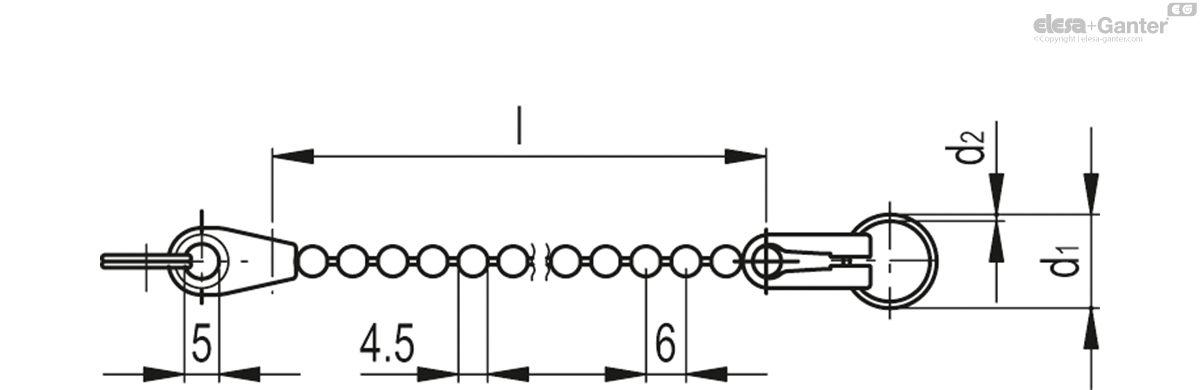

CT-S-2A

		d₁	d₂	l	Max. static load [N]
Code	Description						Actions
76301	CT-S-2A-18-150	18	1.3	150	100	8
76302	CT-S-2A-24-150	24	1.5	150	100	10
76303	CT-S-2A-30-150	30	1.8	150	100	13
76306	CT-S-2A-18-200	18	1.3	200	100	9
76307	CT-S-2A-24-200	24	1.5	200	100	11
76308	CT-S-2A-30-200	30	1.8	200	100	13
76311	CT-S-2A-18-320	18	1.3	320	100	10
76312	CT-S-2A-24-320	24	1.5	320	100	12
76313	CT-S-2A-30-320	30	1.8	320	100	15
76316	CT-S-2A-18-500	18	1.3	500	100	12
76317	CT-S-2A-24-500	24	1.5	500	100	14
76318	CT-S-2A-30-500	30	1.8	500	100	17
