CT.476

Wing knobs
Technopolymer
__logo__ELE_OD__ __logo__INOX__ __logo__RoHS__ __logo__PA__ __logo__g13030__

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CT.476-B: brass boss, threaded blind hole.
  • CT.476-FP: brass boss, threaded pass-through hole.
  • CT.476-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
  • CT.476-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
General information

Features and applications

These wing knobs allow high tightening torque values.

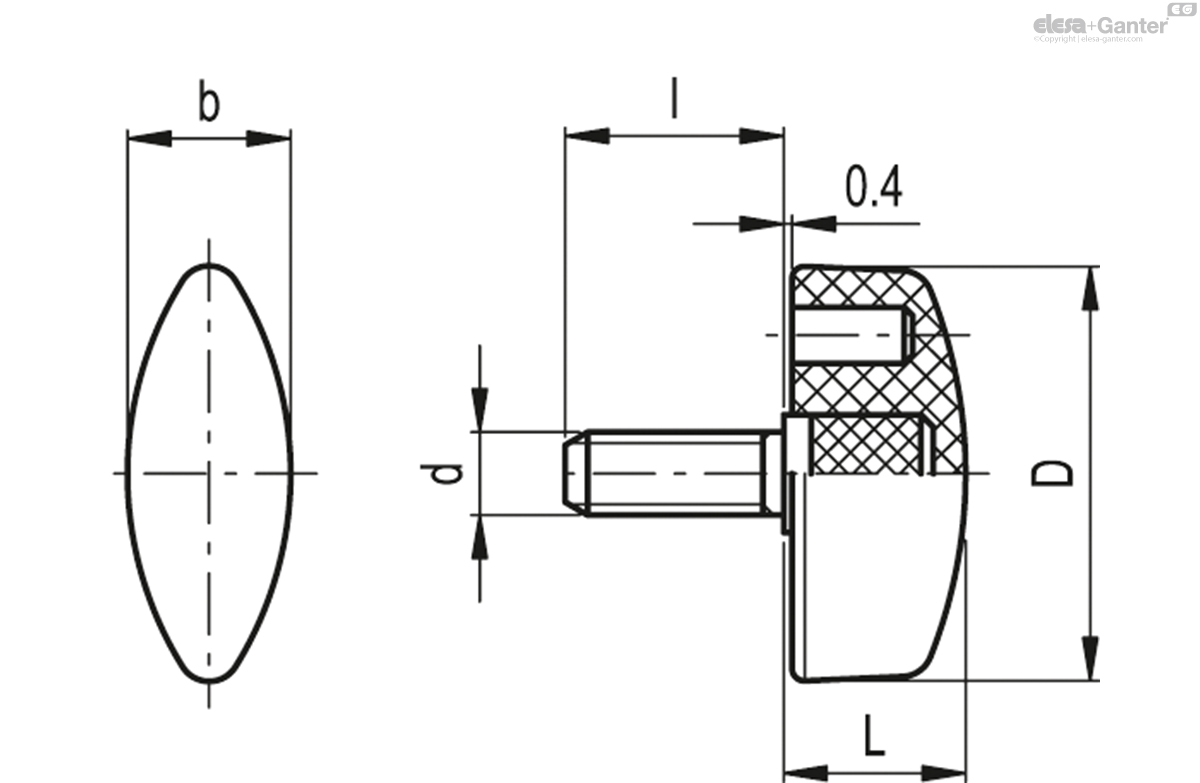

CT.476-SST-p

D d6g L l b C#
[Nm]
__logo__weight__
Code Description Actions
108261 CT.476/20-SST-p-M4x6 20 M4 11 6 9.5 6 4 cart-icon
108262 CT.476/20-SST-p-M4x10 20 M4 11 10 9.5 6 4 cart-icon
108311 CT.476/25-SST-p-M5x10 26 M5 13 10 11 8 6 cart-icon
108312 CT.476/25-SST-p-M5x16 26 M5 13 16 11 8 8 cart-icon
108313 CT.476/25-SST-p-M5x25 26 M5 13 25 11 8 8 cart-icon
108361 CT.476/30-SST-p-M6x10 32 M6 15 10 13 14 10 cart-icon
108362 CT.476/30-SST-p-M6x16 32 M6 15 16 13 14 11 cart-icon
108364 CT.476/30-SST-p-M6x20 32 M6 15 20 13 14 12 cart-icon
108366 CT.476/30-SST-p-M6x25 32 M6 15 25 13 14 12 cart-icon
108367 CT.476/30-SST-p-M6x30 32 M6 15 30 13 14 13 cart-icon
108372 CT.476/30-SST-p-M8x16 32 M8 15 16 13 16 14 cart-icon
108374 CT.476/30-SST-p-M8x20 32 M8 15 20 13 16 15 cart-icon
108375 CT.476/30-SST-p-M8x25 32 M8 15 25 13 16 18 cart-icon
108377 CT.476/30-SST-p-M8x30 32 M8 15 30 13 16 19 cart-icon
108378 CT.476/30-SST-p-M8x40 32 M8 15 40 13 16 21 cart-icon
108462 CT.476/40-SST-p-M8x16 40 M8 17 16 15.5 18 21 cart-icon
108464 CT.476/40-SST-p-M8x25 40 M8 17 25 15.5 18 21 cart-icon
108466 CT.476/40-SST-p-M8x40 40 M8 17 40 15.5 18 24 cart-icon
108521 CT.476/48-SST-p-M8x16 48 M8 19 16 19 20 18 cart-icon
108524 CT.476/48-SST-p-M8x25 48 M8 19 16 19 20 22 cart-icon
108572 CT.476/56-SST-p-M10x20 56 M10 23 20 21 40 44 cart-icon
108574 CT.476/56-SST-p-M10x30 56 M10 23 30 21 40 39 cart-icon
