CT.476

Wing knobs

Technopolymer

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PA__

__logo__g13030__

Enquire Now

product image

Brass boss, threaded blind hole

product image

Brass boss, threaded pass-through hole

product image

Zinc-plated steel threaded stud

product image

Stainless steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

CT.476-B: brass boss, threaded blind hole.
CT.476-FP: brass boss, threaded pass-through hole.
CT.476-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
CT.476-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

These wing knobs allow high tightening torque values.

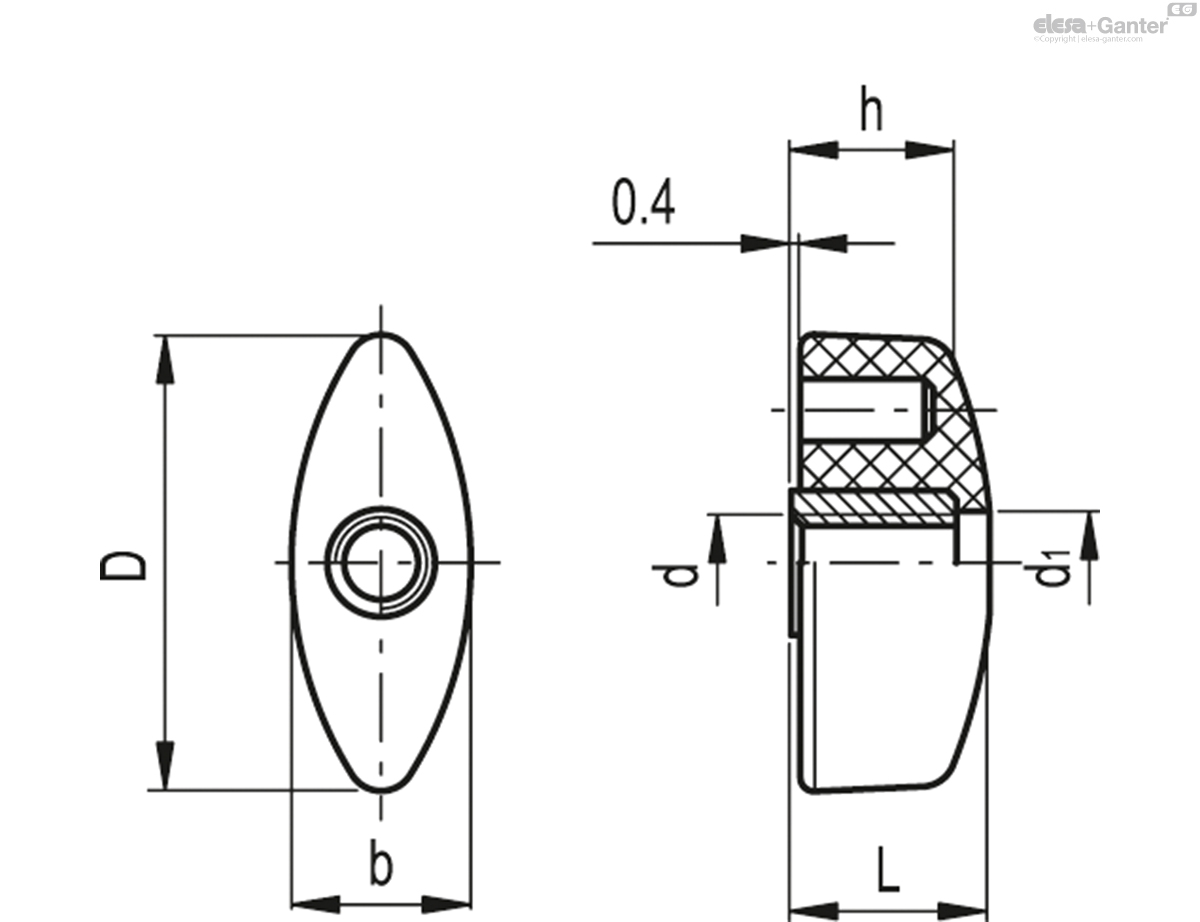

CT.476-FP

		D	d_6H	L	d₁	b	h	C# [Nm]
Code	Description									Actions
8326	CT.476/30 FP-M5	32	M5	15	6.5	13	12	9	8
8358	CT.476/30 FP-M6	32	M6	15	6.5	13	12	15	7
8436	CT.476/40 FP-M5	40	M5	17	9	15.5	12	9	11
8438	CT.476/40 FP-M6	40	M6	17	9	15.5	12	15	11
8458	CT.476/40 FP-M8	40	M8	17	9	15.5	14	22	11
8508	CT.476/48 FP-M8	48	M8	19	9	19	16	24	14
8558	CT.476/56 FP-M10	56	M10	23	11	21	20	30	26
