CSM.

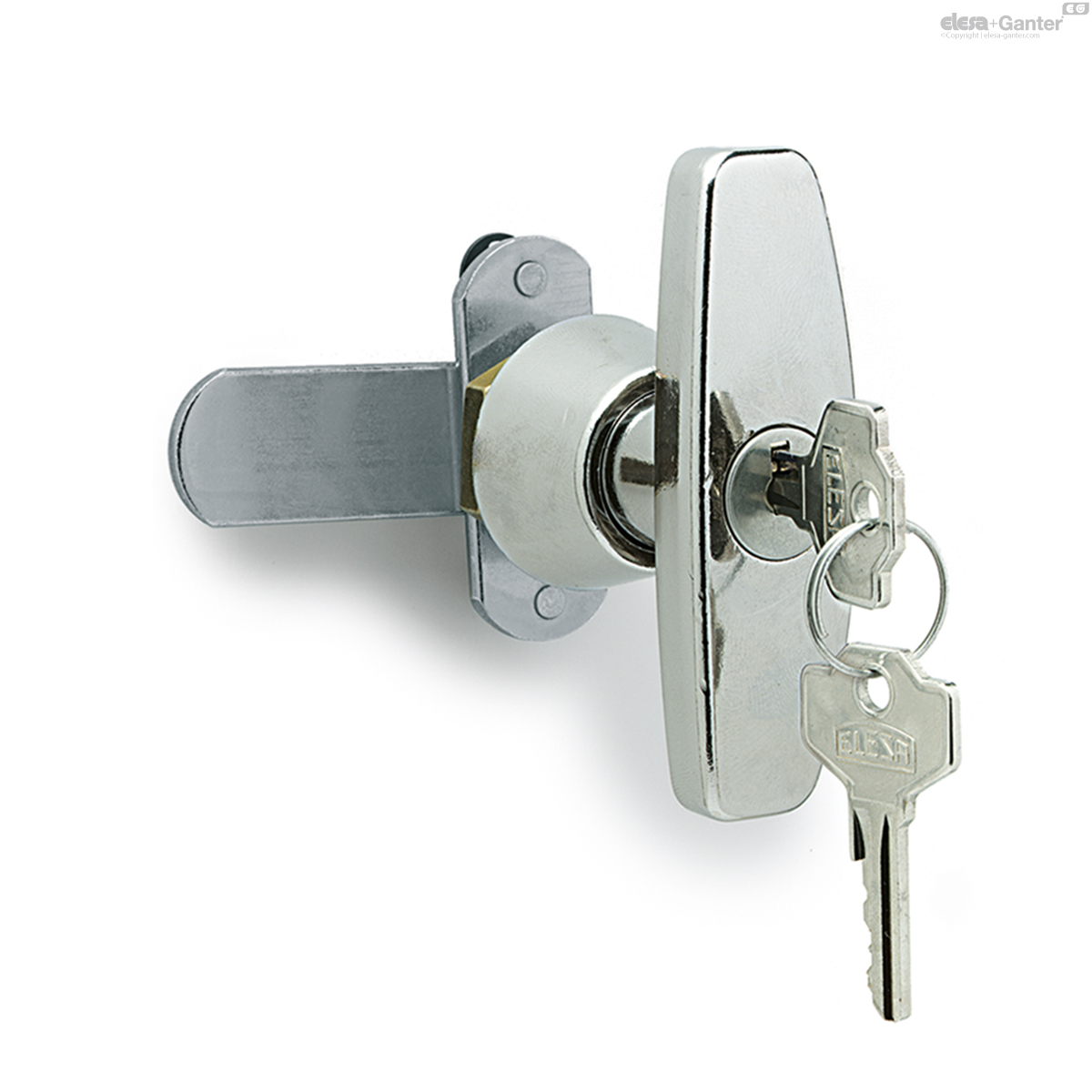

Lever latches with T-Handle
Operation with key, technopolymer
Description
Main specifications
Handle and stator
Glossy chrome-plated zinc alloy.
Rotor
Chrome-plated zinc alloy.
Front plate
Stainless steel.
Nut
M22x1.5 in zinc-plated zinc-alloy.
Spring washer
Black-oxide steel.
Washer
Zinc-plated steel.
Closing levers
Zinc-plated steel flat and two-point closing lever, thickness 3 mm.
Screw
M7x10 Zinc-plated steel.
Two keys
Nickel-plated brass, removable in two positions at 180°.
Standard executions
Handle rotation by 90° clockwise (right).
- CSM.:Â lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSMU.:Â lock with one combination. All locks have the same combination and can be opened with the same key.
Handle rotation by 90° anticlockwise (left).
- CSM-S:Â lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSMU-S:Â lock with one combination. All locks have the same combination and can be opened with the same key.
 Other executions
Special executions and accessories
- Closing levers in other dimensions.

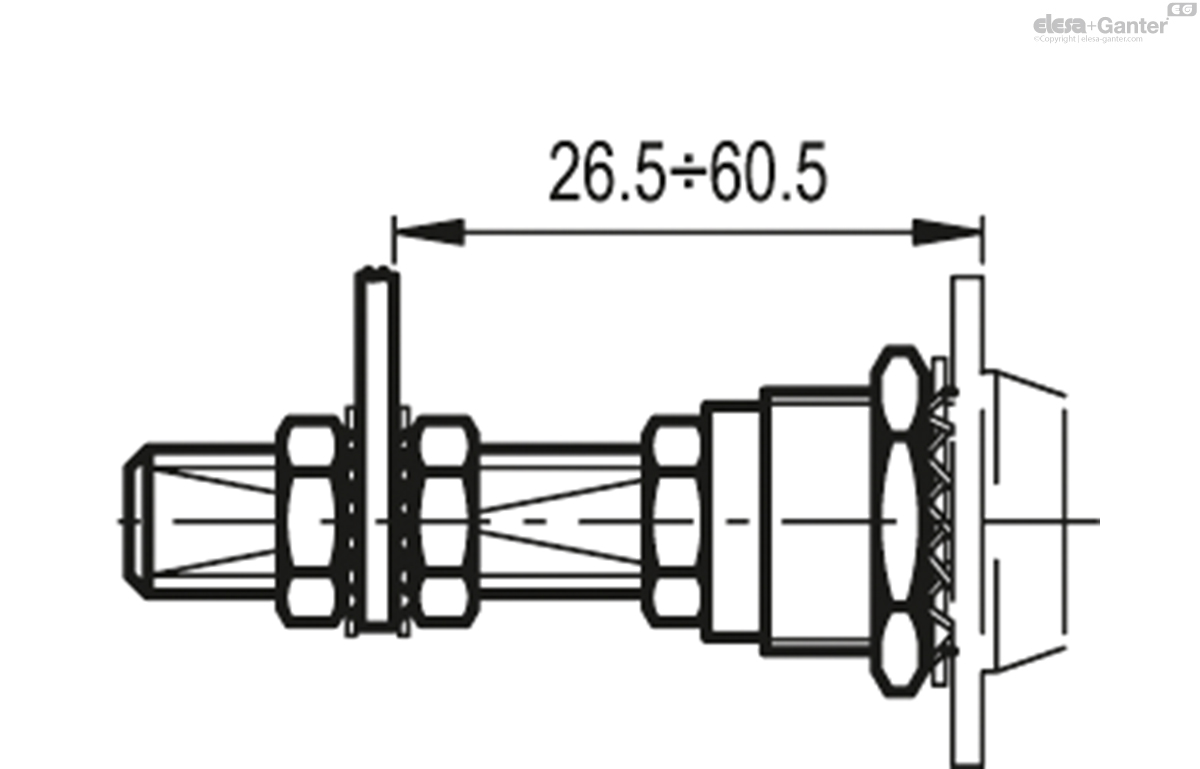

- Brass threaded extension (code 421140 C.PQ M7/53) and flat assembly lever (code 421145 LEVETTA PIANA 7x7) for prolonged positioning of the closing ledge

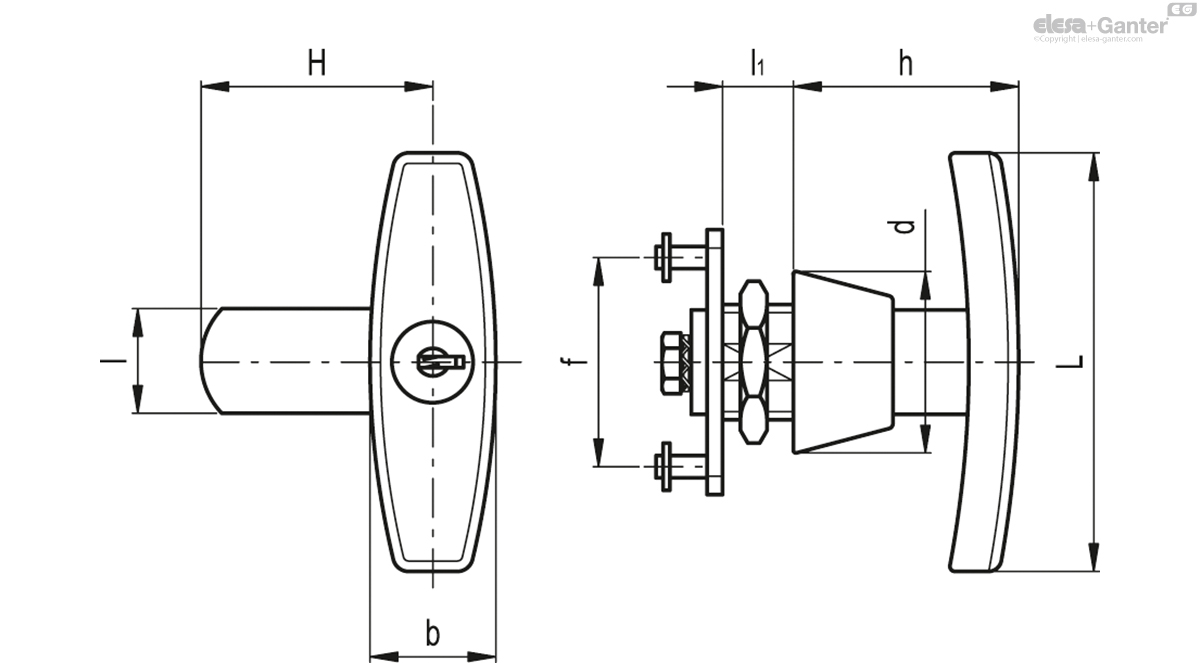

 | H | L | l | l1 | b | h | d | f |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 421511 | CSM.50 | 50 | 80 | 20 | 13.5 | 24 | 43.5 | 35 | 42 | 263 |
|
| 421512 | CSM.50-S | 50 | 80 | 20 | 13.5 | 24 | 43.5 | 35 | 42 | 240 |
|
| 421513 | CSMU.50 | 50 | 80 | 20 | 13.5 | 24 | 43.5 | 35 | 42 | 260 |
|
| 421514 | CSMU-50-S | 50 | 80 | 20 | 13.5 | 24 | 43.5 | 35 | 42 | 259 |
|
