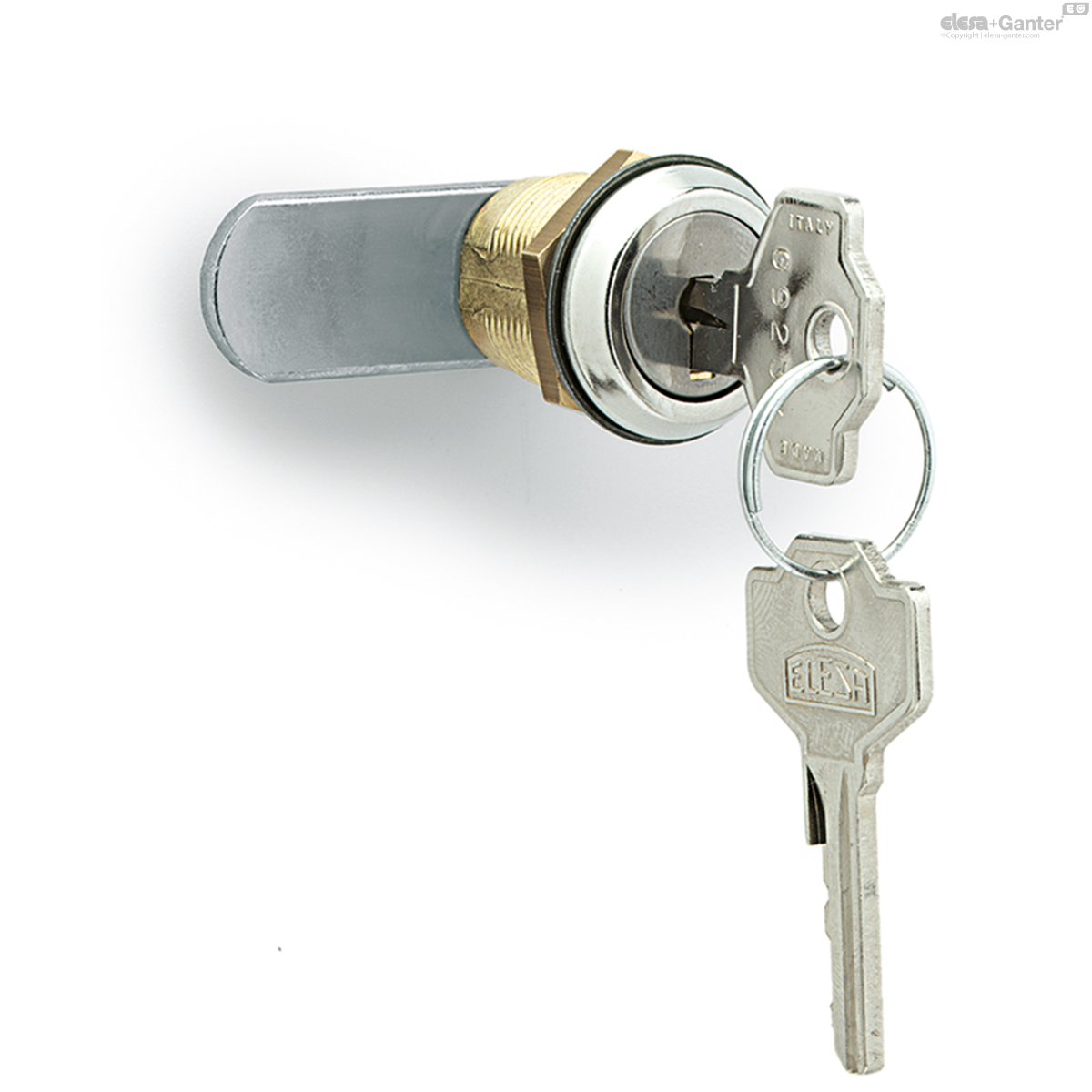

Lever latches with key
Lock, zinc alloy
Description
Main specifications
Stator
Brass-plated zinc alloy.
Rotor
Chrome-plated zinc alloy.
Front plate
Stainless steel.
Nut
M19x1 in brass.
Flat spring washer
Zinc-plated steel (only for l1=13 and 16 mm),
Internal toothed washer
Zinc-plated steel.
Closing lever
Zinc-plated steel, thickness 2.5 mm.
Assembly by means of hexagon nut M6x0.75 for l1=13, 16 and 18 mm, assembly with screw M5x5 for l1=20 mm or with screw M5x8 for l1=25 and 30 mm.
Two keys
Nickel-plated brass, removable in two positions at 180°.
Rotation
180°.
Standard executions
- CS.: lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSU.: lock with one combination. All locks have a key with the same combination.
 Other executions
Special executions and accessories
- Closing levers in other dimensions.

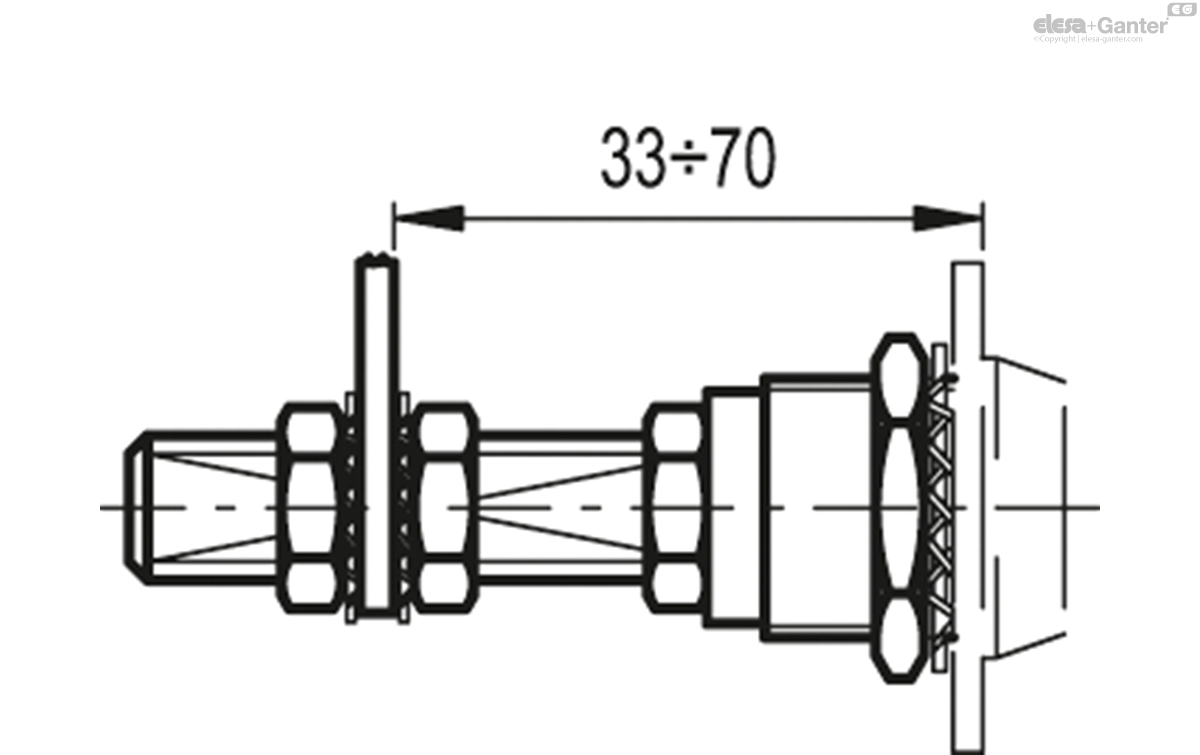

- Brass threaded extension for prolonged positioning of the lever, only for stator lengths l1 = 25 and 30 mm (code 421137 C.PQ M5/58).

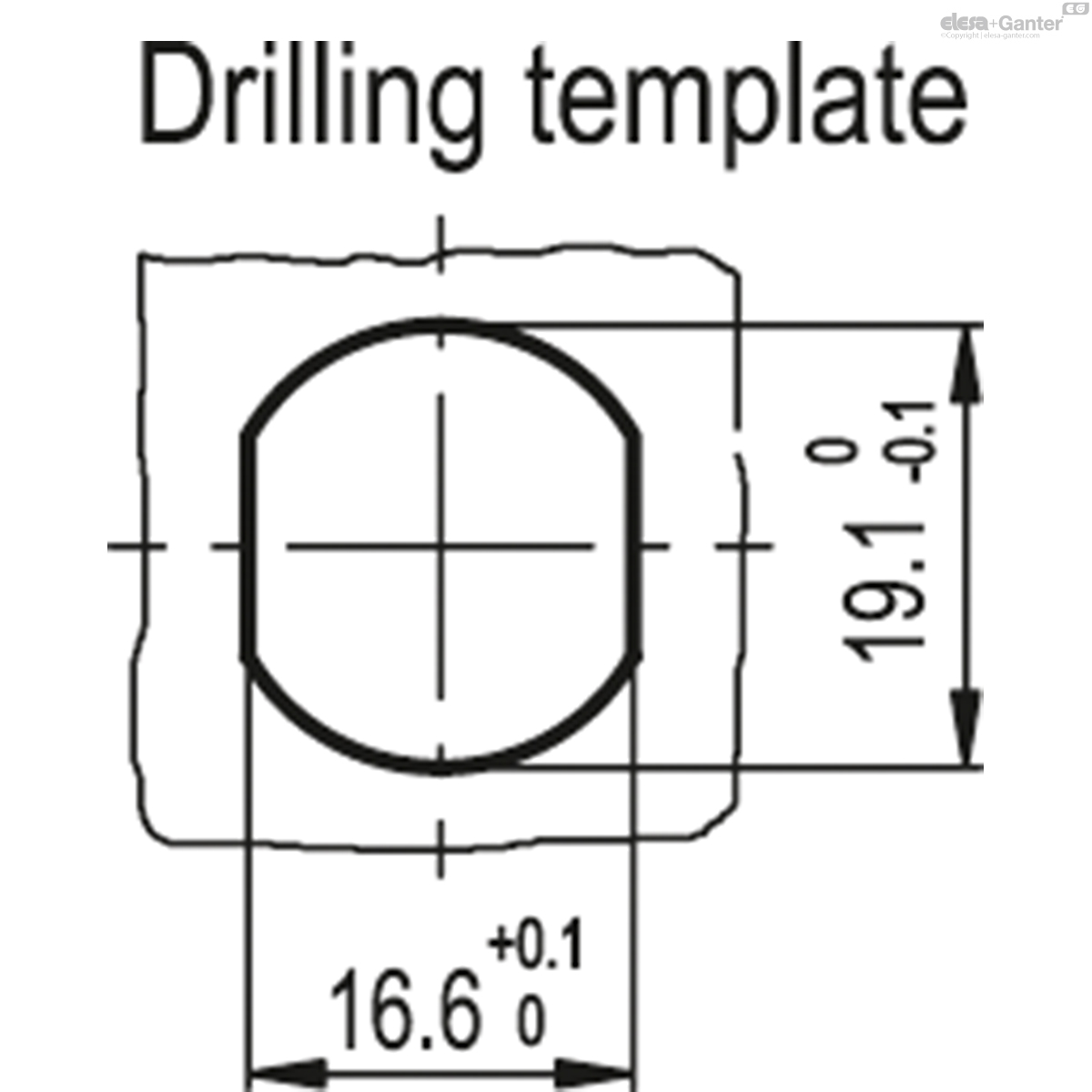

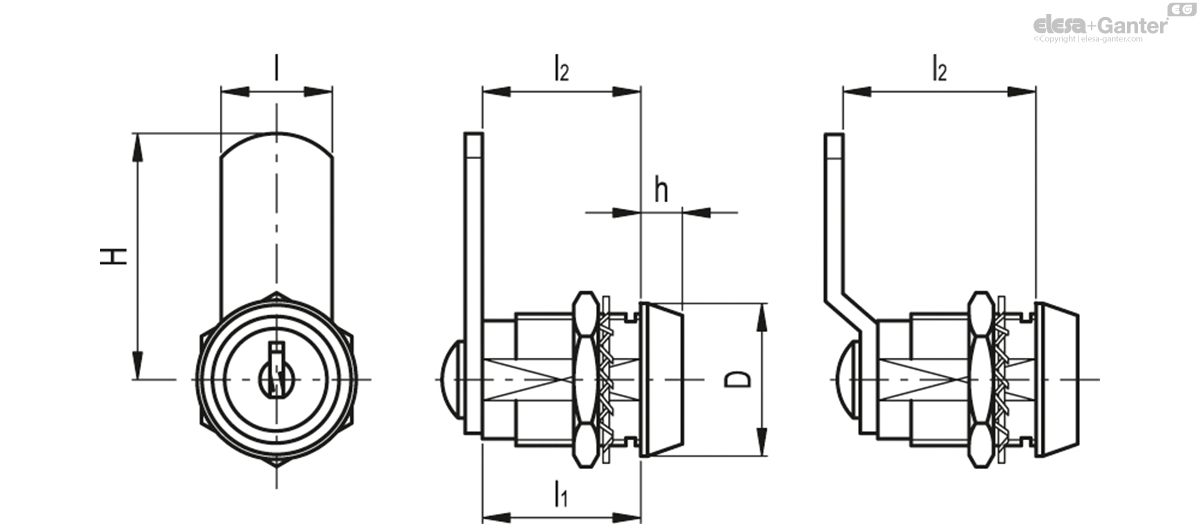

 CS.
| D | H | l | l1 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 421411 | CS.13-32-13 | 23 | 32 | 16 | 13 | 13 | 5 | 71 |
|
| 421413 | CS.16-32-16 | 23 | 32 | 16 | 16 | 16 | 5 | 74 |
|
| 421415 | CS.20-32-20 | 23 | 32 | 16 | 20 | 20 | 5 | 74 |
|
| 421417 | CS.25-32-25 | 23 | 32 | 16 | 25 | 25 | 5 | 82 |
|
| 421419 | CS.30-32-30 | 23 | 32 | 16 | 30 | 30 | 5 | 90 |
|
| 421431 | CS.13-36-18 | 23 | 35.5 | 16 | 13 | 18 | 5 | 68 |
|
| 421433 | CS.16-36-21 | 23 | 35.5 | 16 | 16 | 21 | 5 | 73 |
|
| 421435 | CS.20-36-25 | 23 | 35.5 | 16 | 20 | 25 | 5 | 77 |
|
| 421437 | CS.25-36-30 | 23 | 35.5 | 16 | 25 | 30 | 5 | 91 |
|
| 421439 | CS.30-36-35 | 23 | 35.5 | 16 | 30 | 35 | 5 | 95 |
|
CSU.
| D | H | l | l1 | l2 | h | |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 421451 | CSU.13-32-13 | 23 | 32 | 16 | 13 | 13 | 5 | 71 |
|
| 421453 | CSU.16-32-16 | 23 | 32 | 16 | 16 | 16 | 5 | 70 |
|
| 421455 | CSU.20-32-20 | 23 | 32 | 16 | 20 | 20 | 5 | 75 |
|
| 421457 | CSU.25-32-25 | 23 | 32 | 16 | 25 | 25 | 5 | 87 |
|
| 421459 | CSU.30-32-30 | 23 | 32 | 16 | 30 | 30 | 5 | 90 |
|
| 421471 | CSU.13-36-18 | 23 | 35.5 | 16 | 13 | 18 | 5 | 68 |
|
| 421473 | CSU.16-36-21 | 23 | 35.5 | 16 | 16 | 21 | 5 | 77 |
|
| 421475 | CSU.20-36-25 | 23 | 35.5 | 16 | 20 | 25 | 5 | 76 |
|
| 421477 | CSU.25-36-30 | 23 | 35.5 | 16 | 25 | 30 | 5 | 89 |
|
| 421479 | CSU.30-36-35 | 23 | 35.5 | 16 | 30 | 35 | 5 | 91 |
|
