CQTL.FM

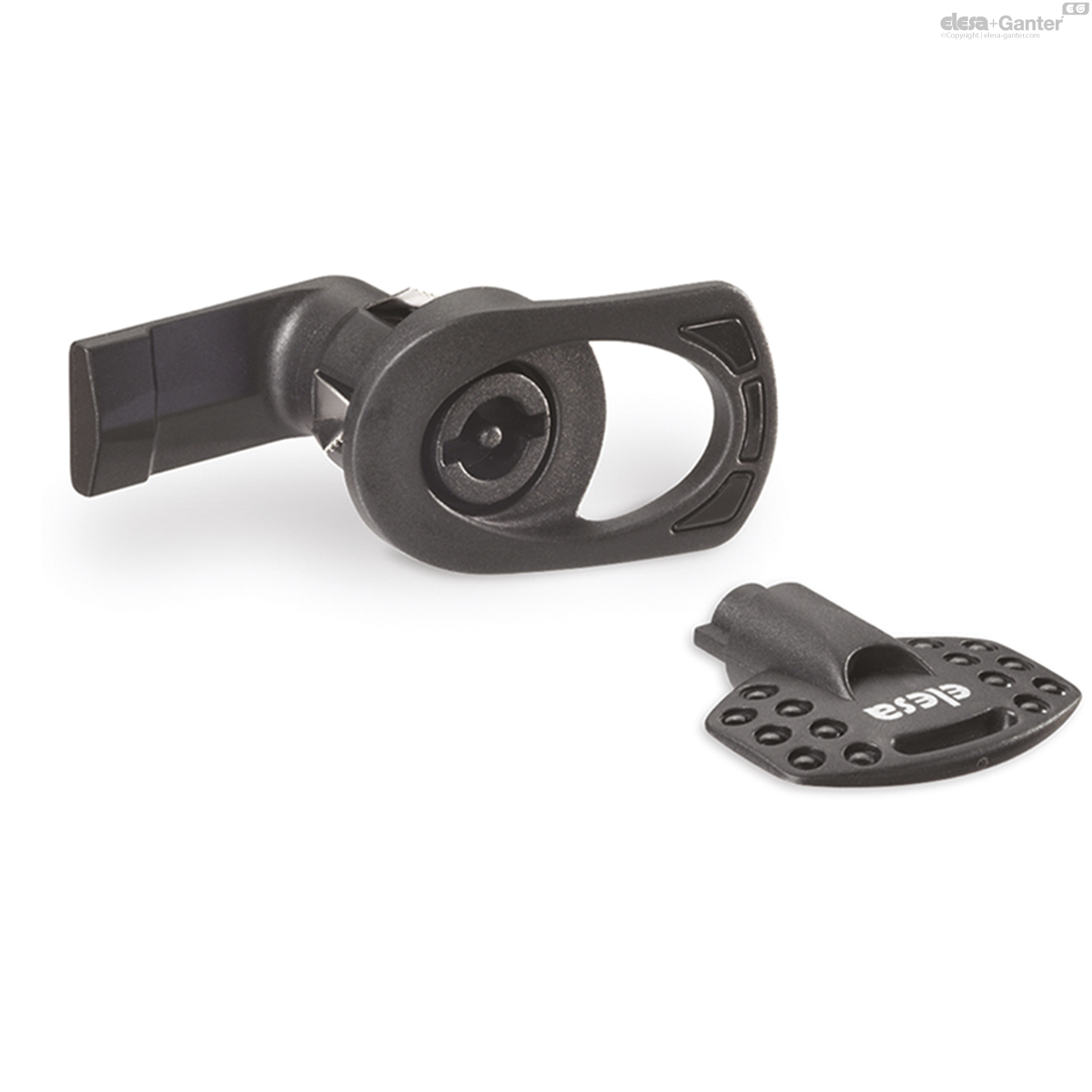

Lever latches with key

Quick-assembly, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Packing ring

Silicone directly applied onto the back side of the stator head.

Washer with elastic fixing wings and self-tapping screws

Stainless steel.

Key

Polyamide based (PA) technopolymer.

Rotation

90°.

IP protection

IP 65 protection class, according to table EN 60529.

Standard executions

CQTL/A: two-wing groove for key.
CQTL/T: triangular groove for key.

Maximum continuous working temperature

130°C.

Disassembly tool (to be ordered separately)

Code 421550 ATTREZZO CQT.FM. in AISI 304 stainless steel.

General information

Features

With steel plate thickness ranging from 1 to 2 mm quick-assembly latches with recessed key CQT.FM (patented) allow for faster mounting on doors.

Other executions

Special executions on request

Closing levers in zinc-plated steel.
Latches and keys supplied separately.

Assembly instructions

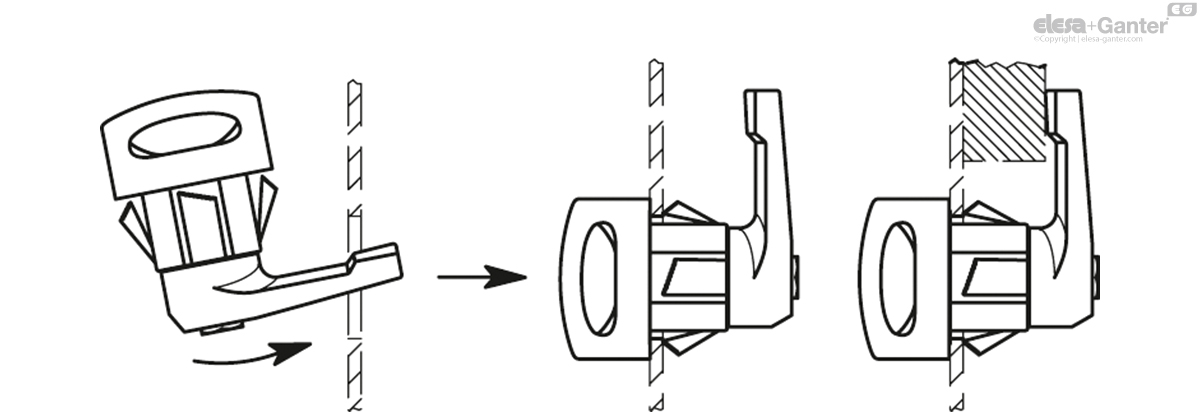

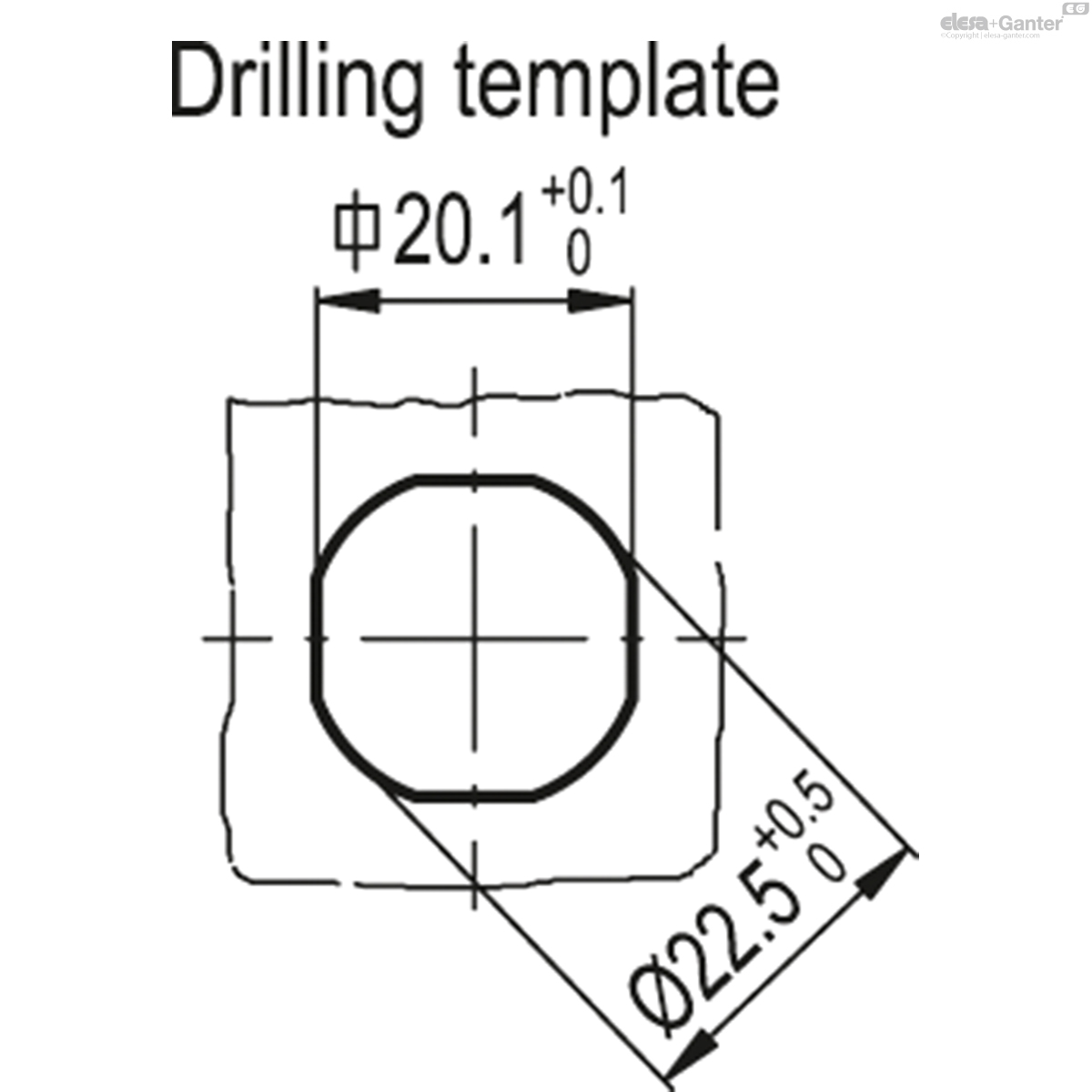

The latch is inserted in the mounting hole of the door on the lever side (see picture) until the wings of the elastic washer snap in, ensuring complete fastening.

The latches are supplied with assembled lever for faster mounting.

Where needed, the latch can be disassembled from the inside of the door by means of a disassembling tool (to be ordered separately).

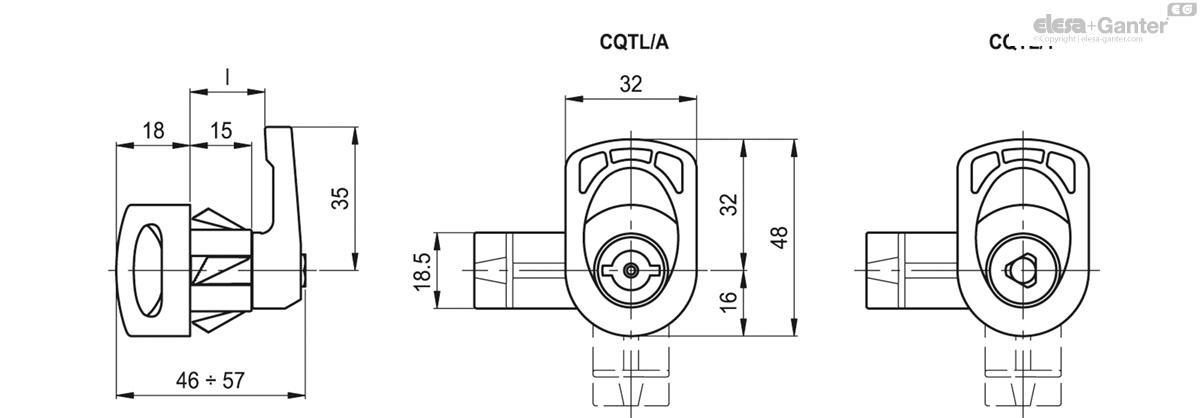

CQTL/A

		l
Code	Description			Actions
421251	CQTL/A-FM-35-18	18	35
421252	CQTL/A-FM-35-20	20	35
421253	CQTL/A-FM-35-22	22	35
421254	CQTL/A-FM-35-25	25	40
421255	CQTL/A-FM-35-30	30	37

CQTL/T

		l
Code	Description			Actions
421256	CQTL/T-FM-35-18	18	34
421257	CQTL/T-FM-35-20	20	26
421258	CQTL/T-FM-35-22	22	35
421259	CQTL/T-FM-35-25	25	36
421260	CQTL/T-FM-35-30	30	37
