CQT.AE-V0

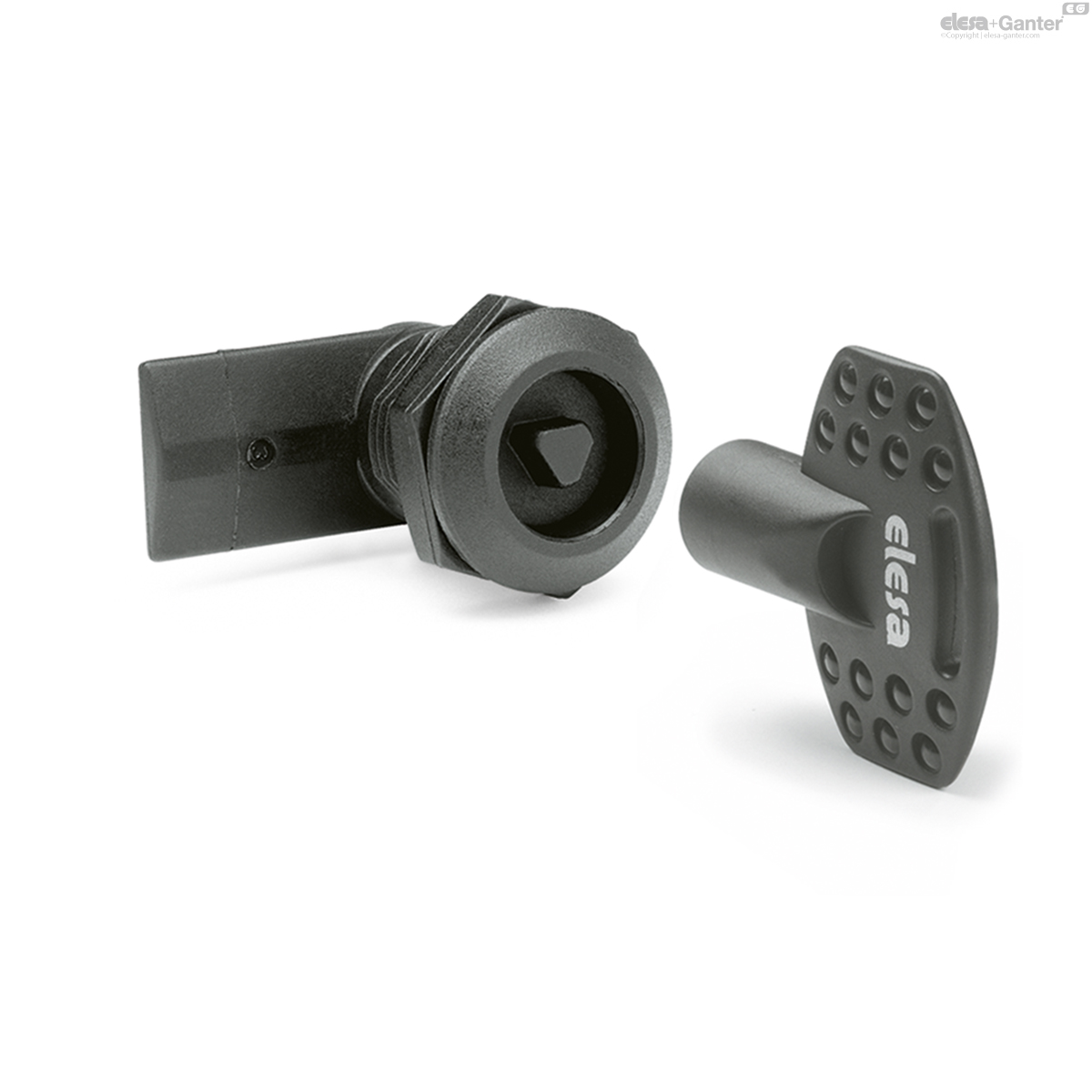

Lever latches

with recessed key, technopolymer

Enquire Now

Description

Main specifications

Material

Stator, rotor, closing lever and nut (M22x1.5) in glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.

Packing ring

SBR rubber.

Internal toothed washer

AISI 304 stainless steel.

Self-tapping screw

AISI 304 stainless steel.

Key

Polyamide based (PA) technopolymer.

Rotation

90°.

IP protection

IP 65 protection class according to table EN 60529-.

Standard executions

CQT/A: mark for two-wings key.
CQT/T: mark for triangular key.

General information

Technical data

The 'V0' certification in accordance with UL-94 V (Underwriters Laboratories) (see Technical Data-) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.

Other executions

Special executions on request

Cylindrical body of the closing lever in other dimensions.
Latches and keys supplied separately.

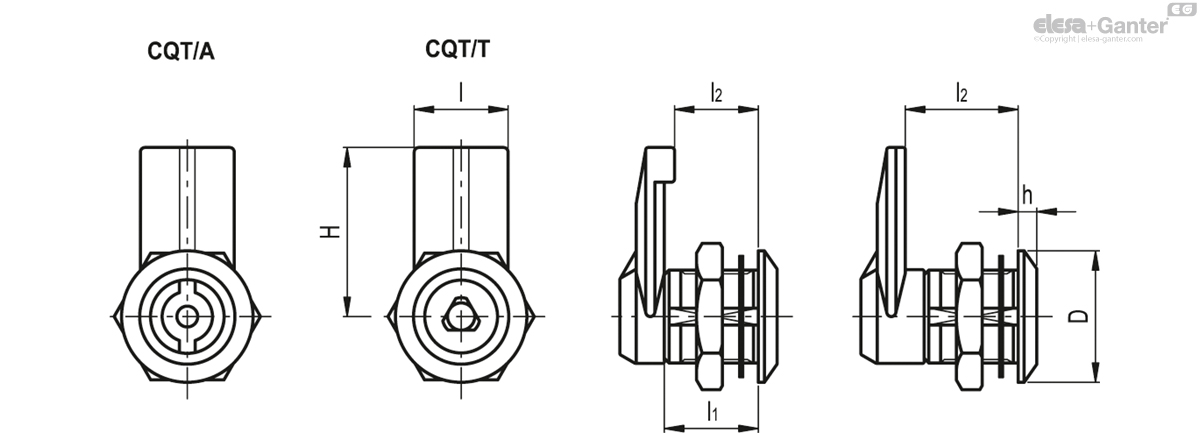

CQT/A

		D	H	l	l₁	l₂	h
Code	Description								Actions
421391	CQT/A-32-20 AE-V0	28	32	20	20	20	4	39
421393	CQT/A-32-18 AE-V0	28	32	20	20	18	4	40
421395	CQT/A-32-24 AE-V0	28	32	20	20	24	4	41
421397	CQT/A-32-32 AE-V0	28	32	20	20	32	4	40

CQT/T

		D	H	l	l₁	l₂	h
Code	Description								Actions
421401	CQT/T-32-20 AE-V0	28	32	20	20	20	4	39
421403	CQT/T-32-18 AE-V0	28	32	20	20	18	4	36
421405	CQT/T-32-24 AE-V0	28	32	20	20	24	4	41
421407	CQT/T-32-32 AE-V0	28	32	20	20	32	4	44
