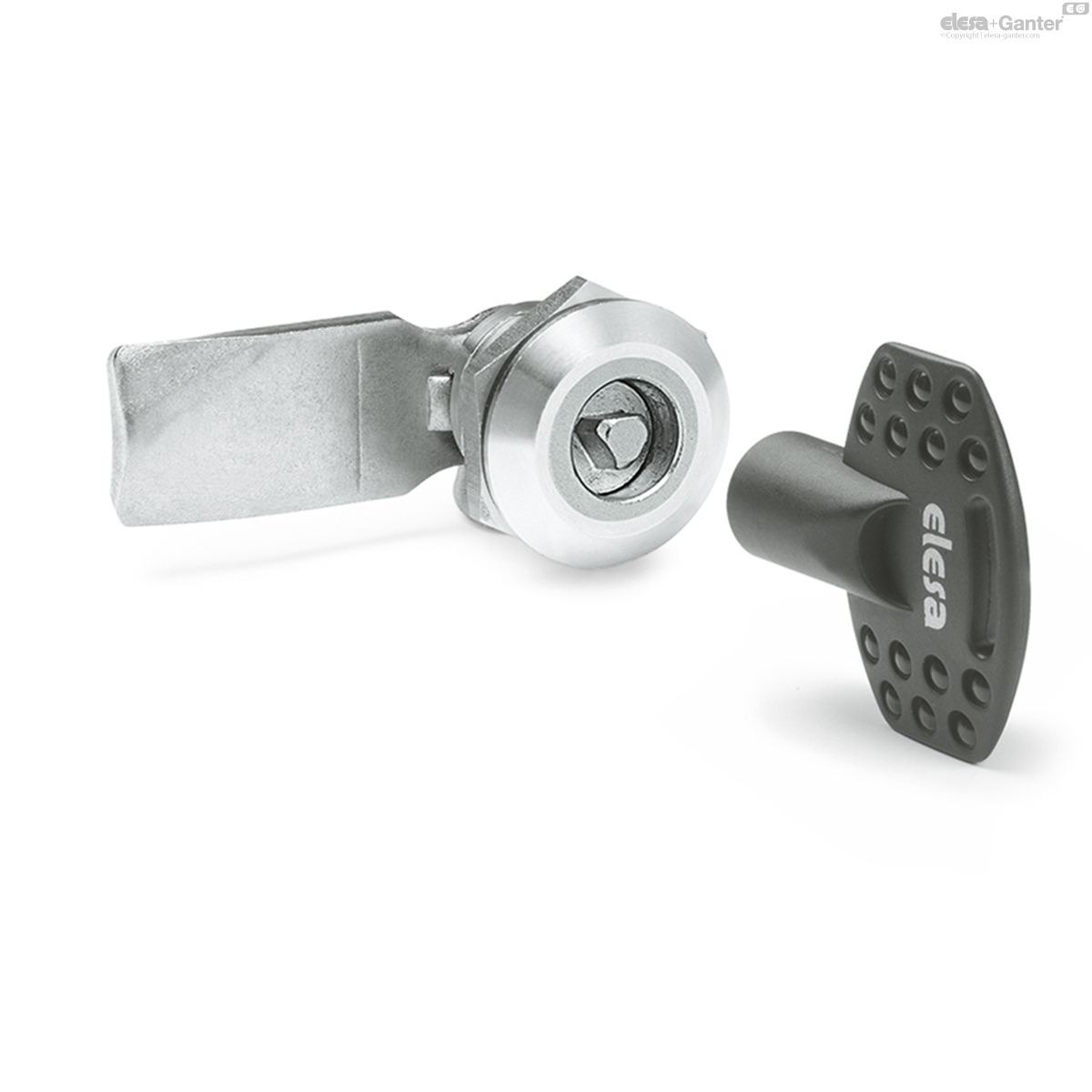

Home Latches Latches with key CQ.SST

CQ.SST

Lever latches

with recessed key, stainless steel

__logo__INOX__

__logo__RoHS__

__logo__IP66__

__logo__IP69K__

Enquire Now

Description

Main specifications

Stator and rotor

AISI 304 stainless steel.

Shaped closing lever

AISI 304 stainless steel, 4 mm thickness.

Nut

M22X1.5 AISI 304 stainless steel.

Packing ring

Transparent silicone rubber VMQ O-Ring, hardness 70 Shore A.

Internal gaskets

Silicone rubber VMQ O-Ring, hardness 70 Shore A.

Screw

M6X10 AISI 304 stainless steel.

Key

Polyamide based (PA) technopolymer.

Rotation

90°.

IP protection

IP66 and IP69K protection class.

Standard executions

CQ/A-SST: two-wing groove for key.
CQ/T-SST: triangular groove for key.

Other executions

Special executions on request

Closing levers in other dimensions.
Latches and keys supplied separately.
Laser engravings on the latch front.

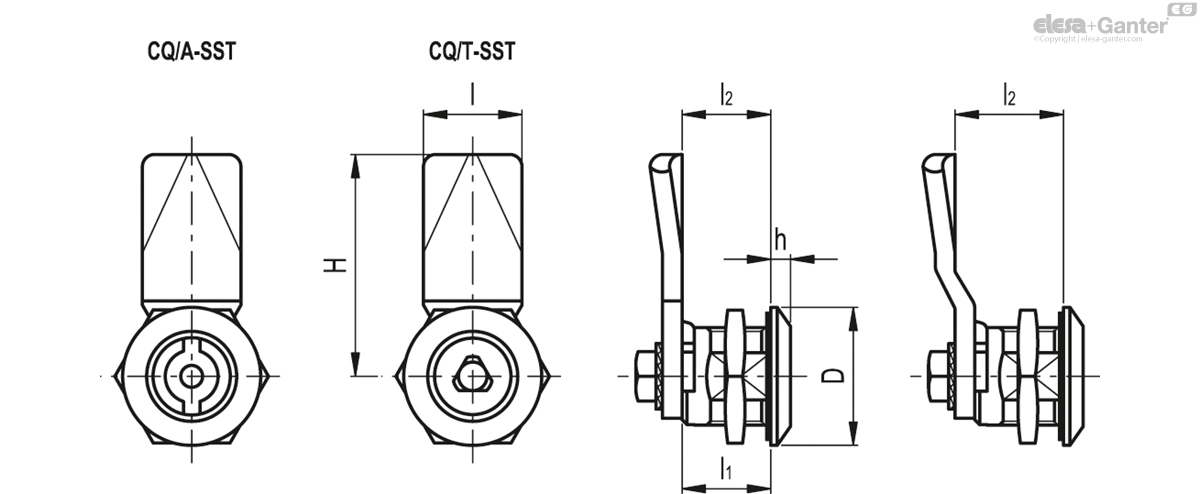

CQ/A-SST

		D	H	l	l₁	l₂	h
Code	Description								Actions
421331	CQ/A-45-18-SST	28	45	20	18	18	4	101
421337	CQ/A-45-24-SST	28	45	20	18	24	4	100

CQ/T-SST

		D	H	l	l₁	l₂	h
Code	Description								Actions
421371	CQ/T-45-18-SST	28	45	20	18	18	4	101
421377	CQ/T-45-24-SST	28	45	20	18	24	4	100
