CMT.AE-V0

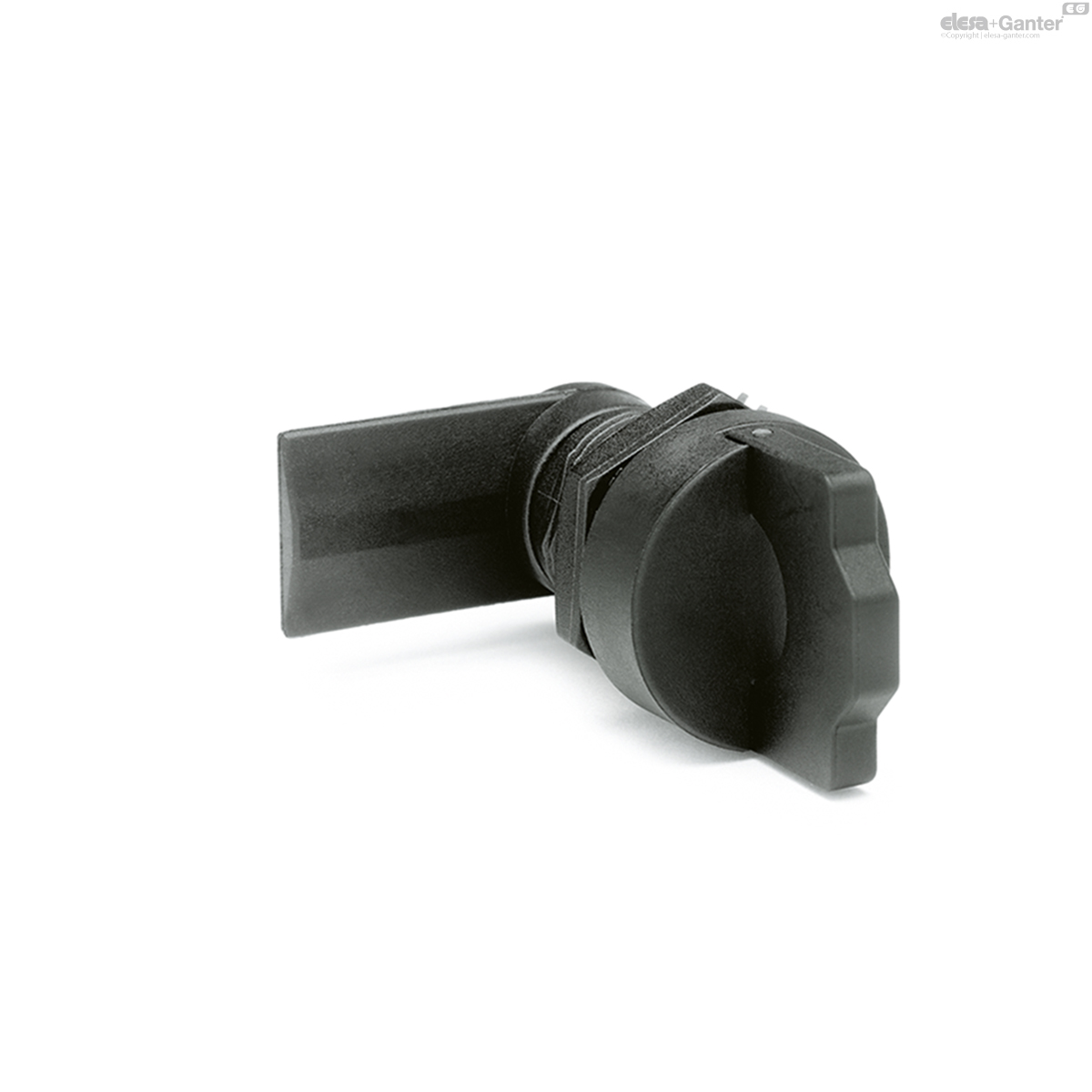

Lever latches with fold-away knob

Technopolymer

Enquire Now

Description

Main specifications

Material

Rotor, stator, fold-away knob, closing lever and nut (M22x1.5) in glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.

Packing ring

SBR rubber.

Internal toothed washer

AISI 304 stainless steel.

Self-tapping screw

AISI 304 stainless steel.

Rotation

90°.

IP protection

IP 65 protection class, according to table EN 60529.

General information

Technical data

The 'V0' certification in accordance with UL-94 V (Underwriters Laboratories) (see Technical Data) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.

Other executions

Special executions on request

Closing lever with l2 ledge in other dimensions.

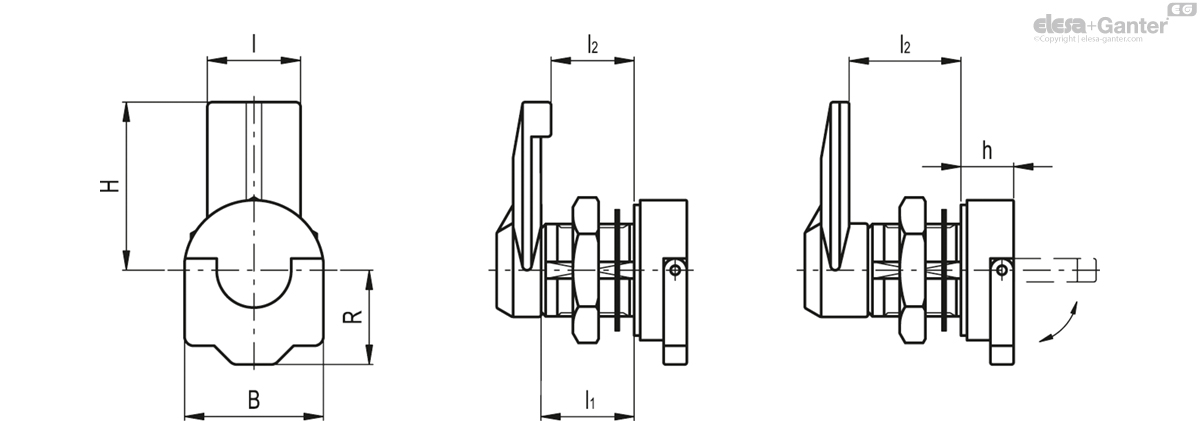

		H	B	R	l	l₁	l₂	h
Code	Description									Actions
421241	CMT.32-20 AE-V0	32	30	20	20	20	20	11	37
421243	CMT.32-18 AE-V0	32	30	20	20	20	18	11	36
421245	CMT.32-24 AE-V0	32	30	20	20	20	24	11	37
421247	CMT.32-32 AE-V0	32	30	20	20	20	32	11	40
