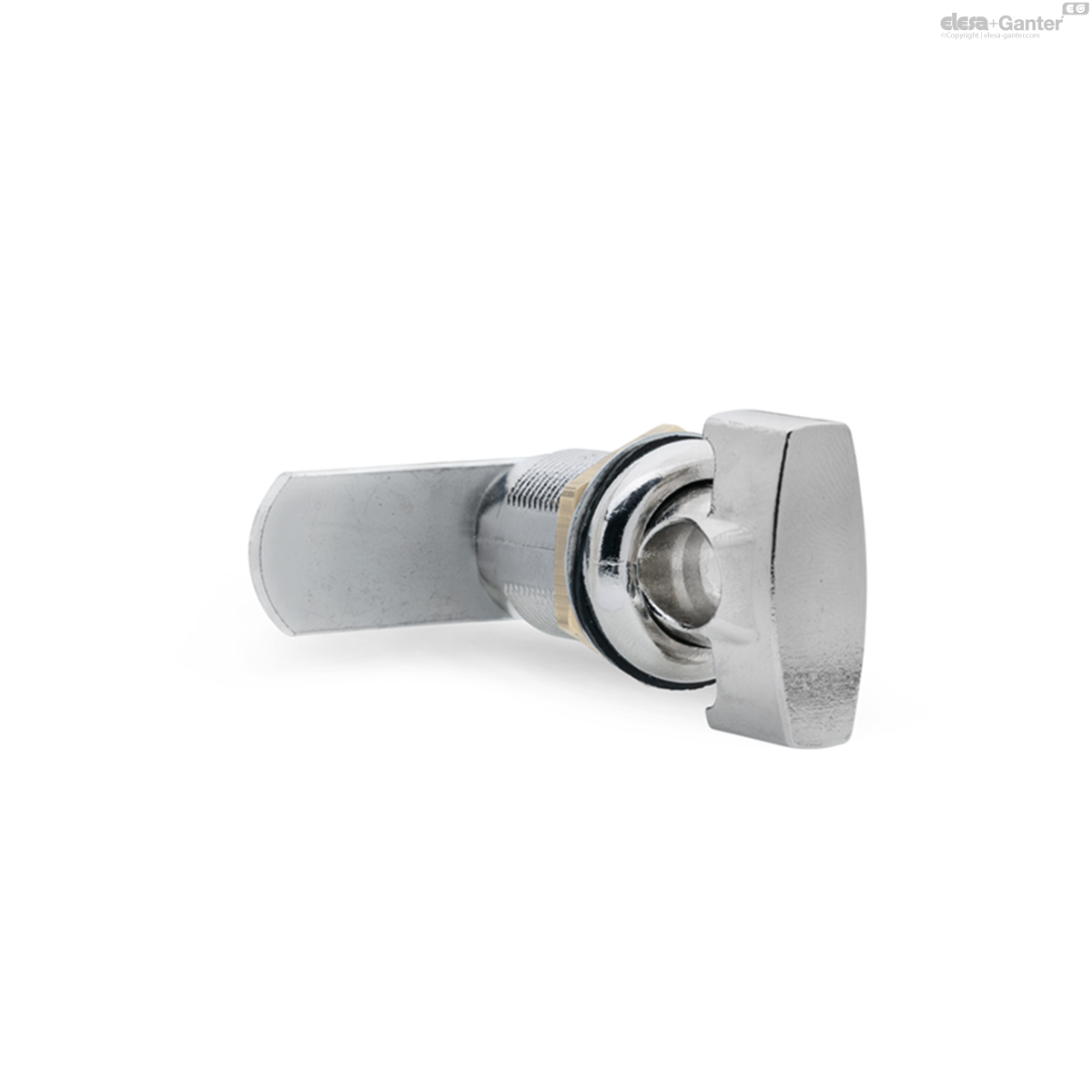

CMLX
Compression latches with padlock holes
with key-type knob, zinc alloy
Description
Main specifications
Material
Rotor, stator and knob in nickel-plated zinc alloy.
Nut
M19x1 in brass.
Toothed washer
Zinc-plated steel.
Packing ring
NBR rubber.
Closing lever
Zinc-plated steel, thickness 2.5 mm.
Screw
M5x10 zinc-plated steel.
Flat and elastic washers
Zinc-plated steel.
Internal spring
Stainless steel.
Rotation
90°.
 General information
Features and applications
CMLX compression latches are particularly suitable for applications on cabinets or doors subject to strong vibrations.
Provided with a transversal hole for the insertion of a padlock with hook of a diameter from 5 to 7 mm.
The lever rotation is only possible through the knob compression.
Other executions
Special executions and accessories
- Closing levers in other dimensions.

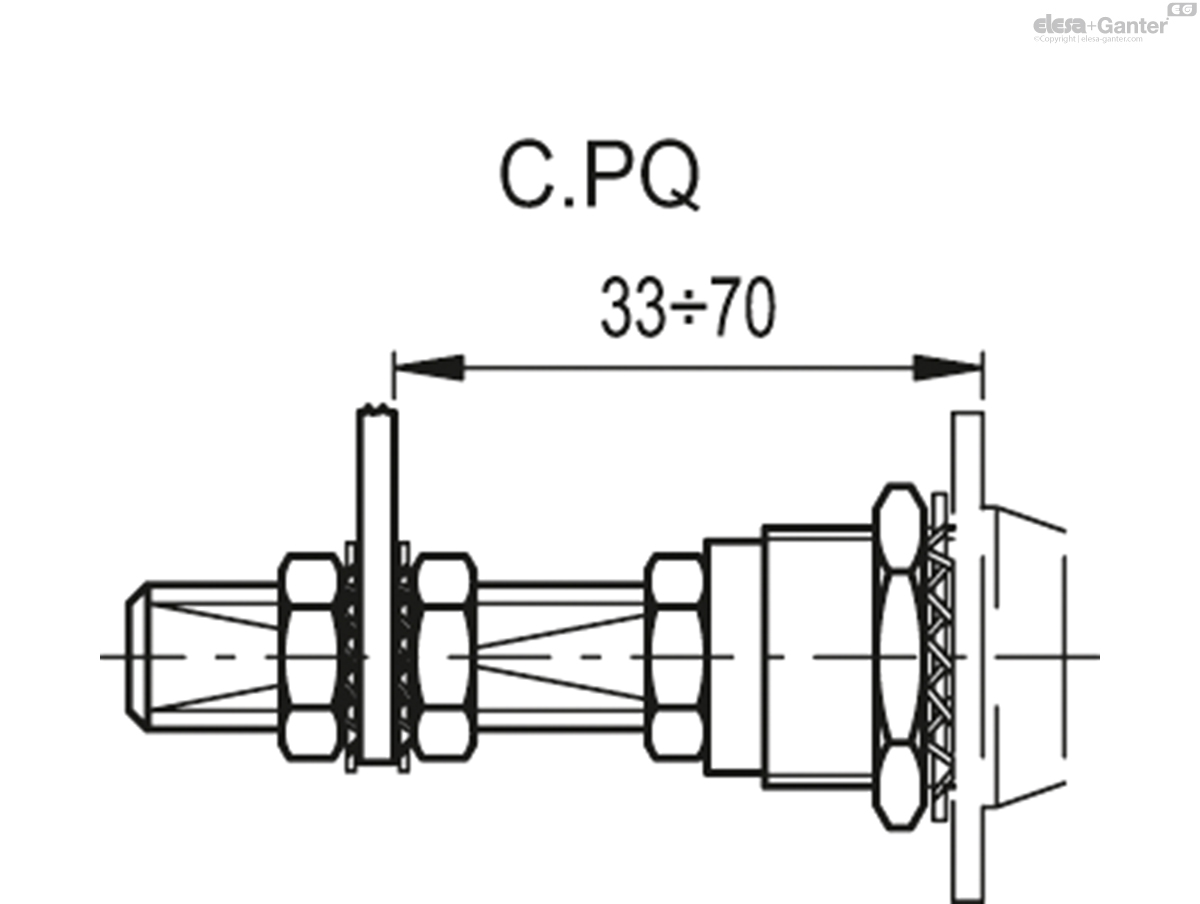

- Brass threaded extension for prolonged positioning of the lever (code 421137 C.PQ M5/58).

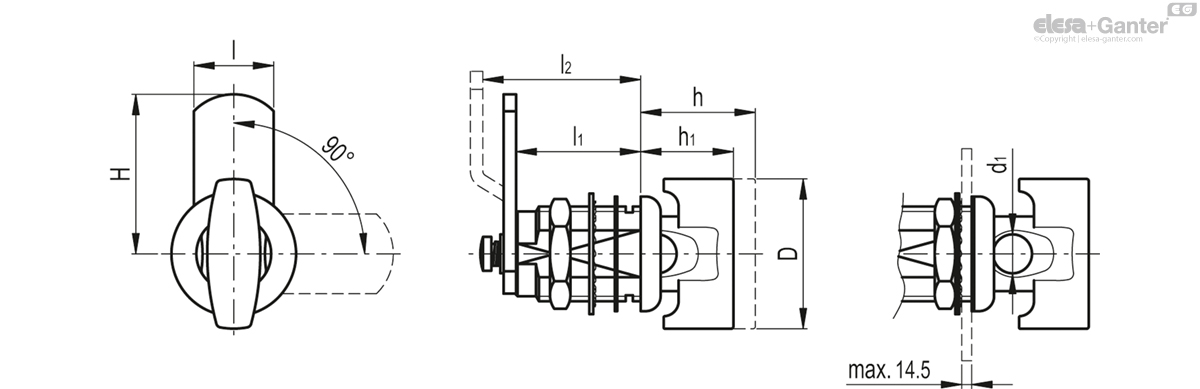

 CMLX
| D | d1 |  |
h | l | H | h1 | l1 | l2 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 421231 | CMLX.32-25 | 30 | 8 | 86 | 23 | 16 | 32 | 18.5 | 25 | 25 |
|
| 421233 | CMLX.36-30 | 30 | 8 | 87 | 23 | 16 | 35.5 | 18.5 | 25 | 30 |
|
