CKE.

Locking bolt

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer with security anti-intrusion-profiled slot, black colour, matte finish.

AISI 304 stainless steel with technopolymer push button. Side end in red colour.

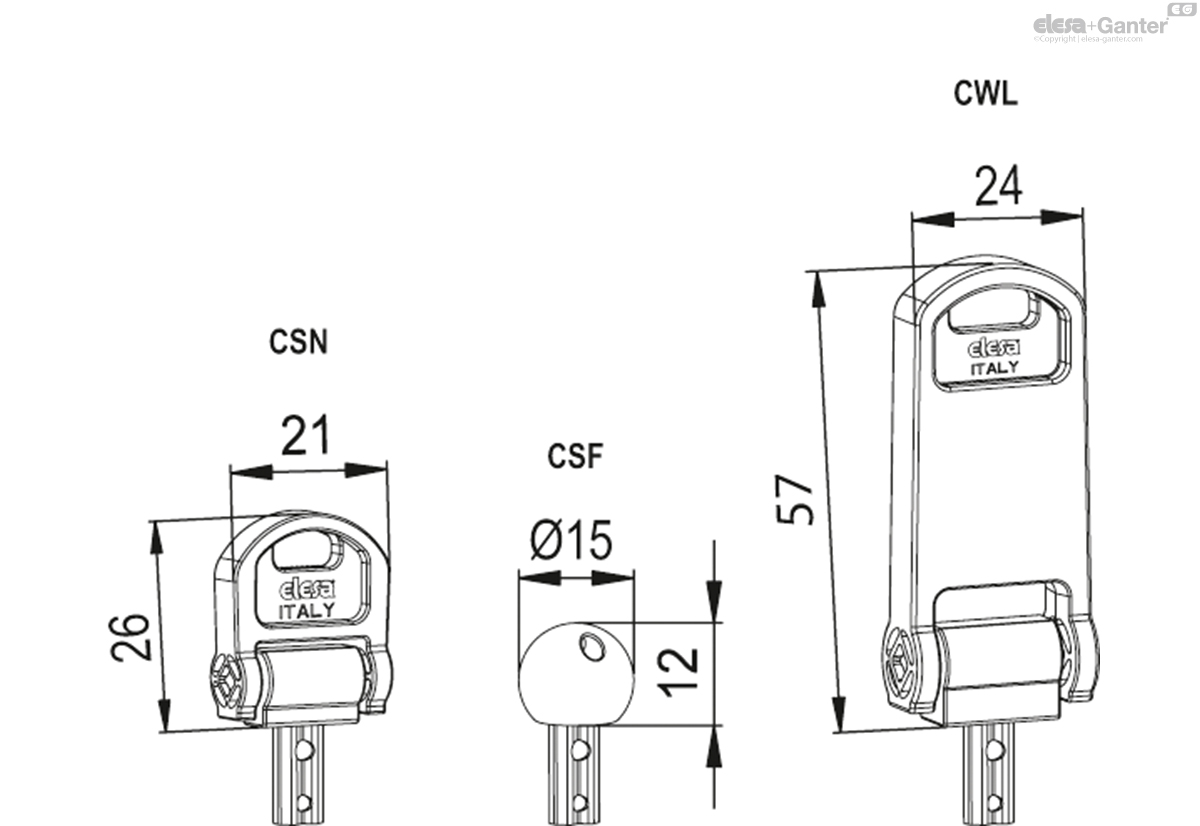

CSN: acetal resin based (POM) technopolymer fold-away key, red colour, anti-intrusion-profiled stainless steel insert.

CSF: polyamide based (PA) technopolymer ball key, red colour, anti-intrusion-profiled stainless steel insert.

CWL: acetal resin based (POM) technopolymer size increased fold-away key, red colour, stainless steel insert.

Instructions of use

Doors with CKE. locking bolt assembled can be opened only by authorised people provided with the proper anti-intrusion-profiled key.

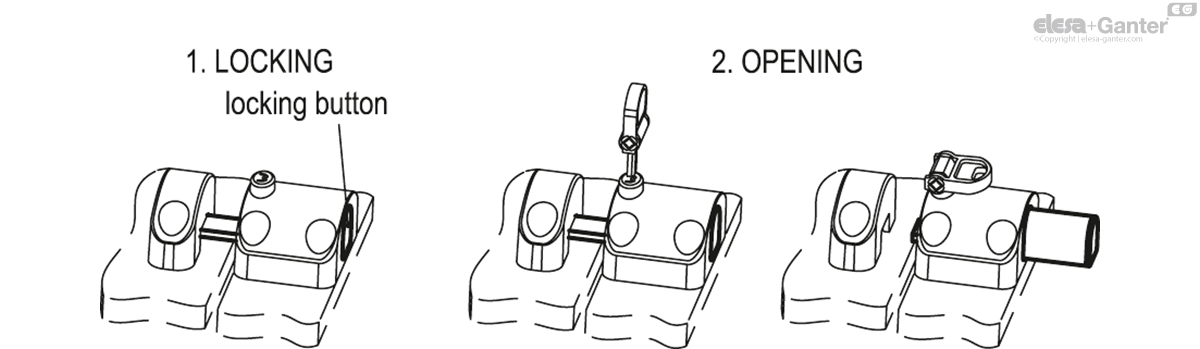

Locking: press the locking button until the red side end of it disappears completely into the body and the device snaps. The key must not be inserted during locking operations.
Opening: insert the key (without turning it) and push to make the internal device snap.

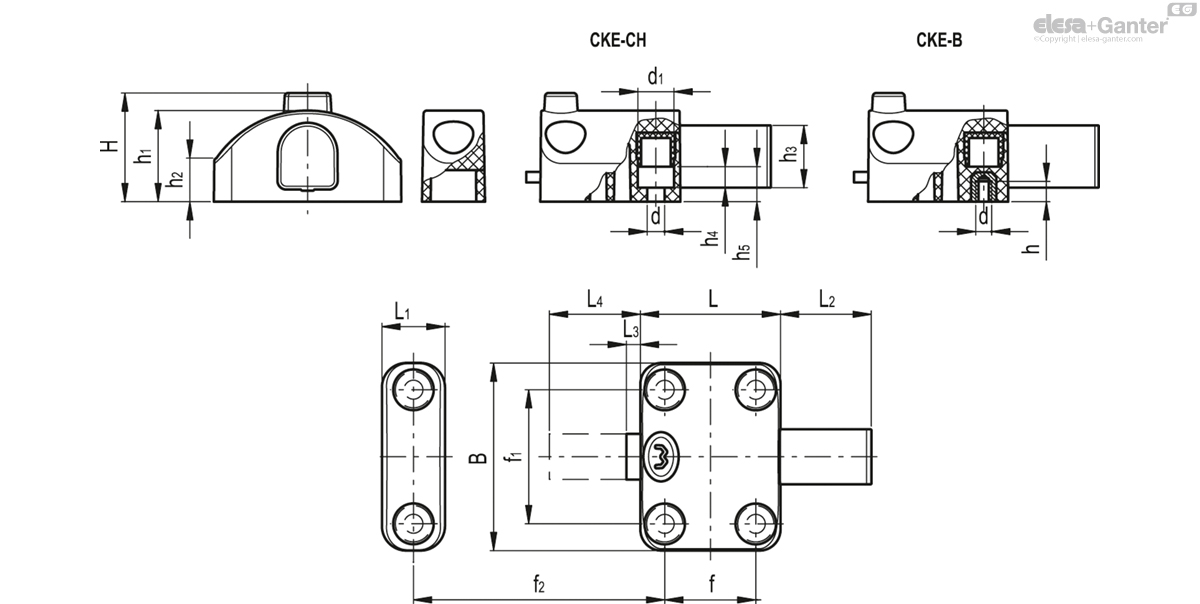

		H	B	d	d₁	L	L₁	L₂	L₃	L₄	f	f₁	f₂	h₁	h₂	h₃	h₄		h₅
Code	Description																			Actions
7901	CKE.40 CH-5	31	53.5	5.5	10	40	18	26	4	30	26	38	31-42	26	12	17.5	6	83	10

		H	B	d	h	L	L₁	L₂	L₃	L₄	f	f₁	f₂	h₁	h₂	h₃
Code	Description																	Actions
7905	CKE.40 B-M5	31	53.5	M5	6	40	18	26	4	30	26	38	31-42	26	12	17.5	92
