CFT.

Hinges with screw-covers

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Acetal based (POM) technopolymer, black colour.

Polyester based (PBT) technopolymer, black colour, glossy finish, snap-in assembly.

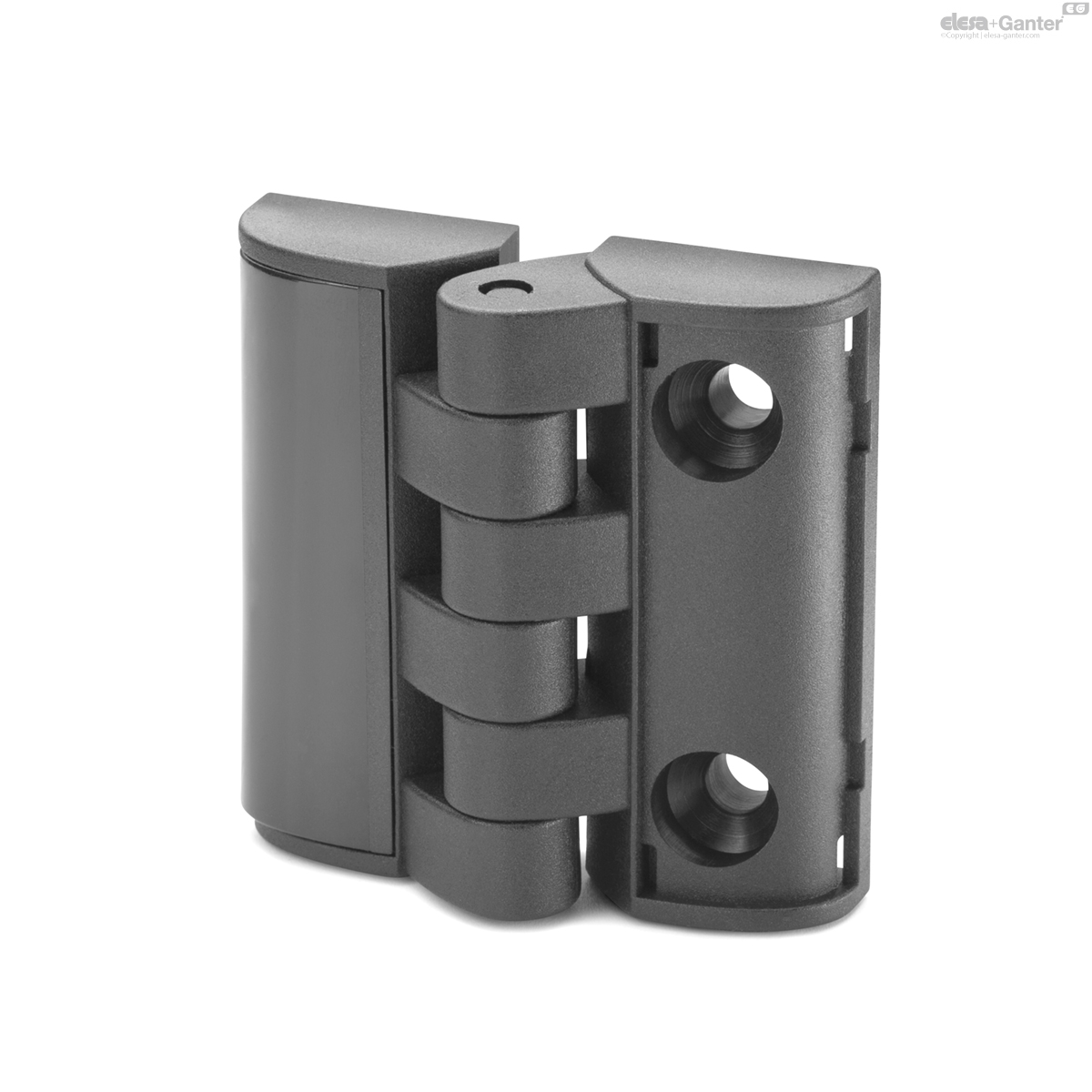

CFT-SH: pass-through holes for countersunk head screws.

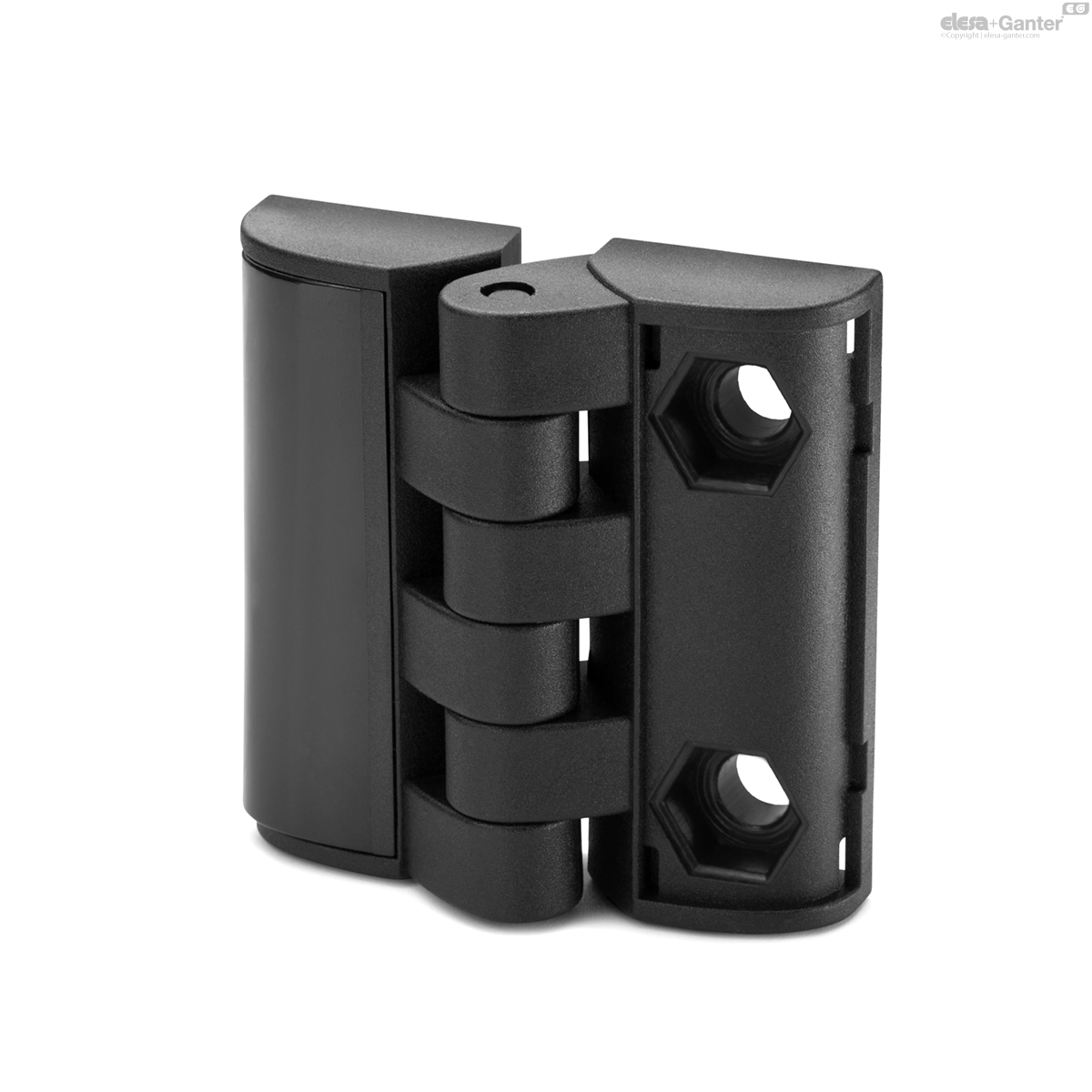

CFT-EH: hexagonal pass-through holes for cylindrical head screws, hexagonal head nuts or screws. CFT. hinge with boss or stud can be obtained by means of hexagonal head nuts or screws fitted into the assembly hole.

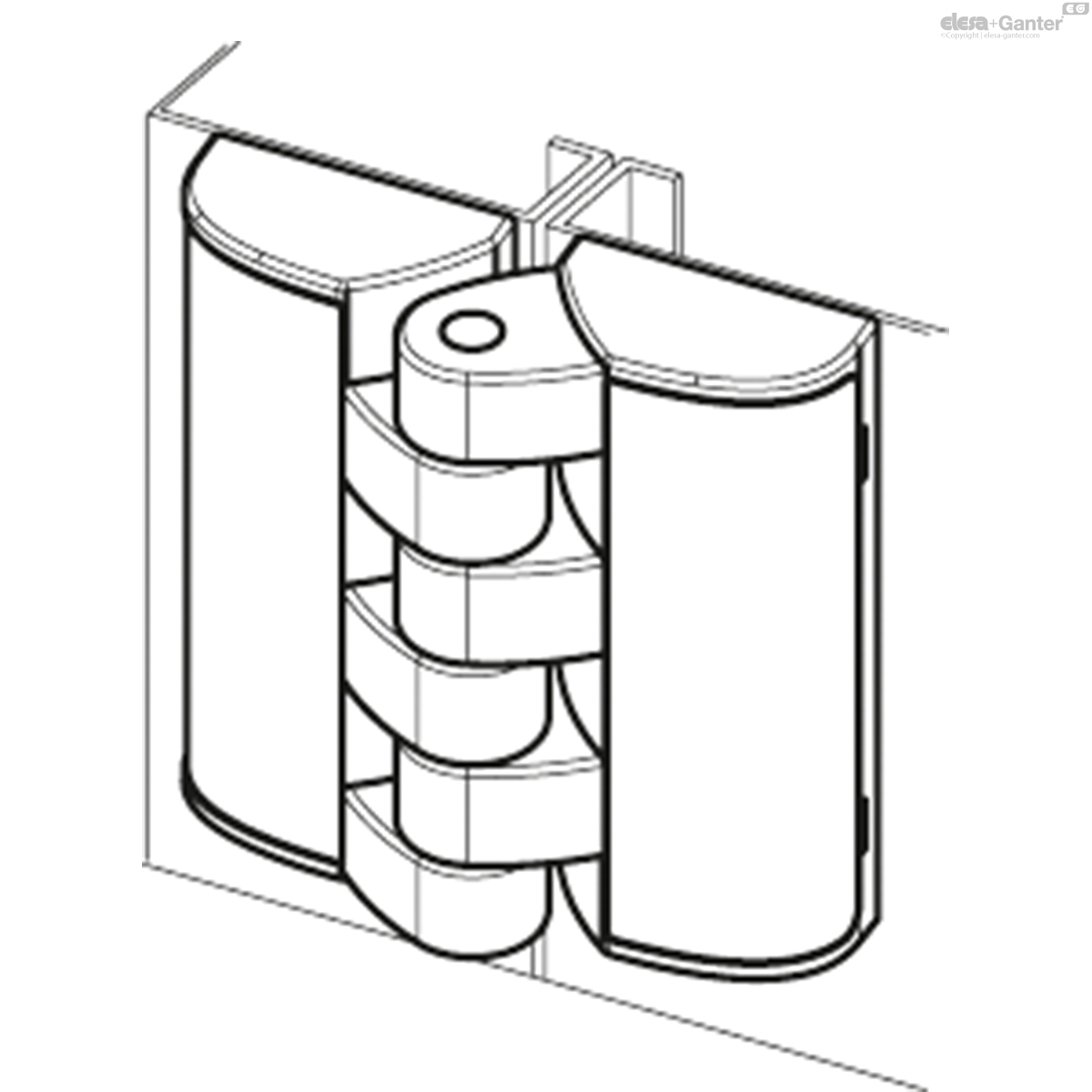

General information

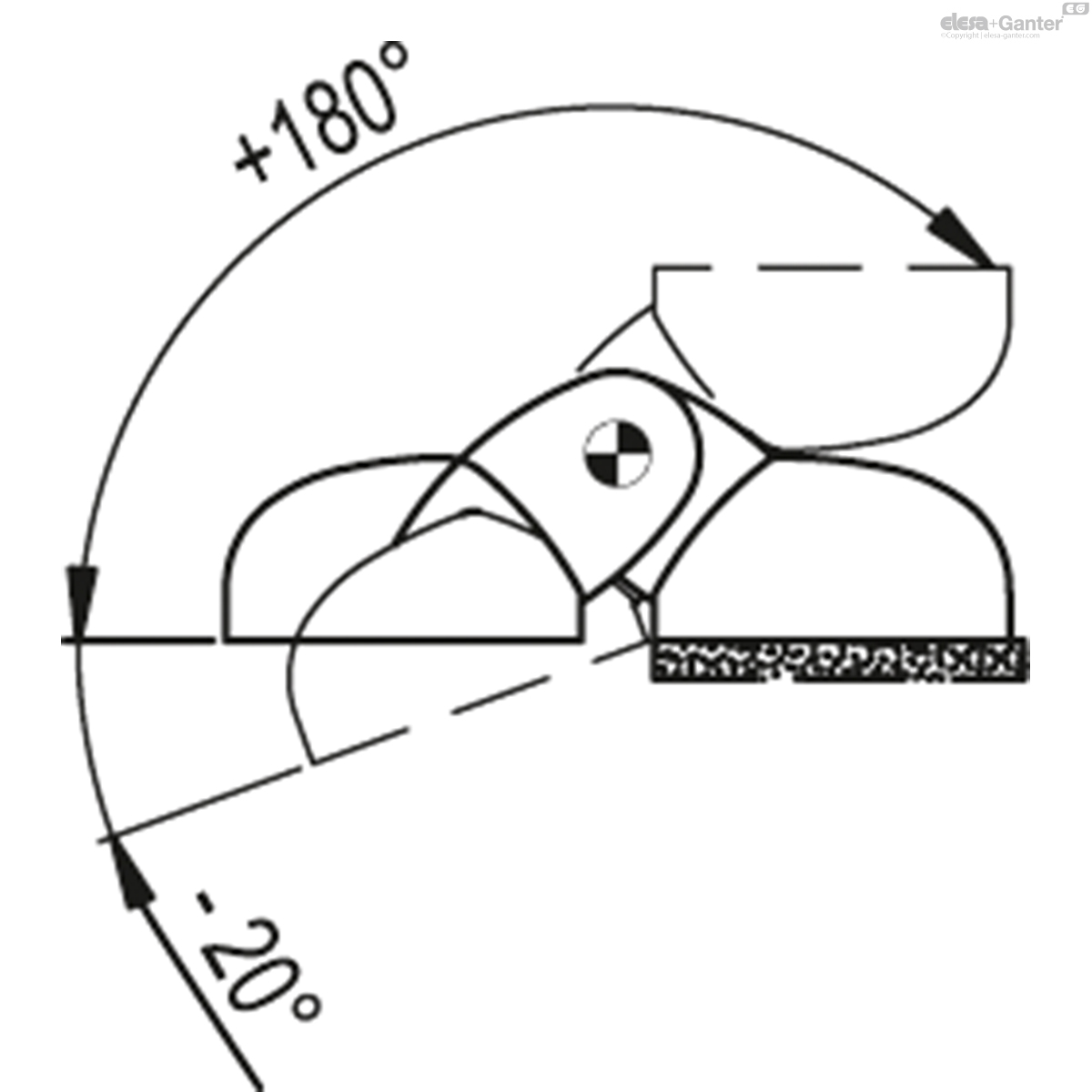

Max 200° (-20° and +180° being 0° the condition where the interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.

Special executions on request

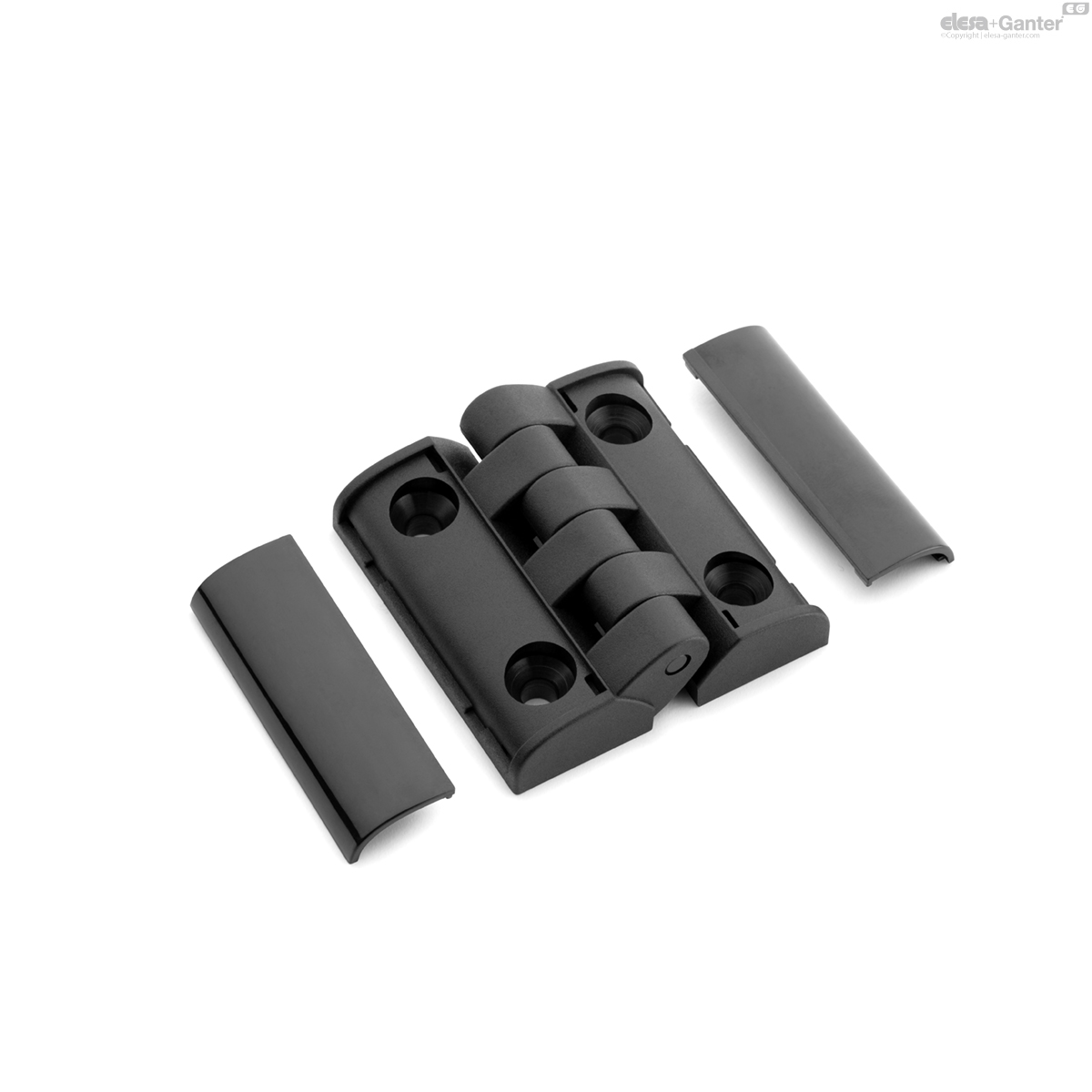

Screw-covers in different RAL colours.

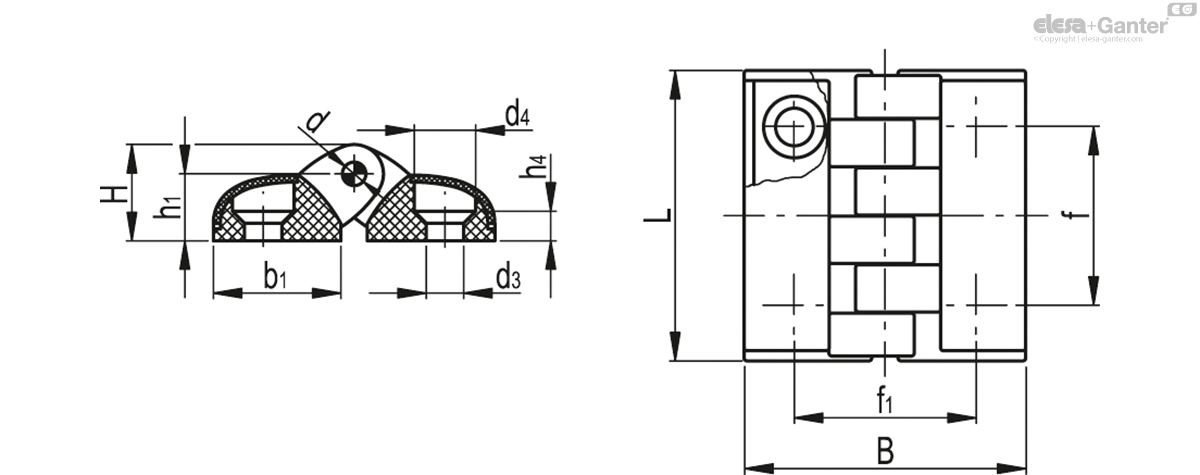

		L	B	f_±0.25	f_{1 ±0.25}	H	h₁	h₄	b₁	d	d₃	d₄	C# [Nm]
Code	Description														Actions
427112-C9	CFT.40 SH-4-C9	39.5	38	25	25	13	9	4.5	17.5	3	4.5	8.5	2	11
427132-C9	CFT.49 SH-5-C9	49.5	48	30.5	31	16.5	11.5	5	21.5	4	5.5	10.5	2	25
427152-C9	CFT.65 SH-6-C9	65	63	40	40	21.5	15	10	29	5	6.5	12.5	2	48
