CFQ.

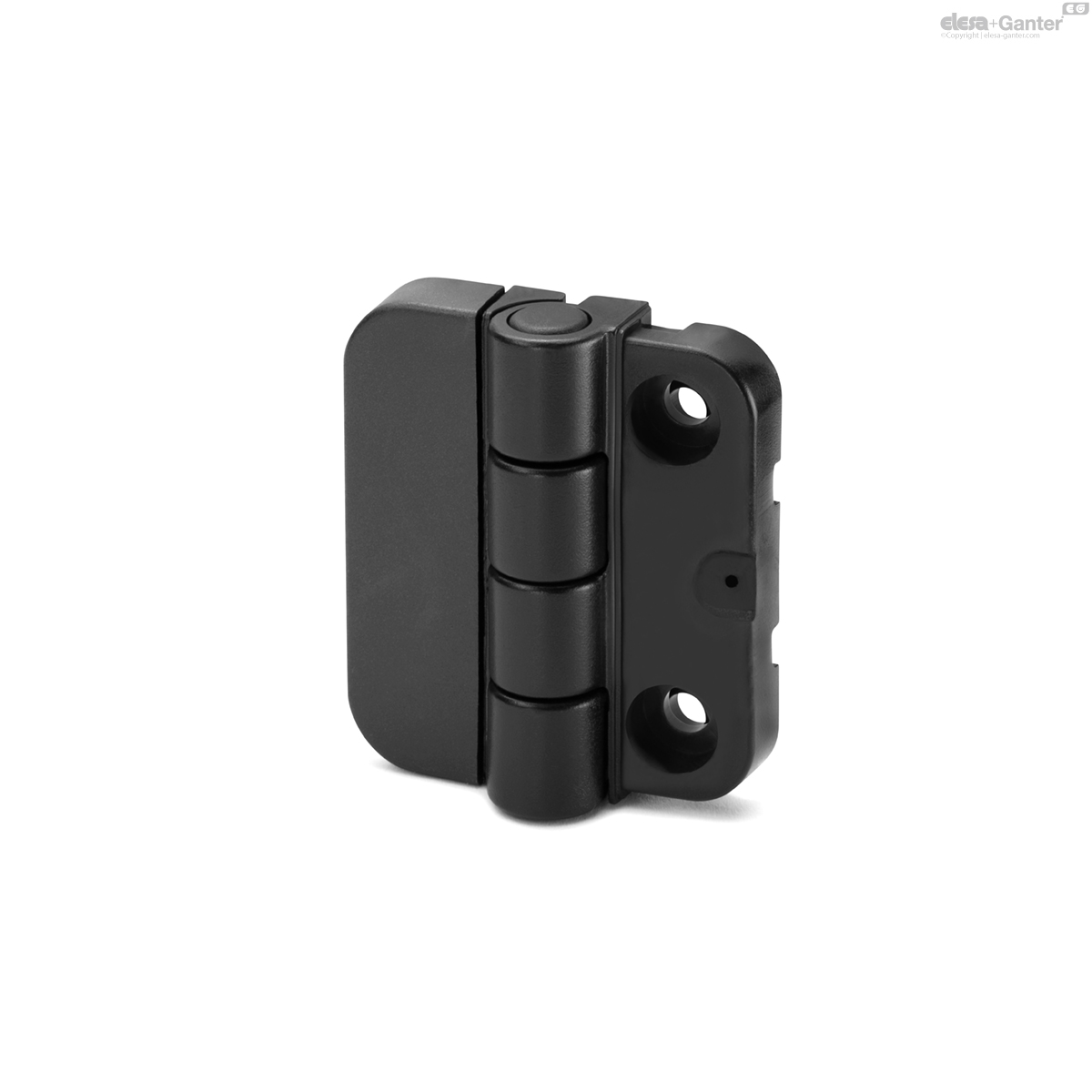

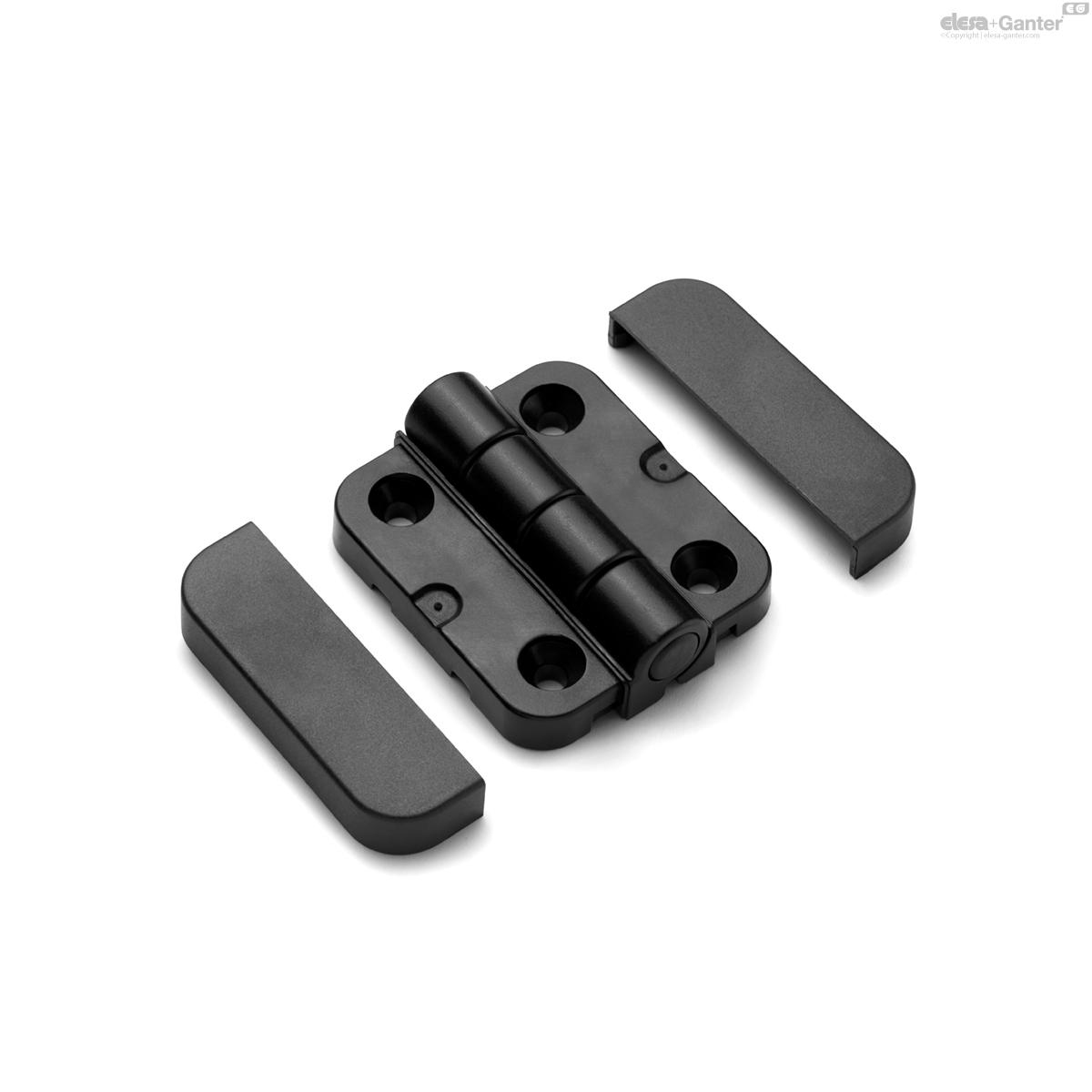

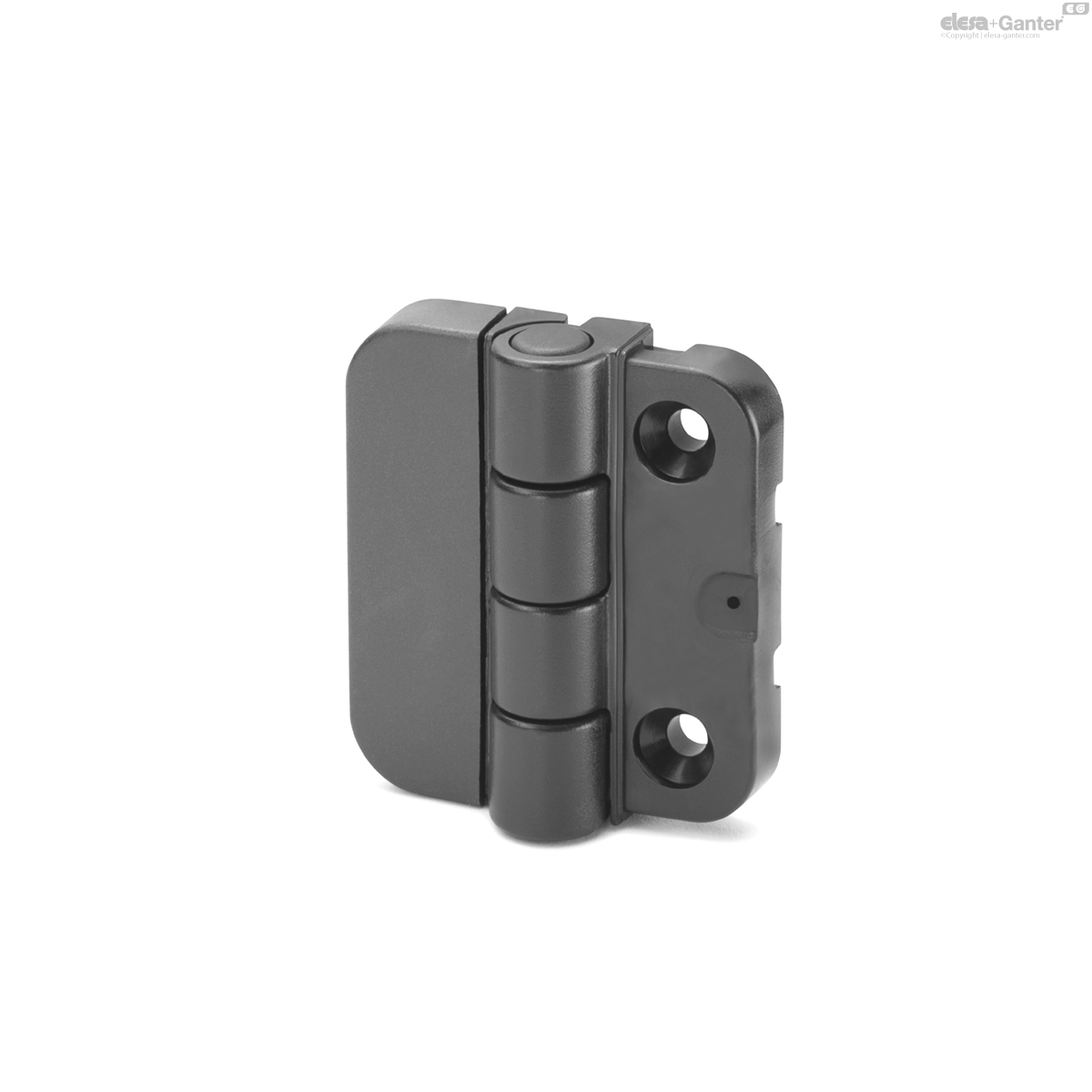

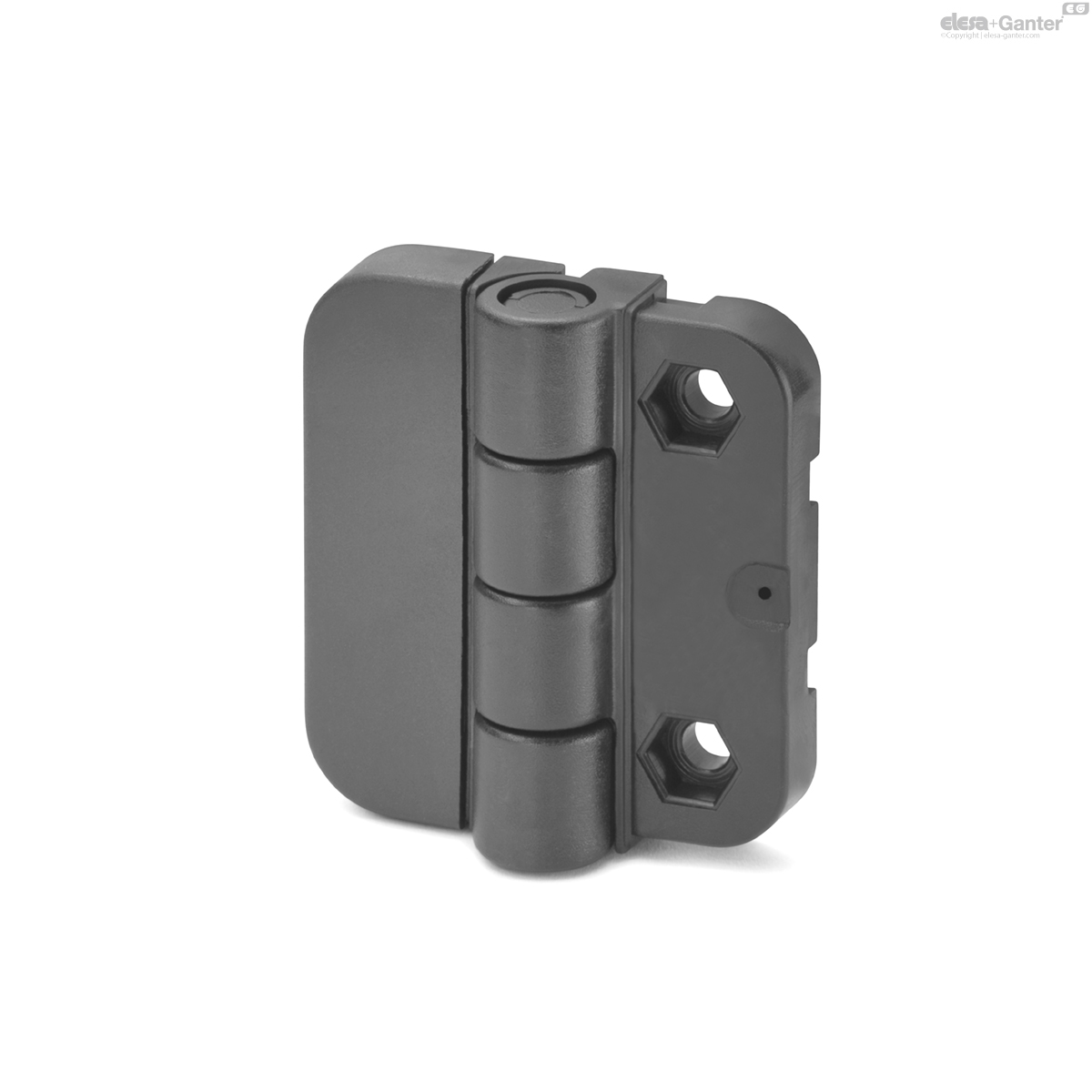

Hinges with screw-covers

Technopolymer

Enquire Now

Description

Main specifications

Acetal resin based (POM) technopolymer, black colour, matte finish.

Acetal resin based (POM) technopolymer, black colour.

Polyester based (PBT) technopolymer, black colour, matte finish, snap-in assembly.

General information

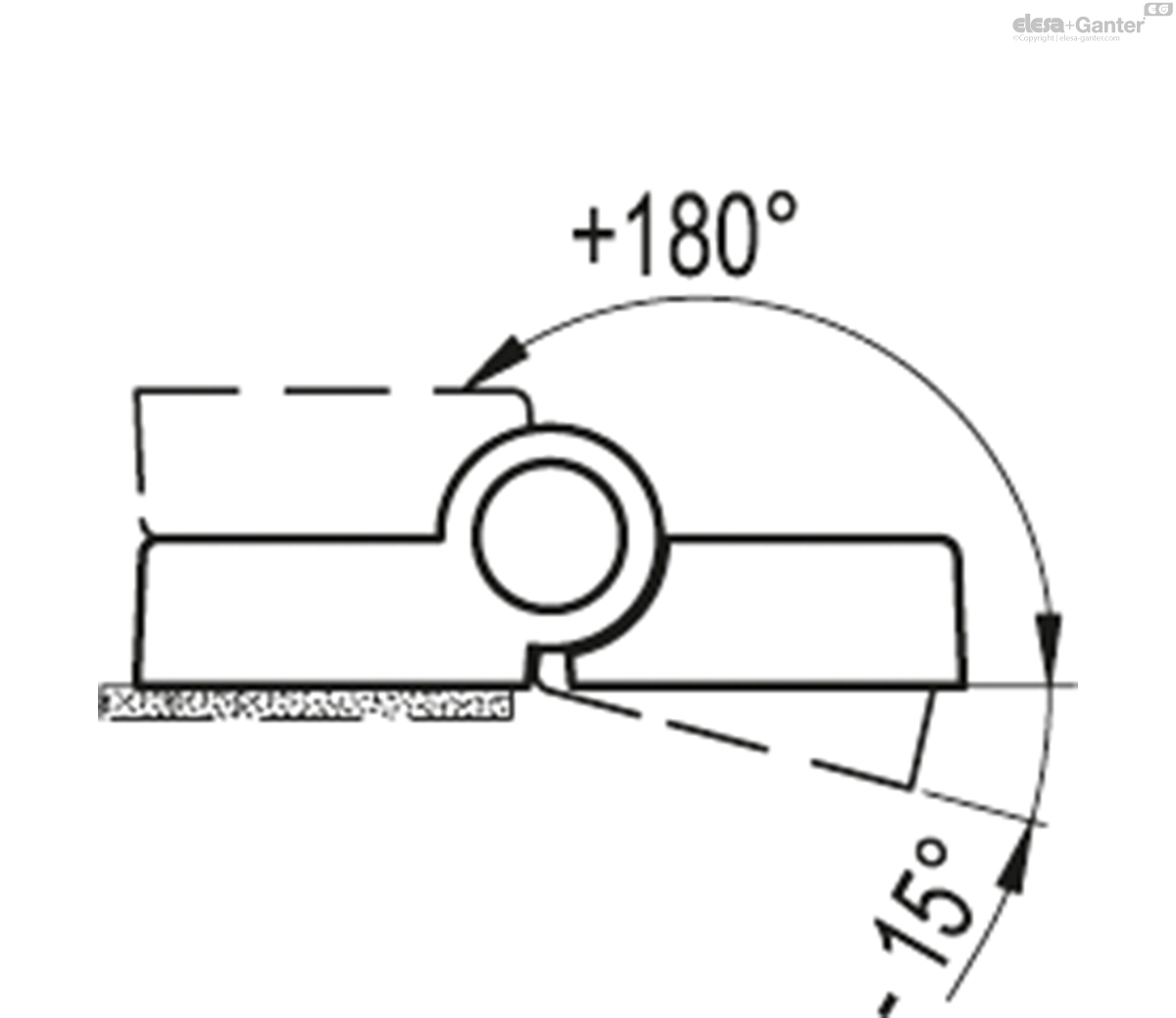

Max 195° (-15° and +180° being 0° the condition where the interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.

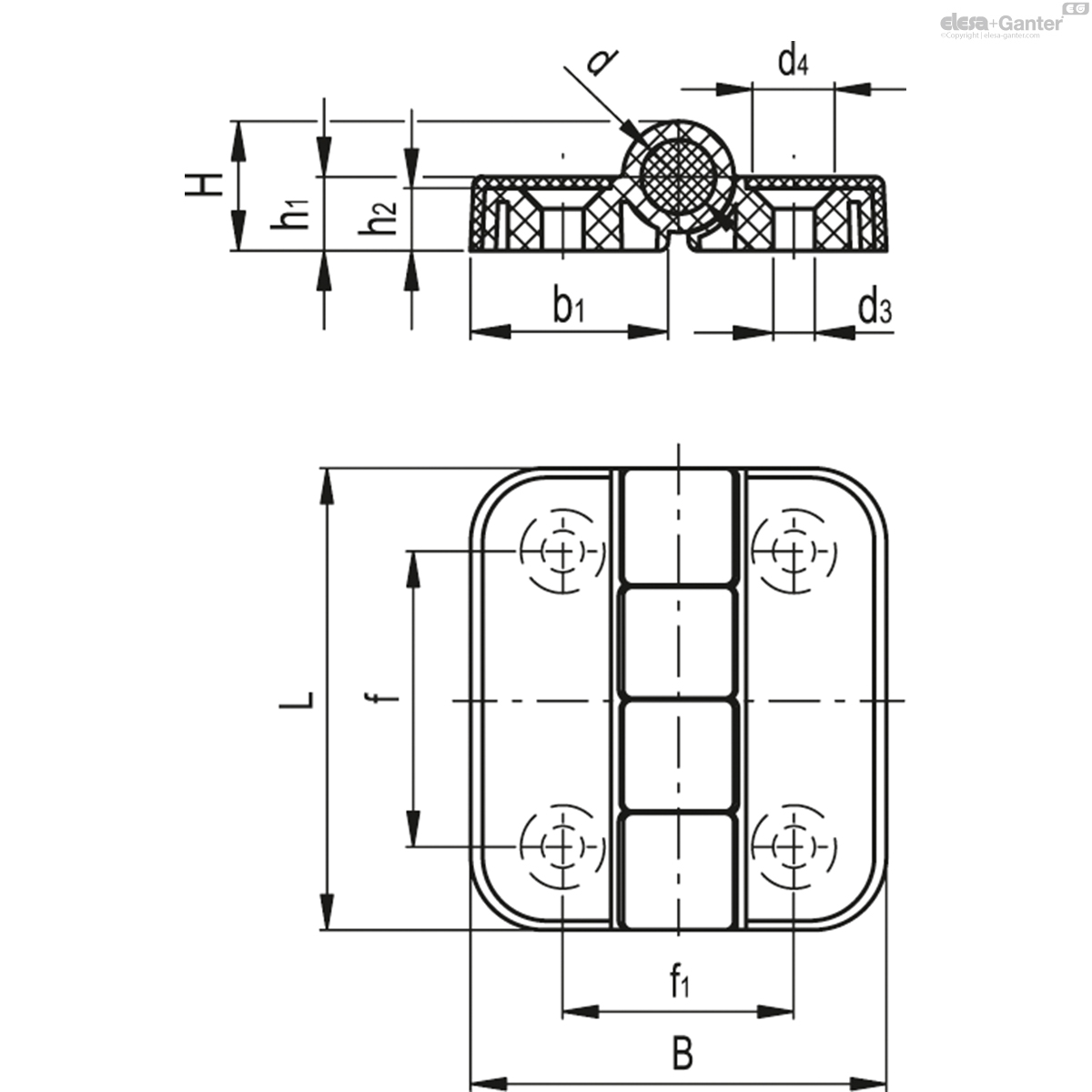

		L	B	f	f₁	H	h₁	h₂	b₁	d	d₃	d₄	C# [Nm]
Code	Description														Actions
426331-C9	CFQ.50 SH-4-C9	50	45	32	25	14	8	7	21.5	8	4.5	8.5	1.5	16
