CFJ.

Tamperproof hinges

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

AISI 303 stainless steel, totally moulded in the hinge body.

CFJ-B: nickel-plated brass bosses with threaded hole.
CFJ-p: nickel-plated steel threaded studs.
CFJ-EH: pass-through holes for hexagonal head screws.
CFJ-B-SH: nickel-plated brass bosses with threaded hole and pass-through holes for countersunk head screws.

General information

The pin is totally moulded in the hinge body (ELESA patent) thus it cannot be extracted, preventing any hinge tampering.

This charatcteristic makes the hinge particularly suitable for mounting on structures or equipments requiring protection against intrusion.

Max 275º (-95° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.

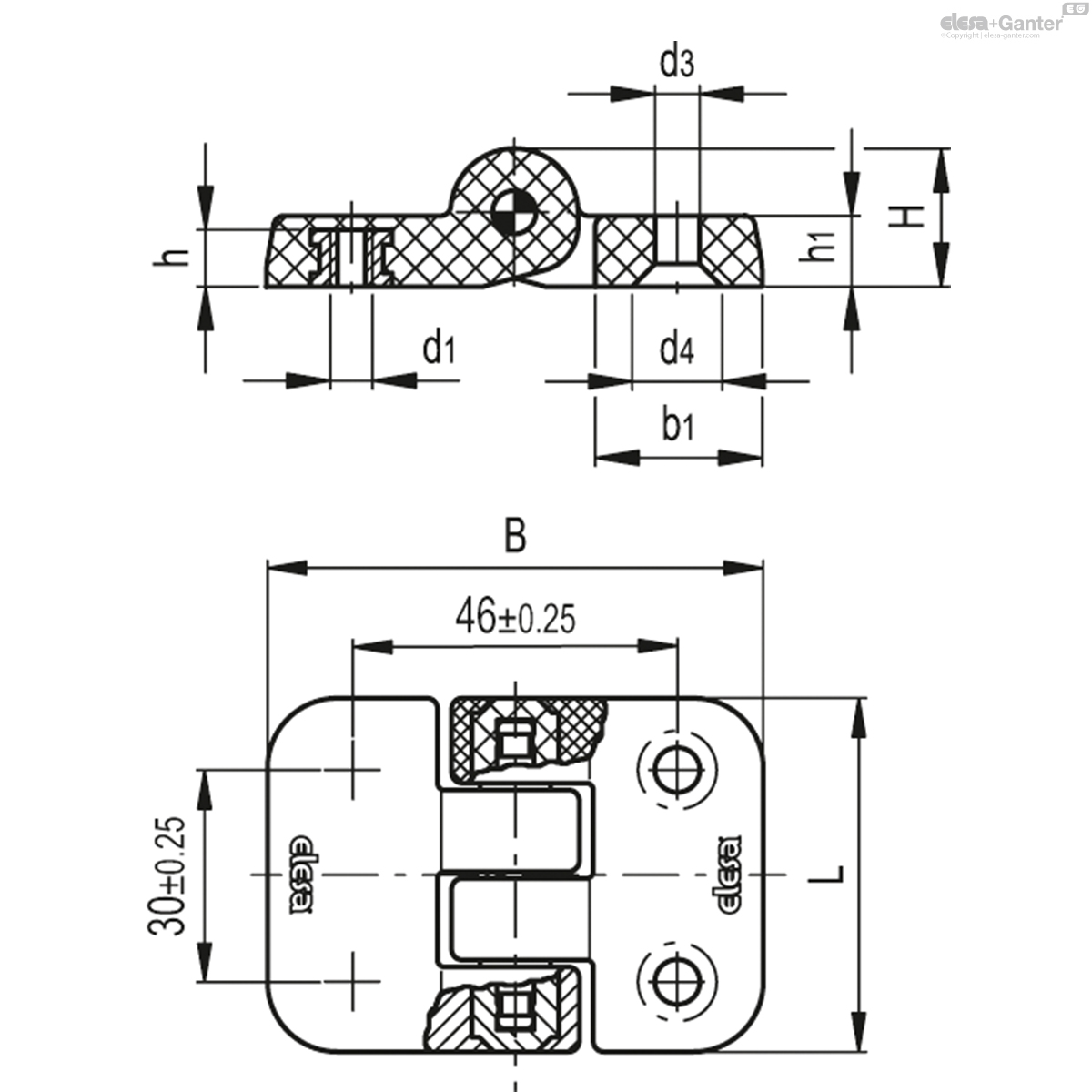

		L	B	d₁	h	H	h₁	b₁	d₃	d₄	C [Nm] B#	C [Nm] EH/SH#
Code	Description													Actions
424671	CFJ.50-R B-M6-SH-6	50	70	M6	8	19.5	10	23.5	6.5	12.5	5	3	66
