Hinges

Technopolymer rotating pin

__logo__RoHS__

__logo__FM__

__logo__PA__

__logo__g8020__

__logo__FM__

__logo__RoHS__

__logo__PA__

__logo__g8020__

Enquire Now

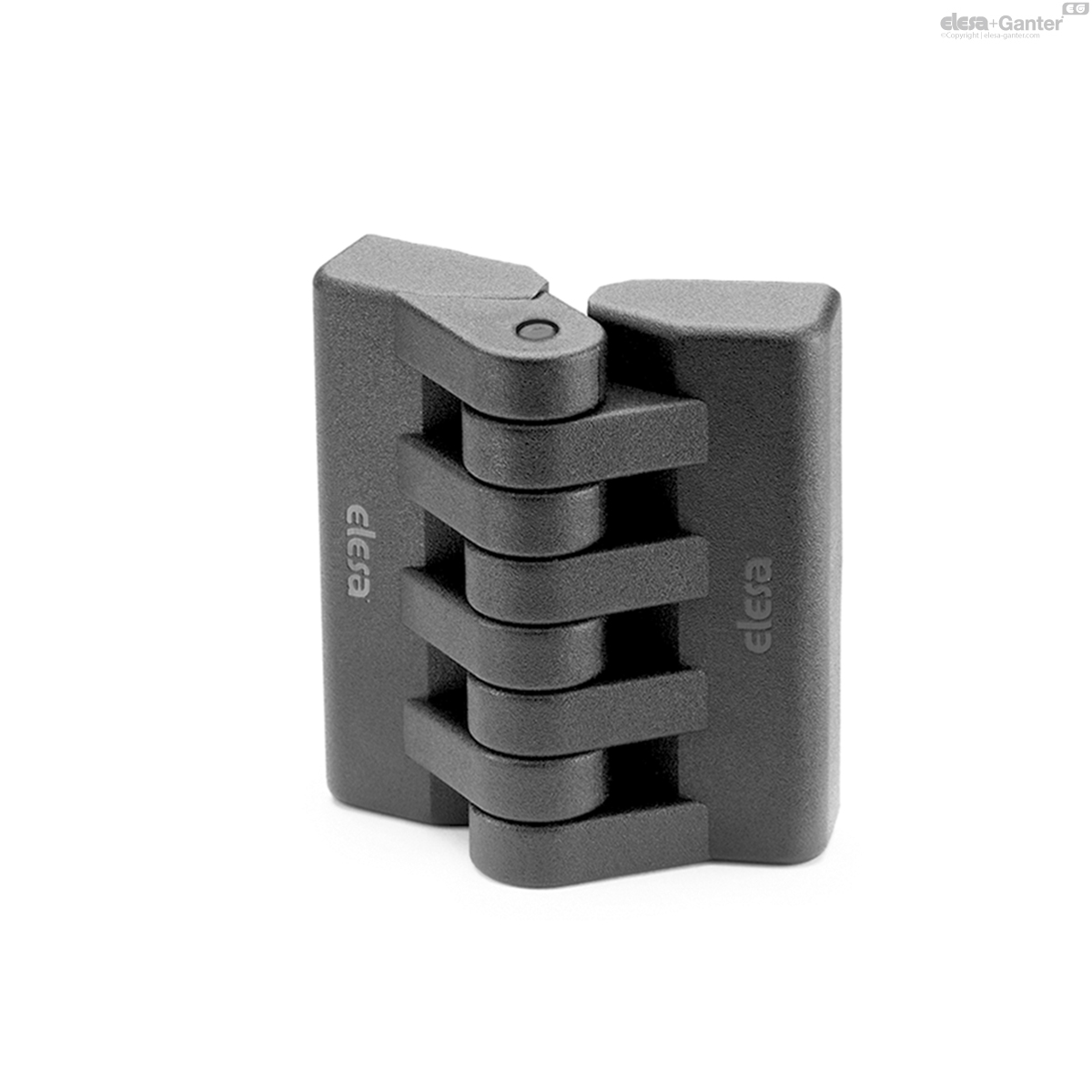

cfax-b

Bosses with threaded hole

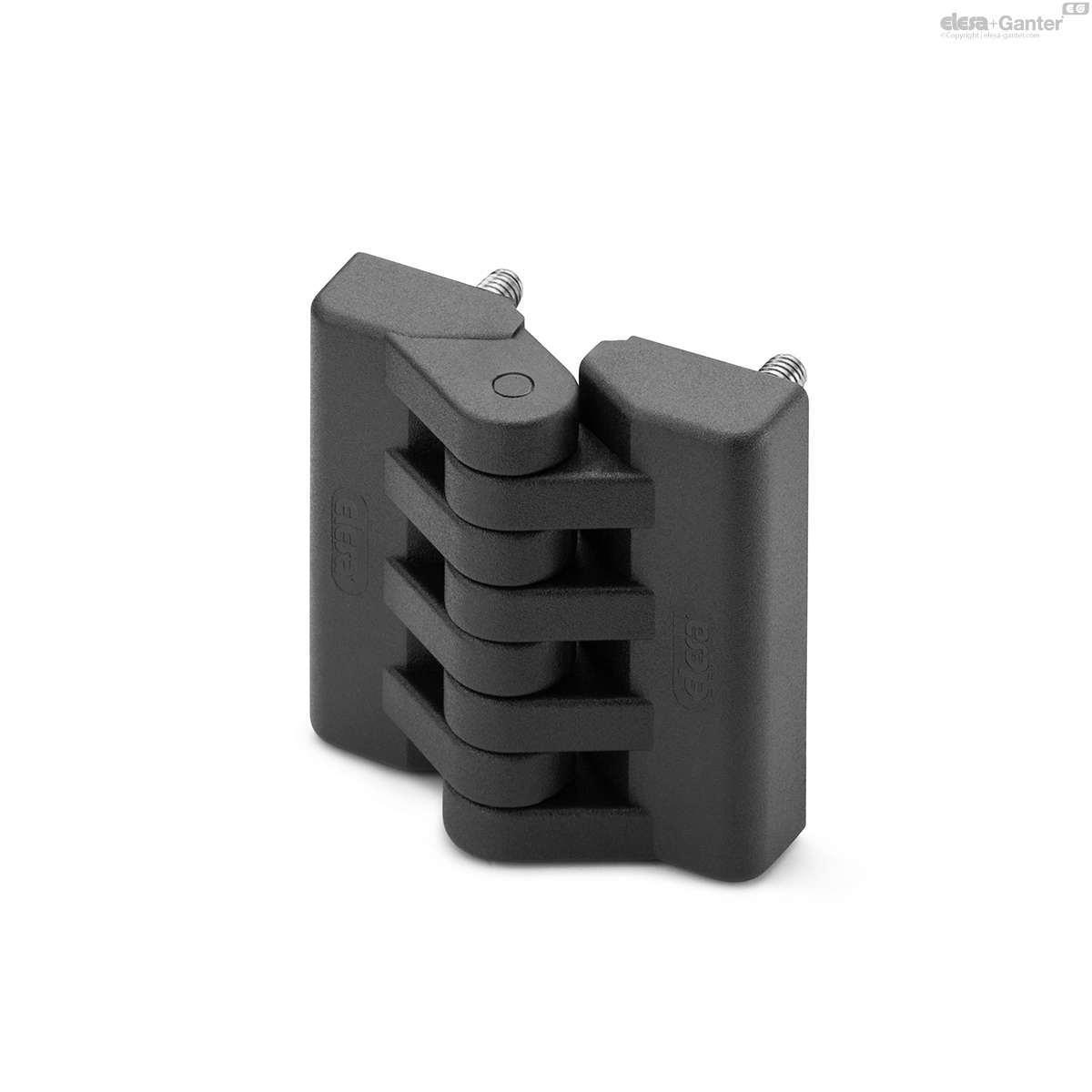

cfax-p

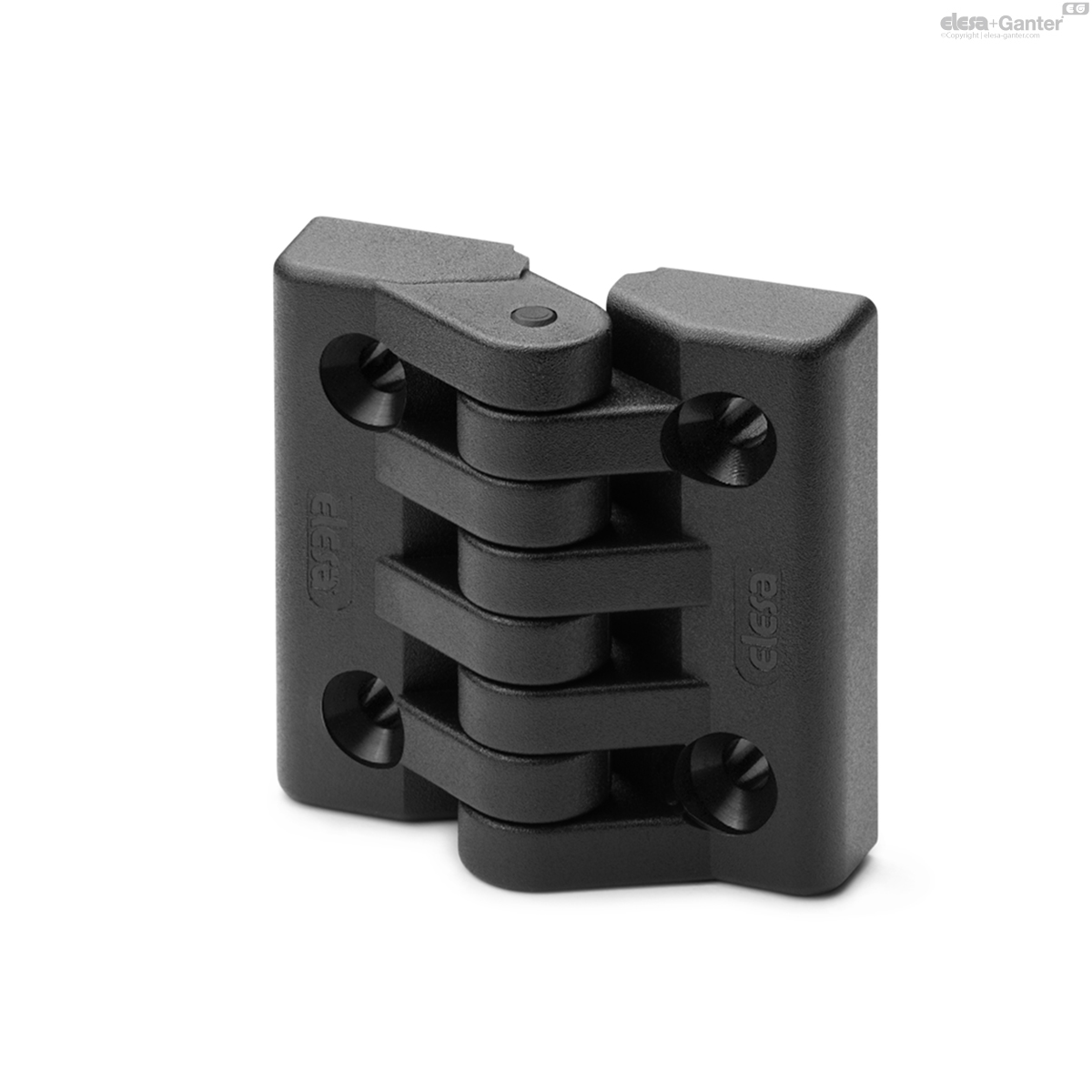

cfax-sh

Pass-through holes, countersunk-head screws

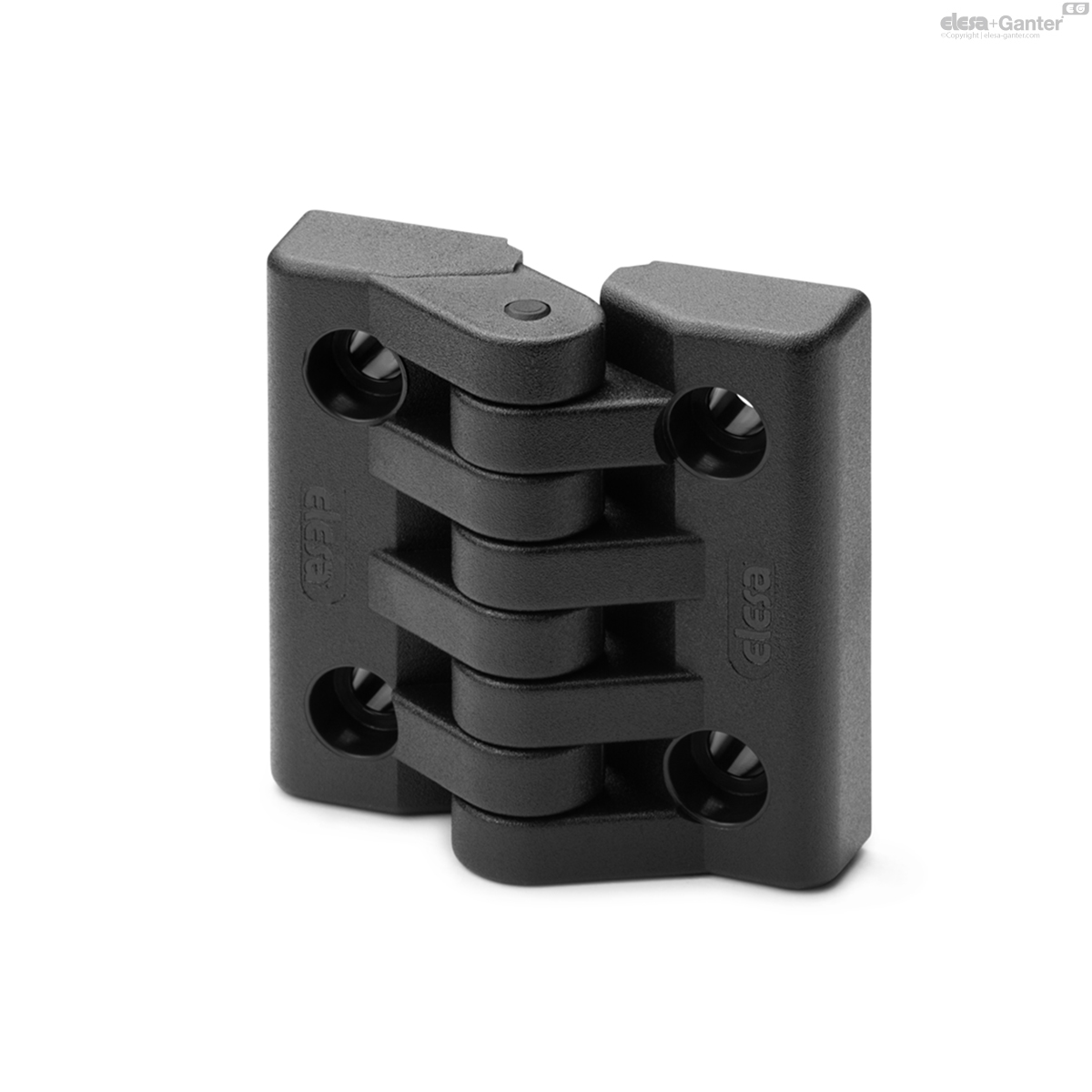

cfax-ch

Pass-through holes, hexagonal head screws

Description

Main specifications

Material

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Rotating pin

Acetal resin based (POM) technopolymer, black colour.

Standard executions

CFAX-B: nickel-plated brass bosses with threaded hole.

CFAX-p: nickel-plated steel threaded studs.

CFAX-SH: pass-through holes for countersunk head screws.

CFAX-CH: pass-through holes for cylindrical head screws.

General information

Rotation angle (approximate value)

Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.

Resistance tests	AXIAL STRESS		RADIAL STRESS		90° ANGLED STRESS
Resistance tests
Description	Maximum working load\rEa [N]	Load at breakage\rRa [N]	Maximum working load\rEr [N]	Load at breakage\rRr [N]	Maximum working load\rE90 [N]	Load at breakage\rR90 [N]
CFAX.40 B-M4	200	1850	240	2000	100	560
CFAX.40 SH-4	130	1870	290	1800	280	1370
CFAX.40 CH-4	137	1340	230	1580	180	1200
CFAX.49 B-M5	400	2400	440	2760	170	1320
CFAX.49 p-M5x14	370	3070	360	2400	200	900
CFAX.49 SH-5	300	2660	310	2600	320	2240
CFAX.49 CH-5	360	2480	310	2270	250	1460
CFAX.65 B-M6	640	4000	690	4400	220	1400
CFAX.65 p-M6x18	510	5800	460	4500	220	3190
CFAX.65 SH-6	520	4300	720	4800	240	3760
CFAX.65 CH-6	510	3700	490	5200	260	2870

Other executions

Other executions available

CFK.: false hinge with single body.

CFAX-B

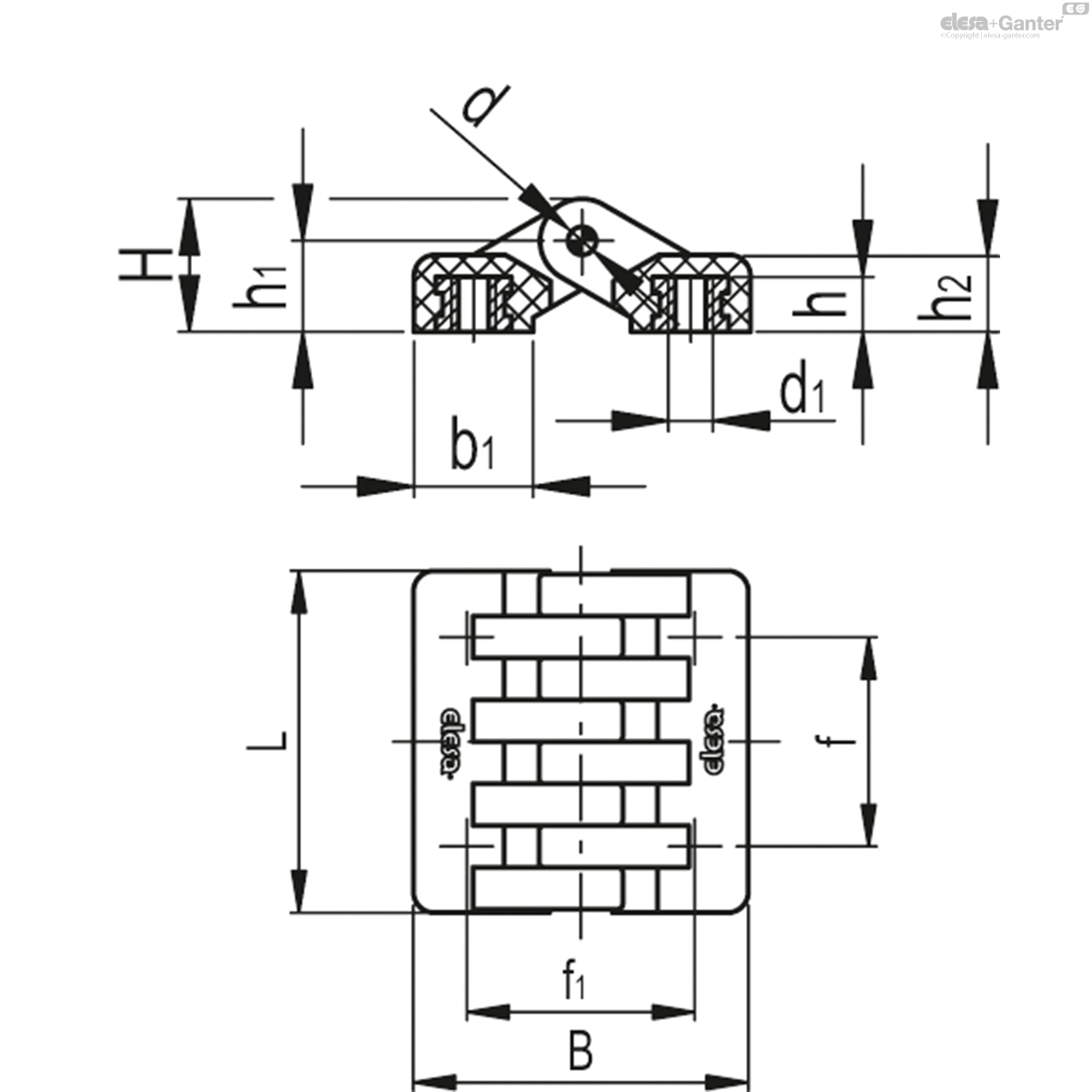

		L	B	d₁	h	h₂	f_{1 ±0.25}	f_±0.25	H	h₁	b₁	d	C# [Nm]
Code	Description														Actions
422421	CFAX.40 B-M4	39.5	38.5	M4	6.5	9.5	25	25	14	9.5	14	3	5	20
422431	CFAX.49 B-M5	49.5	48	M5	8.5	11	31	30	19	13	17	4	5	39
422441	CFAX.65 B-M6	65	64	M6	9	13.5	40	40	23	15	24	5	5	85
