CC1400 split machined sprocket

Chain sprockets

Description

Basic features
Series: Crate conveyor 600-1400-1701-1706-765 NO GAP
Pitch: 63.5 mm
Unit of measure: Ea
Box: -

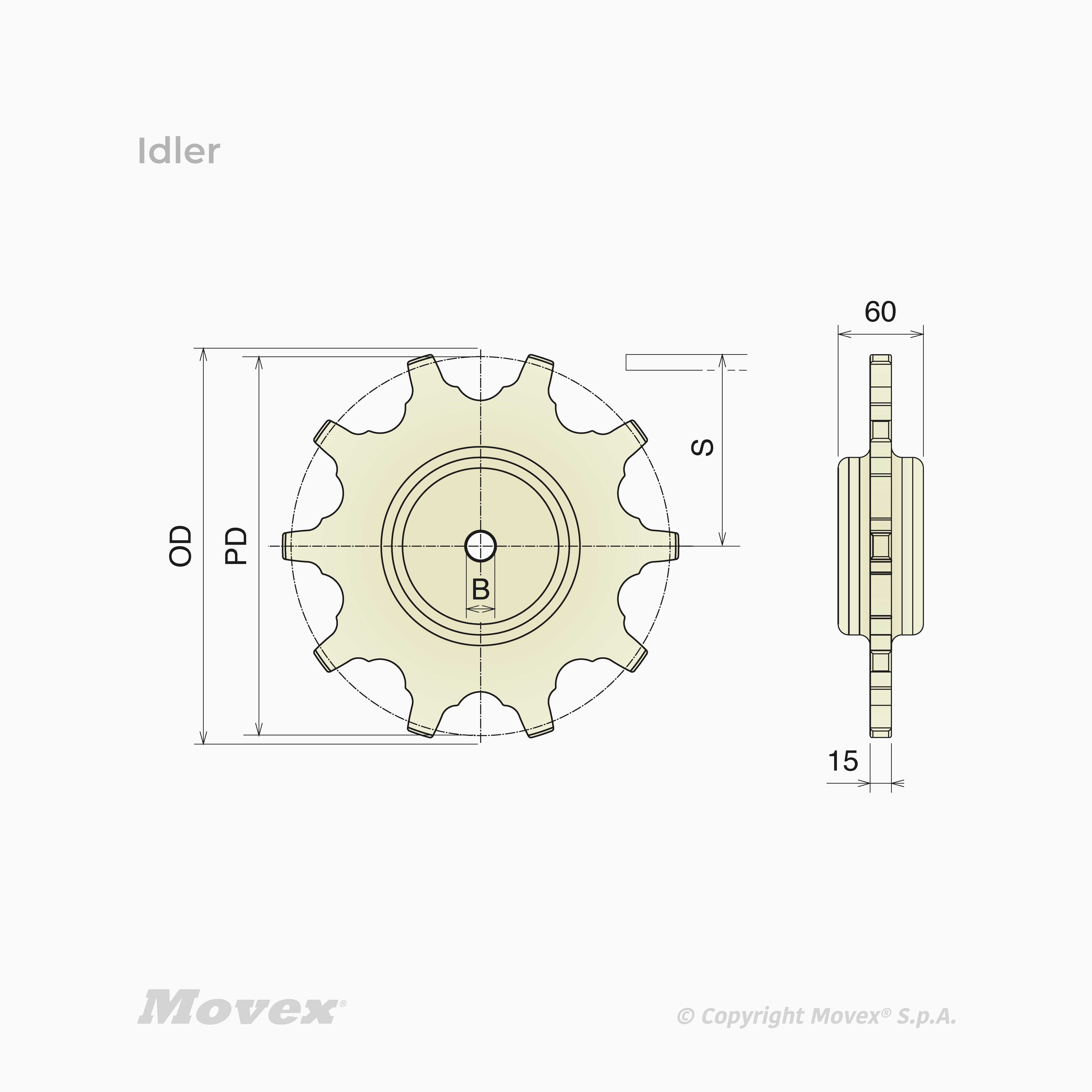

CC1400 split machined sprocket

Z-
Bore
Version Type Execution Pitch diameter Outer diameter S dimension Material Temperature range dry Temperature range wet
Code Actions
P57050E 7 20 mm Idler One-piece Machined 190 mm 202 mm 78 mm PA - Polyamide composite -40÷80 °C -20÷120 °C cart-icon
P57150E 8 20 mm Idler One-piece Machined 218 mm 227.6 mm 92 mm PA - Polyamide composite -40÷80 °C -20÷120 °C cart-icon
P57250E 10 20 mm Idler One-piece Machined 267 mm 279 mm 116 mm PA - Polyamide composite -40÷80 °C -20÷120 °C cart-icon
