Home Clamping Knobs Knurled knobs BT.

BT.

Fluted grip knobs

Technopolymer

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

__logo__PA__

__logo__g13030__

Enquire Now

product image

Fluted grip knobs

Brass boss, threaded blind hole

product image

Fluted grip knobs

Stainless steel boss, threaded blind hole

product image

Fluted grip knobs

Brass boss, threaded pass-through hole

product image

Fluted grip knobs

Stainless steel boss, threaded pass-through hole

product image

Fluted grip knobs

Zinc-plated steel threaded stud

product image

Fluted grip knobs

Stainless steel threaded stud

Description

Main specifications

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

BT-B:: brass boss, threaded blind hole.

BT-SST: AISI 303 stainless steel boss, threaded blind hole.

BT-FP: brass boss, threaded pass-through hole.

BT-SST-FP: AISI 303 stainless steel, threaded pass-through hole.

BT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

BT-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

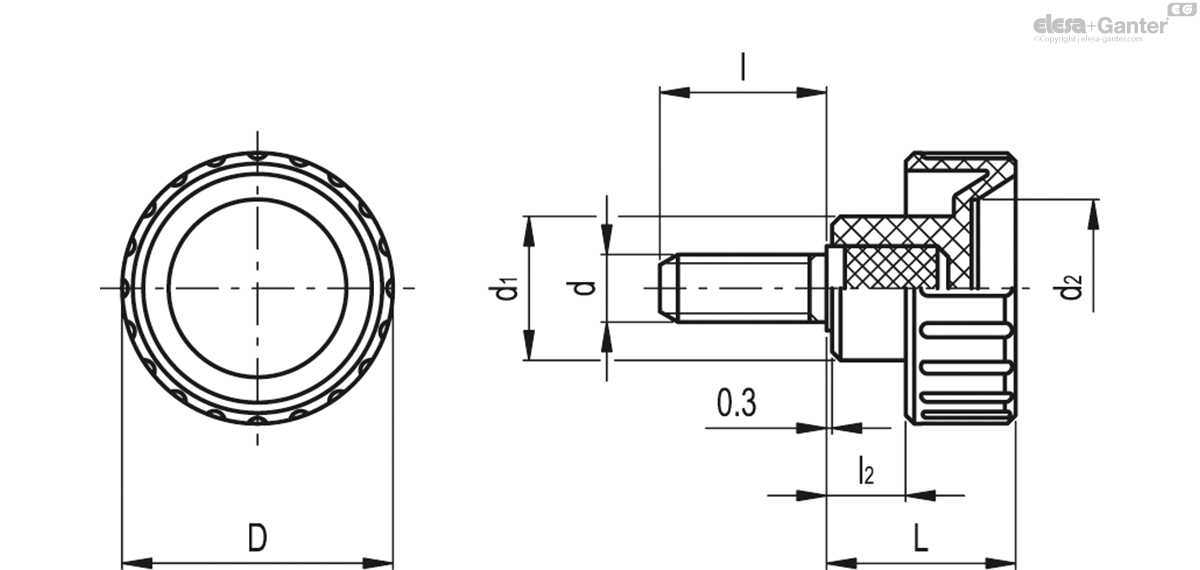

BT-SST-p

		D	d_6g	L	d₁	d₂	l	l₂
Code	Description									Actions
106337	BT.12-SST-p-M3x6	12	M3	11.5	9.5	6	6	4	4
106338	BT.12-SST-p-M3x10	12	M3	11.5	9.5	6	10	4	5
106339	BT.12-SST-p-M3x16	12	M3	11.5	9.5	6	16	4	4
106340	BT.16-SST-p-M3x6	16	M3	13	11	9	6	5	5
106341	BT.16-SST-p-M3x10	16	M3	13	11	9	10	5	5
106342	BT.16-SST-p-M3x16	16	M3	13	11	9	16	5	5
106350	BT.16-SST-p-M4x6	16	M4	13	11	9	6	5	5
106351	BT.16-SST-p-M4x10	16	M4	13	11	9	10	5	5
106356	BT.16-SST-p-M4x16	16	M4	13	11	9	16	5	5
106361	BT.16-SST-p-M5x10	16	M5	13	11	9	10	5	6
106362	BT.16-SST-p-M5x16	16	M5	13	11	9	16	5	6
106364	BT.16-SST-p-M5x25	16	M5	13	11	9	25	5	6
106541	BT.20-SST-p-M5x10	20	M5	15	11.5	11	10	6	6
106542	BT.20-SST-p-M5x16	20	M5	15	11.5	11	16	6	7
106544	BT.20-SST-p-M5x25	20	M5	15	11.5	11	25	6	8
106551	BT.20-SST-p-M6x10	20	M6	15	11.5	11	10	6	7
106552	BT.20-SST-p-M6x16	20	M6	15	11.5	11	16	6	8
106553	BT.20-SST-p-M6x20	20	M6	15	11.5	11	20	6	8
106554	BT.20-SST-p-M6x25	20	M6	15	11.5	11	25	6	10
106555	BT.20-SST-p-M6x30	20	M6	15	11.5	11	30	6	10
106642	BT.25-SST-p-M6x16	26	M6	19	16	15	16	8	12
106644	BT.25-SST-p-M6x20	26	M6	19	16	15	20	8	13
106645	BT.25-SST-p-M6x25	26	M6	19	16	15	25	8	14
106647	BT.25-SST-p-M6x30	26	M6	19	16	15	30	8	15
106752	BT.32-SST-p-M8x16	32	M8	22	17	21	16	9	19
106754	BT.32-SST-p-M8x20	32	M8	22	17	21	20	9	20
106757	BT.32-SST-p-M8x30	32	M8	22	17	21	30	9	23
