BT-AV
Fluted grip knobs
for screwing with a screwdriver, technopolymer
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions

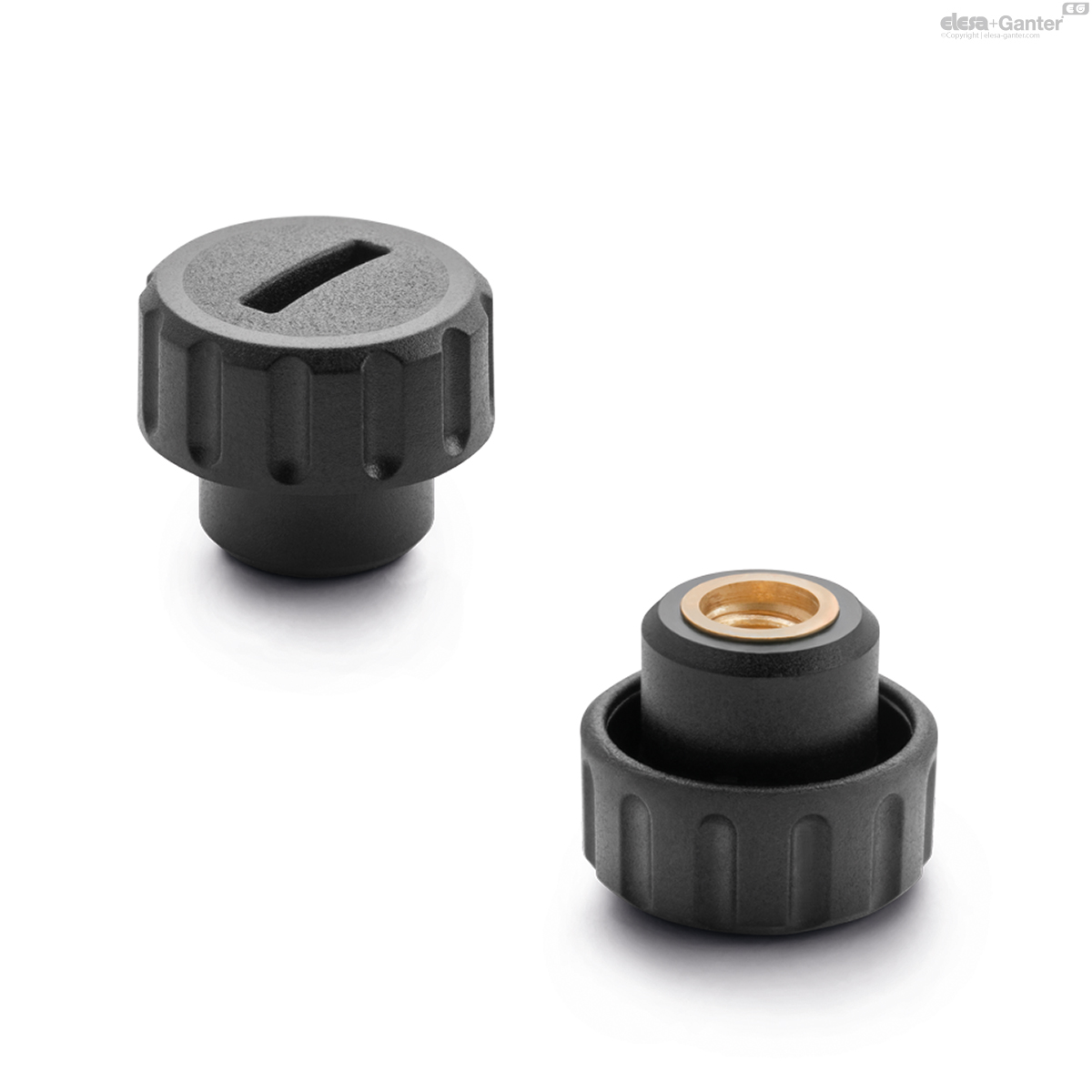

- BT-AV-B:Â brass boss, threaded blind hole.

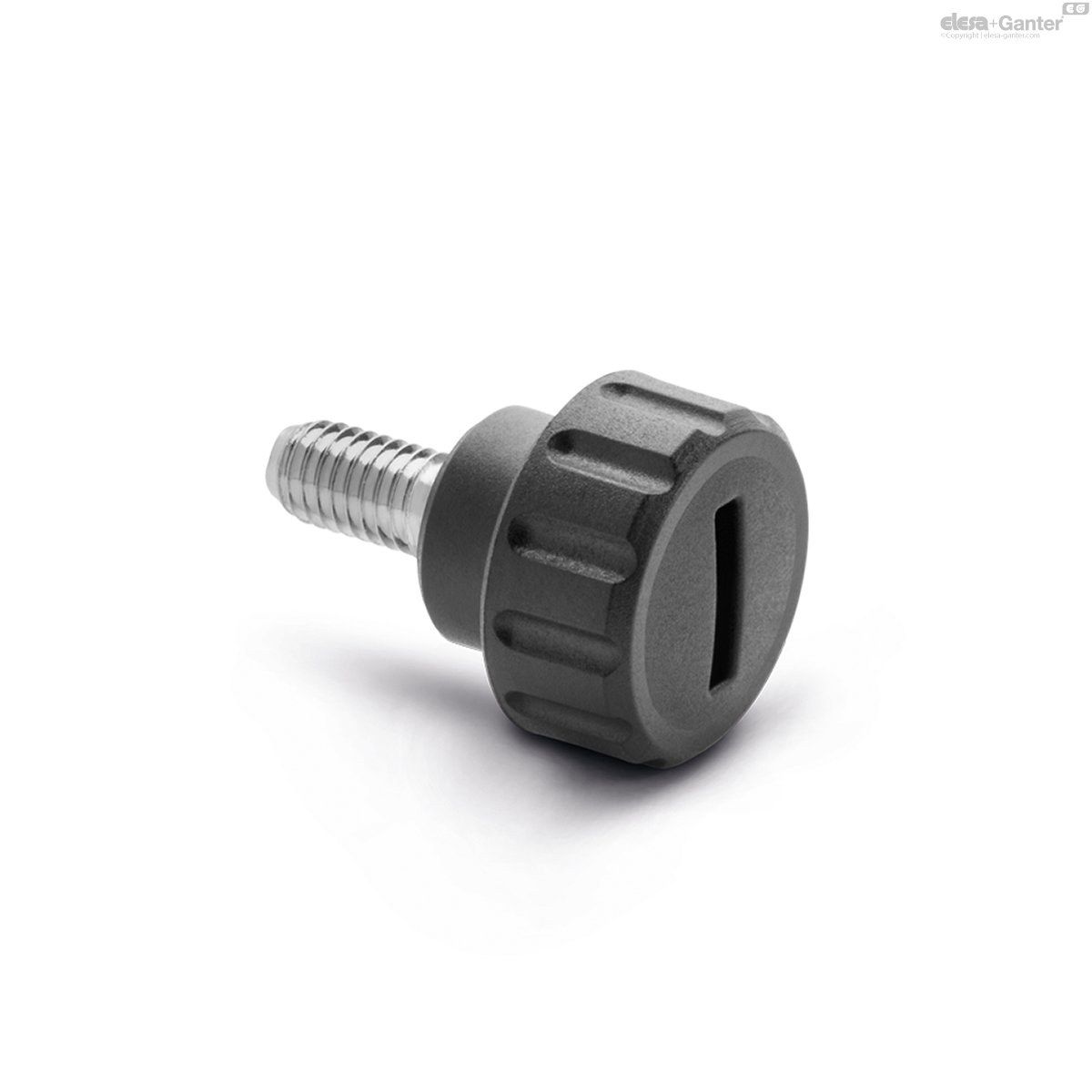

- BT-AV-p: zinc-plated steel threaded stud, chamfered flat end according to UNI EN ISO 4753:2012 (see Technical data).
General information
Features and applications
The cable in the upper part is an ideal support when you have to tighten with a 6.5 mm flat-blade screwdriver (BT.12 and BT.16) or 10 mm (BT.20).
BT-AV-B
| D | d6H | L | d1 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 7310 | BT.12 AV-B-M3 | 12 | M3 | 12 | 9.5 | 4 | 6 | 4 |
|
| 7311 | BT.12 AV-B-M4 | 12 | M4 | 12 | 9.5 | 4 | 6 | 4 |
|
| 7312 | BT.12 AV-B-M5 | 12 | M5 | 12 | 9.5 | 4 | 6 | 3 |
|
| 7320 | BT.16 AV-B-M3 | 16 | M3 | 13.5 | 11 | 5 | 6 | 6 |
|
| 7321 | BT.16 AV-B-M4 | 16 | M4 | 13.5 | 11 | 5 | 6 | 4 |
|
| 7322 | BT.16 AV-B-M5 | 16 | M5 | 13.5 | 11 | 5 | 6 | 6 |
|
| 7521 | BT.20 AV-B-M5 | 20 | M5 | 16 | 11 | 6 | 6 | 5 |
|
| 7522 | BT.20 AV-B-M6 | 20 | M6 | 16 | 11 | 6 | 6 | 5 |
|
