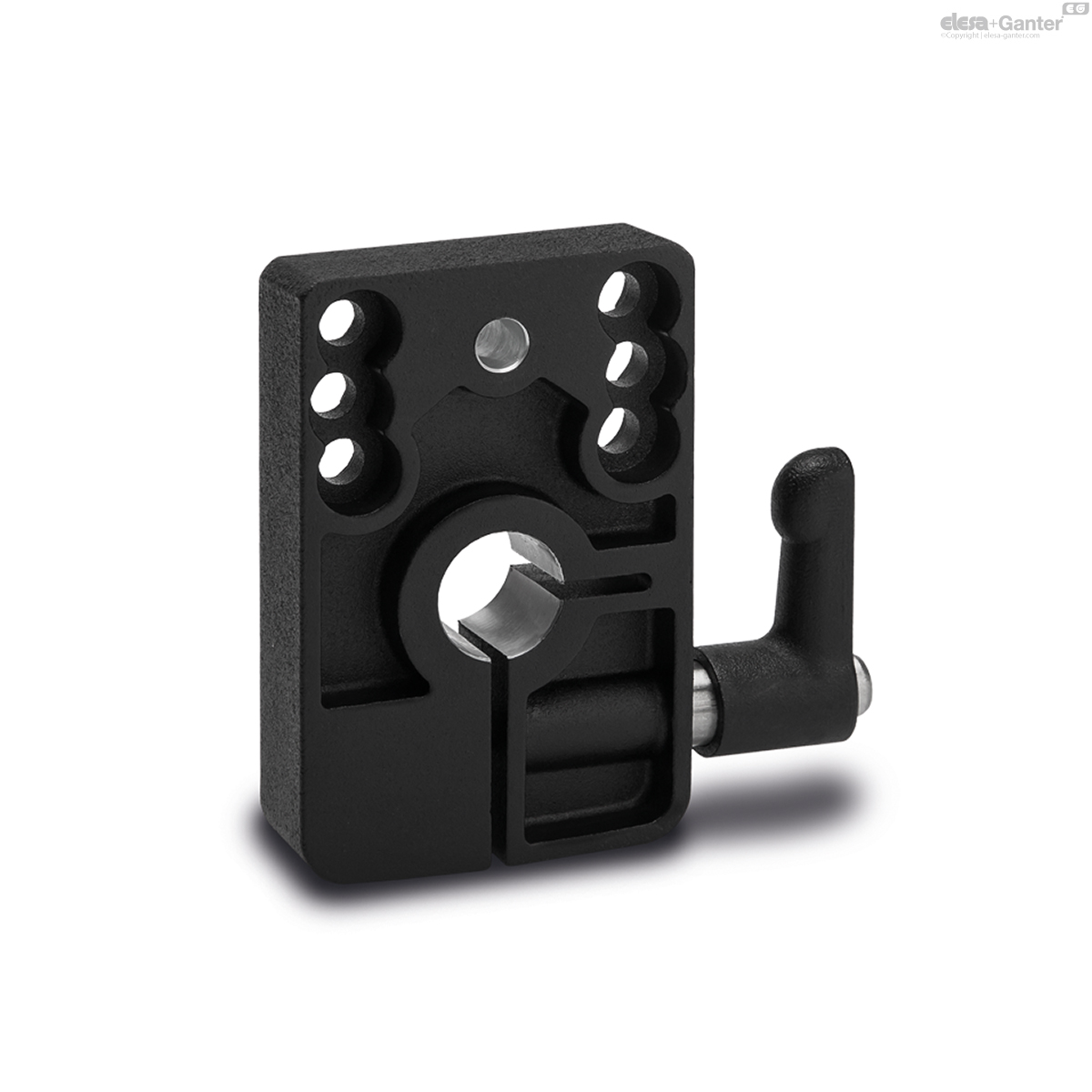

BSA52-E
Bases for spindle locking
for DD52R-E and DD52R-E-RF position indicators, zinc alloy
Description
Main specifications
Material
Die-cast zinc alloy bases for spindle locking, epoxy resin coating, black colour, matte finish.
GN 302.1 adjustable handle with lever body in die-cast zinc alloy, black colour and AISI 303 stainless steel clamping element.
General information
Features and applications
BSA52-E locking bases allow an easy and quick locking of the spindles after their positioning. Ø 6.1 mm hole to fit the referring pin of the indicator. Handle positioned either on the right or on the left. Fitting to the machine by means of two cylindrical-head screws (not included in the supply).

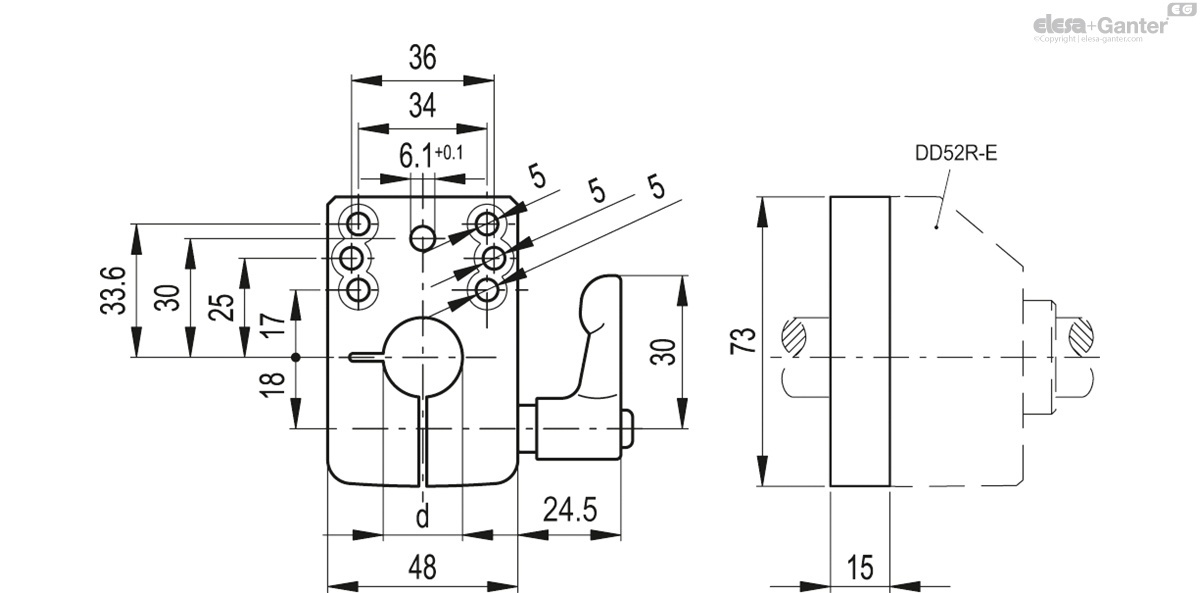

BSA52-E
| dH7 | dF9 |  |
|||
|---|---|---|---|---|---|
| Code | Description | Actions | |||
| CE.99091 | BSA52-E-12 | - | 12 | 239 |
|
| CE.99093 | BSA52-E-14 | 14 | 14 | 233 |
|
| CE.99094 | BSA52-E-15 | 15 | 15 | 228 |
|
| CE.99095 | BSA52-E-16 | 16 | 16 | 228 |
|
| CE.99099 | BSA52-E-20 | 20 | 20 | 221 |
|
