Cam latches with key

Steel or stainless steel cam

__logo__ELE_OD__

__logo__INOX__

__logo__RoHS__

Enquire Now

Description

Main specifications

Standard executions

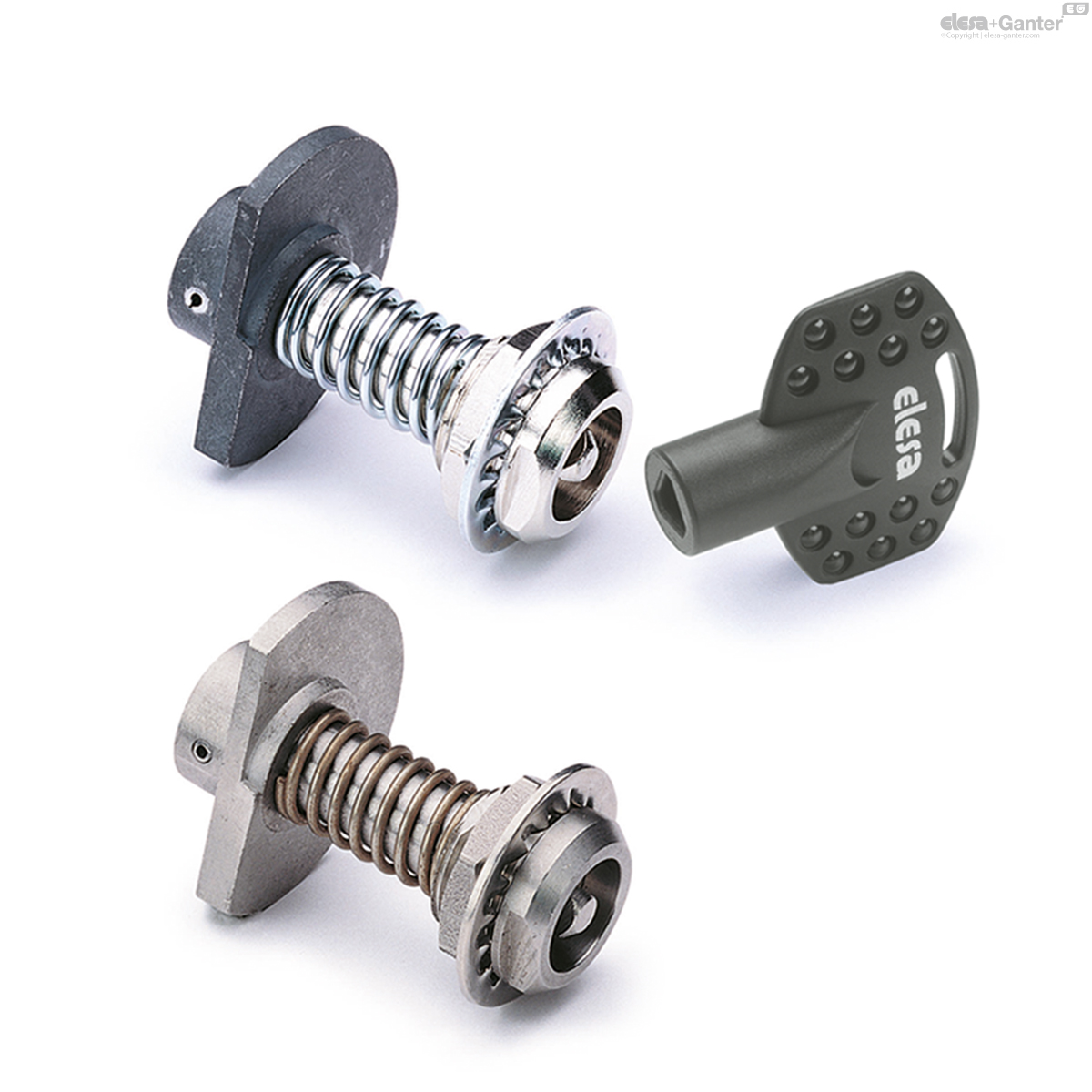

BOCK:

shank in nickel-plated steel with triangular groove for key;

guide bush and locking nut (wrench 24) in nickel-plated brass;

DIN 6798 flat spring washer in zinc-plated steel;

helical latch cam in sintered and vaporized steel with hole for pinning;

spring dowel pin Ø 3x20 mm in black-oxide steel;

latch spring to compensate door thickness in zinc-plated steel;

Key in polyamide based (PA) technopolymer, black colour, matte finish.

opening to the right side (D) or left side (S).

BOCK-SST:

shank with triangular groove for key, guide bush, locking nut (wrench 24),DIN 6798 flat spring washer in AISI 303 stainless steel;

helical latch cam in AISI 316 L sintered stainless steel with hole for pinning;

spring dowel pin Ø 3x20 mm in AISI 303 stainless steel;

latch spring to compensate door thickness in AISI 302 stainless steel;

Key in polyamide based (PA) technopolymer, black colour, matte finish.

opening to the right side (D) or left side (S).

General information

Assembly instructions

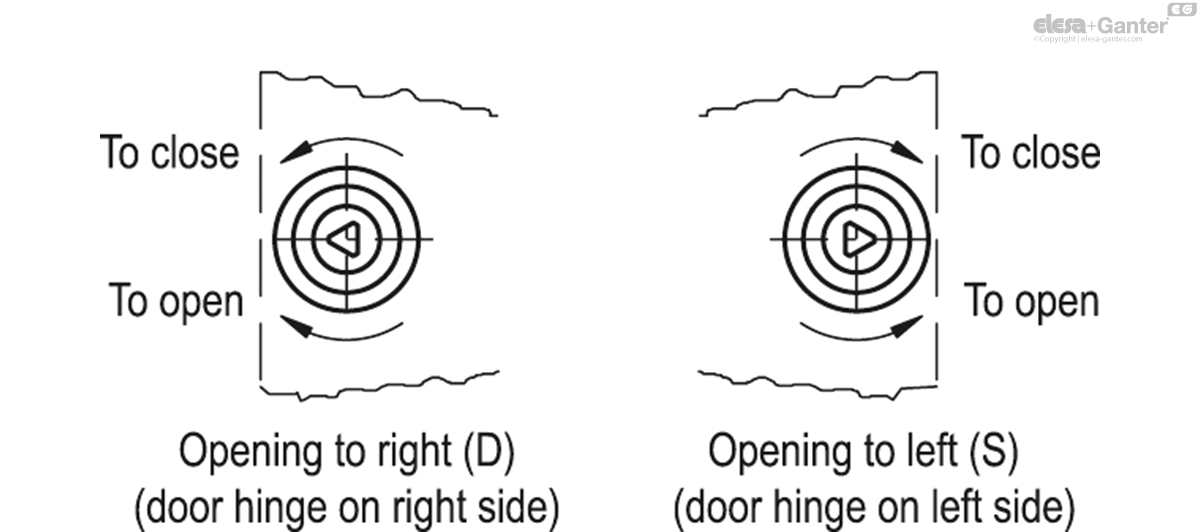

Select the latch with shank length (l) according to the following condition l ≥ S+b+15 mm (S = thickness of the door, b = thickness of the ledge).
Drill a hole in the door following the supplied template.
Drill a hole in the shank for pinning at 'f' distance:
Fit the shank in the hole on the door and assemble the other components.

BOCK. latches are supplied not assembled.

BOCK

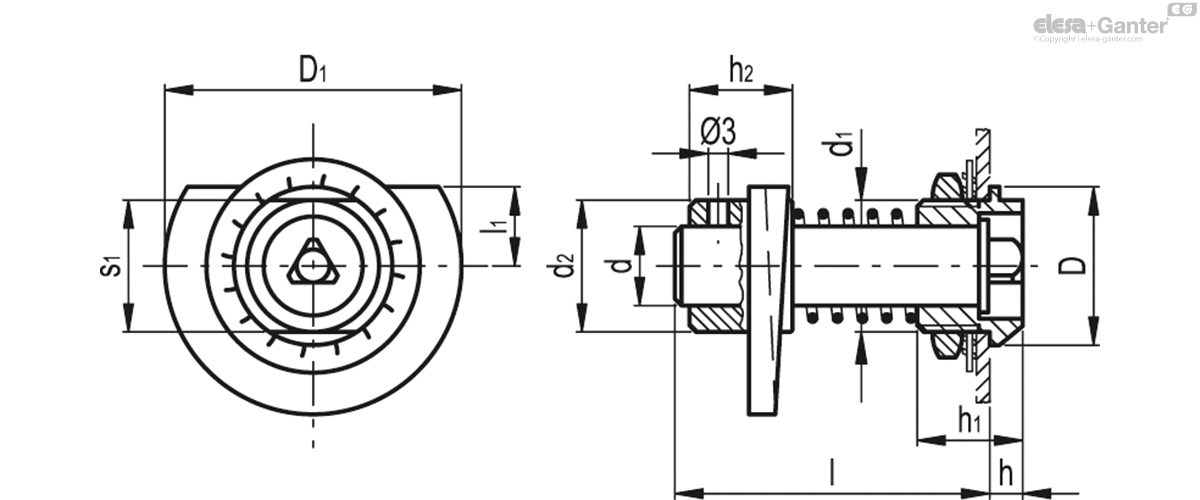

		D	d₁	D₁	l	l₁	h	h₁	h₂	d	d₂	s₁
Code	Description													Actions
6211	BOCK.25-46-D	24	M20x1.5	45	46	12	6	17.5	15	12	20	20	145
6212	BOCK.25-46-S	24	M20x1.5	45	46	12	6	17.5	15	12	20	20	142
6221	BOCK.25-54-D	24	M20x1.5	45	54	12	6	17.5	15	12	20	20	153
6222	BOCK.25-54-S	24	M20x1.5	45	54	12	6	17.5	15	12	20	20	150
6231	BOCK.25-64-D	24	M20x1.5	45	64	12	6	17.5	15	12	20	20	163
6232	BOCK.25-64-S	24	M20x1.5	45	64	12	6	17.5	15	12	20	20	160

BOCK-SST

		D	d₁	D₁	l	l₁	h	h₁	h₂	d	d₂	s₁
Code	Description													Actions
6215	BOCK.25-46-D-SST	24	M20x1.5	45	46	12	6	17.5	15	12	20	20	141
6216	BOCK.25-46-S-SST	24	M20x1.5	45	46	12	6	17.5	15	12	20	20	141
6225	BOCK.25-54-D-SST	24	M20x1.5	45	54	12	6	17.5	15	12	20	20	148
6226	BOCK.25-54-S-SST	24	M20x1.5	45	54	12	6	17.5	15	12	20	20	148
