Description

The BASIC series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	80 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

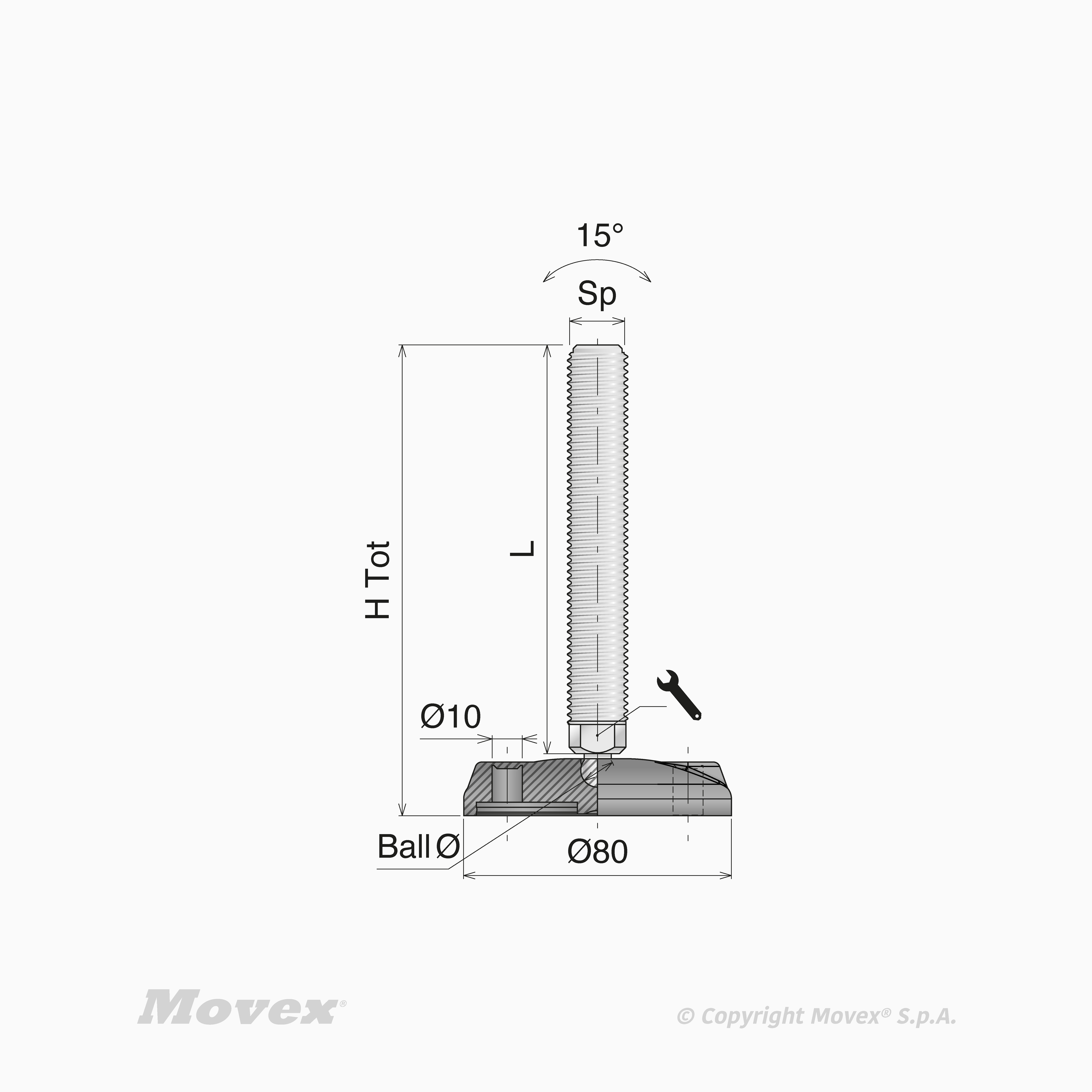

Basic Ø80 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P95301	60 mm	Standard	Stainless steel	M12	80	Standard	9 mm	10 mm Max Load 18000 N	-20÷120 °C	-20÷120 °C
P95301Z	60 mm	Standard	Zinc Plated Steel	M12	80	Standard	9 mm	10 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P95302	85 mm	Standard	Stainless steel	M12	105	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P95302Z	85 mm	Standard	Zinc Plated Steel	M12	105	Standard	9 mm	10 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P95303	135 mm	Standard	Stainless steel	M12	155	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P95303Z	135 mm	Standard	Zinc Plated Steel	M12	155	Standard	9 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95401	85 mm	Standard	Stainless steel	M16	105	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95401H	85 mm	Hexagonal	Stainless steel	M16	105	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95401Z	85 mm	Standard	Zinc Plated Steel	M16	105	Standard	13 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95401ZH	85 mm	Hexagonal	Zinc Plated Steel	M16	105	Standard	16 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95402	135 mm	Standard	Stainless steel	M16	155	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95402H	135 mm	Hexagonal	Stainless steel	M16	155	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95402Z	135 mm	Standard	Zinc Plated Steel	M16	155	Standard	13 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95402ZH	135 mm	Hexagonal	Zinc Plated Steel	M16	155	Standard	16 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95403	185 mm	Standard	Stainless steel	M16	205	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95403H	185 mm	Hexagonal	Stainless steel	M16	205	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95403Z	185 mm	Standard	Zinc Plated Steel	M16	205	Standard	13 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95403ZH	185 mm	Hexagonal	Zinc Plated Steel	M16	205	Standard	16 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95501	85 mm	Standard	Stainless steel	M20	105	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95501H	85 mm	Hexagonal	Stainless steel	M20	105	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95501Z	85 mm	Standard	Zinc Plated Steel	M20	105	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95501ZH	85 mm	Hexagonal	Zinc Plated Steel	M20	105	Standard	20 mm	14.5 mm Max Load 18000 N	-20÷120 °C	-20÷120 °C
P95502	135 mm	Standard	Stainless steel	M20	155	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95502H	135 mm	Hexagonal	Stainless steel	M20	155	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95502Z	135 mm	Standard	Zinc Plated Steel	M20	155	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95502ZH	135 mm	Hexagonal	Zinc Plated Steel	M20	155	Standard	20 mm	14.5 mm Max Load 18000 N	-20÷120 °C	-20÷120 °C
P95503	185 mm	Standard	Stainless steel	M20	205	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95503H	185 mm	Hexagonal	Stainless steel	M20	205	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95503Z	185 mm	Standard	Zinc Plated Steel	M20	205	Standard	16 mm	14.5 mm Max Load 18000 N	-20÷120 °C	-20÷120 °C
P95503ZH	185 mm	Hexagonal	Zinc Plated Steel	M20	205	Standard	20 mm	14.5 mm Max Load 18000 N	-20÷120 °C	-20÷120 °C
