Description

The BASIC series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	60 mm
Max Load:	10000÷19999 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

Basic Ø60

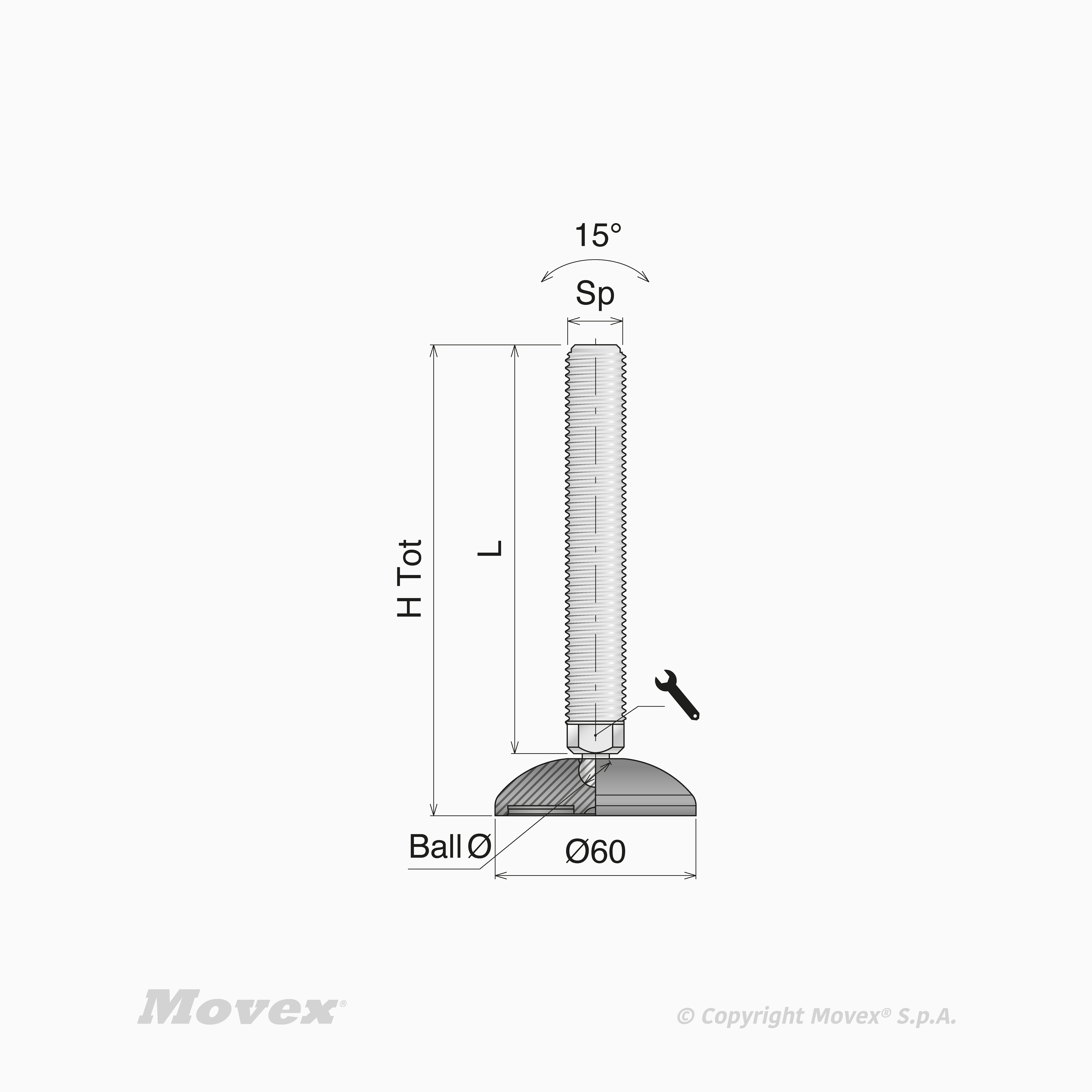

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P90701	60 mm	Standard	Stainless steel	M12	80	Standard	9 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90701Z	60 mm	Standard	Zinc Plated Steel	M12	80	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P90702	85 mm	Standard	Stainless steel	M12	105	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P90702Z	85 mm	Standard	Zinc Plated Steel	M12	105	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P90703	135 mm	Standard	Stainless steel	M12	155	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P90703Z	135 mm	Standard	Zinc Plated Steel	M12	155	Standard	9 mm	10 mm	-20÷120 °C	-20÷120 °C
P90801	85 mm	Standard	Stainless steel	M16	105	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P90801H	85 mm	Hexagonal	Stainless steel	M16	105	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P90801Z	85 mm	Standard	Zinc Plated Steel	M16	105	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P90801ZH	85 mm	Hexagonal	Zinc Plated Steel	M16	105	Standard	16 mm	10 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P90802	135 mm	Standard	Stainless steel	M16	155	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P90802H	135 mm	Hexagonal	Stainless steel	M16	155	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P90802Z	135 mm	Standard	Zinc Plated Steel	M16	155	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P90802ZH	135 mm	Hexagonal	Zinc Plated Steel	M16	155	Standard	16 mm	10 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P90803	185 mm	Standard	Stainless steel	M16	205	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P90803H	185 mm	Hexagonal	Stainless steel	M16	205	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P90803Z	185 mm	Standard	Zinc Plated Steel	M16	205	Standard	13 mm	10 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P90803ZH	185 mm	Hexagonal	Zinc Plated Steel	M16	205	Standard	16 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90901	85 mm	Standard	Stainless steel	M20	105	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90901H	85 mm	Hexagonal	Stainless steel	M20	105	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90901Z	85 mm	Standard	Zinc Plated Steel	M20	105	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90901ZH	85 mm	Hexagonal	Zinc Plated Steel	M20	105	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90902	135 mm	Standard	Stainless steel	M20	155	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90902H	135 mm	Hexagonal	Stainless steel	M20	155	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90902Z	135 mm	Standard	Zinc Plated Steel	M20	155	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90902ZH	135 mm	Hexagonal	Zinc Plated Steel	M20	155	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90903	185 mm	Standard	Stainless steel	M20	205	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90903H	185 mm	Hexagonal	Stainless steel	M20	205	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P90903Z	185 mm	Standard	Zinc Plated Steel	M20	205	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P90903ZH	185 mm	Hexagonal	Zinc Plated Steel	M20	205	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
