Home Leveling feet Basic Basic Ø100 Polyamide spindle 2 Fixing point

Basic Ø100 Polyamide spindle 2 Fixing point

Basic

Enquire Now

Description

The BASIC series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Polyamide spindle
Base material:	Plastic
Diameter:	100 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

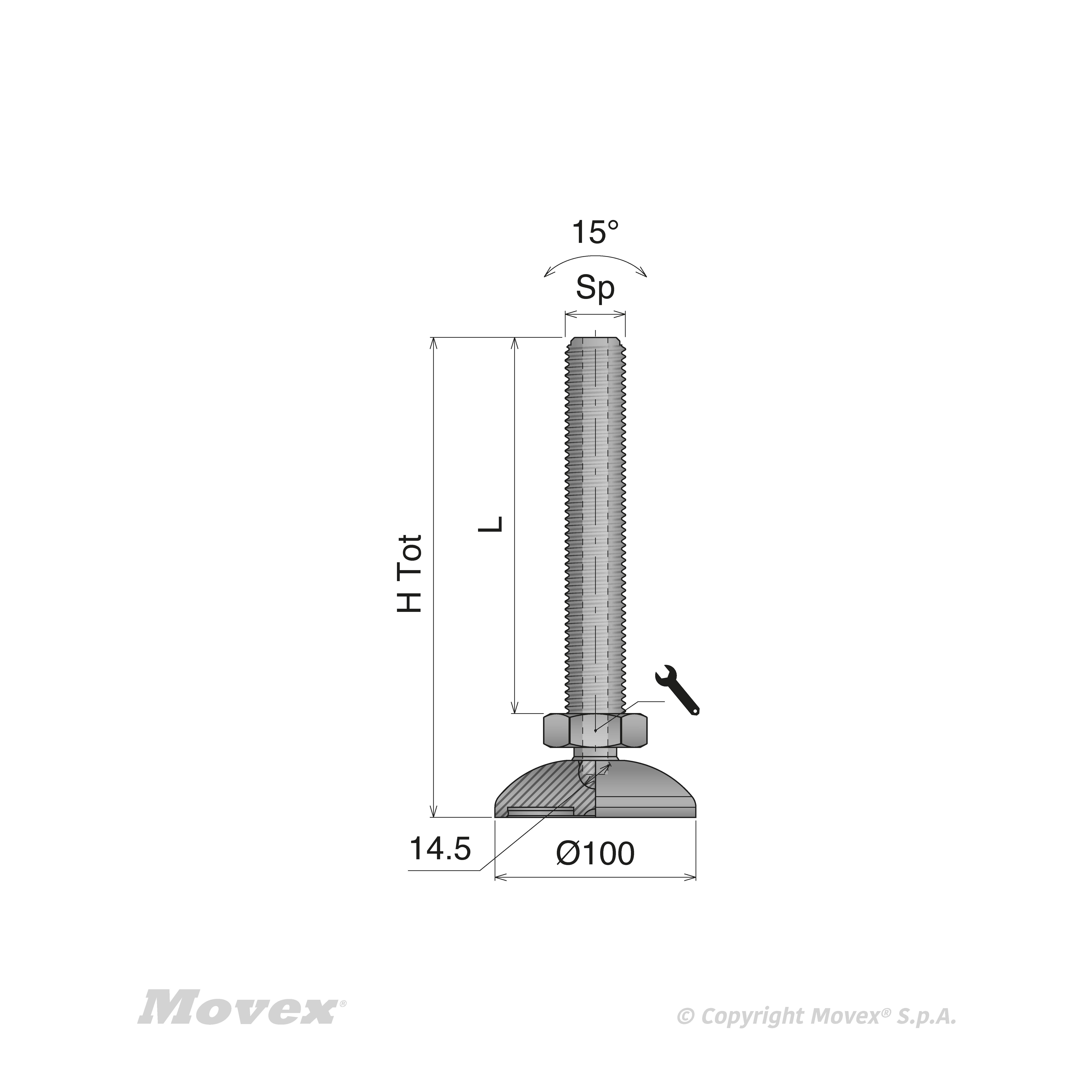

Basic Ø100 Polyamide spindle 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet	Supplementary informations
Code												Actions
P95710PH	76 mm	Hexagonal	Plastic + Fe-Zn Insert	M16	110	Polyamide spindle	24 mm	14.5 mm	-20÷120 °C	-20÷120 °C	POLYAMIDE Max Load 12000 N
