Description

The BASIC series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	100 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

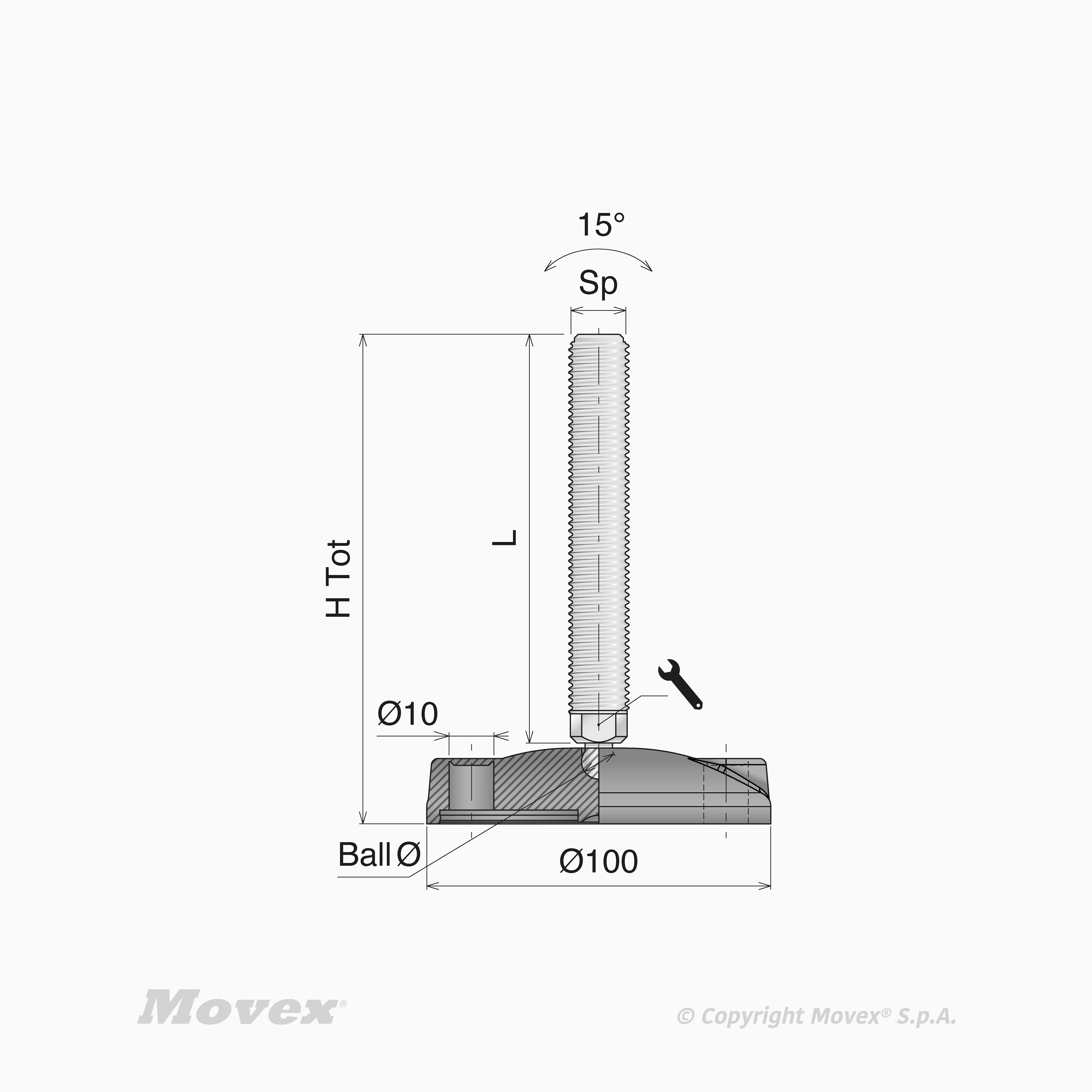

Basic Ø100 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P95601	85 mm	Standard	Stainless steel	M16	108	Standard	13 mm	10 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95601H	85 mm	Hexagonal	Stainless steel	M16	108	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95601Z	85 mm	Standard	Zinc Plated Steel	M16	108	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95601ZH	85 mm	Hexagonal	Zinc Plated Steel	M16	108	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95602	135 mm	Standard	Stainless steel	M16	158	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95602H	135 mm	Hexagonal	Stainless steel	M16	158	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95602Z	135 mm	Standard	Zinc Plated Steel	M16	158	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95602ZH	135 mm	Hexagonal	Zinc Plated Steel	M16	158	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95603	185 mm	Standard	Stainless steel	M16	208	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95603H	185 mm	Hexagonal	Stainless steel	M16	208	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95603Z	185 mm	Standard	Zinc Plated Steel	M16	208	Standard	13 mm	10 mm	-20÷120 °C	-20÷120 °C
P95603ZH	185 mm	Hexagonal	Zinc Plated Steel	M16	208	Standard	16 mm	10 mm	-20÷120 °C	-20÷120 °C
P95701	85 mm	Standard	Stainless steel	M20	108	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95701H	85 mm	Hexagonal	Stainless steel	M20	108	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95701Z	85 mm	Standard	Zinc Plated Steel	M20	108	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95701ZH	85 mm	Hexagonal	Zinc Plated Steel	M20	108	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95702	135 mm	Standard	Stainless steel	M20	158	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95702H	135 mm	Hexagonal	Stainless steel	M20	158	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95702Z	135 mm	Standard	Zinc Plated Steel	M20	158	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95702ZH	135 mm	Hexagonal	Zinc Plated Steel	M20	158	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95703	185 mm	Standard	Stainless steel	M20	208	Standard	16 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95703H	185 mm	Hexagonal	Stainless steel	M20	208	Standard	20 mm	14.5 mm	-20÷120 °C	-20÷120 °C
P95703Z	185 mm	Standard	Zinc Plated Steel	M20	208	Standard	16 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P95703ZH	185 mm	Hexagonal	Zinc Plated Steel	M20	208	Standard	20 mm	14.5 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
