BASE LV.A-ESD-C - LV.F-ESD-C
Bases for levelling feet
ESD conductive technopolymer
BASE LV.A-ESD-C
Bases for levelling feet
Base without ground mounting, without no-slip disk
BASE LV.F-ESD-C
Bases for levelling feet
Base for ground mounting, without no-slip disk

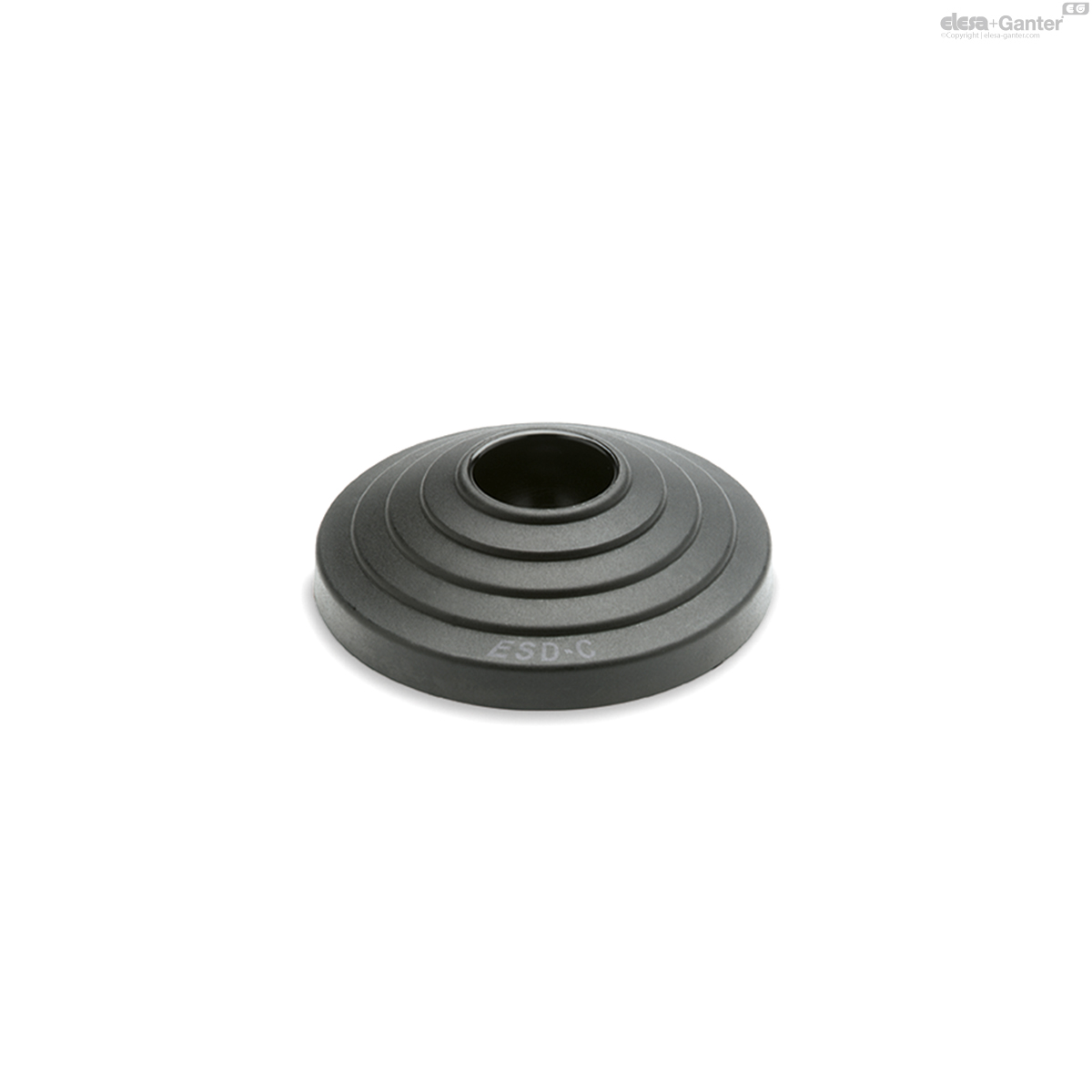

BASE LV.A-AS-ESD-C
Bases for levelling feet
Base without ground mounting, with no-slip disk

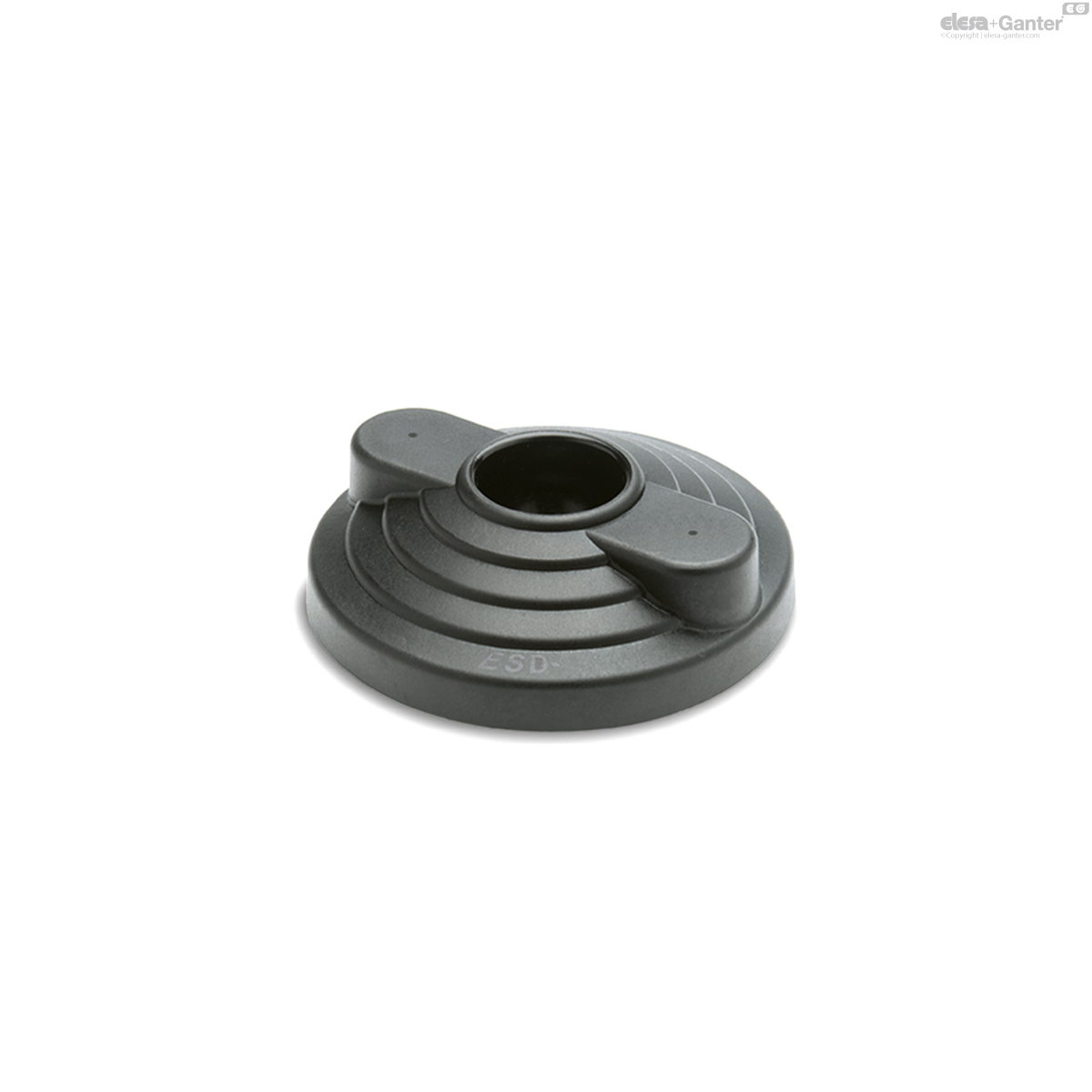

BASE LV.F-AS-ESD-C
Bases for levelling feet
Base for ground mounting, with no-slip disk
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) special conductive technopolymer, black colour, matte finish.
Surface resistivity = 103 Ω (ASTM D257 measuring method).
Volume resistivity = 103 Ωcm (ASTM D257 measuring method).
Bases without no-slip disk
- LV.A-ESD-C: without ground mounting.

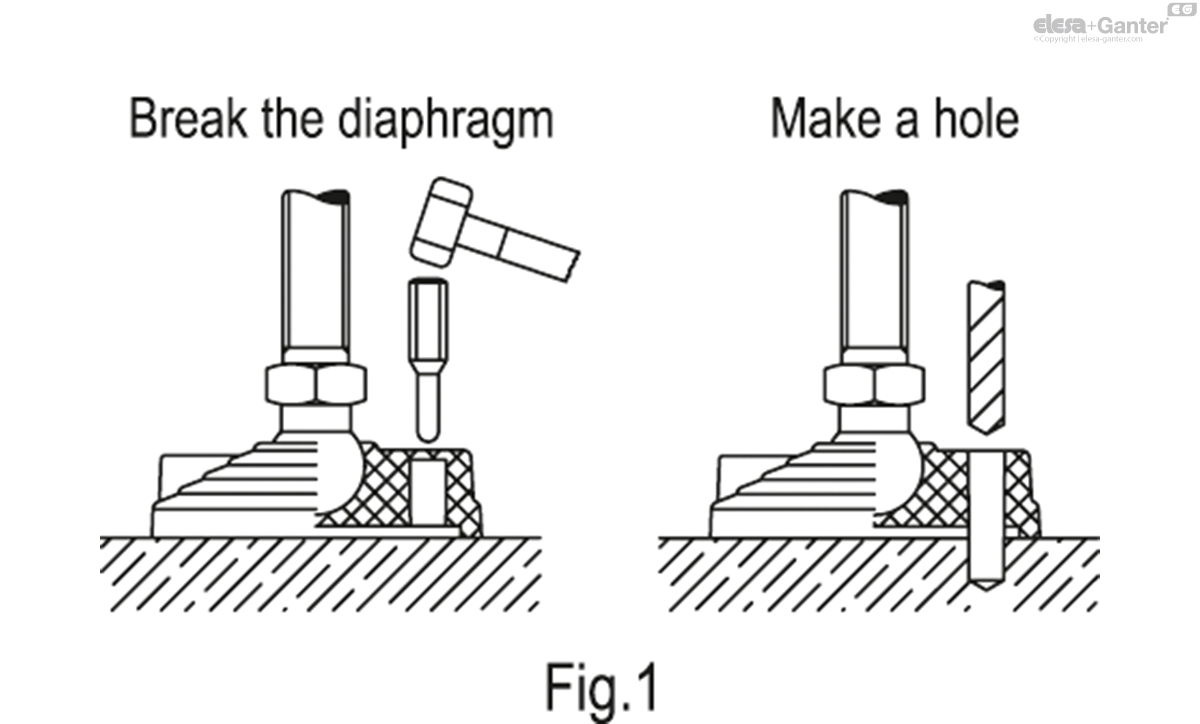

- LV.F-ESD-C: with two holes at 180° for ground mounting, supplied covered by a breakable plastic diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).
Bases with no-slip disk assembled
NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.
Surface resistivity = 103 Ω (ASTM D991 measuring method).
Volume resistivity = 103 Ωcm (ASTM D991 measuring method).
The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks ).
- LV.A-AS-ESD-C: without ground mounting.
- LV.F-AS-ESD-C: with two holes at 180° for ground mounting, supplied covered by a breakable plastic diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).
 General information
Features and applications
The special conductive technopolymer (ESD-C Electrostatic Discharge Conductive) prevents the accumulation of electrostatic charge.
The bases are suitable for 'ESD PROTECTED AREA' (EPA) where components, which are susceptible to electrostatic discharges, are handled.
The (ESD-C) indelibly printed mark on the surface of the levelling elements bases identifies the particular conductive features of the material according to EN 100015/1 and IEC 61340-5-1.
The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.
Note
To choose the stem see table of the possible combinations Bases/Stems

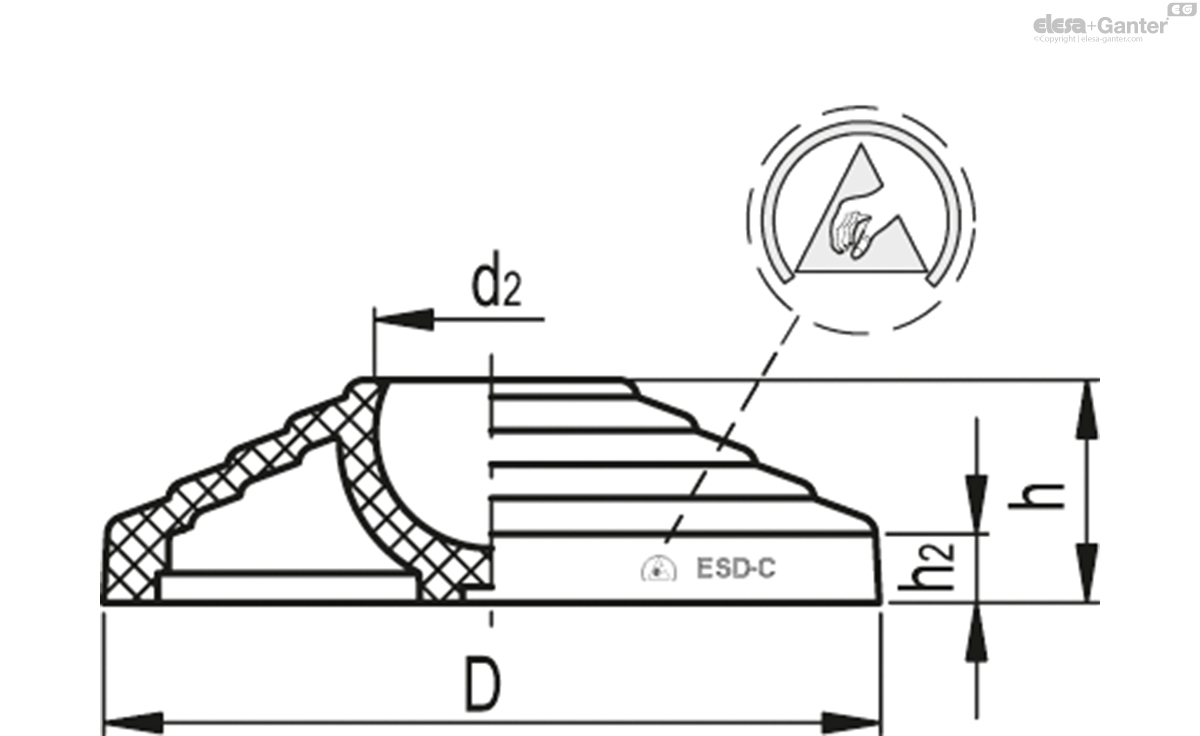

BASE LV.A-ESD-C
| D | d2 | h | h2 | Max. limit static load* [N] |
 |
|||
|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||
| 301241-ESD | LV.A-60-14-ESD-C | 60 | 14 | 24 | 9 | 14000 | 36 |
|
| 301242-ESD | LV.A-60-24-ESD-C | 60 | 24 | 24 | 9 | 18000 | 34 |
|
| 301246-ESD | LV.A-70-14-ESD-C | 70 | 14 | 19 | 7 | 14000 | 36 |
|
| 301251-ESD | LV.A-80-14-ESD-C | 80 | 14 | 24 | 9 | 16000 | 62 |
|
| 301252-ESD | LV.A-80-24-ESD-C | 80 | 24 | 24 | 9 | 18000 | 56 |
|
| 301261-ESD | LV.A-100-14-ESD-C | 100 | 14 | 24 | 9 | 18000 | 91 |
|
| 301262-ESD | LV.A-100-24-ESD-C | 100 | 24 | 24 | 9 | 25000 | 85 |
|
| 301272-ESD | LV.A-125-24-ESD-C | 125 | 24 | 46 | 15 | 28000 | 204 |
|
