Bar Cap Part 1084
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Products stored in coils will have the tendency to retain a certain deformation when uncoiled, therefore consistency in the profile cross section over the full length of the coil cannot be guaranteed.
Basic features
| Series: | Bar Cap & Cover |
|---|---|
| Material: | Plastic profile |
| Unit of measure: | Meter |
| Box: | - |

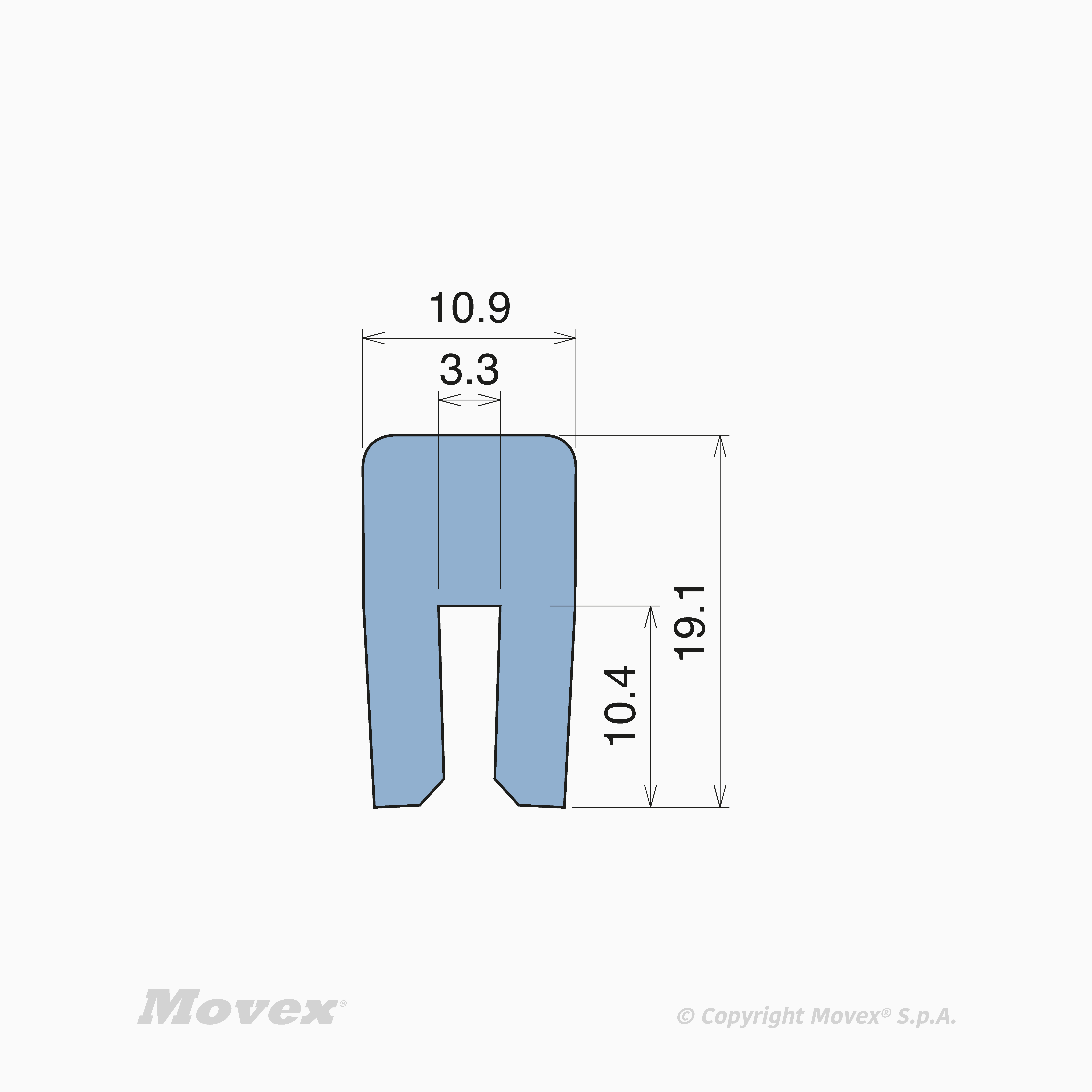

Bar Cap Part 1084
| Part | Material & color | Supply length | Operating Temperature °C | ||
|---|---|---|---|---|---|
| Code | Actions | ||||
| P108400B | P1084 | BluLub | 6 m / 20 ft bars | -40÷80 °C |
|
| P108400B-30 | P1084 | BluLub | 30 m / 100 ft coils | -40÷80 °C |
|
| P108400BC | P1084 | BluLub | 3 m / 10 ft bars | -40÷80 °C |
|
| P108403 | P1084 | Ti-White | 6 m / 20 ft bars | -40÷80 °C |
|
| P108403-30 | P1084 | Ti-White | 30 m / 100 ft coils | -40÷80 °C |
|
| P108403C | P1084 | Ti-White | 3 m / 10 ft bars | -40÷80 °C |
|
| P108405 | P1084 | UHMW-PE Blue | 6 m / 20 ft bars | -40÷80 °C |
|
| P108405-30 | P1084 | UHMW-PE Blue | 30 m / 100 ft coils | -40÷80 °C |
|
| P108405C | P1084 | UHMW-PE Blue | 3 m / 10 ft bars | -40÷80 °C |
|
