AVG

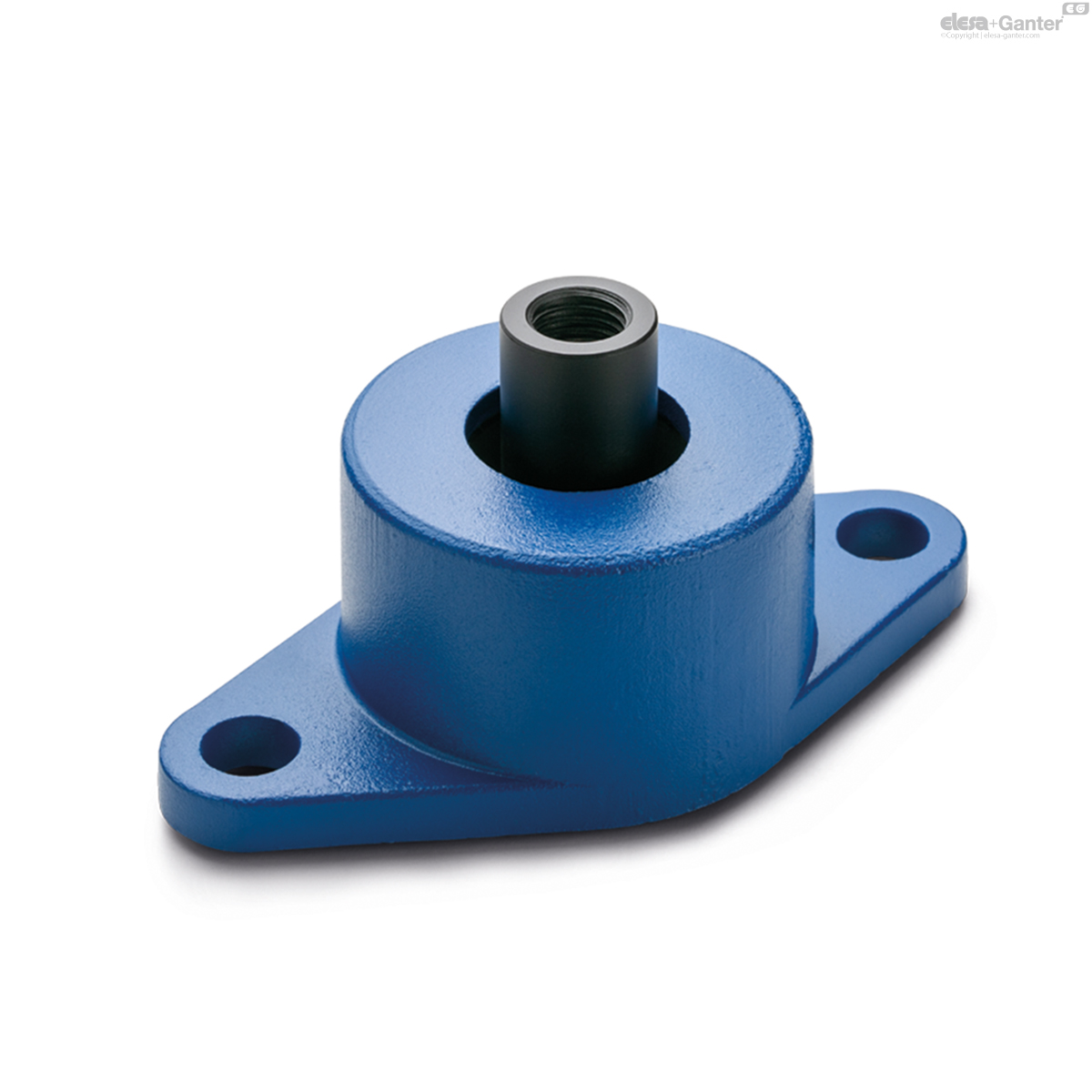

Flange vibration dampers

double acting, rubber, aluminium and steel

Enquire Now

Description

Main specifications

Aluminium painted with nitrocellulose-based enamel in blue colour RAL 5010.

Black coated steel.

NBR rubber.

Hardness 30, 50, 60 Shore A ±5.

General information

They are generally used for isolating strong vibrations, where resistance to tension and compression is required.

Vibrations can cause:

malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;

They are particularly suitable for use with machine tools, presses for moulding plastic materials, special machines and shock absorption.

See High performance vibration dampers - Characteristics and selection criteria.

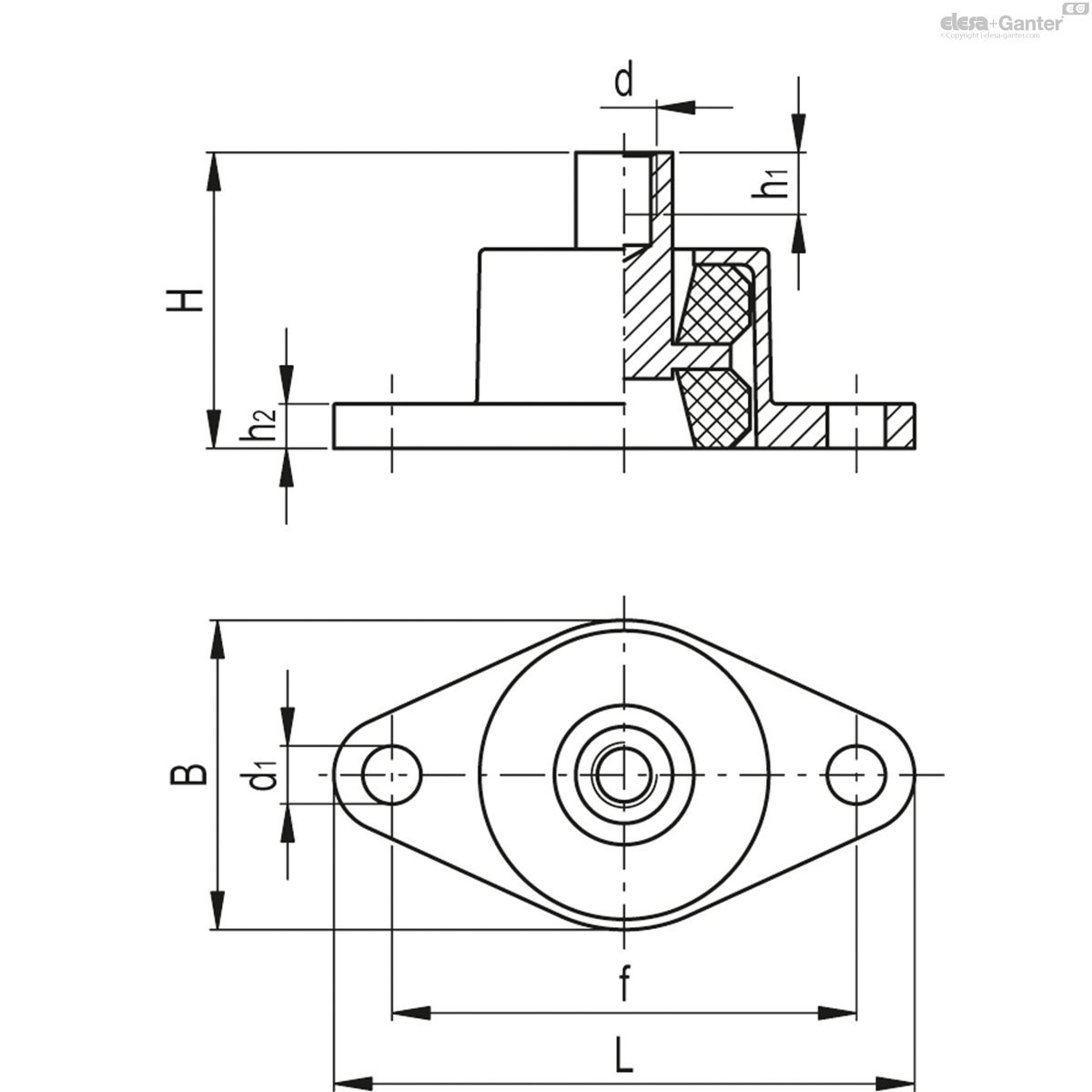

		B	L	H	d	d₁	h₁	h₂	f	Min load [N]	Max. load [N]	Min deflection [mm]	Max. deflection [mm]	Shore A
Code	Description															Actions
480181	AVG-30	80	150	75	M16	15	16	10	120	700	2700	3	6.5	30	609
480183	AVG-50	80	150	75	M16	15	16	10	120	1200	4500	3	6.5	50	615
480185	AVG-60	80	150	75	M16	15	16	10	120	1400	6000	3	6.5	60	617
