Description

The ARTICULATED series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle is made with hexagonal key wrench and available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	123 mm
Max Load:	19999÷49999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

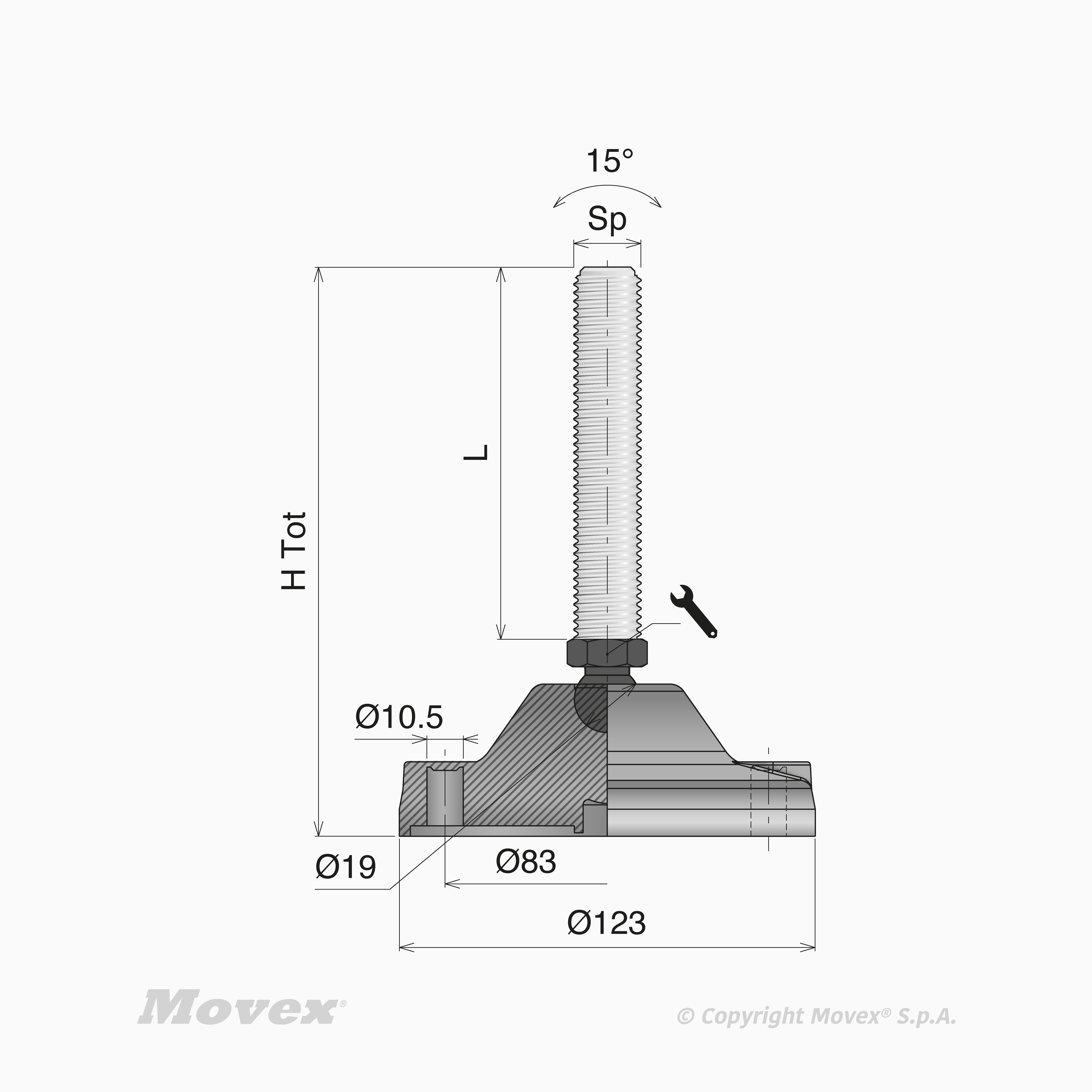

Articulated Ø123 2 Fixing pointPA Ball

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P95101ZH	115 mm	Hexagonal	Zinc Plated Steel	M16	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95102H	145 mm	Hexagonal	Stainless steel	M16	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95102ZH	145 mm	Hexagonal	Zinc Plated Steel	M16	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95103H	195 mm	Hexagonal	Stainless steel	M16	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95103ZH	195 mm	Hexagonal	Zinc Plated Steel	M16	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95201H	115 mm	Hexagonal	Stainless steel	M20	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95201ZH	115 mm	Hexagonal	Zinc Plated Steel	M20	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95202ZH	145 mm	Hexagonal	Zinc Plated Steel	M20	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95203H	195 mm	Hexagonal	Stainless steel	M20	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95203ZH	195 mm	Hexagonal	Zinc Plated Steel	M20	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
