Description

The ARTICULATED series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle is made with hexagonal key wrench and available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	123 mm
Max Load:	19999÷49999 N
Fixing point:	2
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

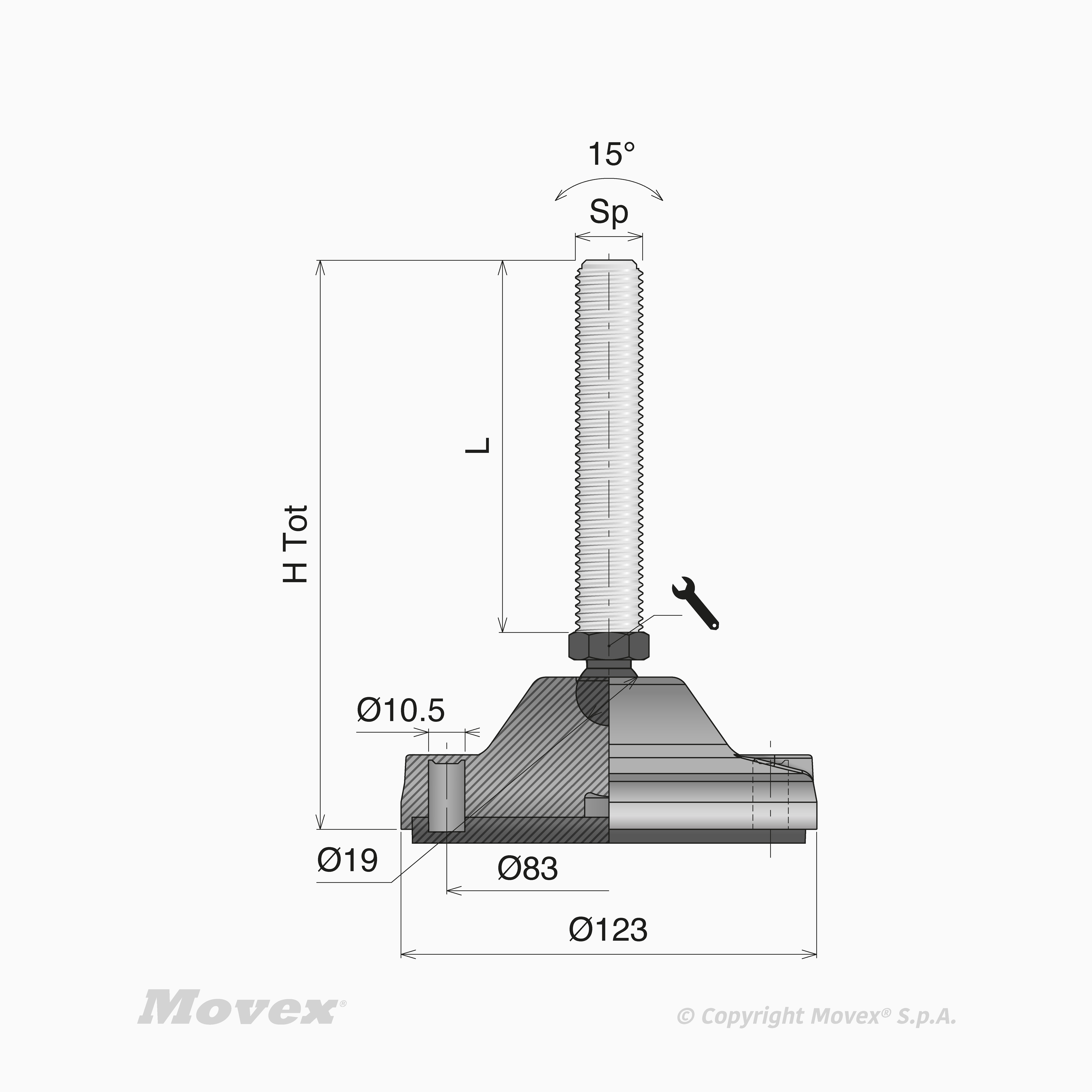

Articulated Ø123 2 Fixing pointAnti-SlipPA Ball

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P95151ZH	115 mm	Hexagonal	Zinc Plated Steel	M16	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95152H	145 mm	Hexagonal	Stainless steel	M16	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95152ZH	145 mm	Hexagonal	Zinc Plated Steel	M16	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95153H	195 mm	Hexagonal	Stainless steel	M16	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95153ZH	195 mm	Hexagonal	Zinc Plated Steel	M16	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95251H	115 mm	Hexagonal	Stainless steel	M20	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95251ZH	115 mm	Hexagonal	Zinc Plated Steel	M20	175	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95252ZH	145 mm	Hexagonal	Zinc Plated Steel	M20	205	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95253H	195 mm	Hexagonal	Stainless steel	M20	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P95253ZH	195 mm	Hexagonal	Zinc Plated Steel	M20	255	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
