Description

The ARTICULATED series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle is made with hexagonal key wrench and available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	110 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

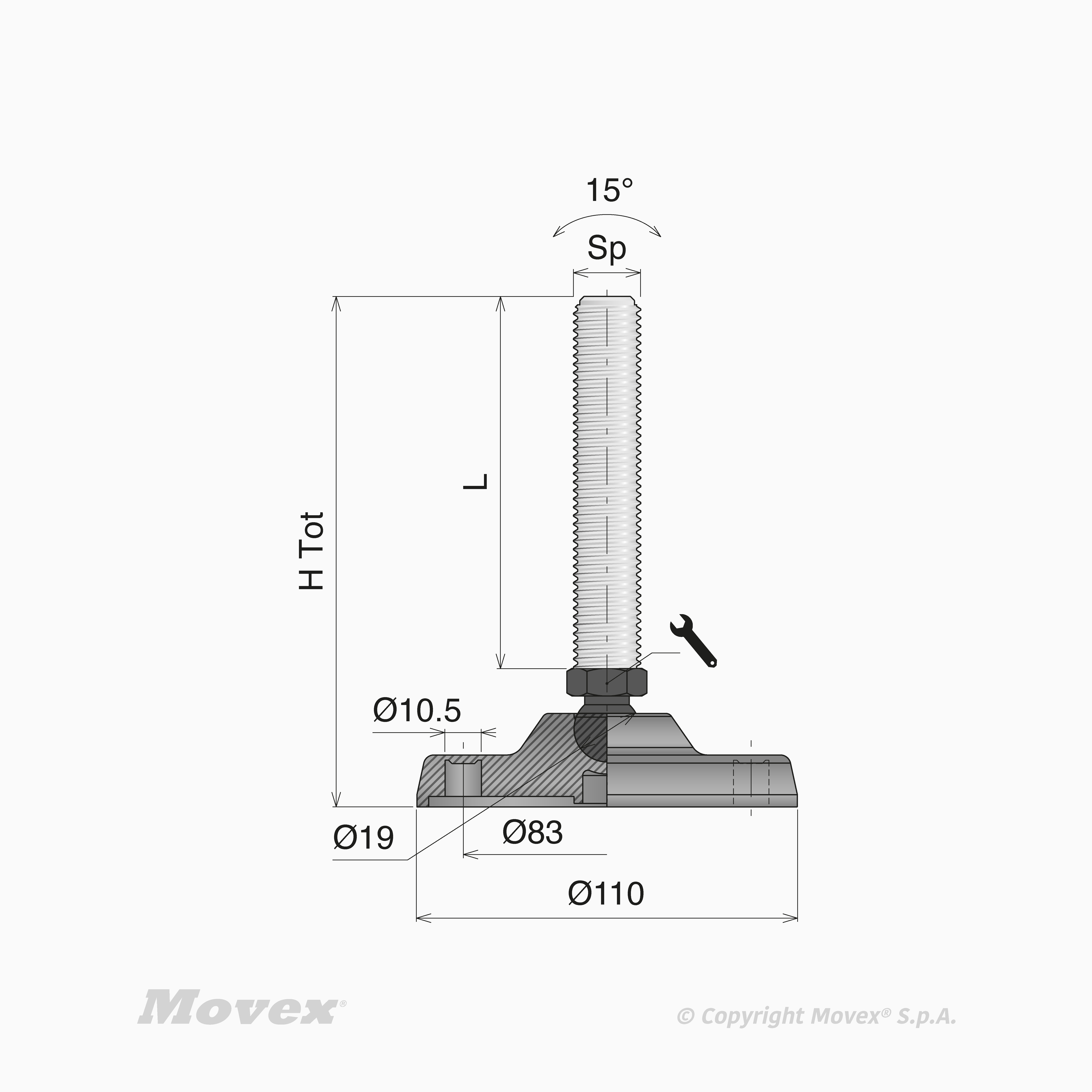

Articulated Ø110 2 Fixing pointPA Ball

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P94601ZH	115 mm	Hexagonal	Zinc Plated Steel	M16	155	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94602H	145 mm	Hexagonal	Stainless steel	M16	185	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94602ZH	145 mm	Hexagonal	Zinc Plated Steel	M16	185	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94603H	195 mm	Hexagonal	Stainless steel	M16	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94603ZH	195 mm	Hexagonal	Zinc Plated Steel	M16	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94701H	115 mm	Hexagonal	Stainless steel	M20	155	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94701ZH	115 mm	Hexagonal	Zinc Plated Steel	M20	155	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94702ZH	145 mm	Hexagonal	Zinc Plated Steel	M20	185	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94703H	195 mm	Hexagonal	Stainless steel	M20	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94703ZH	195 mm	Hexagonal	Zinc Plated Steel	M20	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
