Description

The ARTICULATED series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments. The spindle is made with hexagonal key wrench and available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	110 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

Articulated Ø110 2 Fixing pointAnti-Slip

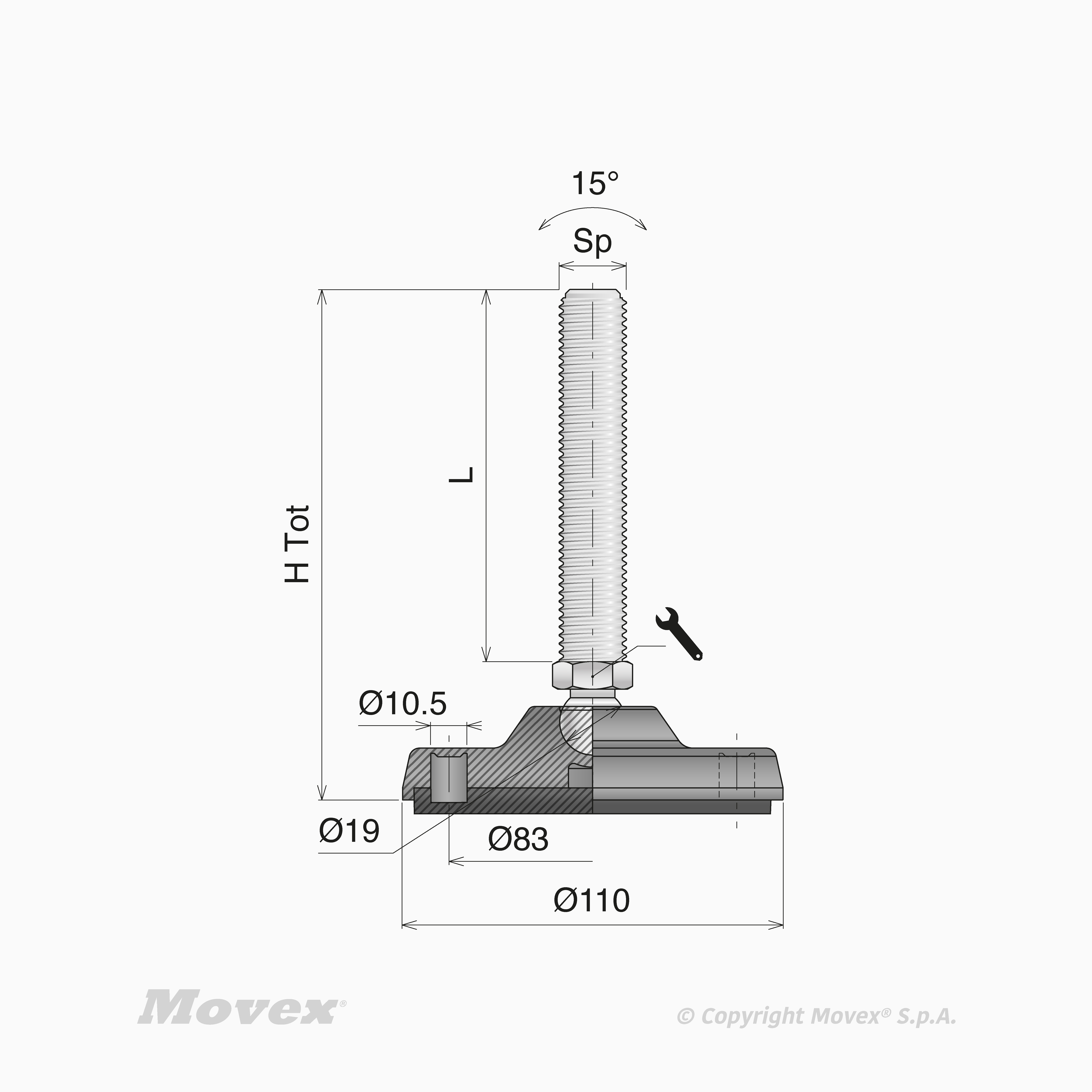

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Ball D	Temperature range dry	Temperature range wet
Code											Actions
P94351H	115 mm	Hexagonal	Stainless steel	M16	155	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94351ZH	115 mm	Hexagonal	Zinc Plated Steel	M16	155	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94352H	145 mm	Hexagonal	Stainless steel	M16	185	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94352ZH	145 mm	Hexagonal	Zinc Plated Steel	M16	185	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94353H	195 mm	Hexagonal	Stainless steel	M16	235	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94353ZH	195 mm	Hexagonal	Zinc Plated Steel	M16	235	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94451H	115 mm	Hexagonal	Stainless steel	M20	155	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94451ZH	115 mm	Hexagonal	Zinc Plated Steel	M20	155	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94452H	145 mm	Hexagonal	Stainless steel	M20	185	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94452ZH	145 mm	Hexagonal	Zinc Plated Steel	M20	185	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94453H	195 mm	Hexagonal	Stainless steel	M20	235	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94453ZH	195 mm	Hexagonal	Zinc Plated Steel	M20	235	Standard	20 mm	19 mm	-20÷120 °C	-20÷120 °C
P94551H	115 mm	Hexagonal	Stainless steel	M24	155	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94551ZH	115 mm	Hexagonal	Zinc Plated Steel	M24	155	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94552H	145 mm	Hexagonal	Stainless steel	M24	185	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94552ZH	145 mm	Hexagonal	Zinc Plated Steel	M24	185	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94553H	195 mm	Hexagonal	Stainless steel	M24	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
P94553ZH	195 mm	Hexagonal	Zinc Plated Steel	M24	235	Standard	24 mm	19 mm	-20÷120 °C	-20÷120 °C
