Adapter for PC support clamp for round tubes
Technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7042 grey colour, matte finish.
General information
Features and applications

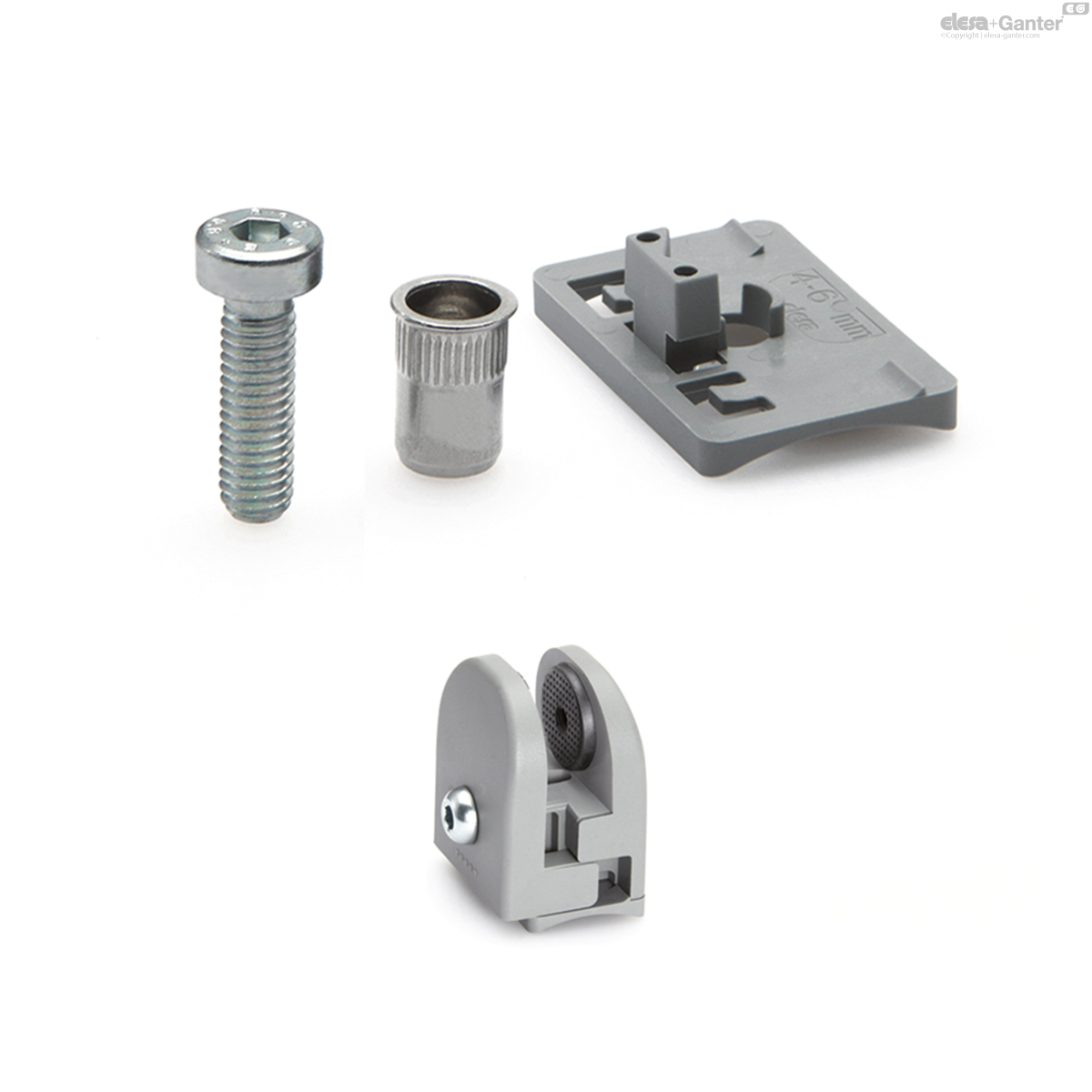

Kit for installation of PC support clamp on round tubes (thickness max. = 2 mm). The kit includes a technopolymer adapter, a M6 zinc-plated steel threaded insert to install with a normal riveter on the tube and a M6 cylindrical head screw.The adapters give the best aesthetic result for panels of thickness between 4 and 6 mm and tubes with diameters as follows:
- 30÷34 mm
- 40÷43 mm
- 48÷52 mm.
Assembly instructions
Assembly instructions
- Insert the M6 shorted cylindrical head screw with DIN 7984 hexagon socket into the plastic adapter.
- Insert the adapter into the slot of PC until the catch bracket clicks into position.
- Drill a hole in the tube of 9 mm.
- Fit the threaded insert on the tube with a riveter.
- Install the support clamp on the tube by tightening the screw into the threaded insert.

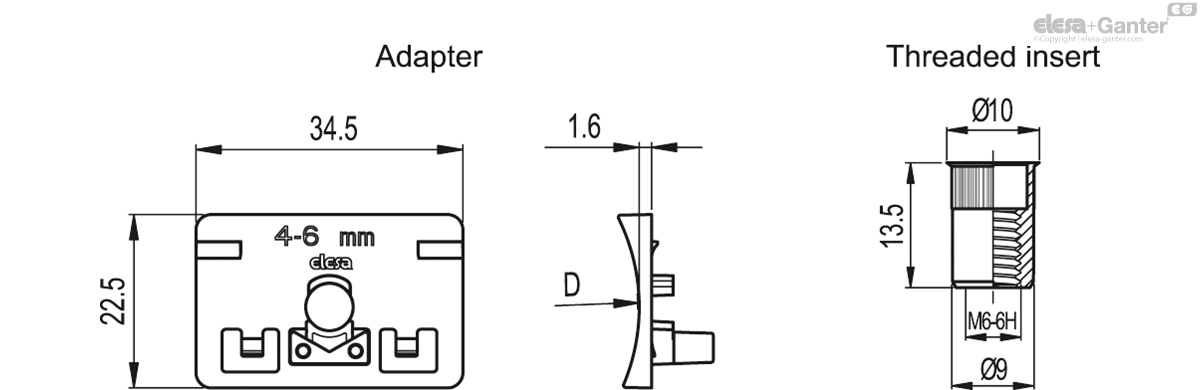

| D | For tubes Ø |  |
|||
|---|---|---|---|---|---|
| Code | Description | Actions | |||
| 49291 | APC.30-34 | 34 | 30 ÷ 34 | 6 |
|
| 49293 | APC.40-43 | 43 | 40 ÷ 43 | 6 |
|
| 49295 | APC.48-52 | 52 | 48 ÷ 52 | 6 |
|
