Dismountable split set collars

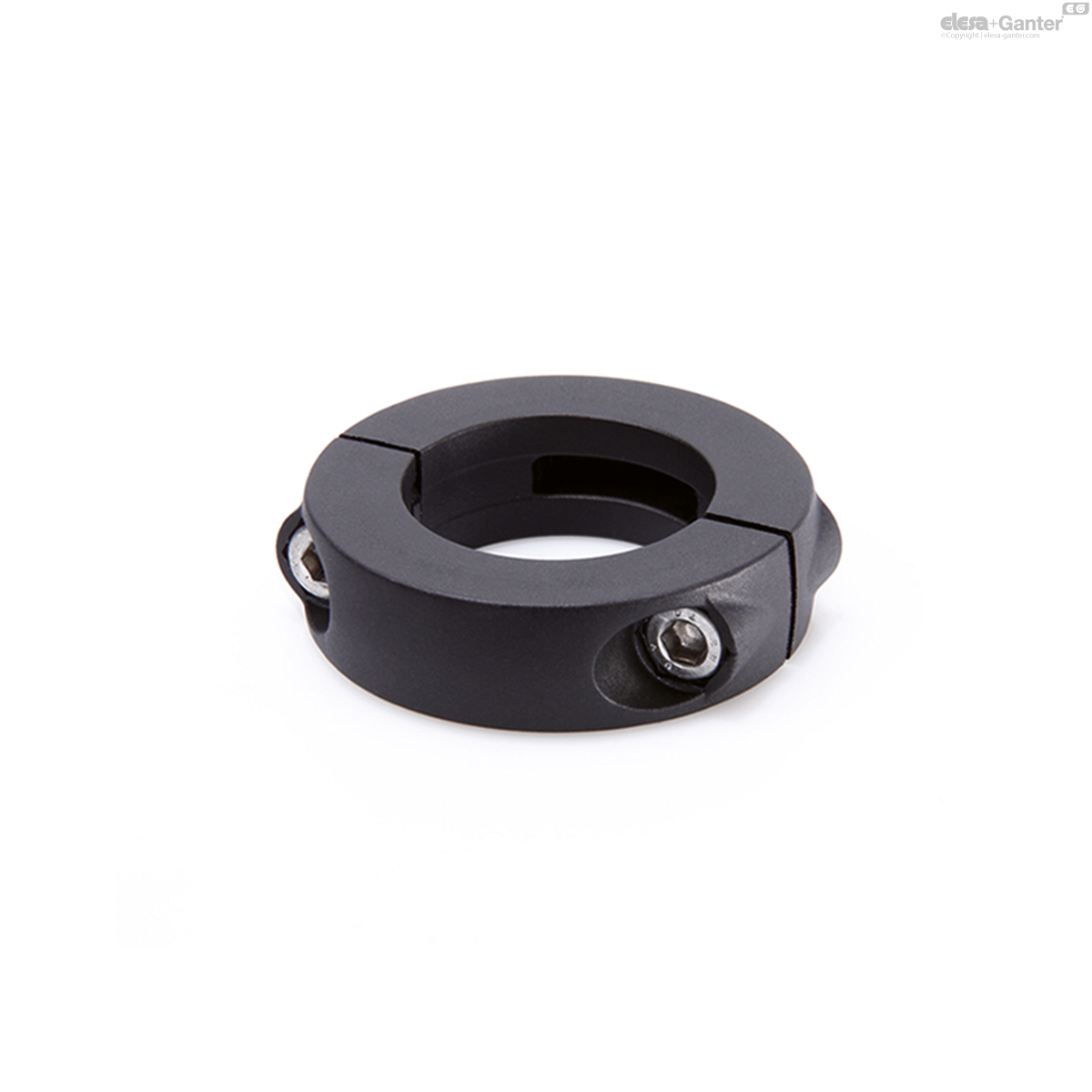

Clamping assembly, technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer.

Two cylindrical head screws with hexagon socket and AISI 316 stainless steel nuts supplied assembled with the two semi-split set collars.

General information

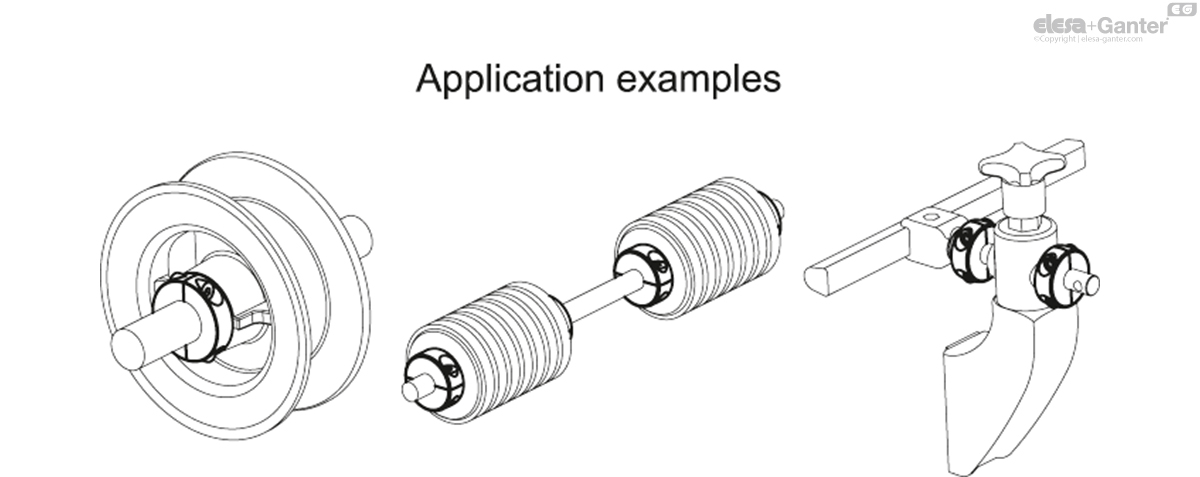

Suitable for assembly on idle shafts as end stops, for fixing end limit switches, pulleys, supporting pins or other components.
They avoid damage to the surfaces of the shaft.
Lightness and high mechanical resistance.
Anticorrosive material: possibility of use even in the presence of liquids.
Resistant to several cleaning cycles with solvents and other chemical agents, for this reason they can be used for applications in the pharmaceutical or food industry.

Assembly on h7 ÷ h11 tolerance round shafts.

Other executions

Dismountable split set collars with keyway DIN 6885/1.

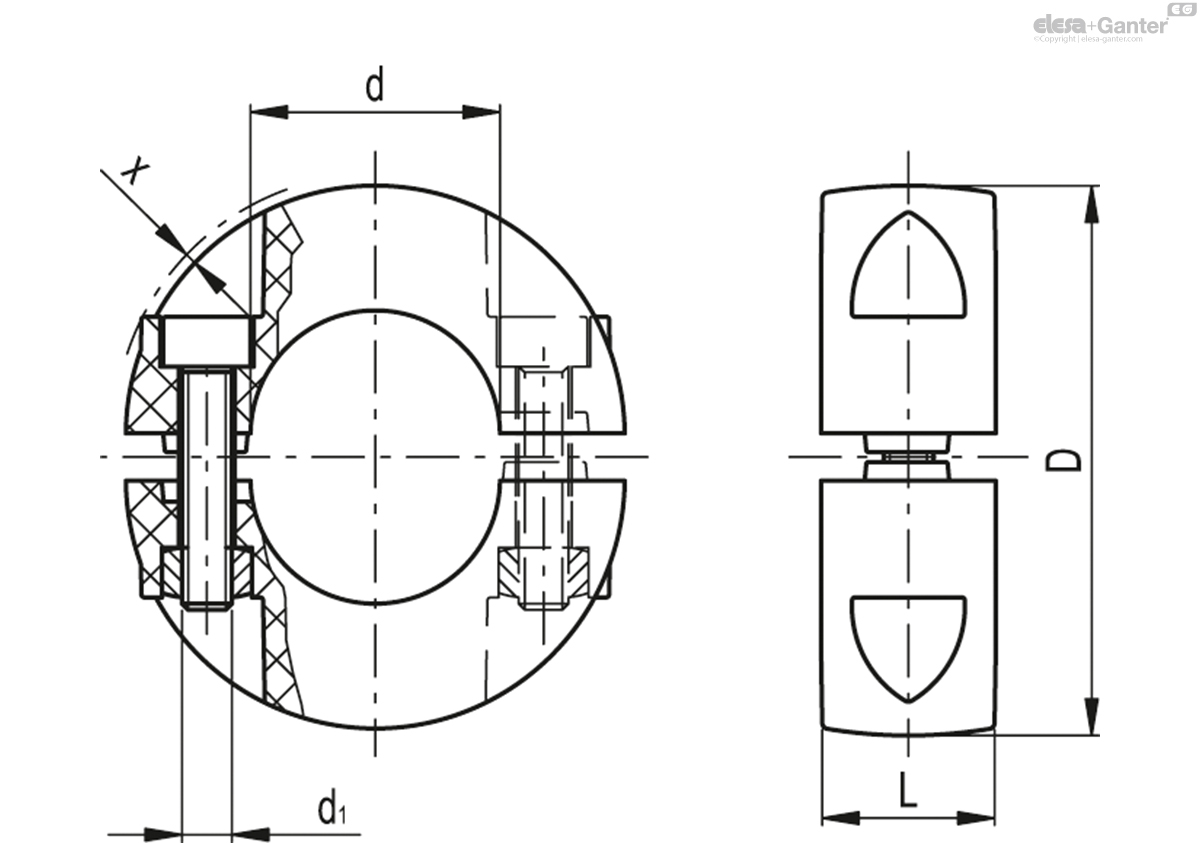

		D	L	d	d₁	x	x*	Max. tightening torque [Nm]
Code	Description									Actions
319901	ANPS-12	35	13	12	M4	1	1	2	18
319911	ANPS-14	35	13	14	M4	1	1	2	17
319921	ANPS-16	35	13	16	M4	1	1	2	16
319931	ANPS-18	40	14	18	M4	0.75	0.75	2	21
319941	ANPS-20	40	14	20	M4	0.75	0.75	2	19
319945	ANPS-22	50	14	22	M5	2.40	2.40	3	35
319951	ANPS-25	50	14	25	M5	2.40	2.40	3	33
319961	ANPS-30	50	14	30	M5	2.40	2.40	3	31
319971	ANPS-35	65	14	35	M5	0.15	0.15	3	45
319981	ANPS-40	65	14	40	M5	0.15	0.15	3	41
319986	ANPS-50	84	18	50	M6	-	-	5	71
319991	ANPS-70	104	18	70	M6	-	-	5	87
