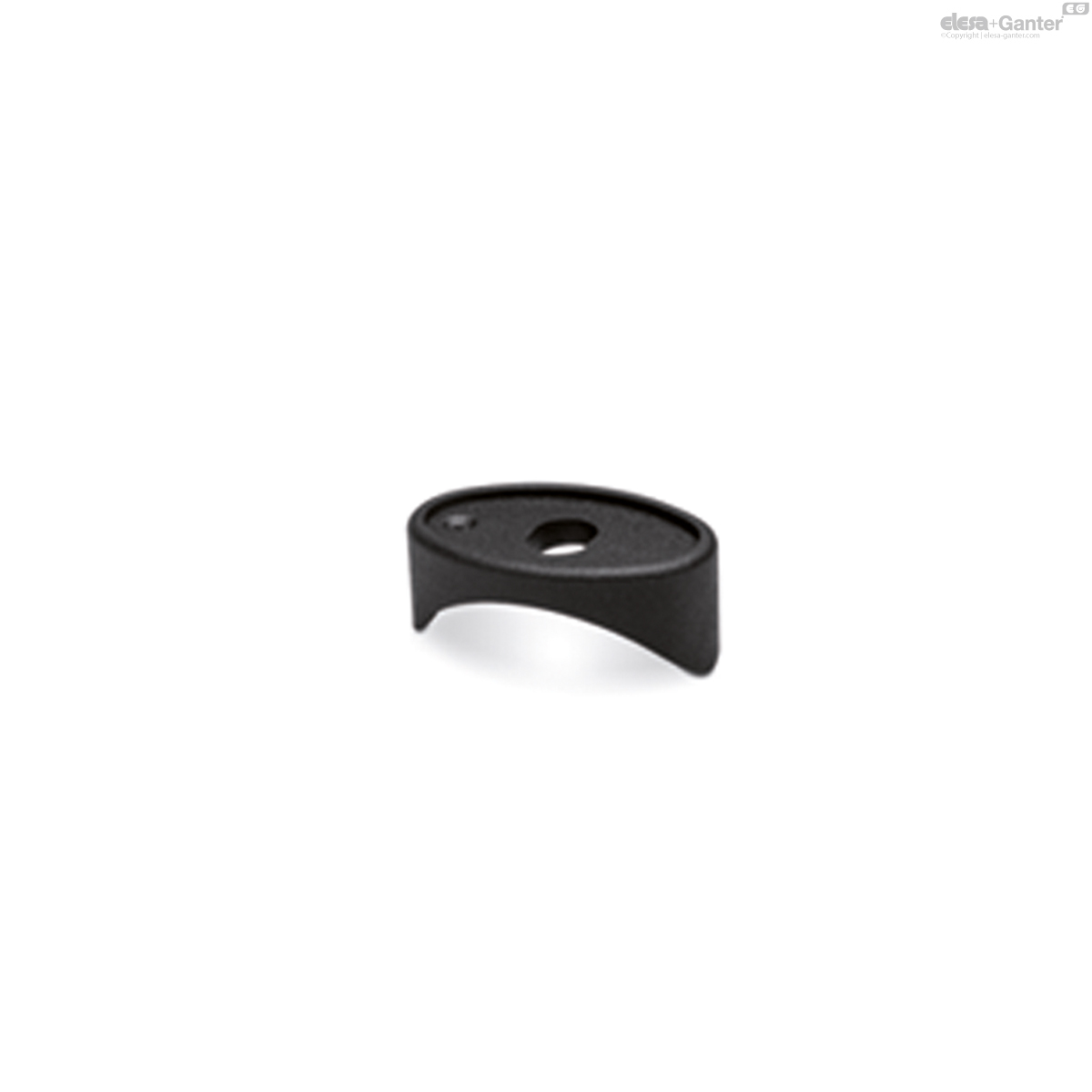

Adapters for assembly on tubes of M.643-FM handles
Technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
General information
Features and applications
The adapters allow assembling M.643-FM handles on round tubes with a diameter between 28.6 mm and 32 mm.
Mounting

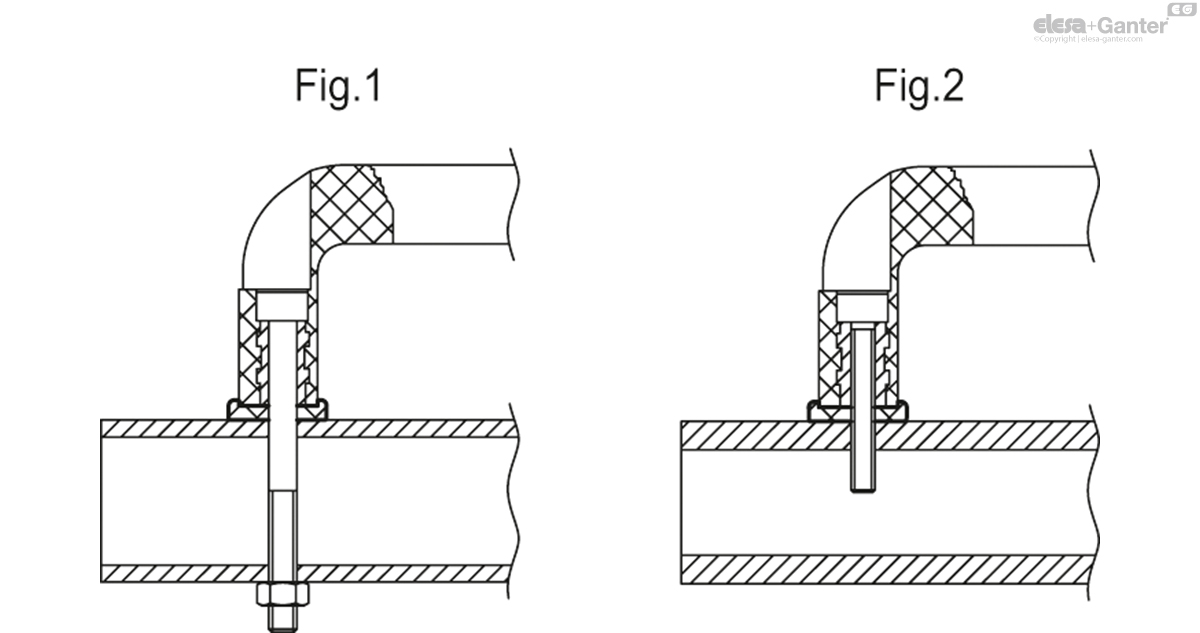

- Plain hole passing completely through the tube with a nut on the outside (Fig.1).
- Threaded hole in the tube wall for tubes with thickness > 2mm (Fig.2).
 Technical Data
Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
| L | d | D | H | h1 | B | b1 | D Tube | F1 [N] |
F2 [N] |
L1 [J] |
L2 [J] |
C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||||

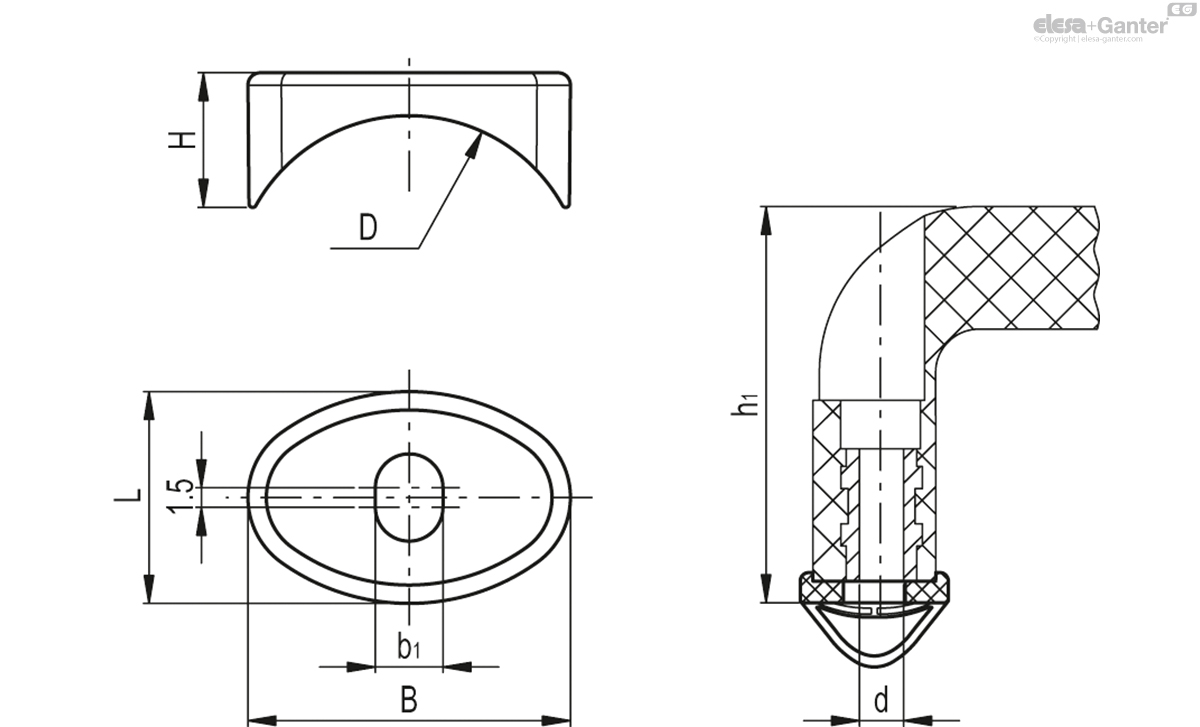

| 260051 | ADT-M.643-FM/100 | 17 | 5 | 28.6 | 11 | 45 | 26 | 5.5 | 28.6÷32 | 1600 | 2500 | 9 | 7 | 5 | 5 |
|
| 260053 | ADT-M.643-FM/140 | 19 | 6 | 28.6 | 13 | 51 | 28.5 | 6.5 | 28.6÷32 | 1700 | 2900 | 9 | 7 | 6 | 6 |
|
