880 TAB BO Flat Top
Plastic chains
Description
Basic features
| Series: | 820-828-831-878-879-880-888 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |

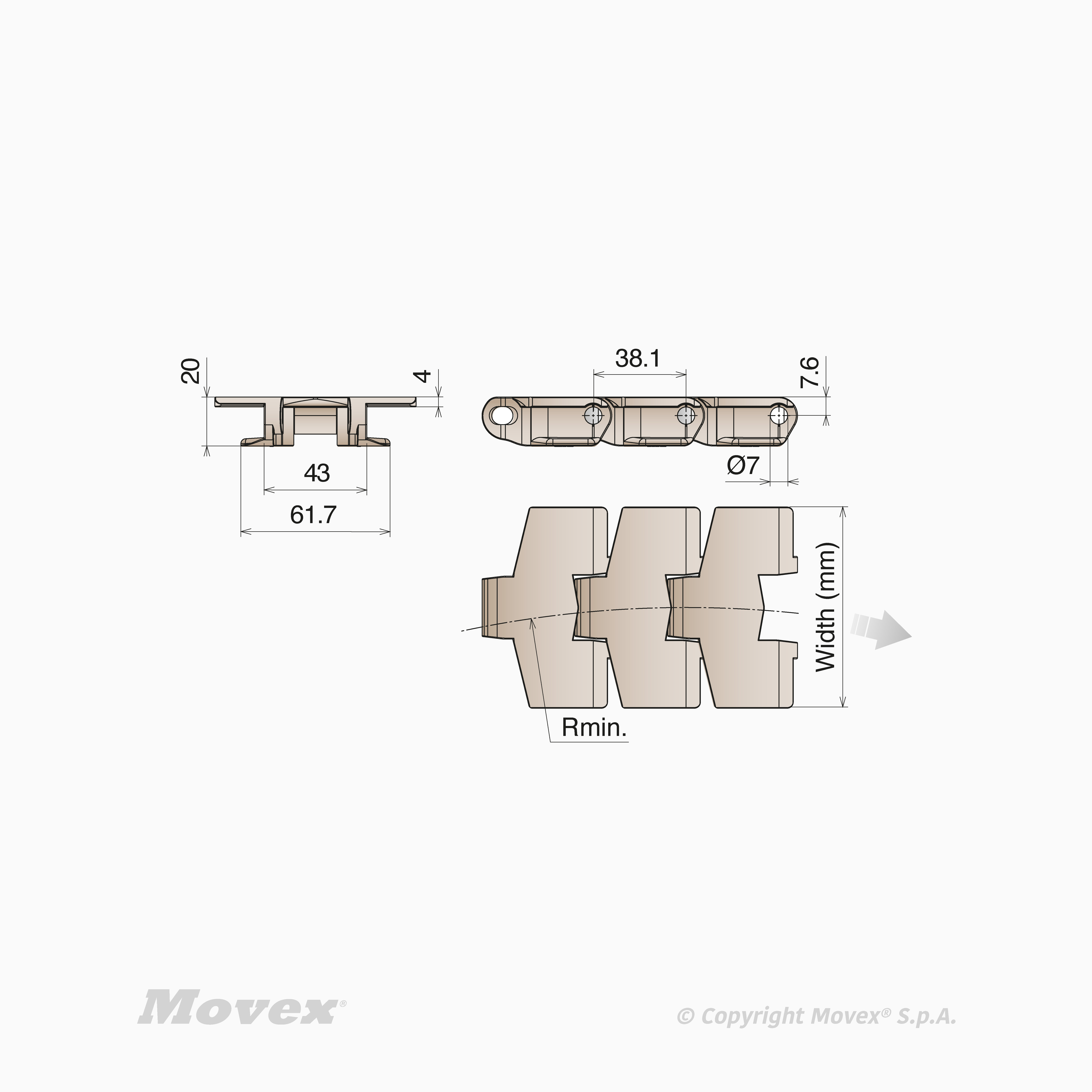

880 TAB BO Flat Top
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11260102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1126 | 40 mm | 190 mm | 0.96 kg/m | Stainless steel | 10 ft - 3,048 m | 1680 N |
|
| P11260105 | K 450 - 114,3 mm | LF - Low friction acetal (01) | P1126 | 40 mm | 190 mm | 1.1 kg/m | Stainless steel | 10 ft - 3,048 m | 1680 N |
|
| P11260302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1126 | 40 mm | 190 mm | 0.96 kg/m | Stainless steel | 10 ft - 3,048 m | 1350 N |
|
| P11260305 | K 450 - 114,3 mm | MX - Performance PBT (03) | P1126 | 40 mm | 190 mm | 1.1 kg/m | Stainless steel | 10 ft - 3,048 m | 1350 N |
|
