880 split molded sprocket

880 split molded sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 10 12	All 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Molded	All 123.3 mm 147.2 mm	All 122 mm 147.3 mm	All 65.25 mm 77.2 mm	All PA - Polyamide reinforced	All -20÷120 °C	All -20÷120 °C	Actions

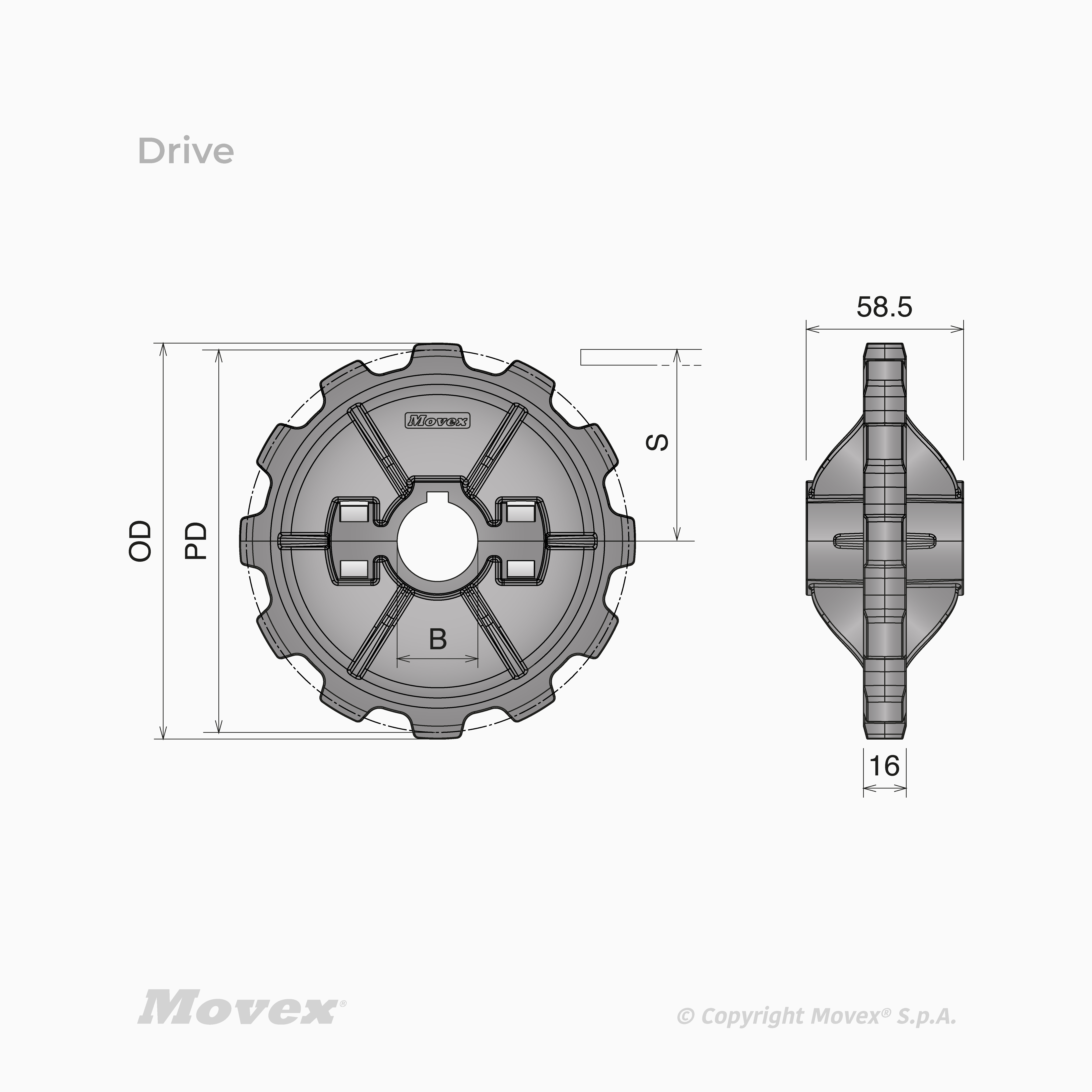

P54901	10	25 mm	Drive	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54902	10	30 mm	Drive	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54903	10	35 mm	Drive	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54904	10	40 mm	Drive	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

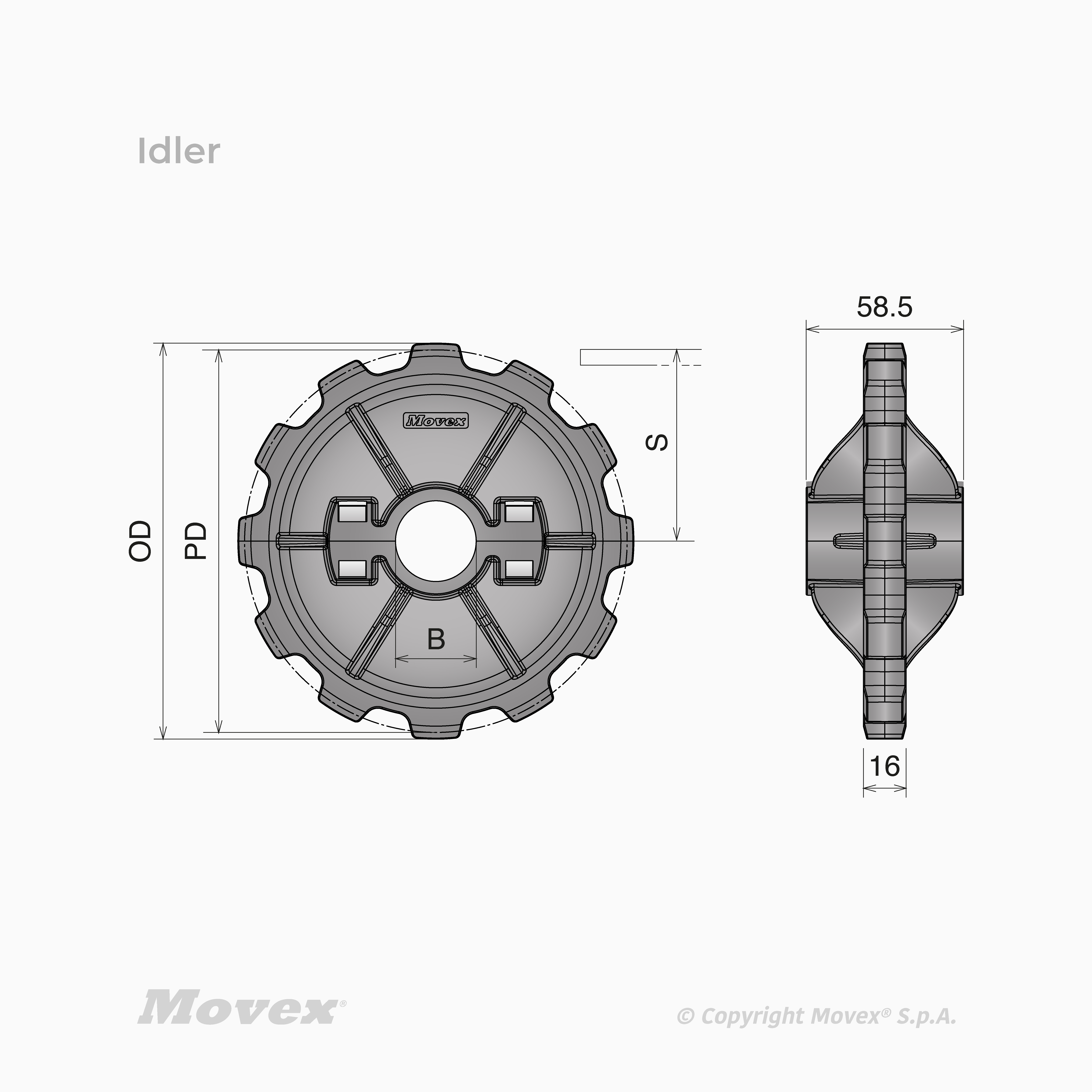

P54951	10	25 mm	Idler	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54952	10	30 mm	Idler	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54953	10	35 mm	Idler	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P54954	10	40 mm	Idler	Split	Molded	123.3 mm	122 mm	65.25 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55001	12	25 mm	Drive	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55002	12	30 mm	Drive	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55003	12	35 mm	Drive	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55004	12	40 mm	Drive	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55051	12	25 mm	Idler	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55052	12	30 mm	Idler	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55053	12	35 mm	Idler	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P55054	12	40 mm	Idler	Split	Molded	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

•
