880 split machined sprocket

880 split machined sprocket

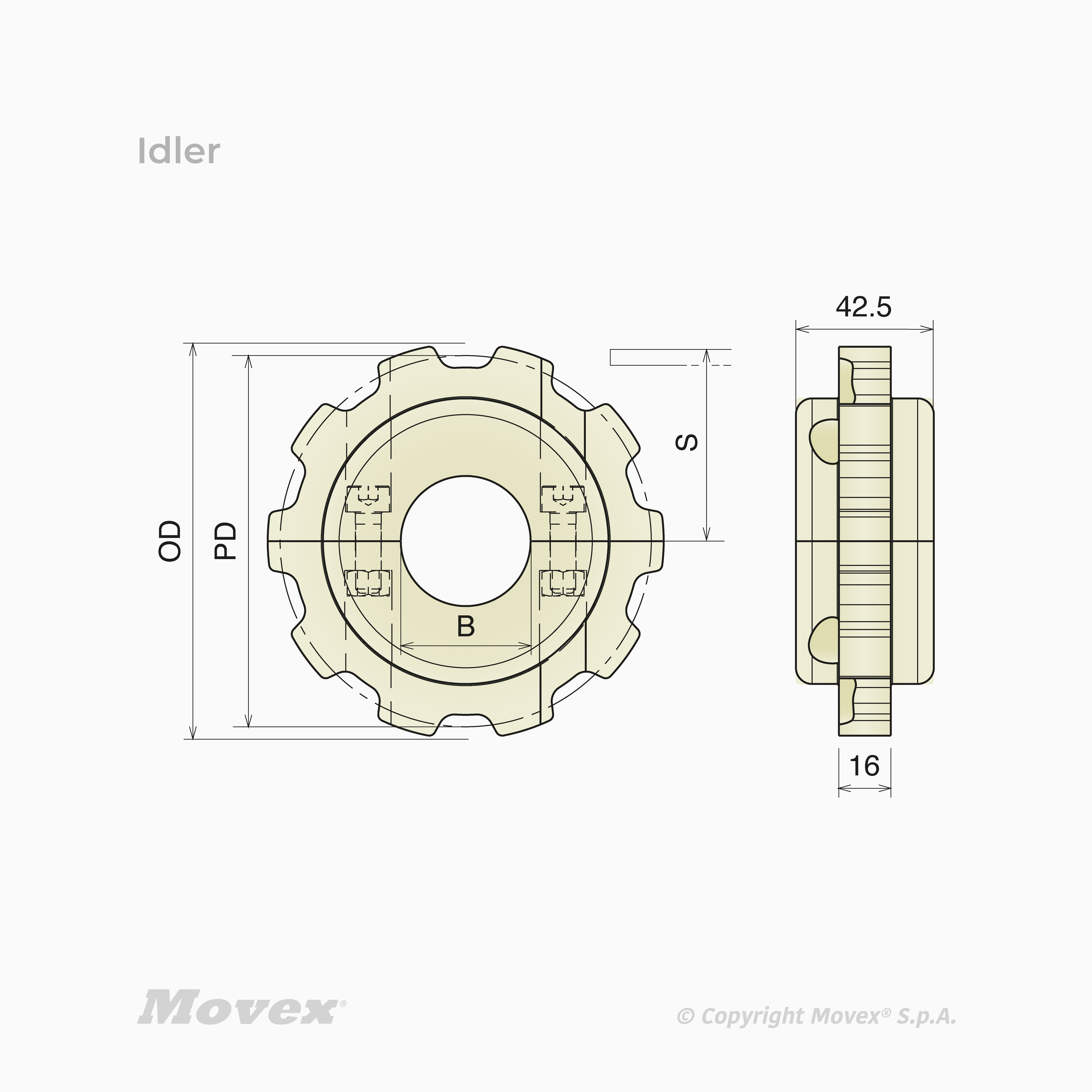

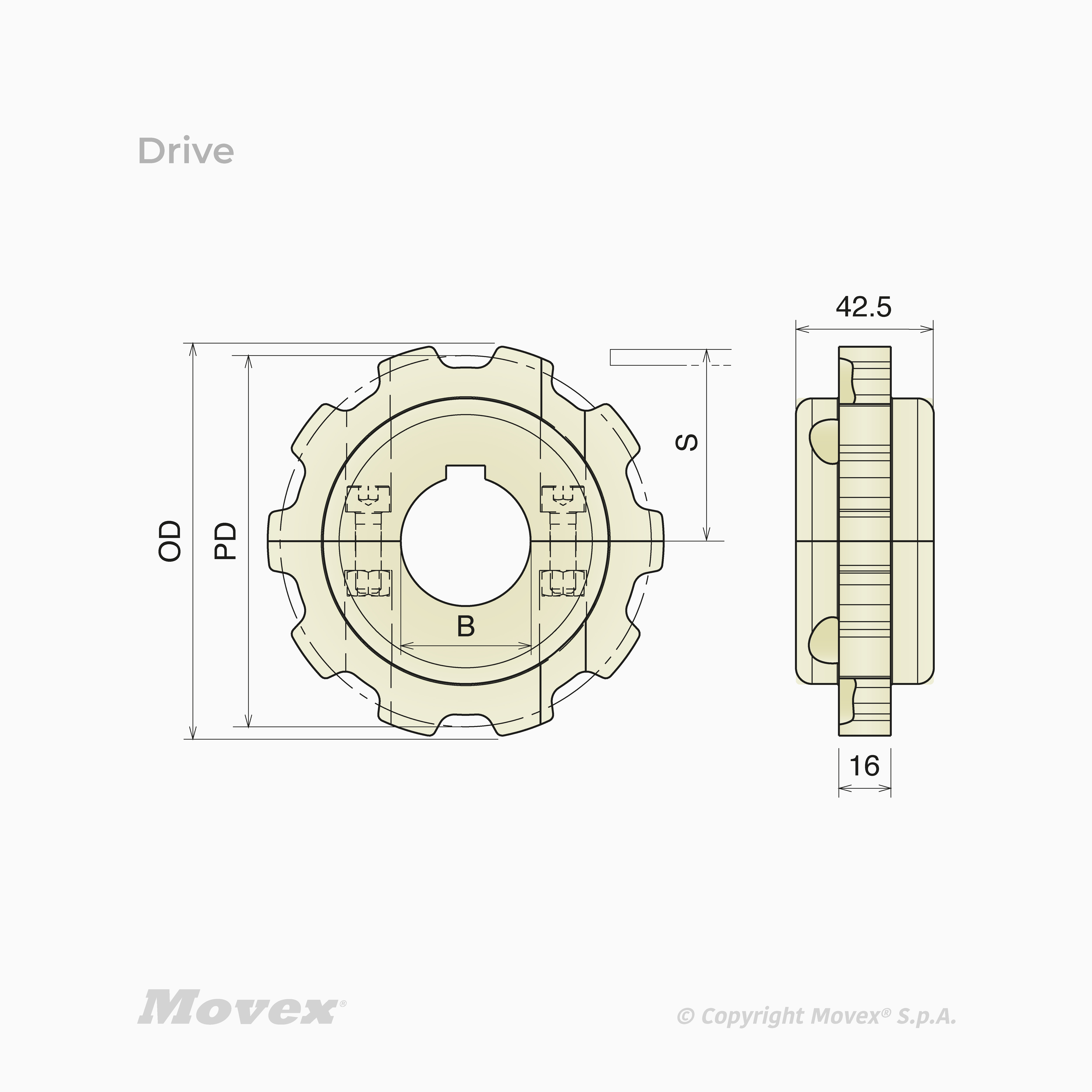

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 9 10 11 12	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 114.4 mm 123.3 mm 135.2 mm 147.2 mm	All 110 mm 122 mm 135 mm 147.3 mm	All 59.3 mm 65.25 mm 71.2 mm 77.2 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P54501	9	25 mm	Drive	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54502	9	30 mm	Drive	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54503	9	35 mm	Drive	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54504	9	40 mm	Drive	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54550	9	18 mm	Idler	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54551	9	25 mm	Idler	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54552	9	30 mm	Idler	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54553	9	35 mm	Idler	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54554	9	40 mm	Idler	Split	Machined	114.4 mm	110 mm	59.3 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54601	10	25 mm	Drive	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54602	10	30 mm	Drive	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54603	10	35 mm	Drive	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54604	10	40 mm	Drive	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54650	10	18 mm	Idler	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54651	10	25 mm	Idler	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54652	10	30 mm	Idler	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54653	10	35 mm	Idler	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54654	10	40 mm	Idler	Split	Machined	123.3 mm	122 mm	65.25 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54701	11	25 mm	Drive	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54702	11	30 mm	Drive	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54703	11	35 mm	Drive	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54704	11	40 mm	Drive	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54750	11	18 mm	Idler	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54751	11	25 mm	Idler	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54752	11	30 mm	Idler	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54753	11	35 mm	Idler	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54754	11	40 mm	Idler	Split	Machined	135.2 mm	135 mm	71.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54801	12	25 mm	Drive	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54802	12	30 mm	Drive	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54803	12	35 mm	Drive	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54804	12	40 mm	Drive	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54850	12	18 mm	Idler	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54851	12	25 mm	Idler	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54852	12	30 mm	Idler	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54853	12	35 mm	Idler	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54854	12	40 mm	Idler	Split	Machined	147.2 mm	147.3 mm	77.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
