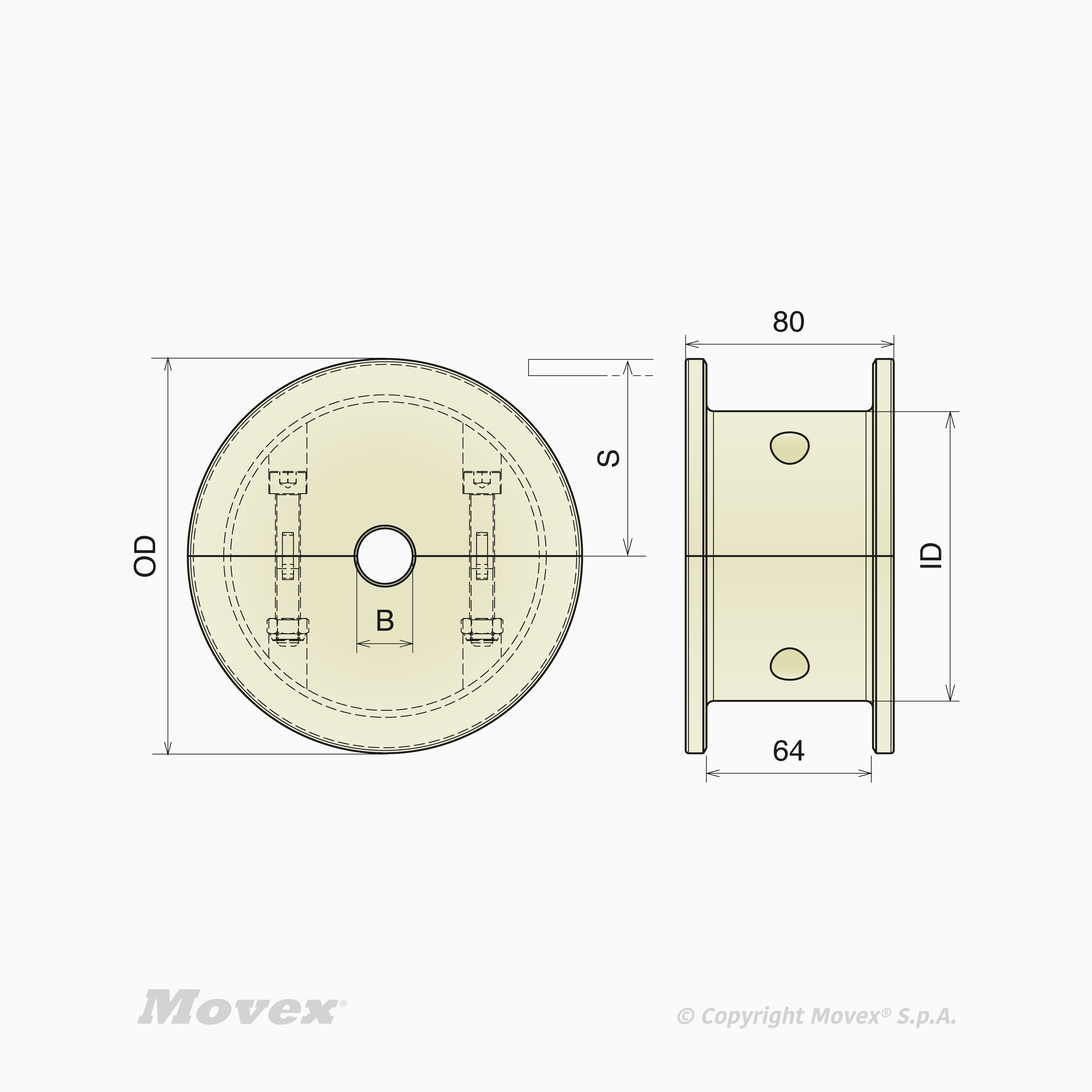

880 split machined idler wheel

880 split machined idler wheel

	Z-	Bore	Version	Type	Execution	Outer diameter	Inner diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 9 10 11 12	All 20 mm 25 mm 30 mm 35 mm 40 mm	All Idler wheel	All Split	All Machined	All 117 mm 129.8 mm 142.2 mm 154.7 mm	All 108 mm 112 mm 75 mm 95 mm	All 62.6 mm 68.6 mm 74.6 mm 80.5 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P63700	9	20 mm	Idler wheel	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63701	9	25 mm	Idler wheel	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63702	9	30 mm	Idler wheel	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63703	9	35 mm	Idler wheel	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63704	9	40 mm	Idler wheel	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63800	10	20 mm	Idler wheel	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63801	10	25 mm	Idler wheel	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63802	10	30 mm	Idler wheel	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63803	10	35 mm	Idler wheel	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63804	10	40 mm	Idler wheel	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63900	11	20 mm	Idler wheel	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63901	11	25 mm	Idler wheel	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63902	11	30 mm	Idler wheel	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63903	11	35 mm	Idler wheel	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P63904	11	40 mm	Idler wheel	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P64000	12	20 mm	Idler wheel	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P64001	12	25 mm	Idler wheel	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P64002	12	30 mm	Idler wheel	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P64003	12	35 mm	Idler wheel	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P64004	12	40 mm	Idler wheel	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
