Home Chains Plastic chains 879 TAB Flat Top

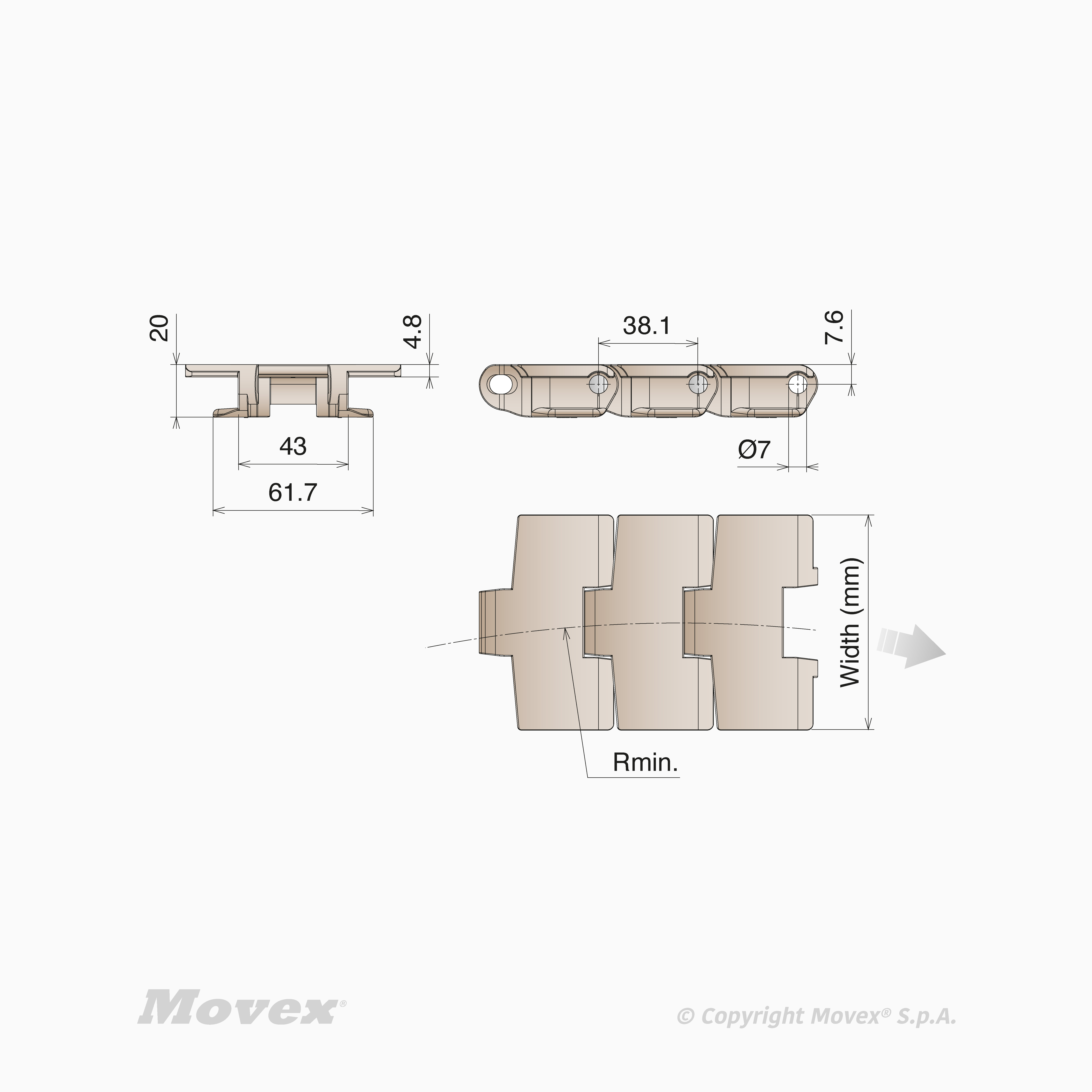

879 TAB Flat Top

Plastic chains

Enquire Now

Description

Basic features

Series:	820-828-831-878-879-880-888
Pitch:	38.1 mm
Thickness:	4.8 mm
Surface Type:	FT - Flat Top
Functionality:	Side Flex TAB
Unit of measure:	Meter

879 TAB Flat Top

	Width	Material	Part	Back flex radius	Sideflexing radius min	Mass	Pin material	Box	Max working load
Code										Actions
P11250102	K 325 - 82,5 mm	LF - Low friction acetal (01)	P1125	50 mm	457 mm	1.01 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
P11250105	K 450 - 114,3 mm	LF - Low friction acetal (01)	P1125	50 mm	457 mm	1.13 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
P11250302	K 325 - 82,5 mm	MX - Performance PBT (03)	P1125	50 mm	457 mm	1.01 kg/m	Stainless steel	10 ft - 3,048 m	1750 N
P11251702	K 325 - 82,5 mm	MWX - Polyamide Composite (17)	P1125	50 mm	457 mm	1.01 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
P11251705	K 450 - 114,3 mm	MWX - Polyamide Composite (17)	P1125	50 mm	457 mm	1.13 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
P11252302	K 450 - 114,3 mm	MX - Performance PBT (03)	P1125	50 mm	457 mm	1.13 kg/m	Stainless steel	10 ft - 3,048 m	1750 N
P11252502	K 325 - 82,5 mm	MPX - Lubricated acetal (25)	P1125	50 mm	457 mm	1.01 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
P11252505	K 450 - 114,3 mm	MPX - Lubricated acetal (25)	P1125	50 mm	457 mm	1.13 kg/m	Stainless steel	10 ft - 3,048 m	2200 N
