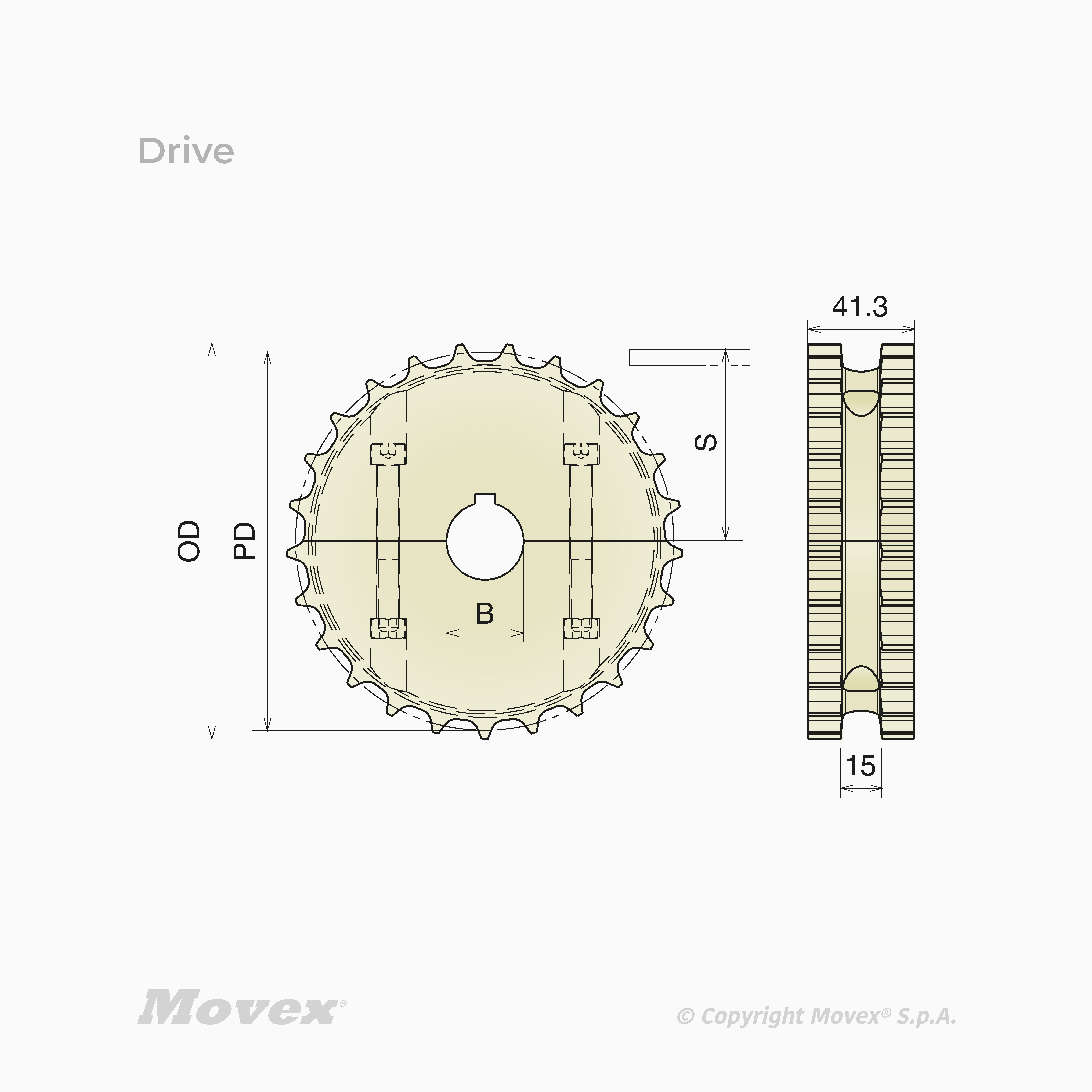

831 split machined sprocket

831 split machined sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 19 21 23 25 27 29	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 105.5 mm 117.3 mm 129.3 mm 141.2 mm 153.2 mm 165.2 mm 177.2 mm	All 103.9 mm 117 mm 129 mm 142 mm 154 mm 166.8 mm 178.5 mm	All 55.1 mm 61.1 mm 67 mm 73 mm 79 mm 85 mm 91 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P53501-1	17	25 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53502-1	17	30 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53503-1	17	35 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53504-1	17	40 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53550-1	17	18 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53551-1	17	25 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53552-1	17	30 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53553-1	17	35 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53554-1	17	40 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53601-1	19	25 mm	Drive	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53602-1	19	30 mm	Drive	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53603-1	19	35 mm	Drive	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53604-1	19	40 mm	Drive	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53650-1	19	18 mm	Idler	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53651-1	19	25 mm	Idler	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53652-1	19	30 mm	Idler	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53653-1	19	35 mm	Idler	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53654-1	19	40 mm	Idler	Split	Machined	117.3 mm	117 mm	61.1 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53701-1	21	25 mm	Drive	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53702-1	21	30 mm	Drive	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53703-1	21	35 mm	Drive	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53704-1	21	40 mm	Drive	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53750-1	21	18 mm	Idler	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53751-1	21	25 mm	Idler	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53752-1	21	30 mm	Idler	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53753-1	21	35 mm	Idler	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53754-1	21	40 mm	Idler	Split	Machined	129.3 mm	129 mm	67 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53801-1	23	25 mm	Drive	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53802-1	23	30 mm	Drive	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53803-1	23	35 mm	Drive	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53804-1	23	40 mm	Drive	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53850-1	23	18 mm	Idler	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53851-1	23	25 mm	Idler	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53852-1	23	30 mm	Idler	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53853-1	23	35 mm	Idler	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53854-1	23	40 mm	Idler	Split	Machined	141.2 mm	142 mm	73 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53901-1	25	25 mm	Drive	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53902-1	25	30 mm	Drive	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53903-1	25	35 mm	Drive	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53904-1	25	40 mm	Drive	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53950-1	25	18 mm	Idler	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53951-1	25	25 mm	Idler	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53952-1	25	30 mm	Idler	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53953-1	25	35 mm	Idler	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53954-1	25	40 mm	Idler	Split	Machined	153.2 mm	154 mm	79 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54001-1	27	25 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54002-1	27	30 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54003-1	27	35 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54004-1	27	40 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54050-1	27	18 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54051-1	27	25 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54052-1	27	30 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54053-1	27	35 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54054-1	27	40 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54101-1	29	25 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54102-1	29	30 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54103-1	29	35 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54104-1	29	40 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54150-1	29	18 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54151-1	29	25 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54152-1	29	30 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54153-1	29	35 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54154-1	29	40 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
