8257 Grip Top
Plastic chains
Description
Basic features
| Series: | 821-882-8257 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4.8 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

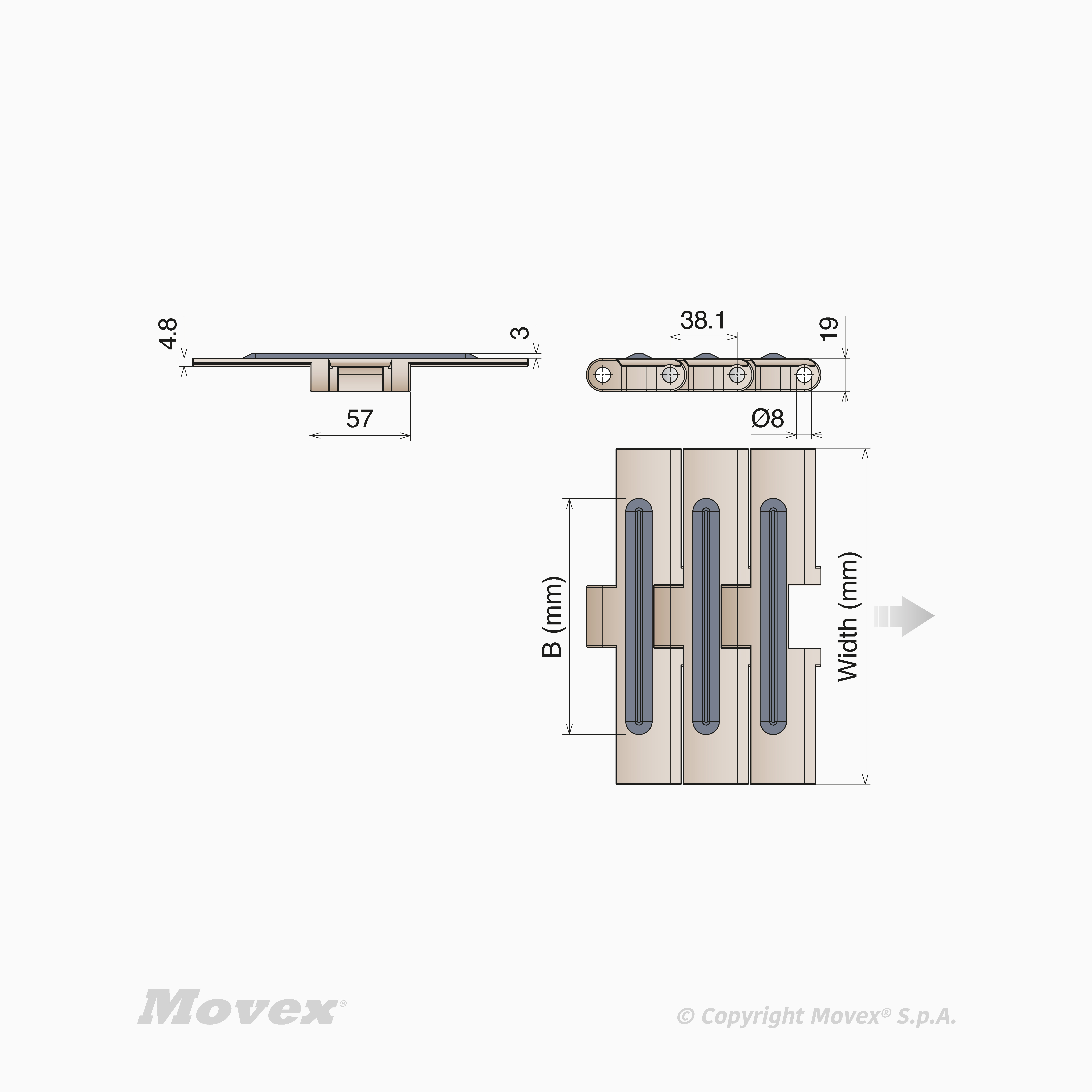

8257 Grip Top
| Width | Material | Part | Back flex radius | Mass | Rubber width (B) | Rubber type | Rubber hardness ShA | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P11080107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1108 | 50 mm | 2.55 kg/m | 134 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 3830 N |
|
| P11080108 | K1000 - 254,0 mm | LF - Low friction acetal (01) | P1108 | 50 mm | 2.6 kg/m | 192 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 3830 N |
|
| P11080109 | K1200 - 304,8 mm | LF - Low friction acetal (01) | P1108 | 50 mm | 2.95 kg/m | 252 mm | TPE Rubber | 50 | Stainless steel | 5 ft - 1,524 m | 3830 N |
|
