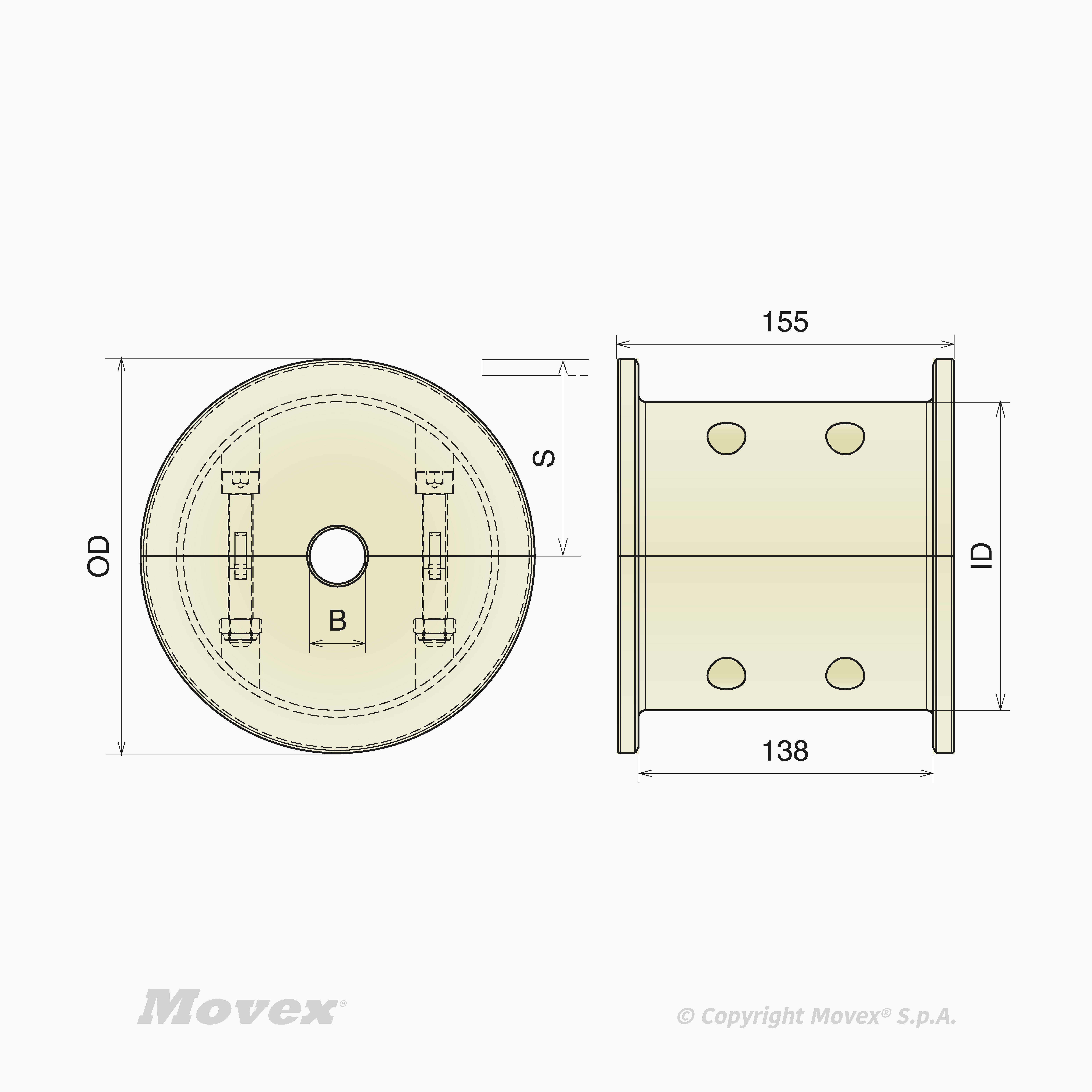

821 split machined idler wheel

821 split machined idler wheel

	Z-	Bore	Version	Type	Execution	Outer diameter	Inner diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 19 21 23 25	All 20 mm 25 mm 30 mm 35 mm 40 mm	All Idler wheel	All Split	All Machined	All 117 mm 129.8 mm 142.2 mm 154.7 mm	All 105 mm 111.3 mm 124.7 mm 92.2 mm	All 62.6 mm 68.6 mm 74.6 mm 80.5 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P62500	19	20 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62501	19	25 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62502	19	30 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62503	19	35 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62504	19	40 mm	Idler wheel	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62600	21	20 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62601	21	25 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62602	21	30 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62603	21	35 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62604	21	40 mm	Idler wheel	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62700	23	20 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62701	23	25 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62702	23	30 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62703	23	35 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62704	23	40 mm	Idler wheel	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62800	25	20 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62801	25	25 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62802	25	30 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62803	25	35 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62804	25	40 mm	Idler wheel	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
